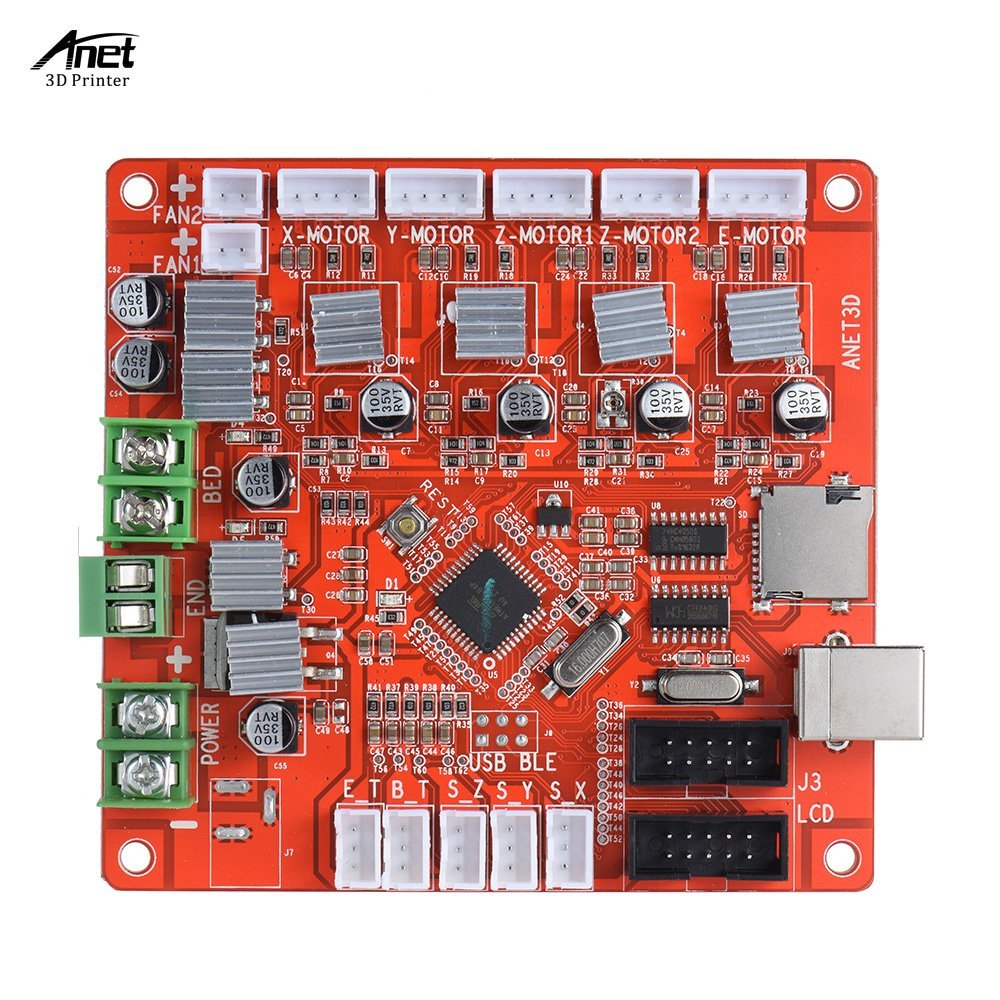

[Discontinued] Motherboard for Anet A8 3D Printer RepRap Prusa i3 Kit
Brand: Anet SKU: 101-91-150

[Discontinued] Motherboard for Anet A8 3D Printer RepRap Prusa i3 Kit

SKU: 101-91-150 Variants ID: 51247576980
$39.00

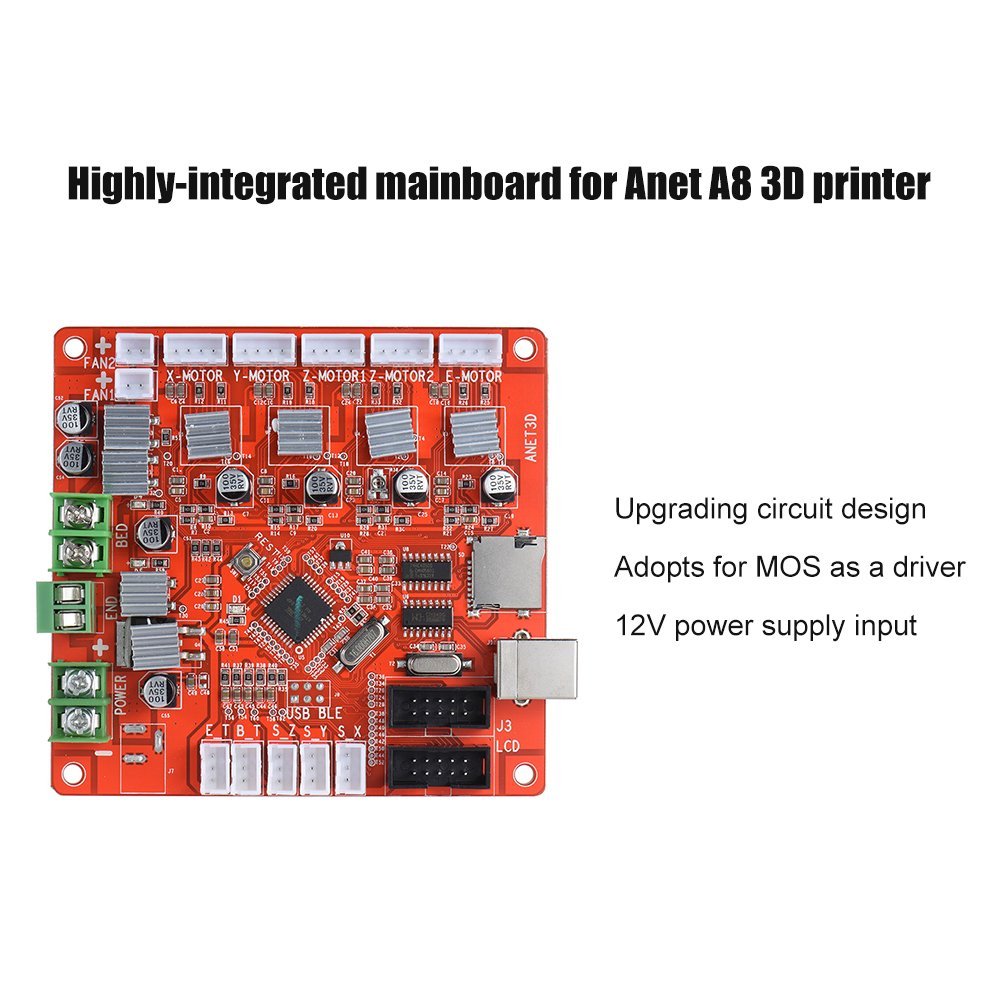

  • Highly-integrated mainboard fits for Anet A2A6/A8 3D printer.
  • Upgrading circuit design.
  • Adopts for MOS with high-perforamnce as a driver.
  • 12V power supply input receivable, with USB port.
  • Support the connection for Ramps1.4, 2004 LCD and 12864 LCD control board.
  • Highly-integrated mainboard fits for Anet A2A6/A8 3D printer.
  • Upgrading circuit design.
  • Adopts for MOS with high-perforamnce as a driver.
  • 12V power supply input receivable, with USB port.
  • Support the connection for Ramps1.4, 2004 LCD and 12864 LCD control board.

SPECIFICATION
  • Brand: Anet
  • Suitable for: Anet A2/A6/A8 3D Printer
  • Voltage Input: 12V

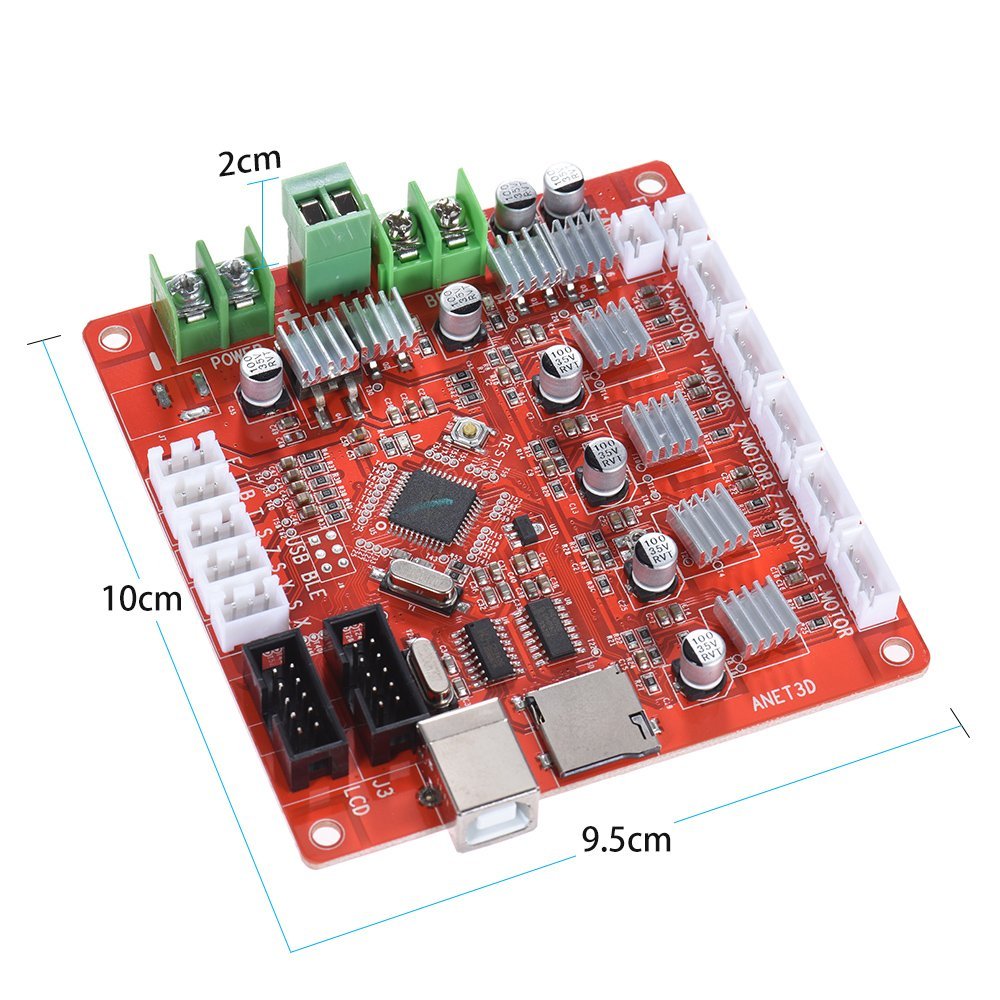

  • Mainboard Size: 10 * 9.5 * 2 cm / 3.9 * 3.7 * 0.8 inch
  • Mainboard Weight: 63g / 2.2oz
  • Package Size: 12 * 11 * 3 cm / 4.7 * 4.3 * 1.2 inch
  • Package Weight: 80g / 2.8oz



WHAT'S IN THE PACKAGE
  • 1 * Mainboard

Note:

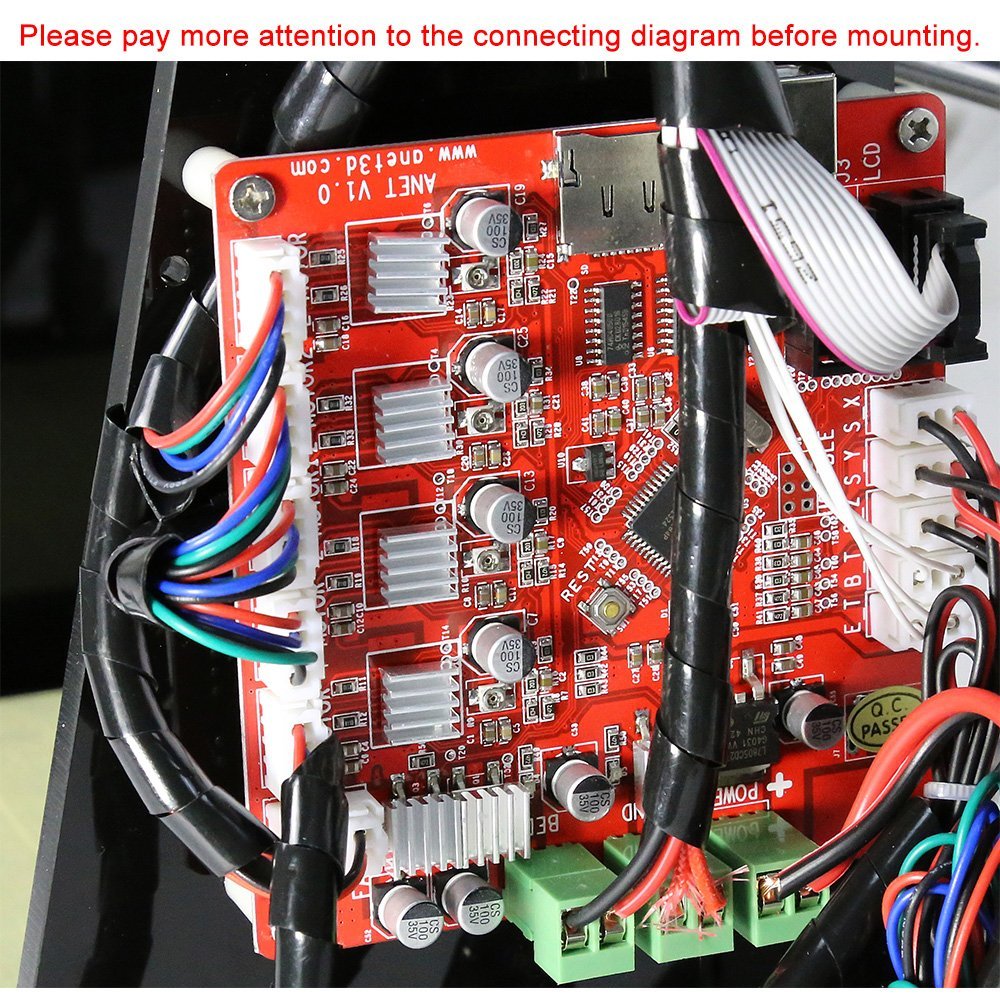

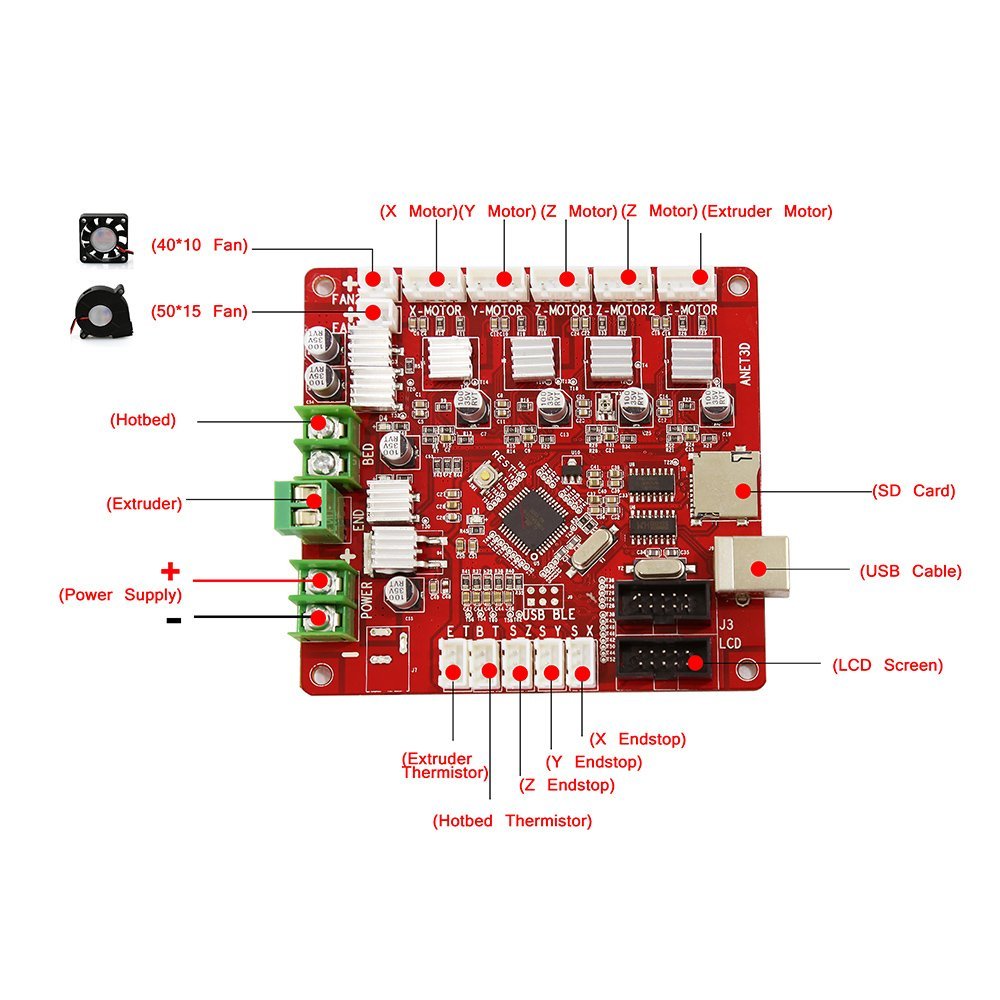

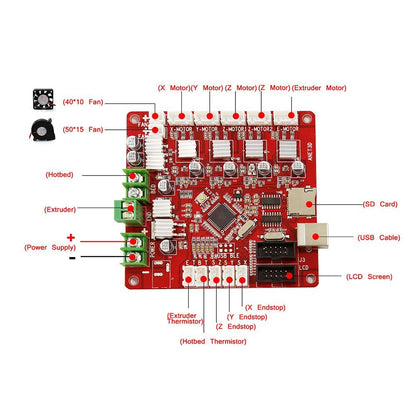

Please pay more attention to the circuit diagram showed in the picture before mount it.
