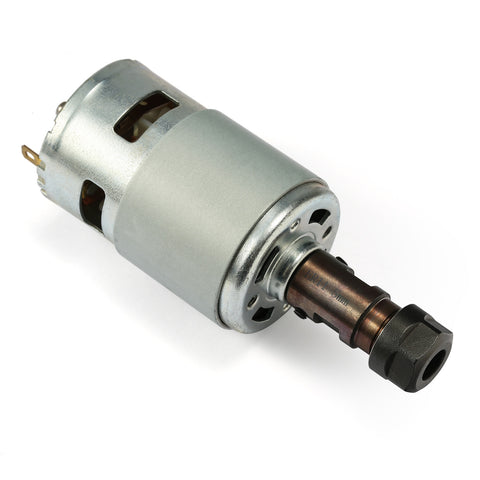

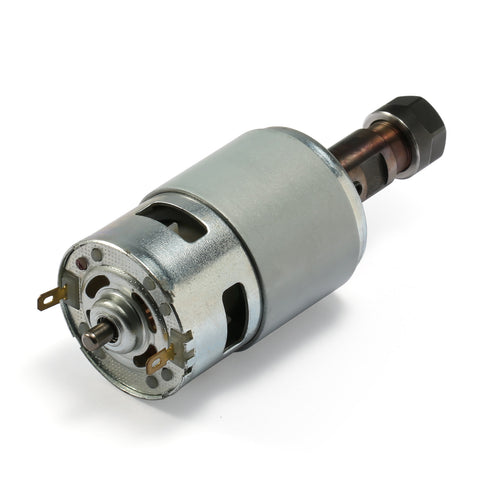

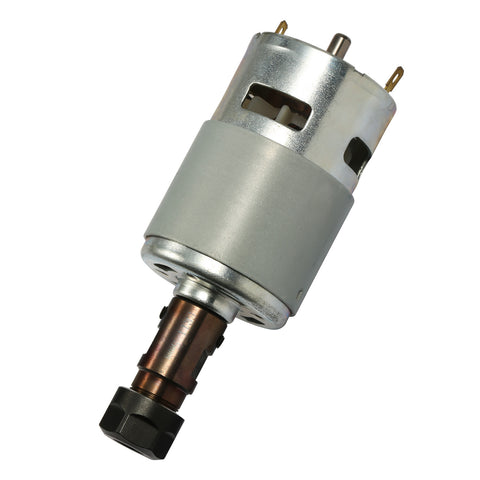

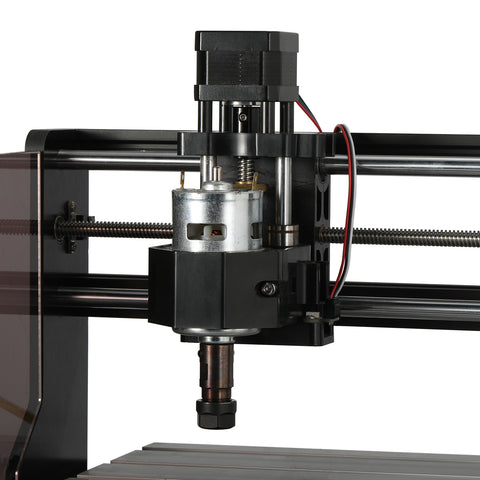

[Replacement] Genmitsu 775 Spindle Motor for 3018-PRO
Brand: Genmitsu SKU: 101-63-L04

[Replacement] Genmitsu 775 Spindle Motor for 3018-PRO

SKU: 101-63-L04 Variants ID: 39469417791567
$19.99
  • 775 motor 12V; 24V 9000 RPM
  • Material:Alloy
  • Shaft Diameter: Approx.5 mm
  • Motor Overall Length: Approx.67 mm

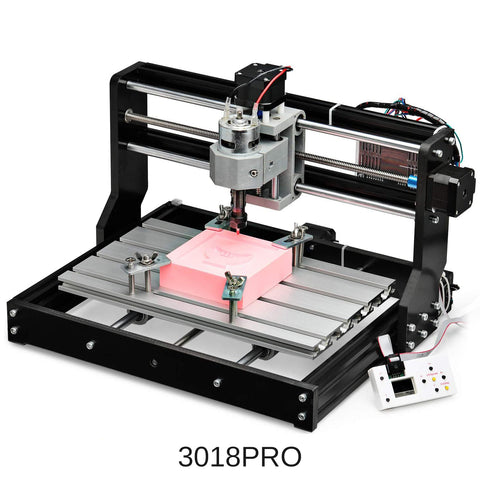

  • More 3018-PRO replacements are available here.
Please check the necessary options first
I agree to the item is not eligible for exchange or return.
Ship to USA only. Final Sale. 6-month Warranty. Details
  • 775 motor 12V; 24V 9000 RPM
  • Material:Alloy
  • Shaft Diameter: Approx.5 mm
  • Motor Overall Length: Approx.67 mm
  • More 3018-PRO replacements are available here.


FEATURE:

  • Type: Motor
  • Material: Alloy

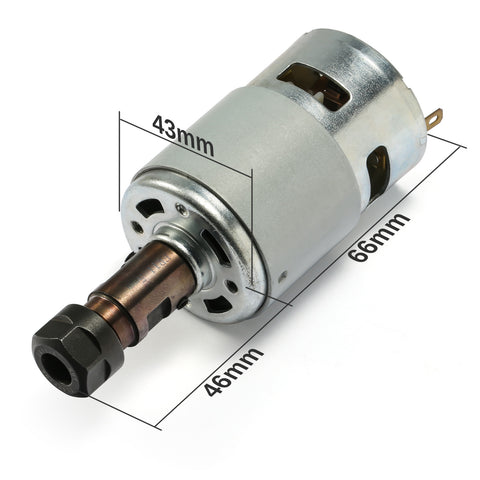

  • Shaft Diameter: Approx.5 mm
  • Shaft length: Approx.14 mm
  • Body diameter: Approx.42 mm
  • Motor Overall Length: Approx.67 mm
  • Speed:10000/min
  • Rated Current:1.5A
  • Voltage:12V
  • Range of application: car wash pump, spray, electric fan, toy, juice machine, shredder, vacuum cleaner.


NOTICE:

  • The currently more than 10A when it starts. It is recommended to use power supplies such as switch power or battery.
  • Due to the different monitor and light effects,the actual color maybe a slightly different from the picture color.
  • Please allow 0.5-1cm differs due to manual measurement.
  • Package includes 1 x 775 Motor
