Brand: Genmitsu SKU: 101-63-CM01

CARVE MORE Milling Bits & Spindle Special Bundle

SKU: 101-63-CM01 Variants ID: 32583293239375
$89.99

Cost Effective

Buy the CARVE MORE Bundle at an attractive price. This bundle includes:

  • 10PCS Nano Blue Coat 20 Degree Engraving Bits ($14.99 value)
  • 10PCS 1/8" Shank Micro-Cutting Diameter End Mills Set, EM10-W01($39.99 value)
  • GS-775M 24V 20,000 RPM Spindle with Collet Holder Installed ($29.99 value)
  • 7Pcs ER11 Collet Set ($11.99 value)

Applicable Materials

Widely used in various materials including plastics, aluminum, circuit board, wood, acrylics, carbon fiber, chipboard, MDF, PCB, as well as other precision parts processing.

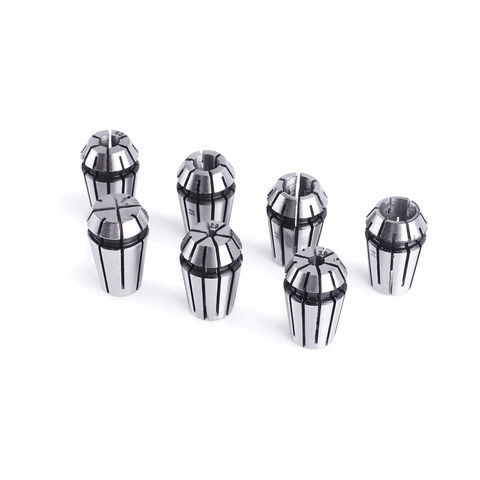

7Pcs ER11 Collet Set

Gripping Range: 1mm to 7mm (1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm). Perfect for CNC milling lathe tool and work-holding engraving machine.

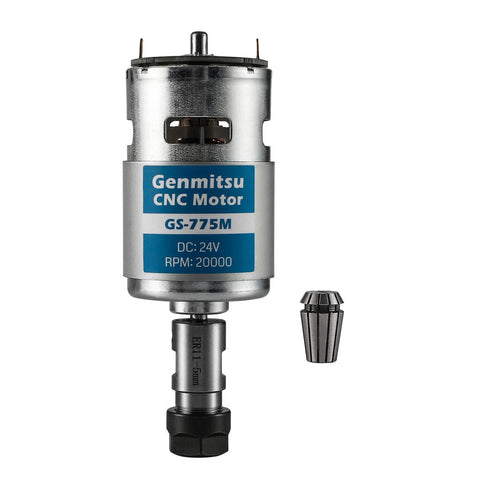

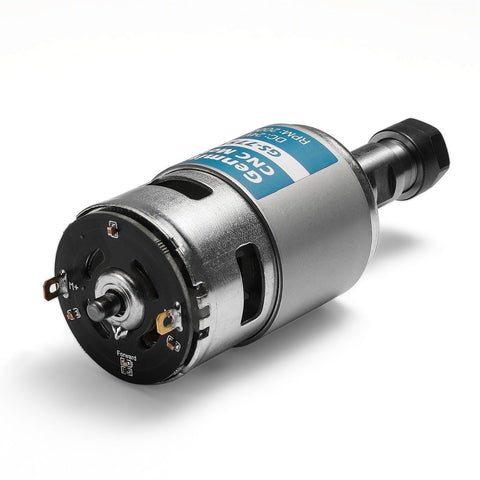

GS-775M Spindle with Collet Holder Installed

DC: 24V. Speed: 20000/min. Pre-installed motor noise suppression PCB provides enhanced performance. Experience a quick and easy upgrade for your Genmitsu Desktop CNC. It's compatible with Genmitsu 3018 Series CNC router.

Cost Effective

Buy the CARVE MORE Bundle at an attractive price. This bundle includes:

  • 10PCS Nano Blue Coat 20 Degree Engraving Bits ($14.99 value)
  • 10PCS 1/8" Shank Micro-Cutting Diameter End Mills Set, EM10-W01($39.99 value)
  • GS-775M 24V 20,000 RPM Spindle with Collet Holder Installed ($29.99 value)
  • 7Pcs ER11 Collet Set ($11.99 value)

Applicable Materials

Widely used in various materials including plastics, aluminum, circuit board, wood, acrylics, carbon fiber, chipboard, MDF, PCB, as well as other precision parts processing.

7Pcs ER11 Collet Set

Gripping Range: 1mm to 7mm (1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm). Perfect for CNC milling lathe tool and work-holding engraving machine.

GS-775M Spindle with Collet Holder Installed

DC: 24V. Speed: 20000/min. Pre-installed motor noise suppression PCB provides enhanced performance. Experience a quick and easy upgrade for your Genmitsu Desktop CNC. It's compatible with Genmitsu 3018 Series CNC router.


What's in the package

10Pcs Nano Blue Coat 20 Degree Engraving Bits (Shank Diameter: 3.175mm, Total Length: 30mm)

10PCS 1/8" Shank Micro-Cutting Diameter End Mills Set, EM10-W01
1 x Tapered Ball Nose End Mill (Radius: 0.25mm, Cutting Length: 15mm)
1 x Tapered Ball Nose End Mill (Radius: 0.5mm,Cutting Length: 15mm)
1 x Tapered Ball Nose End Mill (Radius: 0.75mm,Cutting Length: 15mm)
1 x Tapered Ball Nose End Mill (Radius: 1.0mm,Cutting Length: 15mm)
2 x Single Flute Spiral End Mill (Cutting Diameter: 2mm, Cutting Length: 8mm)
1 x Single Flute Spiral End Mill (Cutting Diameter: 3.1mm, Cutting Length: 12mm)
1 x Single Flute Spiral End Mill (Cutting Diameter: 3.1mm, Cutting Length: 22mm)

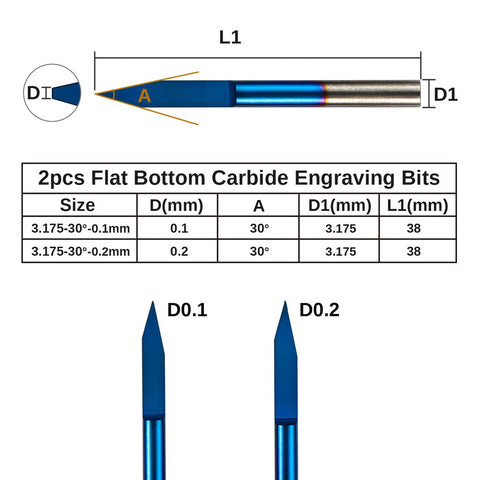

1 x Flat Bottom Tungsten Carbide Steel Alloy Engraving Bit (Cutting Diameter: 0.1mm, Angle: 30°)
1 x Flat Bottom Tungsten Carbide Steel Alloy Engraving Bit (Cutting Diameter: 0.2mm, Angle: 30°)

1x Genmitsu GS-775M CNC Spindle Motor with Collet Holder Installed

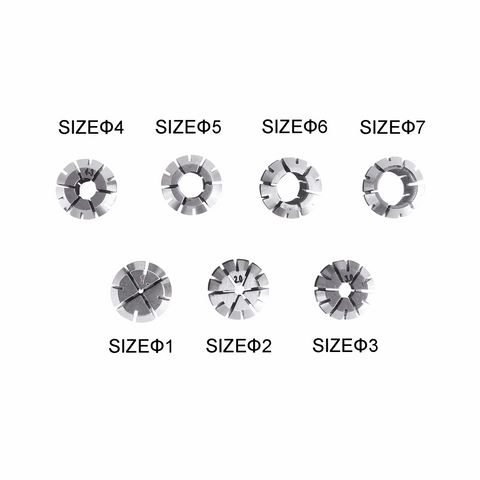

7Pcs ER11 Collet Set
1 x 1mm ER11 Spring Collet
1 x 2mm ER11 Spring Collet
1 x 3mm ER11 Spring Collet
1 x 4mm ER11 Spring Collet
1 x 5mm ER11 Spring Collet
1 x 6mm ER11 Spring Collet
1 x 7mm ER11 Spring Collet
