Brand: Genmitsu SKU: 101-60-JLE1620

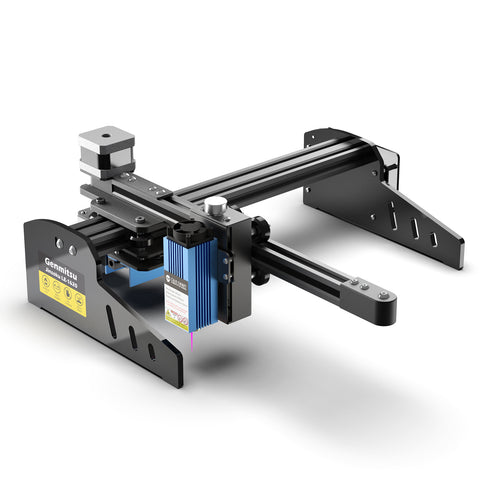

[Discontinued] Jinsoku LE-1620 Portable 5.5W Single Arm Laser Engraver

SKU: 101-60-JLE1620 5 reviews Variants ID: 39396925734991
$229.00 $259.00
Save $30.00

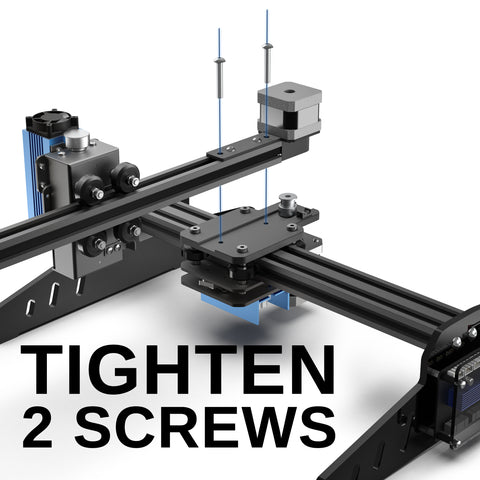

Super easy to assemble and start in minutes. Bigger engraving area (200mm X 160mm) than similar machines. Compatible with Lightburn/laserGRBL, etc.

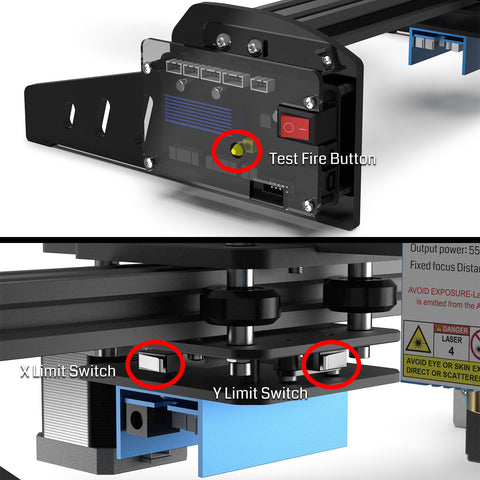

Advanced Motherboard with Test fire button enables you to easily locate and pre-run your project, it comes with XY limit switch for auto zero;

Z-axis is height adjustable, it can expand your projects with a Rotary accessory or work with thicker materials.

Super easy to assemble and start in minutes. Bigger engraving area (200mm X 160mm) than similar machines. Compatible with Lightburn/laserGRBL, etc.

Advanced Motherboard with Test fire button enables you to easily locate and pre-run your project, it comes with XY limit switch for auto zero;

Z-axis is height adjustable, it can expand your projects with a Rotary accessory or work with thicker materials.

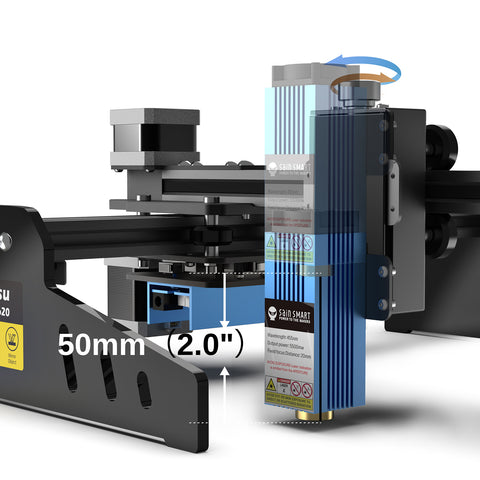

Height Adjustable Z-axis

You can easily adjust the height of the laser to fit in materials of different heights and thicknesses.

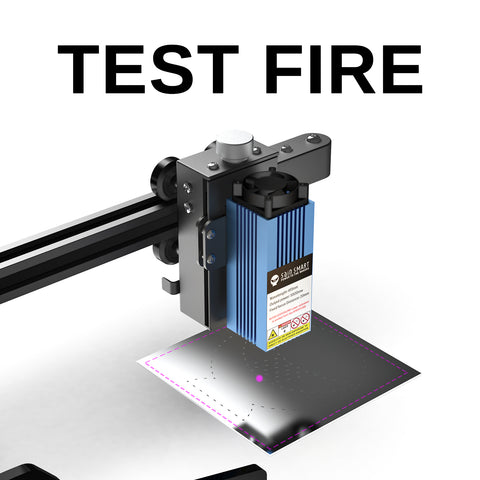

Test Fire Design

Get the most out of your stock material by accurately tracing your work area before you start your engraving/cut.

1. Press the button to test fire.

2. Long Press the button to return XY to zero.

3. Press it to pre-run the engraving area (avoid engraving beyond the engraving material). Press it again to turn it off.

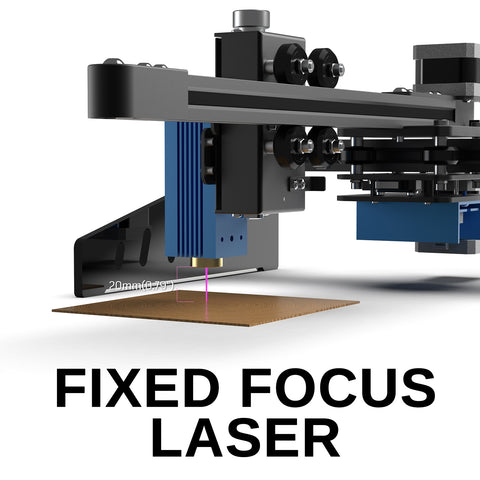

Powerful Laser Module

With 5500MW optical power, 20W input power, the fixed focus laser can not only prolong the service life of the laser head but also achieve maximum power. The drive and laser head are in-stalled sep-arately which reduces the weight of the single arm laser when engraving, making it more stable and easier to replace.

Applicable Materials

Bamboo

Ceramics

Dark Glass

Stainless Steel

MDF

Leather

Aluminum Alloy

Wood

Specification

  • Focal length of laser module:

    20mm

  • Adjustable height of laser:

    50mm

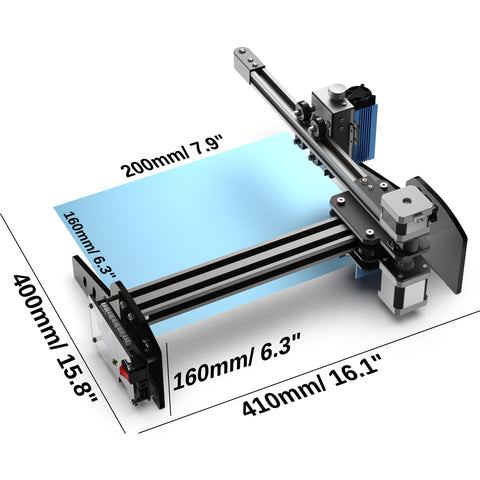

  • Working area:

    200mm (Y) x 160mm(X)

  • Software:

    GRBL firmware, compatible with Lightburn/laserGRBL etc.

  • Dimension after installation:

    410mm x 400mm x 160mm

  • Supported OS:

    Windows XP, 7, 8, 10, Mac OS, and Linux

  • Note:

    Before engraving with aluminum, please use a marker pen to blacken the metal surface to be engraved.

    Quick Start Guide User Manual

Which Laser Machine is right for you?

Genmitsu Jinsoku LC-60A Laser Engraver & Cutter | SainSmart

Jinsoku LC-60A

SHOP NOW

600 x 600mm

23.6 x 23.6in

Working Area


5.5W Fixed Focus

Laser Power


50mm Adjustable
(Leg Extended 135mm)

Z-Axis Height


Laser Shield & Goggles

Safety


Yes

Air-Assit


Yes

Test Fire


Yes

Auto Home


Yes

Limit Switch

Genmitsu Jinsoku LC-60A Laser Engraver & Cutter | SainSmart

Jinsoku LC-40

SHOP NOW

400 x 400mm

15.7 x 15.7in

Working Area


5.5W-10W FAC

Laser Power


76mm Adjustable

Z-Axis Height



Laser Shield & Goggles

Safety


-

Air-Assit


Yes

Test Fire


Yes

Auto Home


Yes

Limit Switch

Genmitsu Jinsoku LC-60A Laser Engraver & Cutter | SainSmart

Jinsoku LE-1620

SHOP NOW

200 x 160mm

7.9 x 6.3in

Working Area


5.5W Fixed Focus

Laser Power


50mm Adjustable

Z-Axis Height



Goggles

Safety


-

Air-Assit


Yes

Test Fire


Yes

Auto Home


Yes

Limit Switch

Genmitsu Jinsoku LC-60A Laser Engraver & Cutter | SainSmart

LC-50 Plus

SHOP NOW

500*400mm

19.7 x 15.7in

Working Area


10W FAC

Laser Power


72mm + 35mm

Z-Axis Height



Laser Shield & Goggles

Safety


Yes

Air-Assit


Yes

Test Fire


Yes

Auto Home


Yes

Limit Switch

Showcase

Customer Reviews
4.6 Based on 5 Reviews
5 ★
80%
4
4 ★
0%
0
3 ★
20%
1
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
A
01/01/2022
Andy
United States United States

Big features in a small package

I received this unit as a Christmas gift. The contents were packed well, documentation was easy to follow, and assembly took less than 15 minutes in total. Although this was my first laser of any type, I was able to use the online instructions to power up the unit, perform some test functions and easily get it connected to my PC via a USB connection. The ability to perform a test fire is proving invaluable to help position test media, while the homing feature gives me the ability to create jigs that I can use to easily and quickly place media of different types into and get quality, repeatable results. I am glad I did some research and chose this as my first diode laser and SainSmart as a vendor. The whole process from product research to actual use was simple and got me doing what I love doing. Making stuff.

DI
09/16/2021
Den i.
Canada

Dangerous

Laser started by itself full power while my hand was target. My PC never recognized it. Avoid.

K
08/09/2021
K.Bunker
United States

I love it!

I've had a few projects in mind for a while that I could do with a laser engraver, and with this machine I'm able to do them and do them very well. Assembly was easy, though not quite as non-existently easy one might expect from the the phrase "pre-assembled" in the title. ?? There are a number of software options for use with a laser engraver; some of them free and available for both Windows and Macs. After looking at the options for Macs, I decided to go with LightBurn. It's not free, but at only $40 (after a free 30-day trial) it's not expensive either. It's quite full-featured, has excellent documentation, and it recognized this Jinsoku LE-1620 engraver. I'm brand new to laser engraving, but I was getting good results out of this one in a couple of hours -- and most of that time was learning my way around the LightBurn software. I have two tips for noobs like me: First, put the engraver on your desk so that the home position is at the bottom left, not top left. That one caused me some frustration and confusion for a while. ?? Second, note that when you plug the machine into the power and your computer's USB, a red LED will light whether the engraver is turned on or not. Don't forget that you have to turn it on. (?? again.) The manual that comes with the engraver is almost exclusively for assembling it, and is fairly clear. For actually using the engraver, you'll be relying on whichever software package you choose and its documentation.

F
08/05/2021
FilipinaShopaholic
United States

Great for smaller projects

I use this to engrave acrylic sheets and its been easier using this instead of my cricut maker. I've been making the engraved sheets for the LED stands and my son loves me being able to make what ere design he asks for. It comes almost fully assembled. It also includes some safety glasses as well for the laser. Of you're never used a laser engraver before, there are tons of videos on now to do it and the softwares you can use. This is a great small one that you can use for smaller projects.

AC
07/28/2021
Amazon C.
United States

Good documentation

This is a small laser engraver for wood and porous surfaces. Fully assembled, the device measures about 16��x16��x6�� and will engrave a surface that measures 6��x8��. In the box, you get parts to assembly the device. You need to assemble the frame yourself, then add the X and Y axis modules, the laser module, connect the wires, and focus the laser. A USB A to USB B cable is included, as well as red goggles and an instruction manual. Software is not included, nor is there any information about how to use the software. Basic safety instructions are included in the manual, however. I find this engraver can do quite a bit more than my first laser engraver could. My first laser engraver was a LaserPecker. While the LaserPecker included the software as a phone app, its engraving area was quite limited, and the software was clunky as well as temperamental. This Genmitsu engraver can engrave on a larger surface, and PC-based software is much more capable than the LaserPecker software. You have several options for software, although the manual only mentions LightBurn. I use LaserGRBL, which is free. It��s not entirely intuitive and it has its quirks, but when you get used to it, you can do a lot with it. This laser does a good job burning wood once you get the laser focused properly. The included fixed focal column piece helps with the focus. I am very happy to see the safety instructions listed in the booklet. Lasers can be really dangerous, so it��s good to be aware of the hazards before you start. Overall, this is a good choice for a small or beginning laser engraver.
