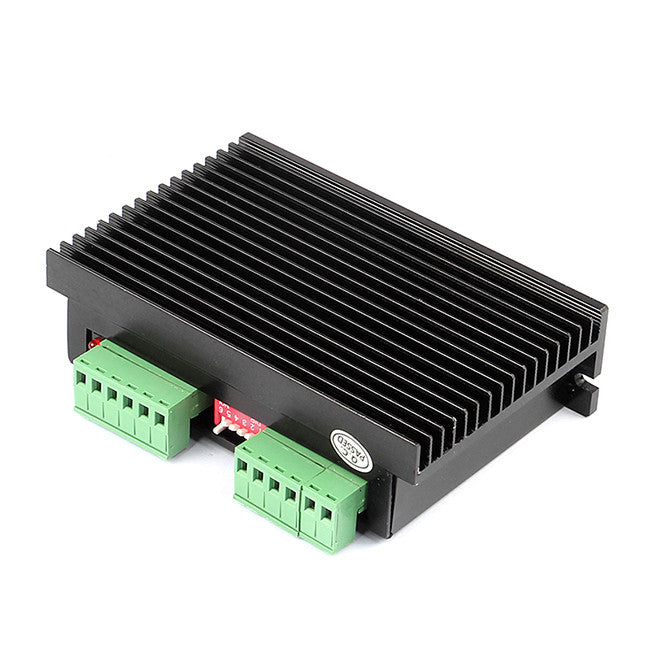

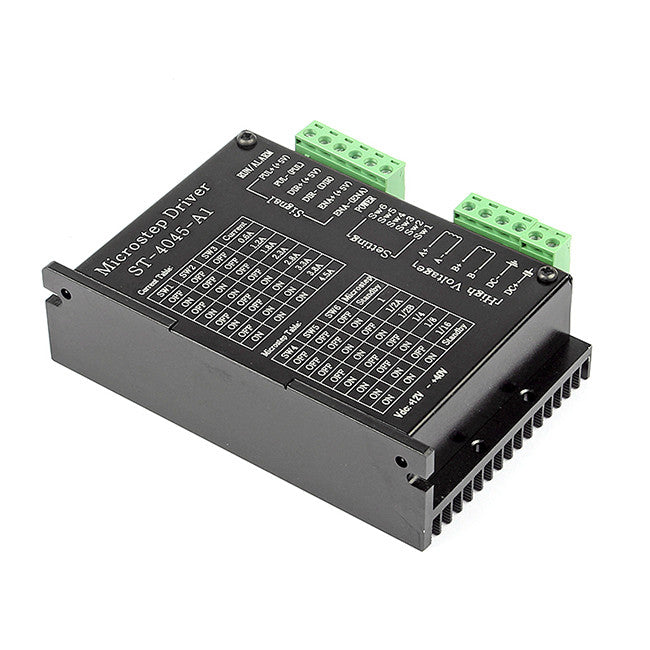

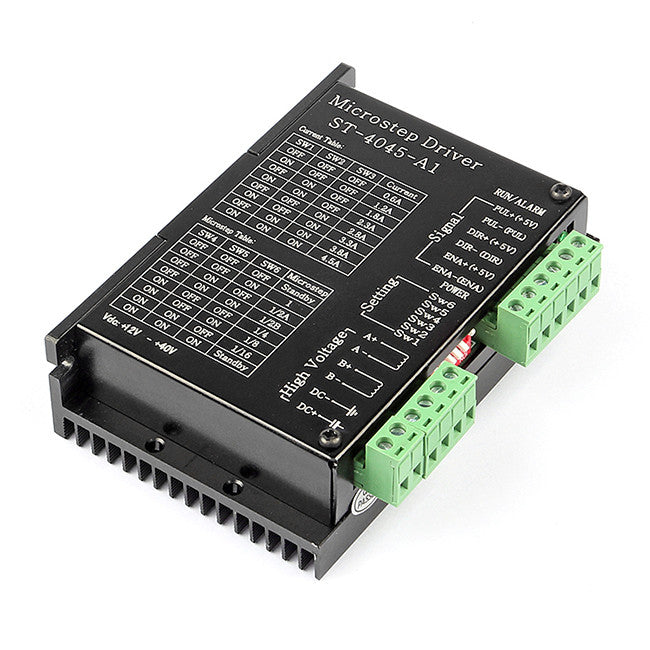

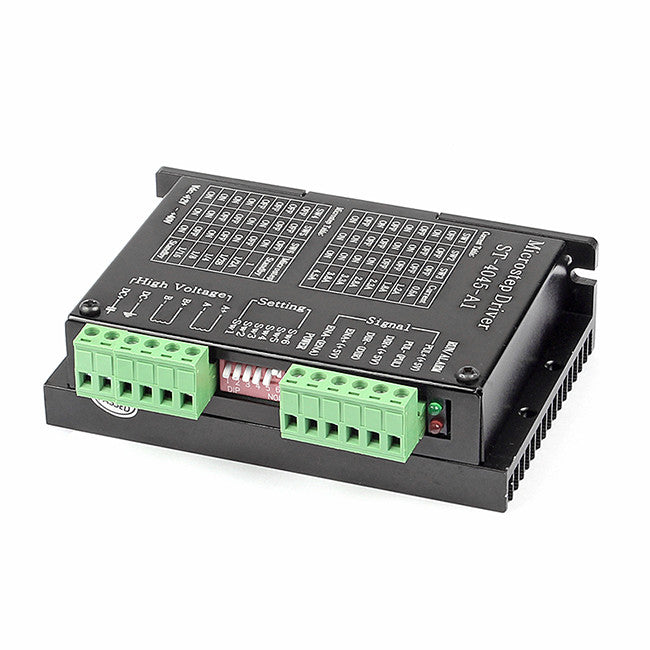

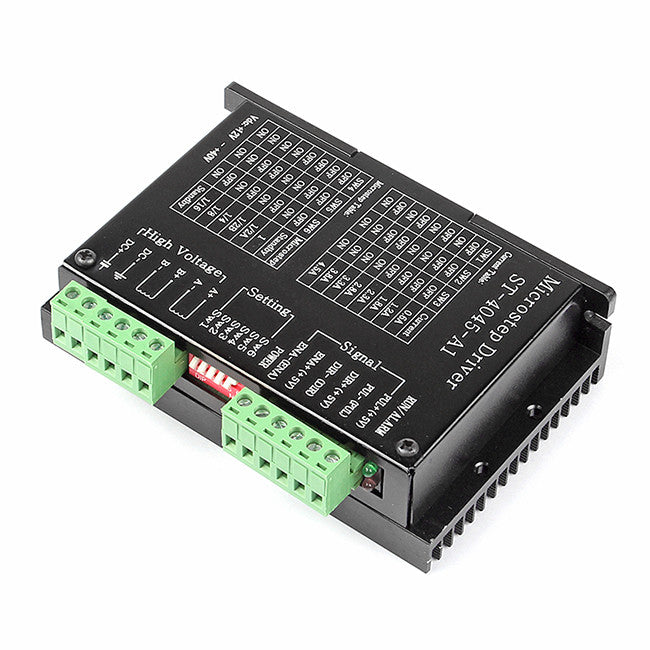

[Discontinued] [Open Box] Single-Axis CNC Stepper Motor Driver Controller, TB6600
Brand: SainSmart SKU: 101-60-197*SEC

[Discontinued] [Open Box] Single-Axis CNC Stepper Motor Driver Controller, TB6600

SKU: 101-60-197*SEC Variants ID: 39297853358159
$13.99 $19.99
Save $6.00

TB6600 Stepper Driver put forward a easy solution to make your 3D printer and CNC machine. It's function is similar to the computer Host and you can easily handle it only plug few terminals.

  • DC power input type:12V~40V
  • Output current:0.6~4.5A
  • Mirco-step: 1, 2, 4, 8, 16
  • Protect form : Overheated protection, over-current protection, under voltage protection, Preventing reverse
  • Connection of power supply
  • The maximum pulse rate is 200KHZ
  • Dimensions: 118mm*87mm*35mm  4.6"*3.4"*1.4"
  • Weight:253g
  • Working environment:Temperature-15~50℃/ 5℉~122℉ Humidity<90%
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

TB6600 Stepper Driver put forward a easy solution to make your 3D printer and CNC machine. It's function is similar to the computer Host and you can easily handle it only plug few terminals.

  • DC power input type:12V~40V
  • Output current:0.6~4.5A
  • Mirco-step: 1, 2, 4, 8, 16
  • Protect form : Overheated protection, over-current protection, under voltage protection, Preventing reverse
  • Connection of power supply
  • The maximum pulse rate is 200KHZ
  • Dimensions: 118mm*87mm*35mm  4.6"*3.4"*1.4"
  • Weight:253g
  • Working environment:Temperature-15~50℃/ 5℉~122℉ Humidity<90%

Open Box items are final sale with 6-month warranty. No exchange or return.
DESCRIPTION

This drive adopts Toshiba TB6600HG driver chip, which runs smoothly, the motor is locked without noise, and the protection functions such as overcurrent, overheating, reverse connection, freewheeling, etc. Maximum output phase current 4.5A, input voltage 12-40VDC. It is a low-cost, cost-effective driver.

 WHAT'S IN THE PACKAGE
  • 1x TB6600 Single Axis CNC Stepper Motor Driver Controller
  • 1x Manual Instruction

I/O Ports:

  • DC+: DC power positive pole
  • Note: Must guard against exceeding 45V, so as not to damage the module.
  • DC-: DC power cathode
  • A+, A-: Stepping motor one winding
  • B+, B-: Stepping motor other winding
  • PUL+, PUL -: Stepping pulse input+5V (Rising edge effective, rising edge duration >10μS)
  • DIR +, DIR-: Stepping motor direction input, voltage level touched off, high level forward, low-level reverse
  • ENA+ ENA-: motor free

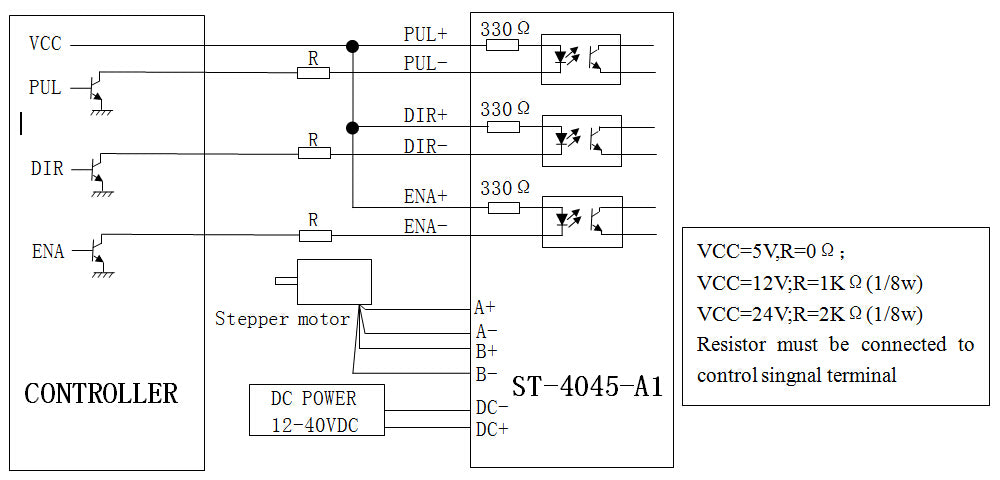

  • Typical Connection



Switch Choice:

  • Micro-step choice:
Microstep
Plus/rev.(for 1.8°motor)
SW4
SW5
SW6
Standby
-----
OFF
OFF
OFF
1
200
OFF
OFF
ON
1/2(A)

400
OFF
ON
OFF
1/2(B)
400
OFF
ON
ON
1/4
800
ON
OFF
OFF
1/8
1600
ON
OFF
ON
1/16
3200
ON
ON
OFF
Standby
-----
ON
ON
ON
  • Current choice:
Peak current
SW1
SW2
SW3
0.6A
OFF
OFF
OFF
1.2A
ON
OFF
OFF
1.8A
OFF
ON
OFF
2.3A
ON
ON
OFF
2.8A
OFF
OFF
ON
3.3A
ON
OFF
ON
3.8A
OFF
ON
ON
4.5A
ON
ON
ON

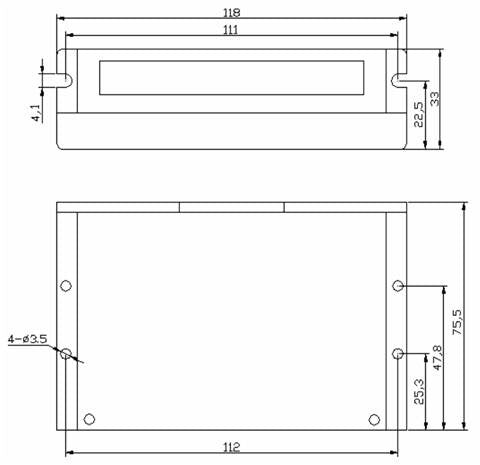

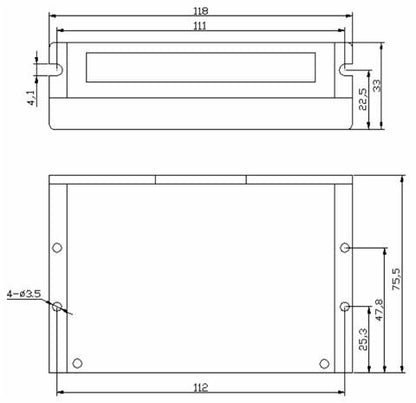

Shell Dimension:
