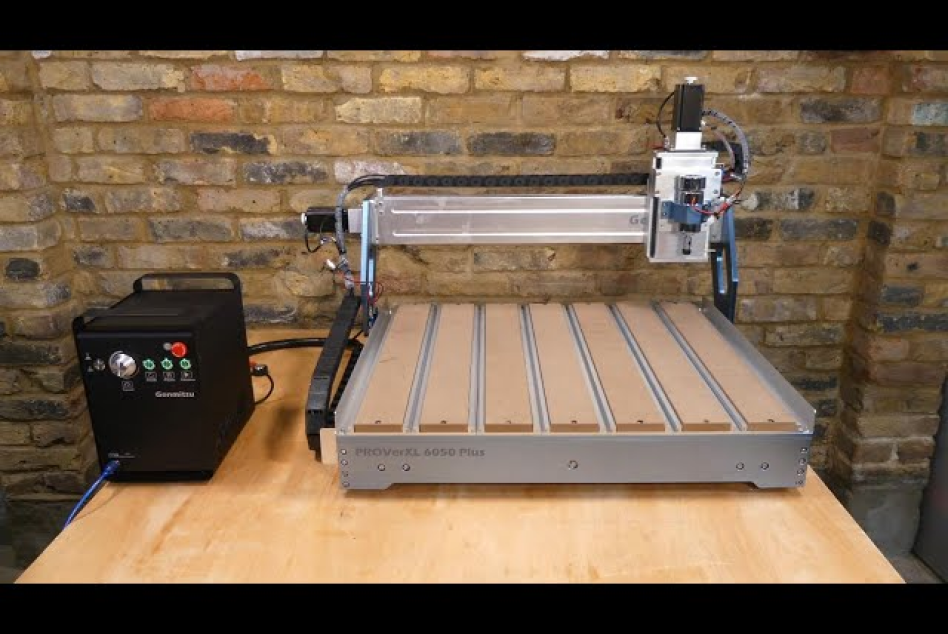

PROVerXL 6050 Plus CNC Router with Carveco Maker Subscription
Same Budget, Bigger Size.

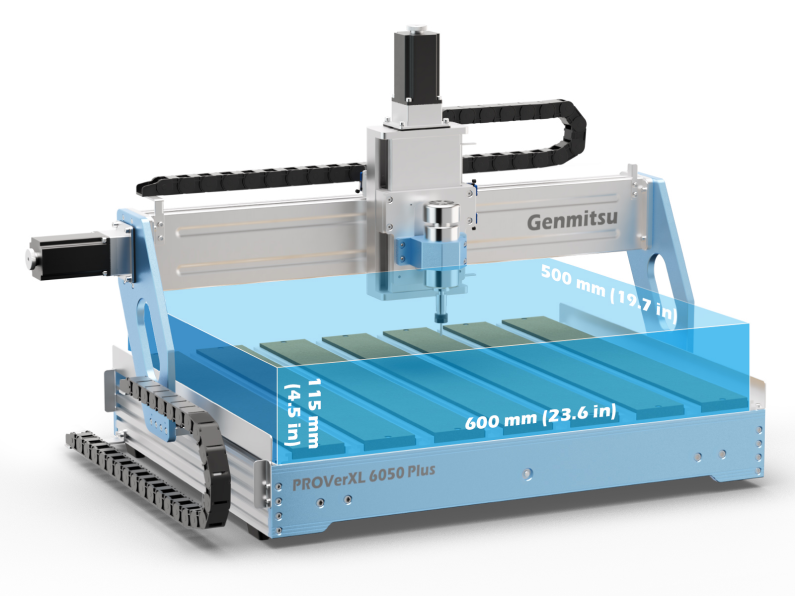

Larger working area (23.62" x 19.69" x 4.53"), 300W spindle motor and all metal re-designed frame, and motion-system. With the large engraving area and added safety features, the PROVerXL 6050 Plus is a cost-effective and efficient choice for starting your small business or improving your DIY crafts.
Easy to set up, save more time on your projects.

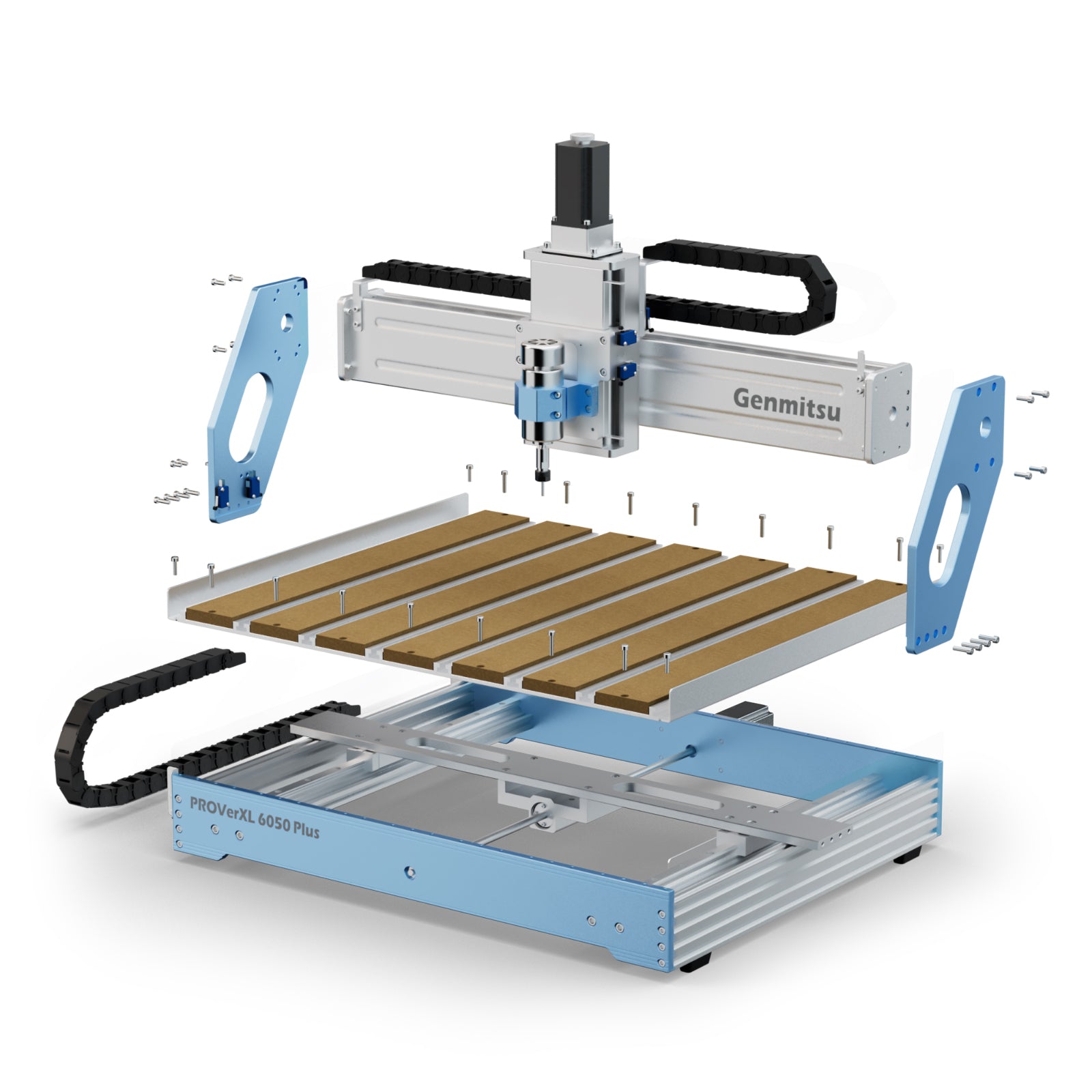

The pre-assembled module of X, Y, Z axis and wires dramatically reduces effort of assembly, allowing you to start carving your projects in less time.

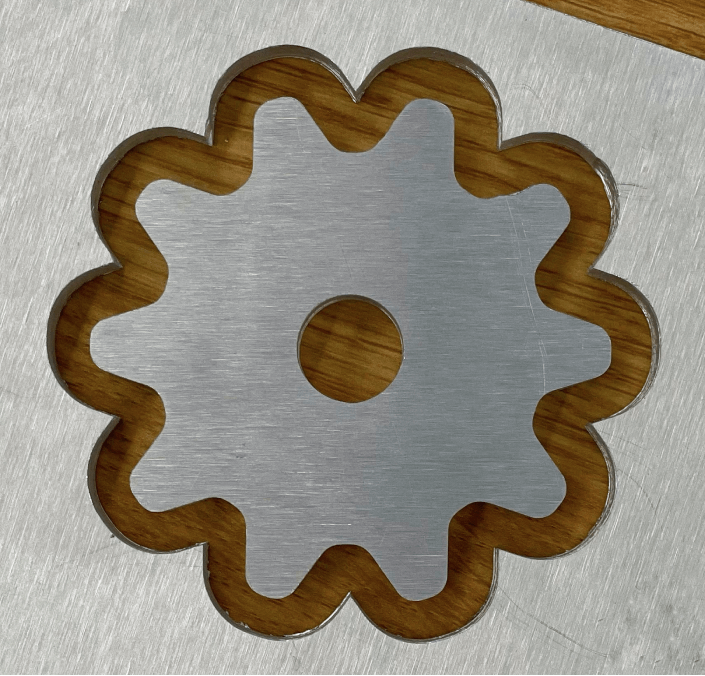

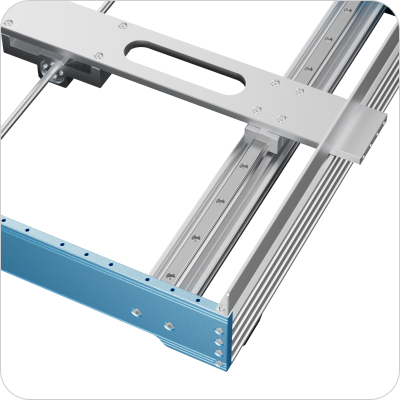

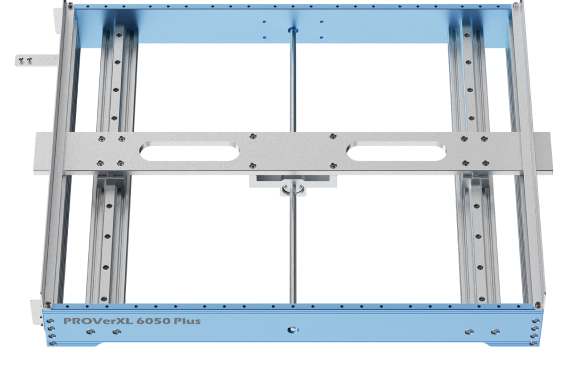

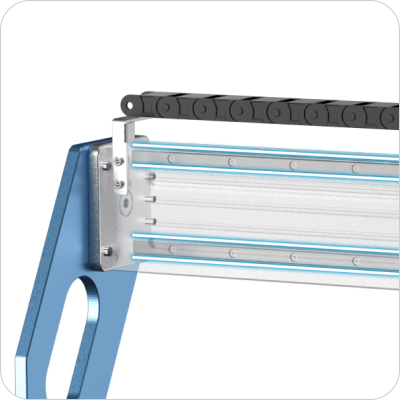

Dual Linear rail and lead screw structure are very rigid and greatly improve the engraving accuracy and overall strength, while also reducing noise during operation. The ProverXL 6050 Plus includes an extra 65mm diameter spindle holder for future upgrades. It's a powerhouse stable enough to engrave, carve and drill most of materials, like aluminum, copper, POM, carbon filber, wood, resin, PCB, Nylon, MDF and more.

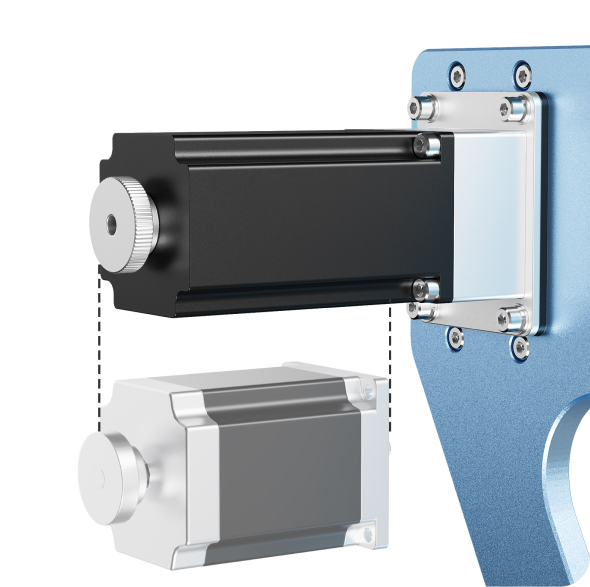

Upgraded Nema23 Stepper Motor
The 3.1Nm Torque 100mm-Length stepper motor rubber gasket could effectively reduce vibration when the motors are running.

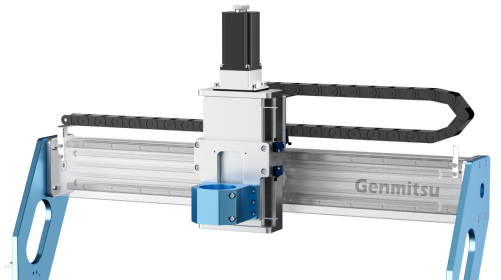

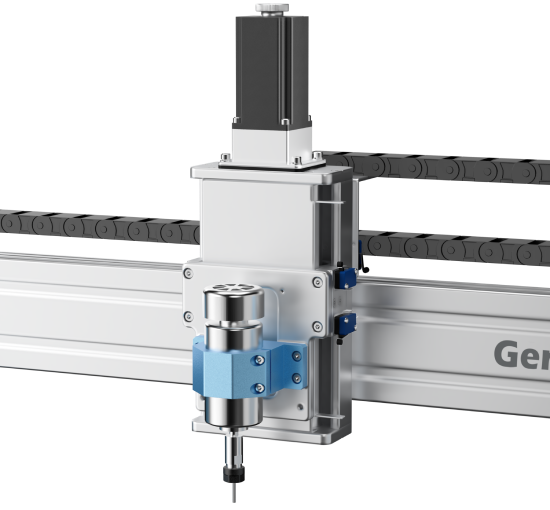

Upgraded Z-axis & Integrated T-slot Hybrid Table
New Z-axis reduce shaking and improve engraving accuracy and bring a improvement up to 80% stability of engraving.

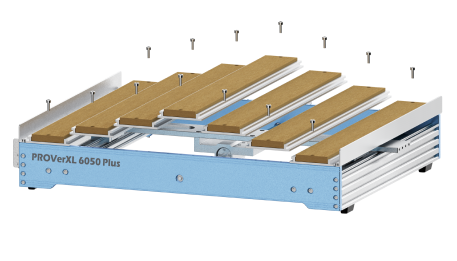

Durable aluminum T-track grid extrusions that support the MDF Spoil Boards. Compatible with a wide variety of clamp sets and easily configurable with add-ons and easy maintenance, with replacement of individual MDF spoil boards when needed.

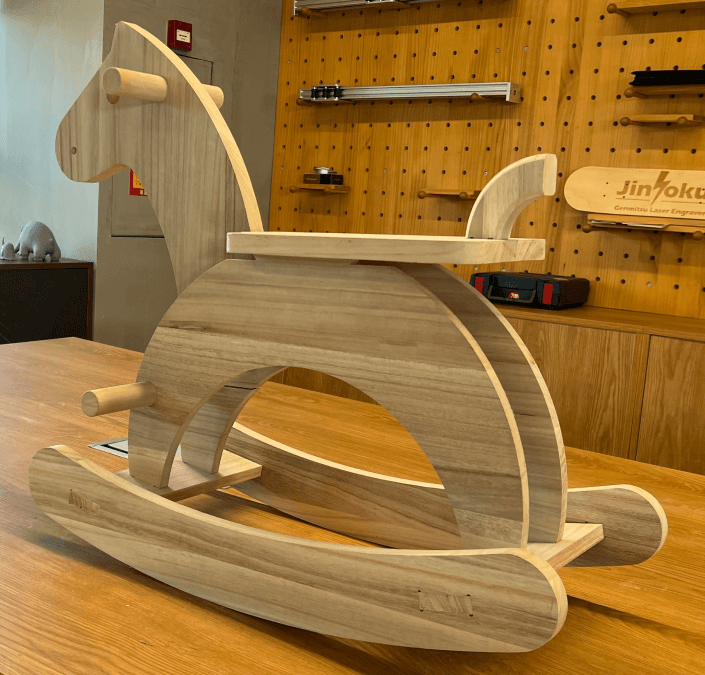

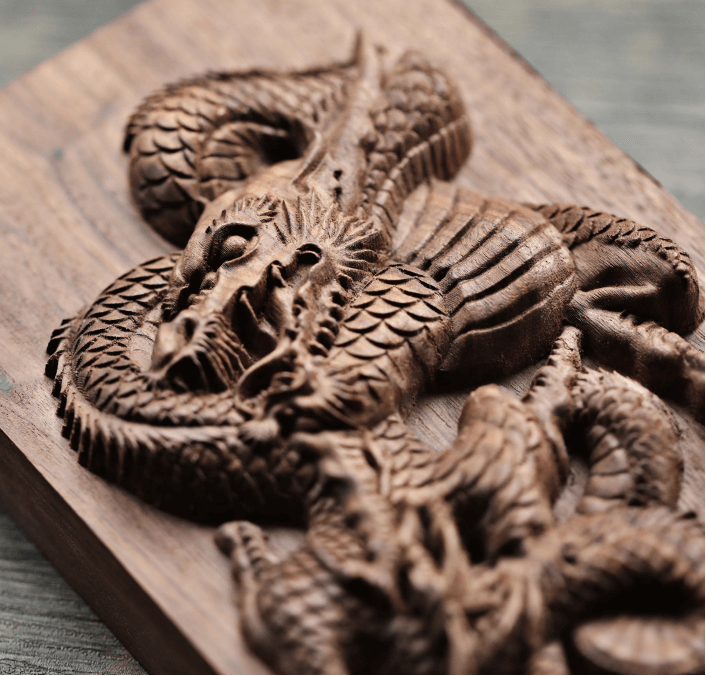

Up to 50% of PROVerXL users are Making molds or Art-crafting for selling.
Some people are woodworking enthusiasts, with the help of CNC to solve many manual operations, some people are used to make small gifts to sell, some people love to make and show their friends what they do. Join our community
Specifications
Model | PROVerXL 4030 |
PROVerXL 4030 V2 |
PROVerXL 6050 Plus |
|
|||
Working Area | 400 x 300 x 110 mm | 400 x 300 x 110 mm | 600 x 500 x 115 mm |
15.8 x 11.8 x 4.3 inches | 15.8 x 11.8 x 4.3 inches | 23.6 x 19.7 x 4.5 inches | |
Overall Dimensions | 776 x 641 x 580 mm | 742 x 489 x 605 mm | 992 x 782 x 641 mm |
30.6 x 25.2 x 22.8 inches | 29.2 x 23.8 x 19.3 inches | 39.1 x 30.7 x 25.2 inches | |
Assembly Time | 30-45 min | 25-30 min | 25-30 min |
Extension Kit | 6060 & 1010 Extension Kit | 6060 & 1313 Extension Kit | Planning |
X, Y, Z Axis Stepper Motor | NEMA23 57mm, Open-loop | NEMA23 76mm, Closed-loop | NEMA23 3.1N-100mm, Open-loop |
Optional Upgraded Stepper Motor | DM542 NEMA23
112mm Stepper Motor Set Closed-Loop Stepper Motor |
/ | / |
Drive System | Leadscrew | 1204 Ballscrew | Dual Linear Rails & Single Y-axis |
Frame & Structure | Metal Frame & MDF Spoilboard | Metal Frame & Hybrid Spoilboard | Metal Frame & Hybrid Spoilboard |
|
|||
Control Board Compatibility | GRBL 1.1h | GRBL 1.1h | GRBL 1.1h |
Max Speed | 2000 mm/min | 5000 mm/min | 2000 mm/min |
Running Accuracy | ≤ ±0.10 mm | Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm | ≤ ±0.05 mm |
Repositioning Accuracy | ≤ ±0.10 mm | ≤ ±0.05 mm | ≤ ±0.05 mm |
Stepper Driver | TB6560 | WSD6056DN56 | TB6560 |
Spindle Rating | 300W 12000 RPM | MAX 400W 10000 RPM | 300W 12000 RPM |
Spindle Voltage | DC, 0-48V | DC, 0-48V | DC, 0-48V |

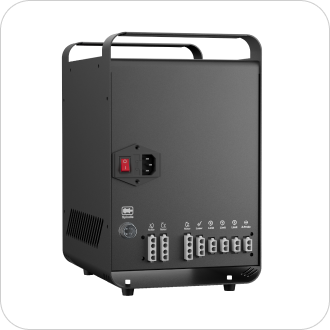

Power Supply | 48V 7A & 24V 8A | 48V 7A & 24V 8A | 48V 7A & 24V 8A |
CAM Software | GRBL Firmware, e.g. UGS, Candle | GRBL Firmware, e.g. UGS, Candle | GRBL Firmware, e.g. UGS, Candle |
What's in the box
FAQs
User Manual | Carveco Guide |
Candle Guide | Community Group |
10Pcs Milling Bits:
|
|
Carveco Maker software compatibility notice: Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system. If you are using macOS, please ensure that you can run a Windows environment through virtual machine software or other solutions before making a purchase, to ensure seamless use of the PROVerXL 4030 V2 CNC milling machine. Please contact us for more details. |
