Brand: Micsig SKU: 101-10-SATO1004A

Micsig SATO1004 Digital Automotive Tablet Oscilloscope upgraded version of ATO1104

SKU: 101-10-SATO1004A 7 reviews Variants ID: 40333840678991
$799.00 $829.00
Save $180.00
Free Shipping

Option
SATO1004
Ship to
USA

New Upgrade Used Android operating system, added physical button control panel, optimized automotive diagnostic software, faster CPU, smoother screen touch experience, and maintenance efficiency is greatly improved.

Intelligent Under the network environment, you can operate the oscilloscope remotely via connecting to the smartphone APP, which can help you observe the real-time waveform and data. If the Wi-Fi signal is stable, the waveform and data transferring process make you work effectively.

Applications The SATO1004 supports the various automotive diagnostic test: ignition, sensors, actuators, networks, charging circuit, starter circuit, communication test (including CAN, LIN, FlexRay, K, etc. ), and pressure test(cylinder pressure, intake and exhaust pressure, fuel pressure, etc. )

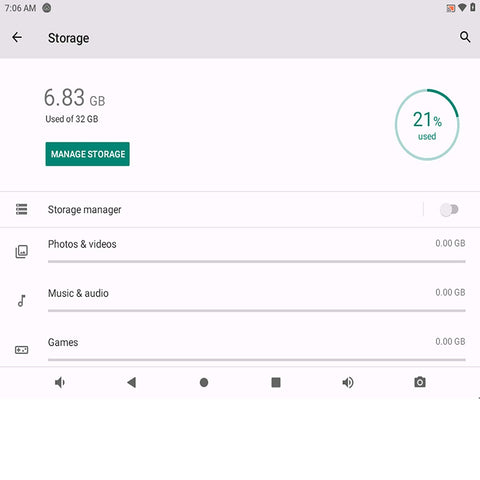

Upgraded 32GB Internal Storage Allow users to store and access mass files, such as Waveforms, Screenshots and Recorded Videos.

Various I/O port Wi-Fi, Type-C, LAN, HDMI, USB Host, USB Device, GND, DC Power.

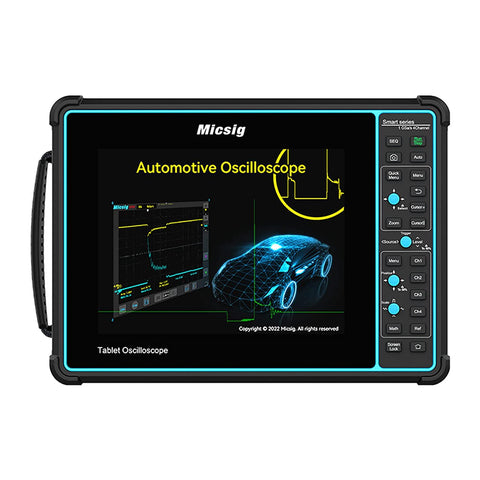

Micsig Digital Automotive Tablet Oscilloscope SATO1004

The Micsig SATO1004 Automotive Oscilloscope is a digital oscilloscope with an 8-inch LCD display, a touch screen, and integrated software for car diagnostics. The oscilloscopes have integrated automotive diagnostic software, providing various diagnostic tests relevant to the automotive sector.



Unparalleled Operating Experience

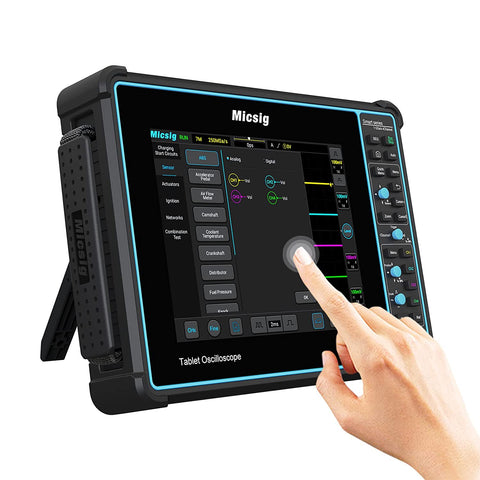

8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, integrates a new generation of hardware & software technologies.

Professional Performance

High bandwidth, High sampling rate, Large memory depth, excellent signal capture performance.

Portable & Benchtop

Built-in 7500mAh Li-ion battery support 5h long fieldwork;

Power-off lock secures safety to carry and store;

Triangle link rear stand make sure it sits on the bench solidly

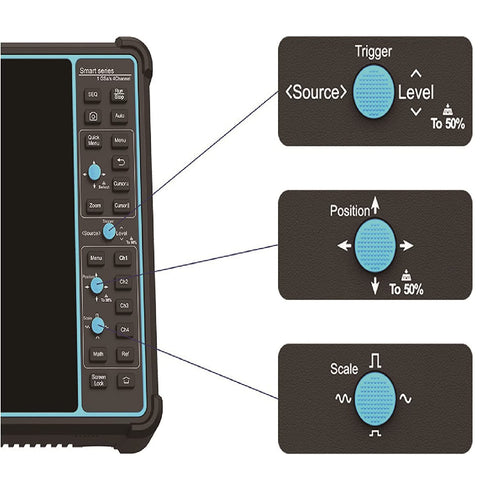

Multi-function Button Panel

Highly integrated multifunctional buttons, and innovative 5-Way navigation sticks, deliver quick & accurate control of various operations.



Various Actuator Tests

One press to get signals, Fast and Easy.

Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

Combination Tests

Multiple channels of the oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

Ignition

Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.

Network

CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and Kline.

Charging / Start Circuit Tests

Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests.

Various Sensor Tests

Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.





Specifications

Analog Channels: 4
Bandwidth: 100MHz
Sampling Rate (Max.): 1GSa/S (single channel)
Memory Depth: 70Mpts (single channel)
Waveform Capture Rate (Max.): 130,000 wfms/s
Support Tests: Charging Circuits, Starter Circuits, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests
Bandwidth Filter: Full bandwidth, Low pass
Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display: Industrial 8" TFT-LCD (800*600), 14*10 grids
Dimension / Net Weight: 265*192*50mm / 1.9kg (with battery)
Battery: 7.4V, 7500mAh, Li-ion battery



Differences from SATO1004 against ATO1004A



Micsig SATO1004

Micsig ATO1004

Internal Storage

32 GB

32 GB

Screen

8 inch

10.1 inch

Memory Depth

70 Mpts

110 Mpts

Operating System

Android

Android

Interfaces

Type C

Type C

Multi-function Probe Interface

UPI

UPI

Physical Button Control

Y

Full Touch Screen

Waveform Capture Rate (Max.):

130,000 wfms/s

78000 wfms/s
