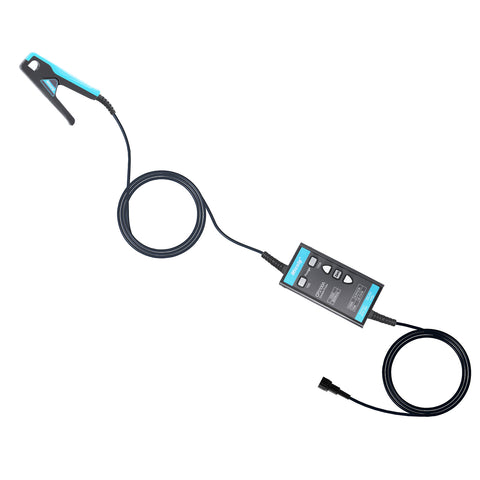

Micsig Oscilloscope Probe CP2100A AC/DC Current Probe 800KHz 10A/100A with Standard BNC Interface
The CP2100A Oscilloscope Probe has automatic and manual zero adjustment modes, it can also perform zeroing and demagnetization automatically or manually. Bandwidths up to 800KHz.The split design makes the probe small and exquisite , easy to carry and use. It can be powered by Oscilloscopes USB port and doesn't require any extra power supply. It also comes with a standard BNC interface, applicable to all BNC interface oscilloscopes. It also can be used with a multimeter after adding the suitable adapter.
Satisfaction Guarantee: We offer a 1-year manufacturer’s warranty and lifetime customer support for this product.

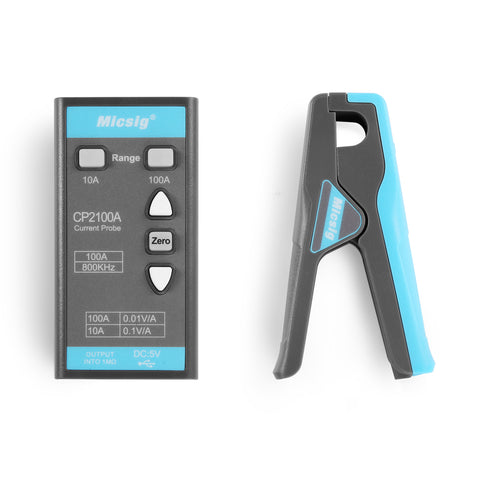

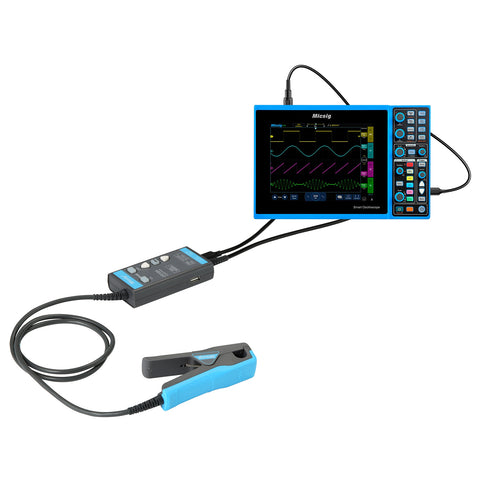

The Micsig CP2100A Oscilloscope Probe is a current probe that can measure both DC and AC. Its split design makes the appearance small and exquisite. It uses a standard BNC interface and is suitable for most brands of oscilloscopes. It can also be used for multimeters via a connector. The maximum current that can be measured is up to 100Apk (70Arms). Widely applicable in motor drives, industrial frequency, inverters, power supplies, avionics, and other fields.
Specifications:
Model Name: CP2100A
Bandwidth: DC~800KHz
Rise Time: ≤ 583ns
Ranges: 10A/ 100A
Output Sensitivity: 0.1V/A (10A); 0.01V/A (100A)
DC Accuracy (typical): 3% ± 50mA (10A); 3% ± 50mA (100A, 500mA~40Apk); 15% (100A, 40Apk~100Apk)
Signal Delay: <150ns (10A); <200ns (100A)
Maximum Measurement Range: 50mA~10Apk (10A); 1A~100Apk (100A)
Maximum Measurable Current: 100Apk, 70.7Arms (DC+ACpk); 200Apk-pk, 70.7Arms (AC)
Maximum Working Voltage: CAT Ⅲ 300V CAT Ⅱ 600V
Maximum Float Voltage: CAT Ⅲ 300V CAT Ⅱ 600V
Maximum Conductor Diameter: 13mm
Overload Indication: The buzzer beeping, the button light flashing
Power Supply: DC 5V

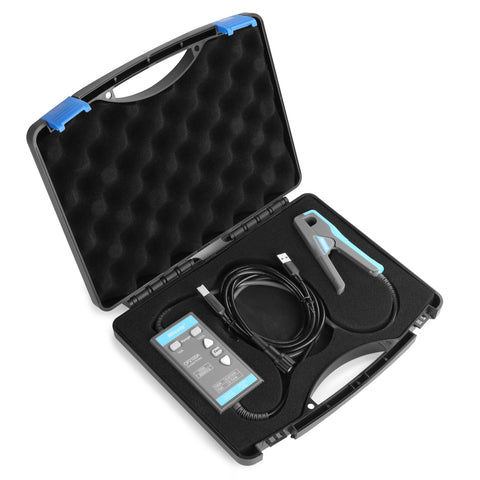

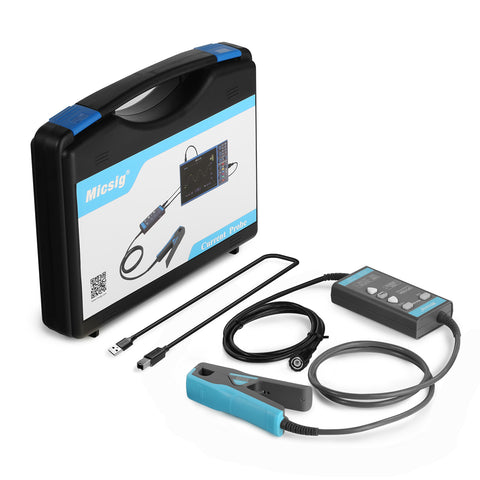

Package List:
1x CP2100A Probe
1x USB Cable
1x Carry Box
