Genmitsu 3030-PROVer MAX
Precision Meets Versatility
All-Aluminum Benchtop CNC RouterSupport Many Materials
Yes, it can create a lot things!
3030-PROVer MAX supports most material stock, such as solid woods, plywood, metal, acrylic, carbon fiber, etc.
Whether you're a hobbyist or a small business seller, you'll love this machine.
Wood
Metal
Plastic
Others
Wood
Metal
Plastic
Others
Down to 10-min Self Assembly
Its Y-axis notch design facilitates effortless alignment and balancing and ensures a smooth assembly down to 10 minutes.
High Quality and Cost-effective

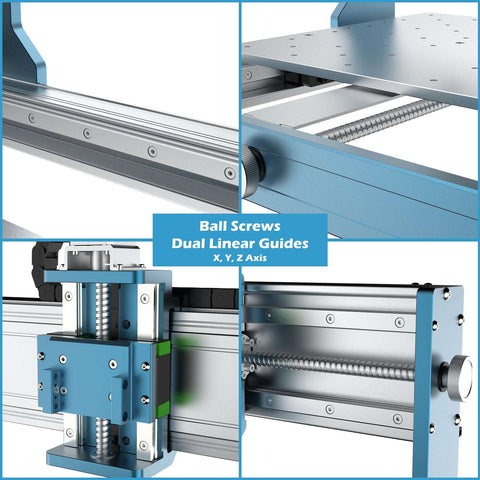

Ball Screws and Dual Linear Guides are the X, Y, and Z-axis drive system for the 3030-PROVer MAX.
23.6kg
Weight0.05mm
Accuracy300W
Spindle Motor2000mm/min
Max Speed23.6kg
Weight0.05mm
Accuracy300W
Spindle Motor2000mm/min
Max SpeedZ Axis
1204 Ball Screw
Dual HG15 Linear Guides
X Axis
1204 Ball Screw
Dual HG15 Linear Guides
Y Axis
1204 Ball Screw
Dual HG15 Linear Guides
Precision and Power Unleashed
Compared to similar models on the market with 2mm engraving, the 3030-PROVer MAX produces flat edges without metal burrs, taking your projects to new heights.
Sealed Dust Proof Design
This sealed dust-proof design protects the slide and screw assembly from dust and debris, thereby extending its life and simplifying maintenance.

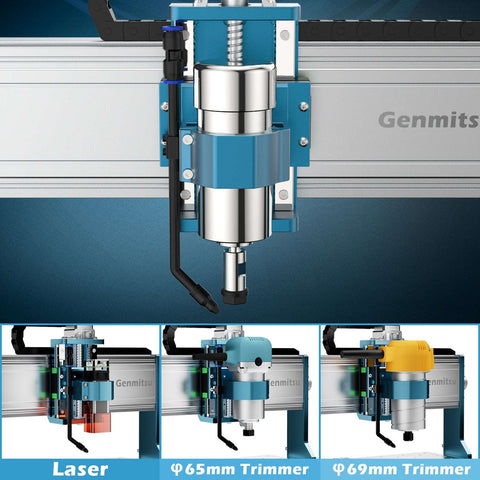

Versatile Control Options
Taking control of your projects has never been easier. The 3030-PROVER MAX comes with a new offline controller
Upgraded Accessories
New Air-cooling Pipe
Z-probe
Spindle Holder
Laser Compatible
Wire Snap
Specifications
|
|
|
| Model | 3030-PROVer | Other CNC |
| Work Area | 314 x 307.8 x 79mm (12.4" x 12.1" x 3.1") | 290 x 220 x 70mm (11.4" x 8.6" x 2.7") |
| Assembly Time | Down to 10 Minutes | 30-45 Minutes |
| Control Board Compatibility | GRBL 1.1h | GRBL |
| MCU | 32-Bit | 32-Bit |
| Max Running Speed | 2000mm/min | - |
| Accuracy | ±0.05mm | - |
| CAM Software | e.g. Candle, UGS | Candle |
| Frame Material | All Aluminum | Metal |
| Leadscrew | 1204 Ball Screw | Ball Screw |
| Motion System | Dual HG15 Linear Guides & Ball Screws | Linear Rails & Ball Screws |
| Spindle Motor | 48V DC 300W | 300W |
| Spindle Holder | Includes φ52mm, φ65mm | φ52mm |
| Stepper Motor | NEMA17 48mm 1.68A, 0.45Nm torque | - |
What’s in the box
XZ Axis Assembly
XY Axis Base Assembly
Power Supply Box
Offline Controller
300W Spindle Motor
φ52mm Spindle Holder
φ65mm Spindle Holder
Air Pipe
Collet & 10x Router Bits
Z Probe
Clamps
Wrench
Limit Switch
Lubricant
SD Card
Cables & Ties
Screw Set
User Manual
Reviews
Review: 3030 Prover Max - Build and first look
Review: Genmitsu 3030 PROVer MAX CNC
页面的template.suffix:3030-prover-max
Customer Reviews
4.7 Based on 6 Reviews
Customer Photos
- Reviews
- Questions
Filter Reviews:
UP
11/22/2023
Unique P.
CanadaSuper quality out of the box
Super easy, crazy detail with no effort.
MM
11/13/2023
Marc M.
Belgium3030 PROver
After unpacking and installation, it looks a great tool. At start using it, it has some weak spots. The Z-probe has a very fragile connection, so if the connection is not stable, you will break your bits and move into the probe. In candle, you can not use the Height map, since not working with this CNC type. This is a big problem, since I want to use is for PCB's.
EG
11/12/2023
Eloi G.
SpainMore than expected
Packaging Excelent. Machine assembly quick and straight forward Excelent machine design, rigid and robust. Just done first test with brass sheet and steel, a full success. You only need to know what you are doing. This means to use adecuate bits for the job and to apply apropiate feeds, speed, step over, etc, etc. Excelent value for the money I will post some photos in a near future....
