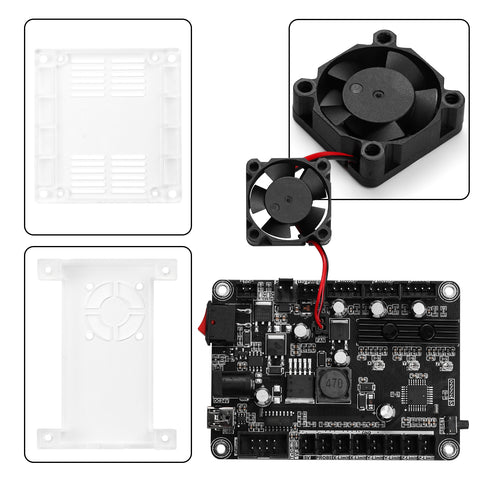

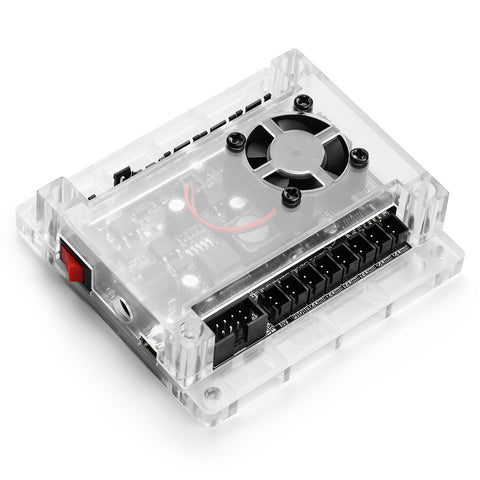

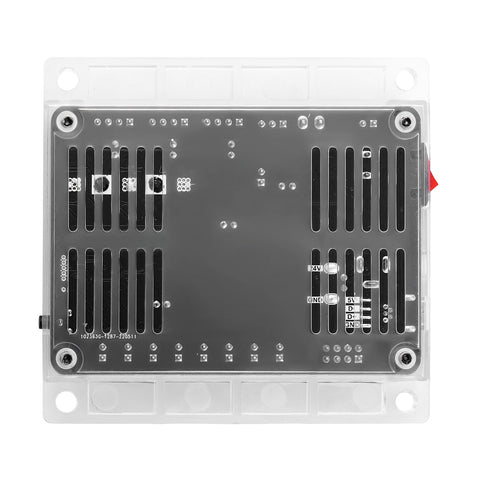

GRBL Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO
SKU: 101-60-284
18
$39.99
This controller board is designed for Genmitsu CNC Router 3018, 3018-PRO and 1810 PRO. It can perfectly compatible with SainSmart Blue Laser Module.
- Input voltage: 24V (12-24V).
- Software: GRBL controller, UniversalGcodeSender.
- Stepper motor drive: DRV8825 ，Spindle power: 150W.
- Support XYZ three-axis control, spindle, laser head. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").
- Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).
FEATURE
- Support Laser engraving.
- Support spindle PWM speed control.
- Support XYZ triaxial control, spindle, laser head.
- Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A).Can be connected to high-power spindle motor or the laser head.
- Spindle drive chip 2: MOSFET (current maximum 2A !!).Can only be connected within the 2A head of the laser, the voltage 0-12V can be adjustable.
WHAT'S IN THE PACKAGE
- 1 x Controller Board
- 1 x USB line
