PROVerXL 4030 V2 Desktop CNC Router with Carveco Maker Subscription
With a running speed of up to 5000 mm/min, the Genmitsu PROVerXL 4030 V2 CNC Router Machine allows you to complete your projects faster and more efficiently than ever before.

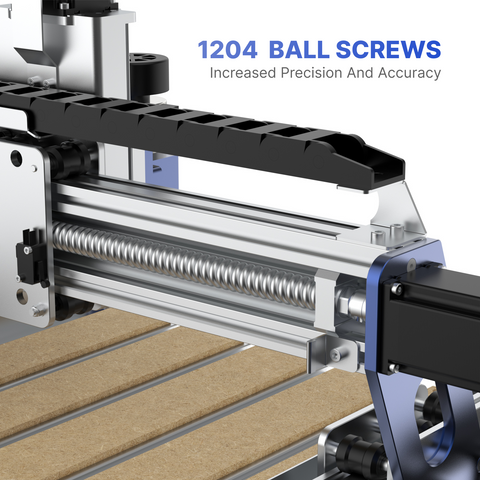

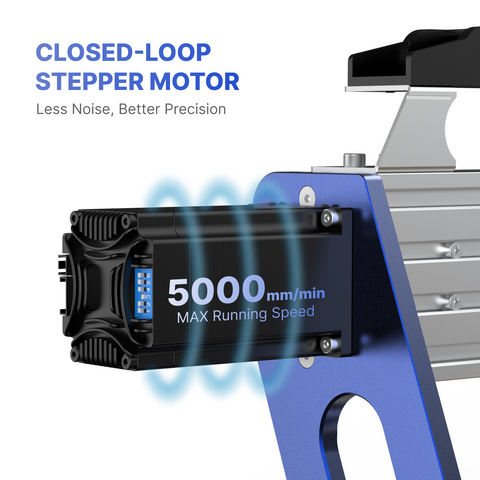

Upgraded Closed-Loop Motors and Ball Screws
Say goodbye to step loss and enjoy lower noise levels with the new closed-loop motor, and enjoy increased precision and accuracy with the 1204 ball screw. The improved Z-axis structure provides added stability, while the added eccentric nut adjustment for the roller offers greater flexibility and control over the machine's movement.
Wide Range of Materials
The T-slot hybrid table can help holding materials during CNC machining or laser engraving. Cut and carve an irregularly shaped or size of a variety of materials such as wood, plastics, and soft metals, and enjoy a working area of 400mm x 300mm x 110mm, making it suitable for small to medium-sized projects.
GRBL-Based Control Box and Improved Chassis Design
Operate the machine with ease via USB interface using software such as Candle or Universal Gcode Sender thanks to the GRBL-based control board. The sturdy and improved chassis design ensures long-lasting and reliable performance with minimal maintenance requirements.
Start Making Today!
With precision, versatility, and affordability at its core, the Genmitsu PROVerXL 4030 V2 CNC router machine is the perfect tool for hobbyists, DIY enthusiasts, and small business owners alike. Upgrade your machine today and start bringing your ideas to life with ease and precision!
Videos
Specifications
Model | PROVerXL 4030 |
PROVerXL 4030 V2 |
PROVerXL 6050 Plus |
|
|||
Working Area | 400 x 300 x 110 mm | 400 x 300 x 110 mm | 600 x 500 x 115 mm |
15.8 x 11.8 x 4.3 inches | 15.8 x 11.8 x 4.3 inches | 23.6 x 19.7 x 4.5 inches | |
Overall Dimensions | 776 x 641 x 580 mm | 742 x 489 x 605 mm | 992 x 782 x 641 mm |
30.6 x 25.2 x 22.8 inches | 29.2 x 23.8 x 19.3 inches | 39.1 x 30.7 x 25.2 inches | |
Assembly Time | 30-45 min | 25-30 min | 25-30 min |
Extension Kit | 6060 & 1010 Extension Kit | 6060 & 1313 Extension Kit | Coming Soon |
X, Y, Z Axis Stepper Motor | NEMA23 57mm, Open-loop | NEMA23 76mm, Closed-loop | NEMA23 3.1N-100mm, Open-loop |
Optional Upgraded Stepper Motor | DM542 NEMA23
112mm Stepper Motor Set Closed-Loop Stepper Motor |
/ | / |
Drive System | Leadscrew | 1204 Ballscrew | Dual Linear Rails & Single Y-axis |
Frame & Structure | Metal Frame & MDF Spoilboard | Metal Frame & Hybrid Spoilboard | Metal Frame & Hybrid Spoilboard |
|
|||
Control Board Compatibility | GRBL 1.1h | GRBL 1.1h | GRBL 1.1h |
Max Speed | 2000 mm/min | 5000 mm/min | 2000 mm/min |
Running Accuracy | ≤ ±0.10 mm | Circular: ≤ ±0.05 mm; Rectangle: ≤ ±0.02 mm | ≤ ±0.05 mm |
Repositioning Accuracy | ≤ ±0.10 mm | ≤ ±0.05 mm | ≤ ±0.05 mm |
Stepper Driver | TB6560 | WSD6056DN56 | TB6560 |
Spindle Rating | 300W 12000 RPM | MAX 400W 10000 RPM | 300W 12000 RPM |
Spindle Voltage | DC, 0-48V | DC, 0-48V | DC, 0-48V |
Power Supply | 48V 7A & 24V 8A | 48V 7A & 24V 8A | 48V 7A & 24V 8A |
CAM Software | GRBL Firmware, e.g. UGS, Candle | GRBL Firmware, e.g. UGS, Candle | GRBL Firmware, e.g. UGS, Candle |
What's in the box
Package:
- 1x X Axis & Motor
- 1x XZ Axis & Spindle & Motor
- 1x XY-Axis Base with Motors
- 1x Coupler
- 2x Dust baffles
- 2x Drag Chain & Mounts
- 1x Extra φ65mm Holder
- 1x Collet
- 2x Milling bits 10pcs (Flat engraving, slot drills)
- 4x Clamps
- 1x Z-probe
- 1x USB drive
- 1x Fuse tube
- 1x Tools box with screws & wrenches
- 1x User Manual
FAQs
- Quick Start Guide Resource Page Click to learn software guide, user manual, and assembly guide.
- Will it work with the PROVerXL 4030 CNC Router Expansion Kit?
- No, the expansion parts 6060/1010 are not available because of the modified ball screw and motor design. However, we are also preparing to launch the 4030V2 expansion parts, please sign up for newsletter to avoid missing any latest news.
- Why should I adjust the Y-axis position?
- It‘s a maintenance action. In order to use the machine with optimum accuracy, we recommend that you make adjustments at the beginning of the installation as shown in the user manual.
- What's the parameter of the milling bits?
-
20 Milling Bits:
10 from the C08 Set (0.8-3.0mm)
- 10 x Nano Blue Coat End Mill CNC Router Bits, Shank Diameter: 3.175mm
- (Different cutting edge diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm)
10 from the 70V30 Set
- 10 x V-Shaped Nano Blue Coat Engraving Bits
- Cutting Angle: 30 Degree
- Shank Diameter: 3.175mm
-
- Carveco Maker software compatibility notice:
- Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system.
If you are using macOS, please ensure that you can run a Windows environment through virtual machine software or other solutions before making a purchase, to ensure seamless use of the PROVerXL 4030 V2 CNC milling machine. Please contact us for more details.
- Please note that while the machine is compatible with both Windows and macOS, the Carveco Maker software subscription service only supports the Windows operating system.
- About using 10W laser module:
- If you need to use a 10W laser, please contact us for the adapter cable replacement.
