Brand: Genmitsu

TB04A, 1/8" Shank, 2-Flute, Tapered Ball Nose, End Mills Bits, 4 Pcs

TB04A, 1/8" Shank, 2-Flute, Tapered Ball Nose, End Mills Bits, 4 Pcs

SKU:  101-61S-TB04A
1 review
Regular price $25.99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $25.99
Shipping calculated at checkout.
Ship to
  • 101-61S-TB04A
  • 101-61S-TB04A
  • 101-61S-TB04A
  • 101-61S-TB04A
  • 101-61S-TB04A

High Quality: The Genmitsu end mills are made of ultra-fine 0.2μm ttungsten steel that can keep continuous machining 800 minutes. Moreover, its Nano Blue Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

Cost-Effective: Coming with 4x 2-Flute tapered ball nose end mills, Shank Diameter: 3.175mm,   Radius: 0.25, 0.5, 0.75, 1.0mm, Cutting Length: 15mm, Overall Length: 40mm.

Versatile: Perfect for 3D machining jobs like molds, rapid prototyping, models and other other precision parts processing, these Tapered ball nose bits can do the best.

Applicable Materials: These nano blue coating bits have an HRC rating of 65 and are optimal for milling a wide range of materials, including plastics, aluminum, circuit board, wood, etc.

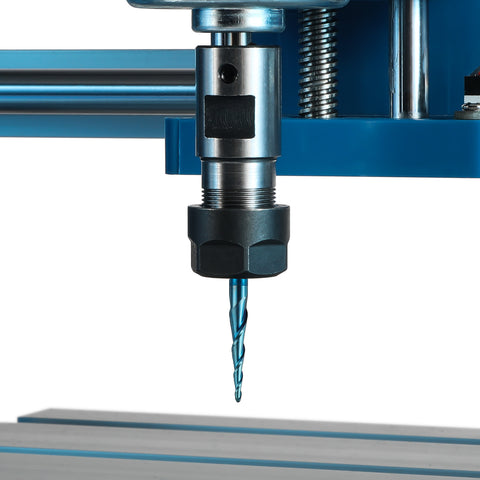

Wide Compatibility: Genmitsu TB04A tapered ball nose end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

View full details

TB04A, 1/8" Shank, 2-Flute, Tapered Ball Nose, End Mills Bits, 4 Pcs

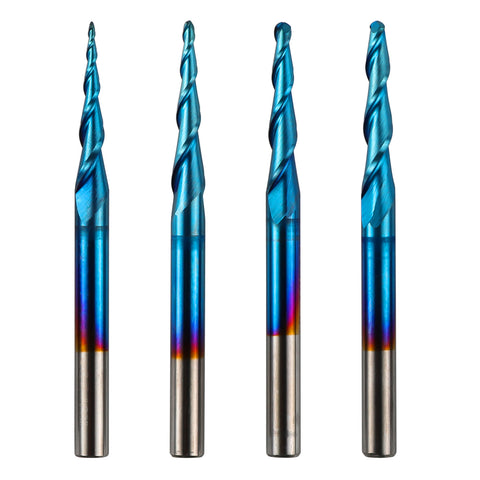

Genmitsu TB04A 4pcs 2-Flute Tapered Ball Nose End Mills

Cost-Effective Set

Coming with 4x 2-Flute tapered ball nose end mills, Shank Diameter: 3.175m, Radius: 0.25, 0.5, 0.75, 1.0mm, Cutting Length: 15mm, Overall Length: 40mm.


Wide Application

Perfect for 3D machining jobs like molds, rapid prototyping, models and other other precision parts processing, these Tapered ball nose bits can do the best. These nano blue coating bits have an HRC rating of 65 and are optimal for milling a wide range of materials, including plastics, aluminum, circuit board, wood, etc.


High Quality

The end mills are made of ultra-fine 0.2μm tungsten steel that can keep continuous machining 800 minutes. Moreover, its Nano Blue Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

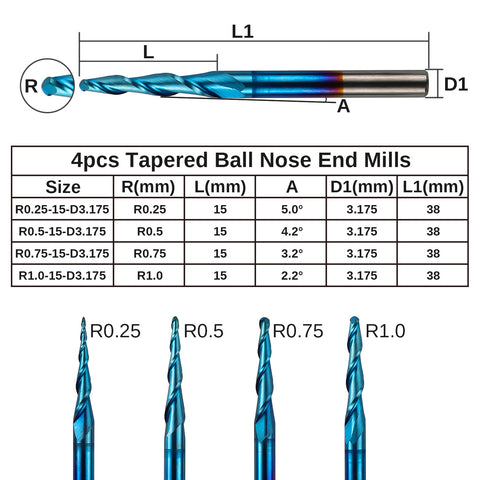

SPECIFICATIONS

  • Material: Tungsten Carbide Steel Alloy
  • Surface : Nano Blue Coating

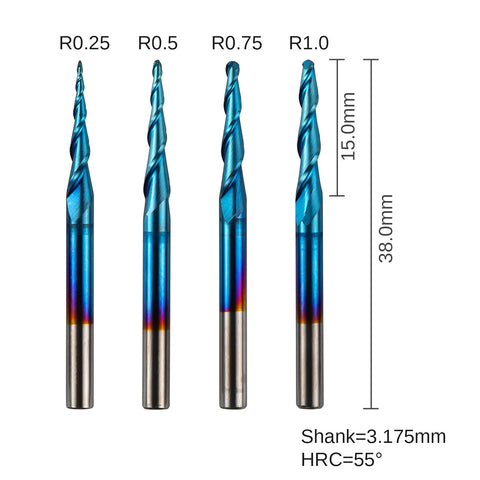

  • Radius: 0.25, 0.5, 0.75, 1.0mm
  • Shank Diameter: 3.175mm
  • Cutting Length: 15mm
  • Overall Length: 40mm

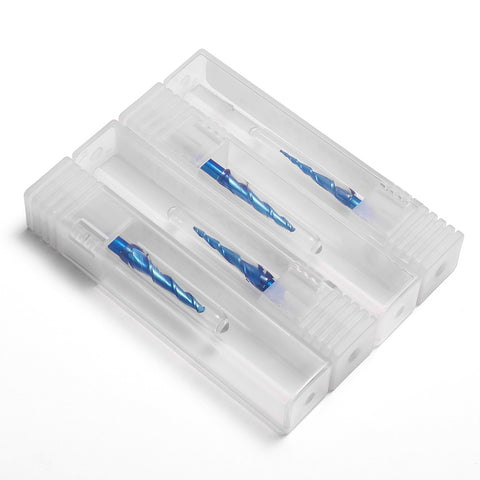

What's in the package

  • 1 x Tapered Ball Nose End mill (Radius: 0.25mm)
  • 1 x Tapered Ball Nose End mill (Radius: 0.5mm)
  • 1 x Tapered Ball Nose End mill (Radius: 0.75mm)
  • 1 x Tapered Ball Nose End mill (Radius: 1.0mm)
