Genmitsu Milling Bits Database
Stuck In Speed & Feed Rate?

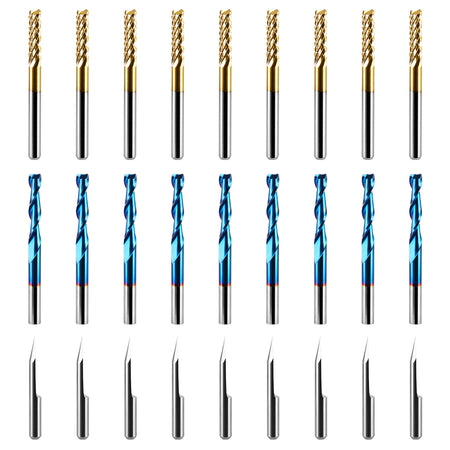

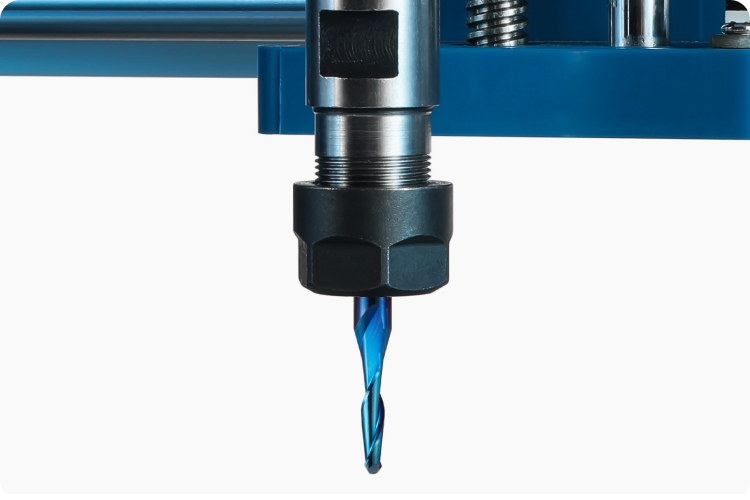

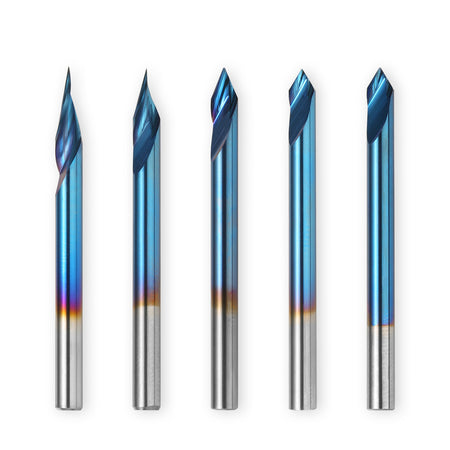

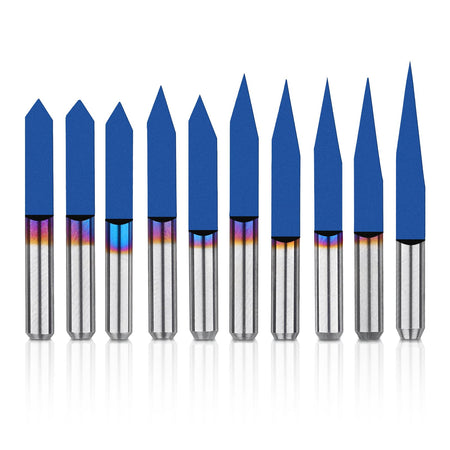

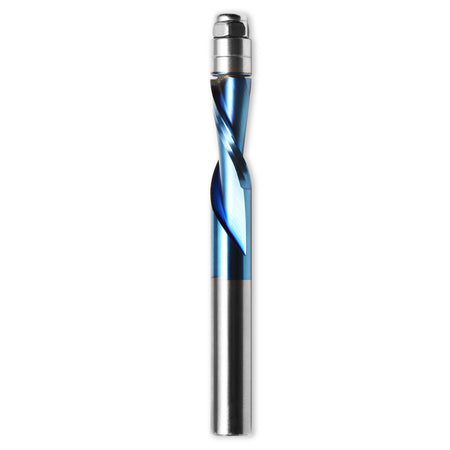

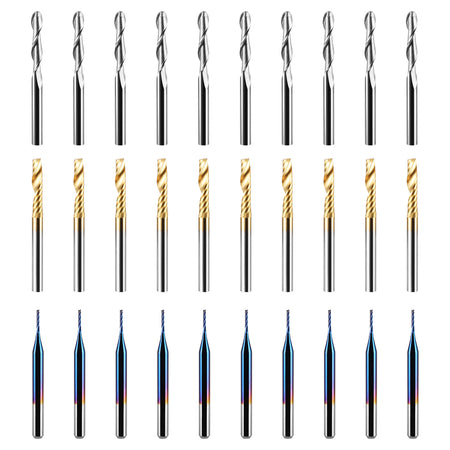

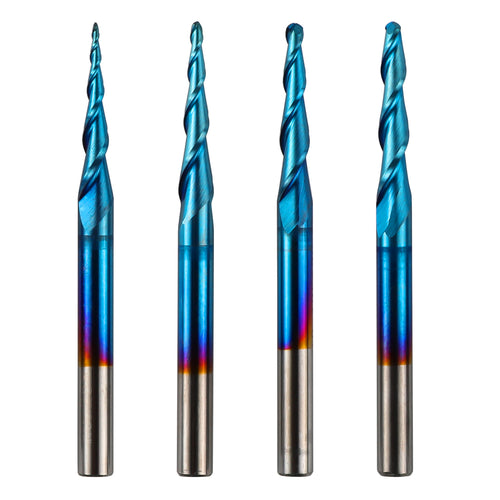

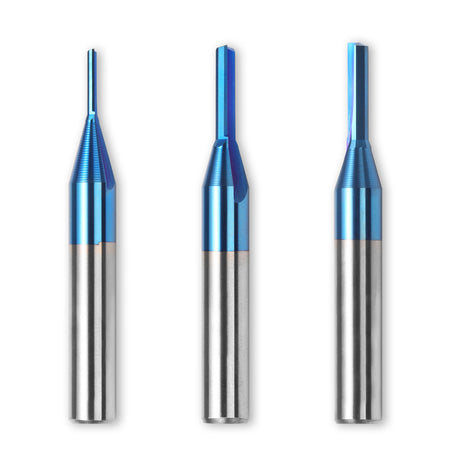

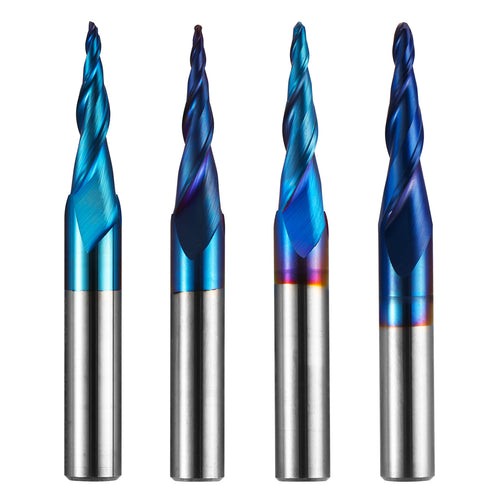

These milling bit data sheets will be used as reference data for end mills for your CNC project, the actual parameters should be adjusted according to your project and material.
The bit data file can only be used with the specified Genmitsu item number. Using this file with other brands is dangerous for the operator and the CNC machine.
The bit data file can only be used with the specified Genmitsu item number. Using this file with other brands is dangerous for the operator and the CNC machine.
Fusion 360™ CNC Tool File
Download Sheet
Carveco® CNC Tool File
There are two tool database files:‘SainSmart Bits (Carveco_Metric).tdb’‘SainSmart Bits (Carveco_Inches).tdb’Apart from the units used for definitions and feed rates these are identical.Import either (or both) into the Carveco Tool database. The bits you have can then be copied, moved… as you see fit to suit your needs and organisation of the tool database.
Download Sheet

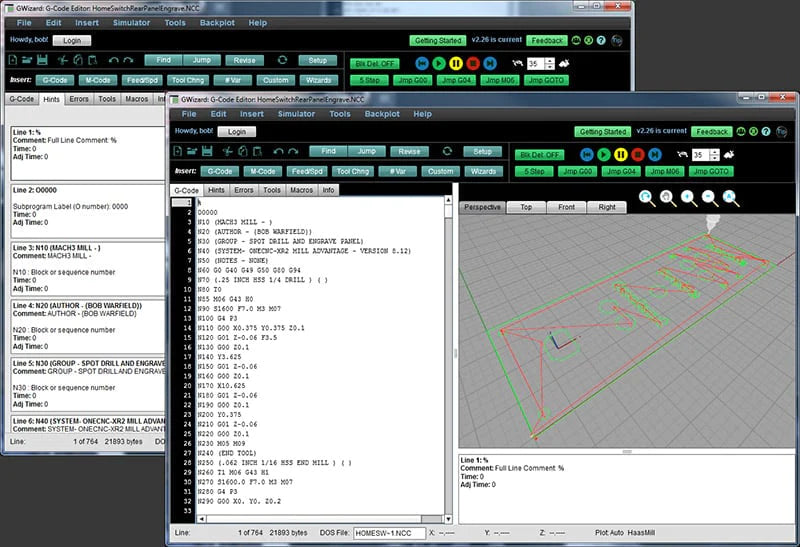

G-Wizard CNC Tool File
G-Wizard is a speed and feed calculator designed primarily for larger and more expensive CNC routers, but it can also be used for smaller routers. If you use G-Wizard, there is a single file that can be imported into G-Wizard that does not include the speed and feed, because that is what G-Wizard generates and G-Wizard performs the inch conversion internally.
Download Sheet
Other Software CNC Tool File
To cover any other options two tables are included these contain all the parameters for the bits and speeds and feeds.
Download
Some Simple Formulae (Click to view)
Here are the formulae used for some feed and speed calculations, not really necessary but if someone starts talking about Surface speed or MRR this explains the calculations.
Values:
|
Bit Diameter |
The diameter of the cutting edge of the bit |
|
Spindle Speed |
Rotation speed of the bit in RPM |
|
Flutes |
The number of cutting edges on the bit |
|
Feed Rate |
The rate the bit is moved into the stock in a straight line |
|

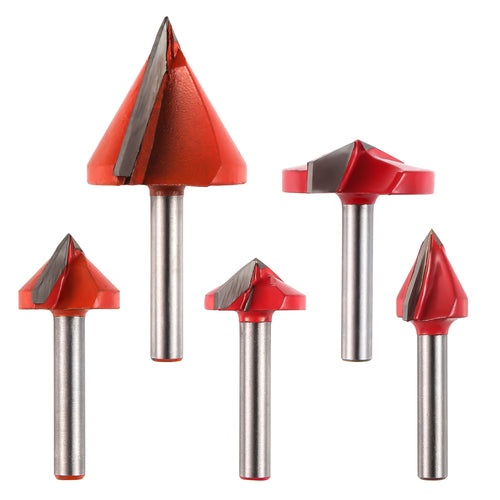

V Bit Angle |
For V bits only the angle between the edges of the V it will leave. Only used in the V and ball depth and width calculators. |
|
Depth of Cut |
How deep the finished cut will be. Only used in the V and ball depth and width calculators. |
|
Cut Width |
How wide the top of a finished cut will be. Only used in the V and ball depth and width calculators. |
|

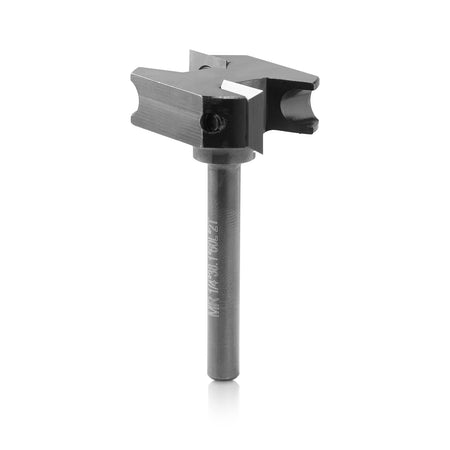

Stepover |
The distance the bit moves horizontally between cuts. |
|
Stepdown |
The distance the bit moves vertically between cuts. |
Formulae:
Measurement units can be inches or mm, feeds in inches/min or mm/min but they cannot be mixed, the results will be in the units used.
|
Bit Circumference |
Bit Diameter * π |
|
Surface Speed |
Bit Circumference * Spindle Speed |
|
Cutting Speed |
Surface Speed * Flutes |
|
Chip Load |
Feed Rate / (Spindle Speed * Flutes) |
|
Feed per Cut |
Feed Rate / Flutes |
|

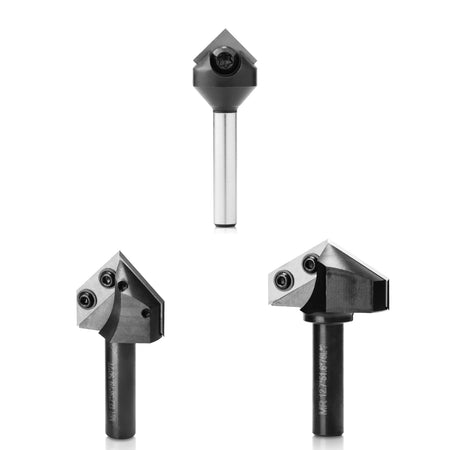

V Width |
tan(V Bit Angle/2) * 2 * Depth of V + Tip Diameter |
|
V Depth |
(V Width – Tip Diameter) / (Tan(V Bit Angle/2) * 2) |
|
Material Removal Rate (MRR) |
Feed Rate * Stepover * Stepdown |
As you can see all these calculations can rapidly become circular, they are all using the same few basic parameters and are often only slightly different ways of expressing basically the same thing.
