- Compatible with Genmitsu CNC Router 3018-PROVer, Laser Engraving Machine LE5040, Jinsoku LE-1620, Jinsoku LC-60A
- Control your CNC Router or Laser Engraving Machine without connecting a computer. Your CNC or Laser Engraving Machine can be placed wherever you want and run your projects untethered.
- The upgraded offline controller can jog each axis continuously with a long press of the button. You now don’t need to move the axis with small fixed increments by pressing the button repeatedly. It makes the operation easier and saves you time.
- You easily toggle your spindle on/off and process the Z-Axis tool setting. You don’t need to use your project gcode on your SD card for these functions.
- This upgraded offline controller has improved its compatibility with gcode. It even can recognize some of the non-standard codes, effectively preventing interruptions or misalignment when engraving.

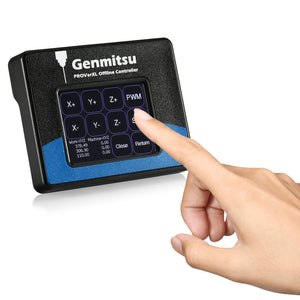

Compatible with PROVerXL 4030: This offline module is only compatible with Genmitsu CNC Router PROVerXL series controllers.
Easy to Use: This offline controller features an easy to read 2.4” Touchscreen display.
Manual Control: Take control of your PROVerXL 4030 through this control module. It’s easier to jog your machine on the fly and toggle your spindle on/off.
Easy File Access and Transferring: Your generated G CODE projects will be recognized simply by adding them to the SD Card.
No PC Offline Control: With the Genmitsu offline controller module, you can control the CNC router without connecting to a computer. Easily load your projects onto the included SD card and have them ready to go without the need of a dedicated laptop or computer.$49.99

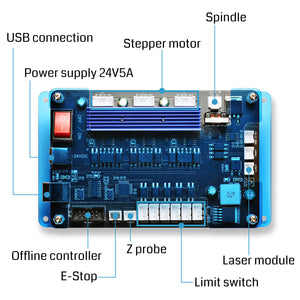

If you have already had the Genmitsu CNC Router 3018-MX3, this controller board can help you turn your MX3 to PROVer.
- This controller board is only compatible with SainSmart Genmitsu CNC 3018-PROVer, 3018-MX3.
- Applicable Software: Grblcontrol (Candle), LaserGRBL or other software that supports GRBL firmware, GRBL firmware version V1.1f.
- USB interface communication, support 3-axis engraving, and laser module.
- Input Interface: X Y Z limit (HOME) interface, Z-axis tool return to zero, emergency stop switch interface, GRBL offline controller interface.
- All control signals are isolated by optocoupler and have strong anti-interference ability.
- Input voltage: 24V (12-24V).
- Software: GRBL controller, UniversalGcodeSender.
- Stepper motor drive: DRV8825 ，Spindle power: 150W.
- Support XYZ three-axis control, spindle, laser head. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").
- Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).
Zero Voltage Switching Tesla Coil Flyback Driver for Sgtc /Marx Generator/jacob's Ladder + Ignition Coil
- 12-36VDC input (recommend 24V), output high voltage direct current, voltage of the input voltage of about 1000 times. The 12V input can reach 50-100W power, 24 V input max can reach more than 200W, so request power supply current best in more than 10A.
- A flyback drive circuit, which is used to drive the ignition coil, as did the Zero Voltage Switching, masses of fans called them "ZVS circuit". Because of its big power, low heat, simple and reliable by fans are widely used in the drive spark gap tesla coil (SGTC) and Jacob, ladders, Marx generator, etc.
$19.99$13.99 SAVE $6.00
- The maximum matching 5-axis stepper motor driver
- The two-stage signal processing, signal transmission smooth, powerful anti-jamming
- 5 input interface to define the emergency stop, limit, points in the knife, etc.
- relay output control interface can be accessed by the spindle motor or the air pump, water pump, etc
- five-axis job LED display, visual display products, working condition
- Very easy to use, no instructions, all of use are marked on the board
- With large heat sink to ensure good heat dissipation
- Input signal high-speed optocoupler isolation, guarantee not losing steps
- Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
- Attenuation model adjusted for all the motors can be locked when no noise
3-aixs GRBL laser CNC controller board can be used for DIY mini Engraving machine or Toy laser engraving machine. It supports various software and stepper motors.
$22.99$9.99 SAVE $13.00
