Brand: Genmitsu SKU: 101-60-L8W20-AJ

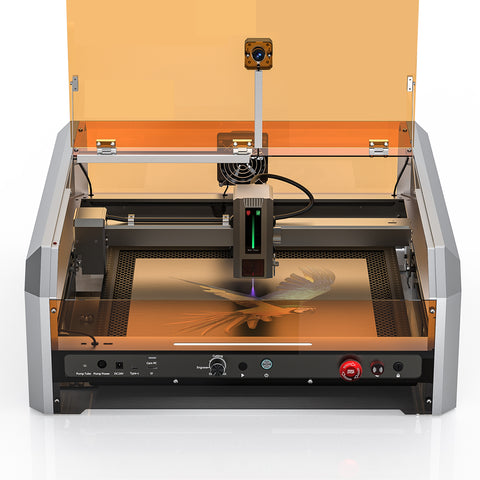

L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera

SKU: 101-60-L8W20-AJ 19 reviews Variants ID: 40848157671503
$899.00 $999.00
Save $100.00
Free Shipping
Power
20W Laser + Honeycomb Platform + Air Pump Kit
Ship to
USA
L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera
L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera
L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera
L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera L8 40000mm/min High Speed All-in-one Laser Engraving Machine, 20W/40W Power, Air Assist, Lightburn Camera

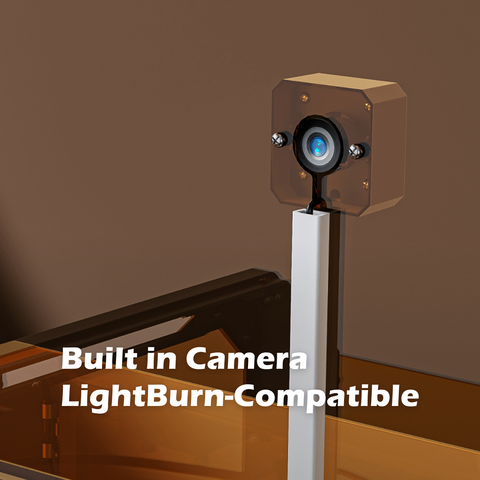

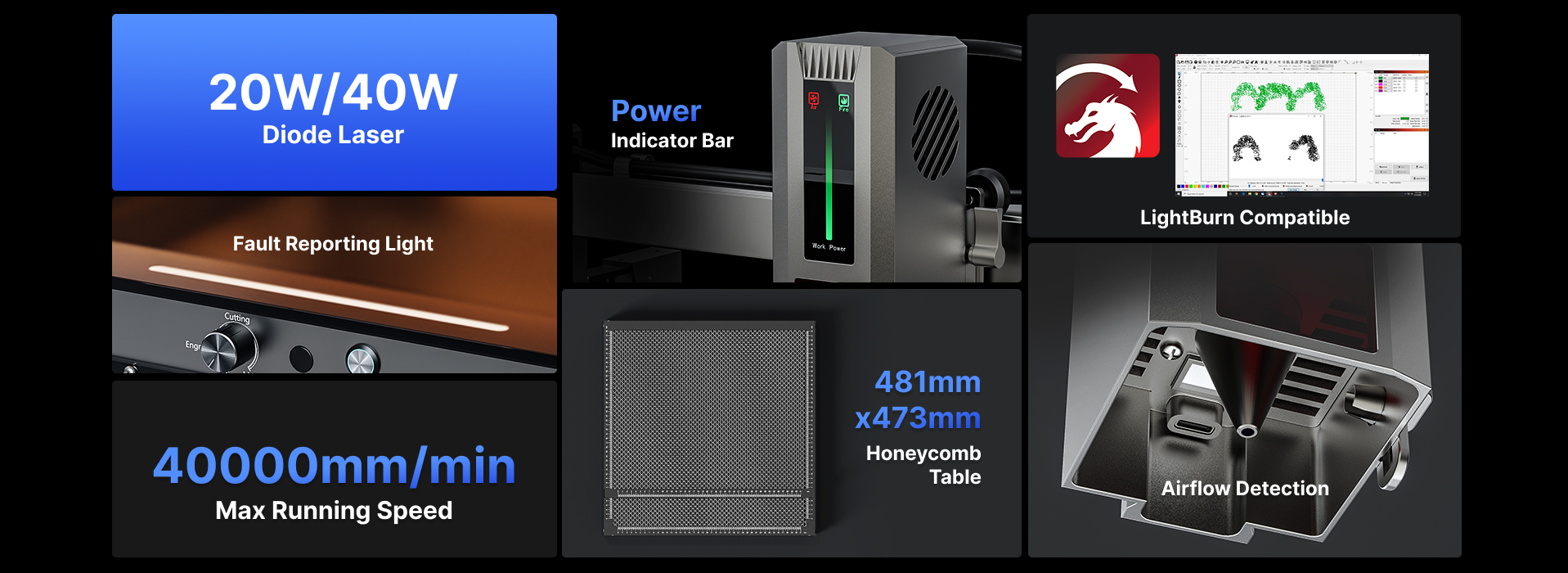

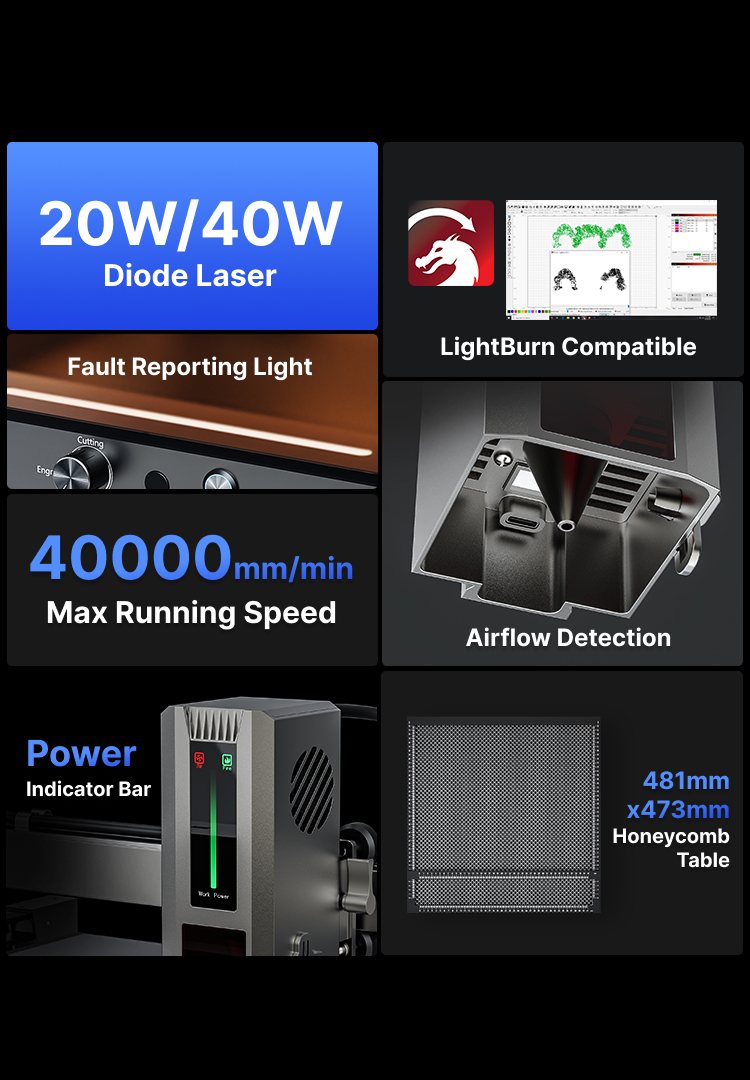

Built in Camera LightBurn-Compatible

Real-Time preview and drag, easily locate your projects without hassle

Specifications
Model
Model L8 Laser Machine
Engraving Size 20W: 400 * 400mm; 40W: 390 * 390mm
Product Size 611 * 634 * 250mm
Package Dimension 670 * 765 * 345mm
Assembly Time Down to 5 Minutes
Laser Module 20W, 40W
Laser Spot 0.07 * 0.13mm
Laser Wavelength 455nm
Total Power <144W, <240W
Power Supply DC24V/6A, DC24V/10A

Communication Interface WIFl wireless connection;
USB-Type C interface wired connection,
supports MAC and Windows desktop applications
Cooling Method Air cooling
Laser Service Time >10000 hours

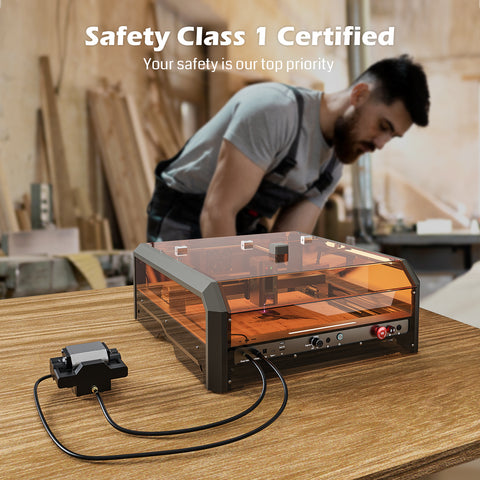

Laser Class Class 1

Engraving Accuracy 0.01mm
Engraving Speed 40000mm/min
Engraving Material Paper, wood, plastic, leather, cloth, cardboard,
leather, stone, ceramics.stainless steel,
coated metals and other non-transparent materials
Support System Windows/MAC/Android/IOS
Image Format JPEG/BMP/PNG/JPG/GIF/DXF/PLT/HPGL
Resource Articles

FAQs

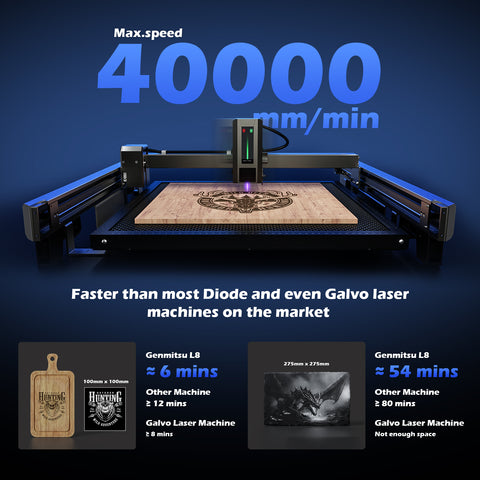

1. Is the speed of 40000mm/min mentioned for this product for real?
Indeed, our enhancements to the motherboard and frame have resulted in a maximum operating speed of 40,000mm/min. However, for actual engraving, we recommend adjusting the speed according to the specific material and desired effect.

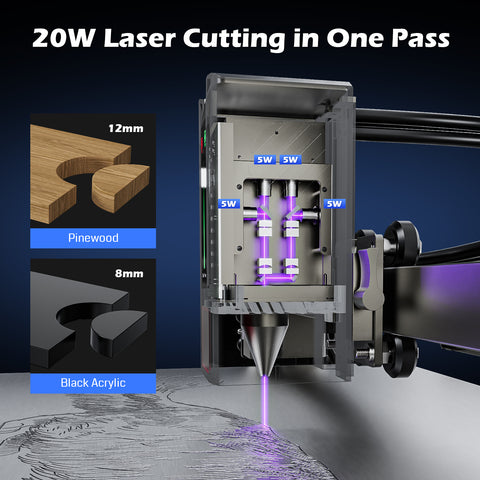

2. What distinguishes the 20W and 40W versions? What factors should be considered when choosing between them?

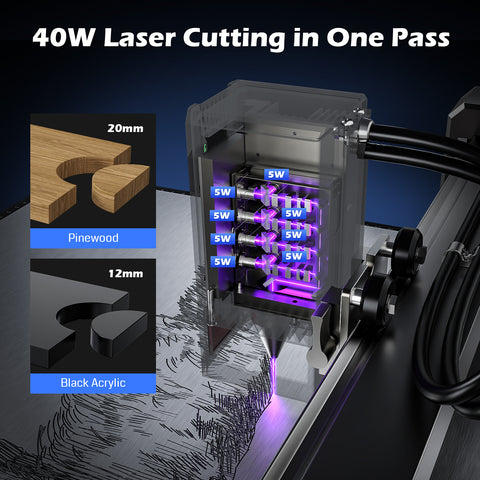

The accessories included with both the 20W and 40W sets are identical. In summary, if you prioritize efficiency and have higher cutting requirements, the 40W option is recommended. If your work primarily involves engraving and you don’t require that much of high efficiency or cutting capabilities, the 20W option would be suitable.

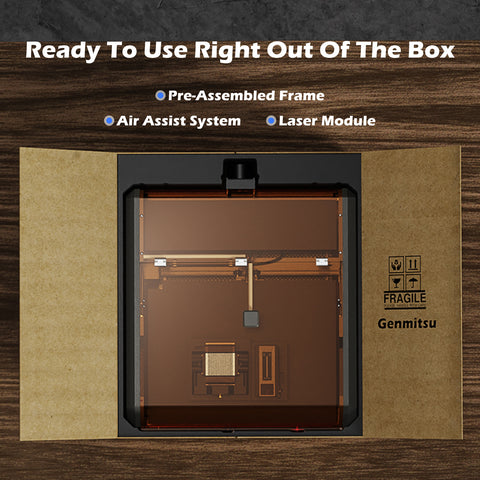

3. What items are included with the Genmitsu L8? Are there any optional accessories expected to be available soon?

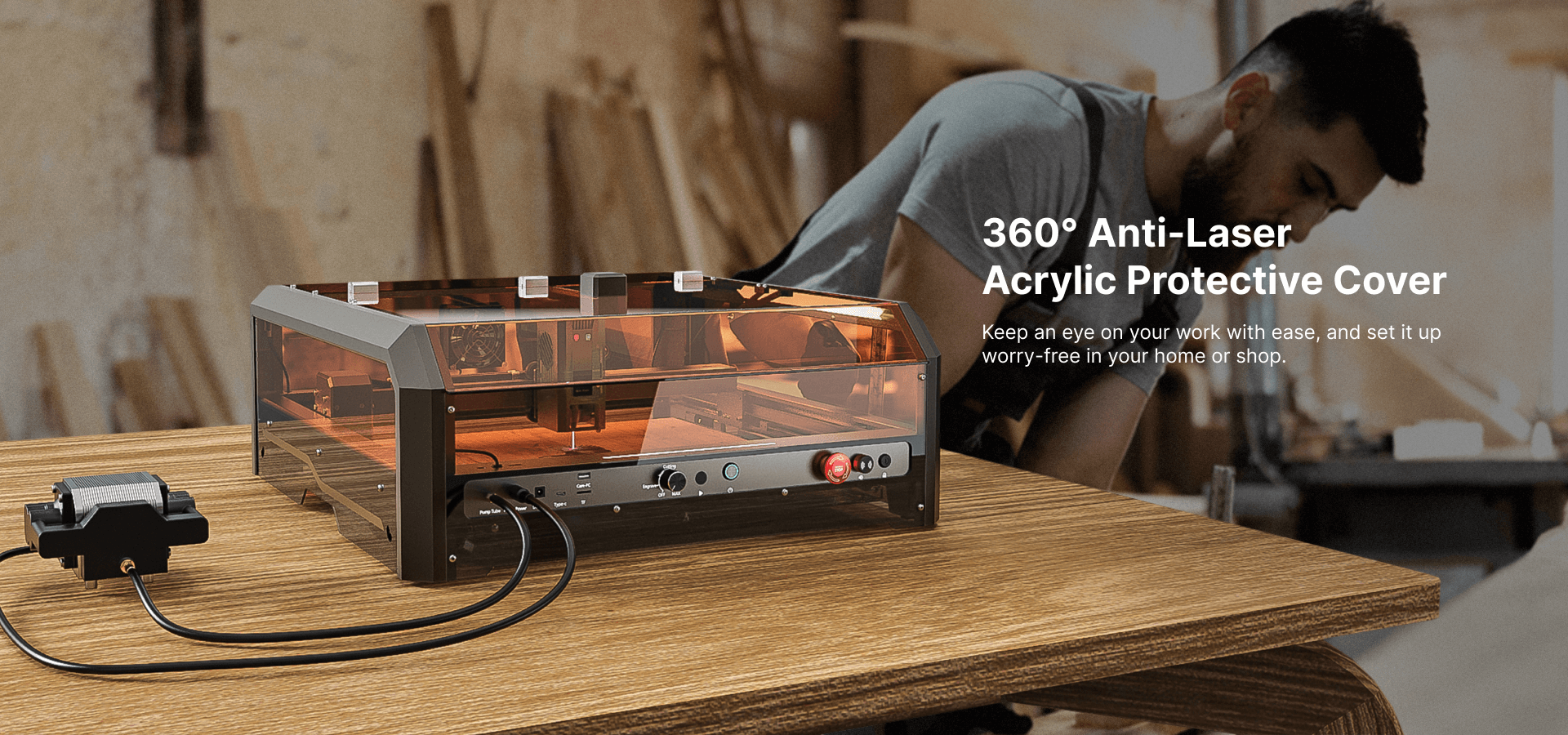

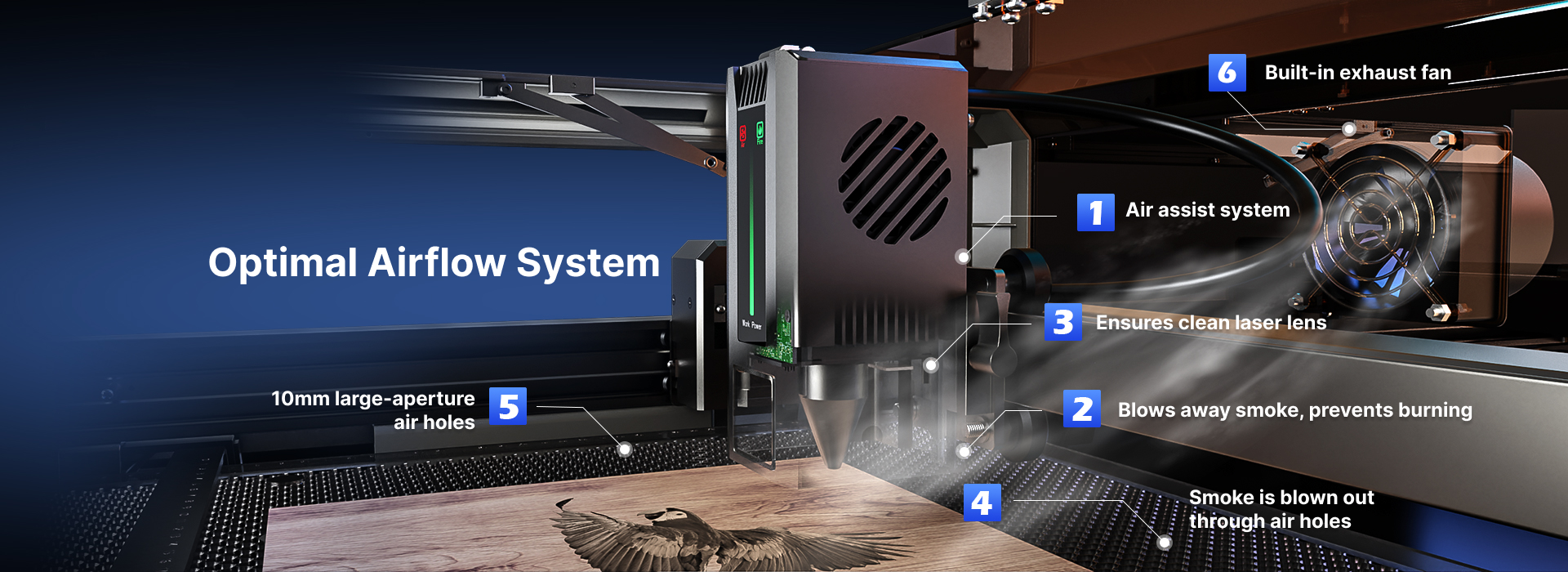

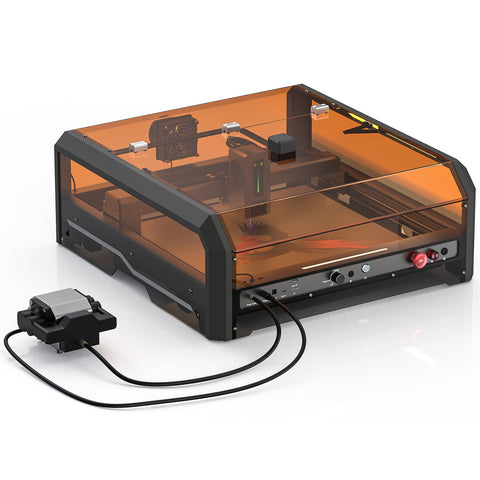

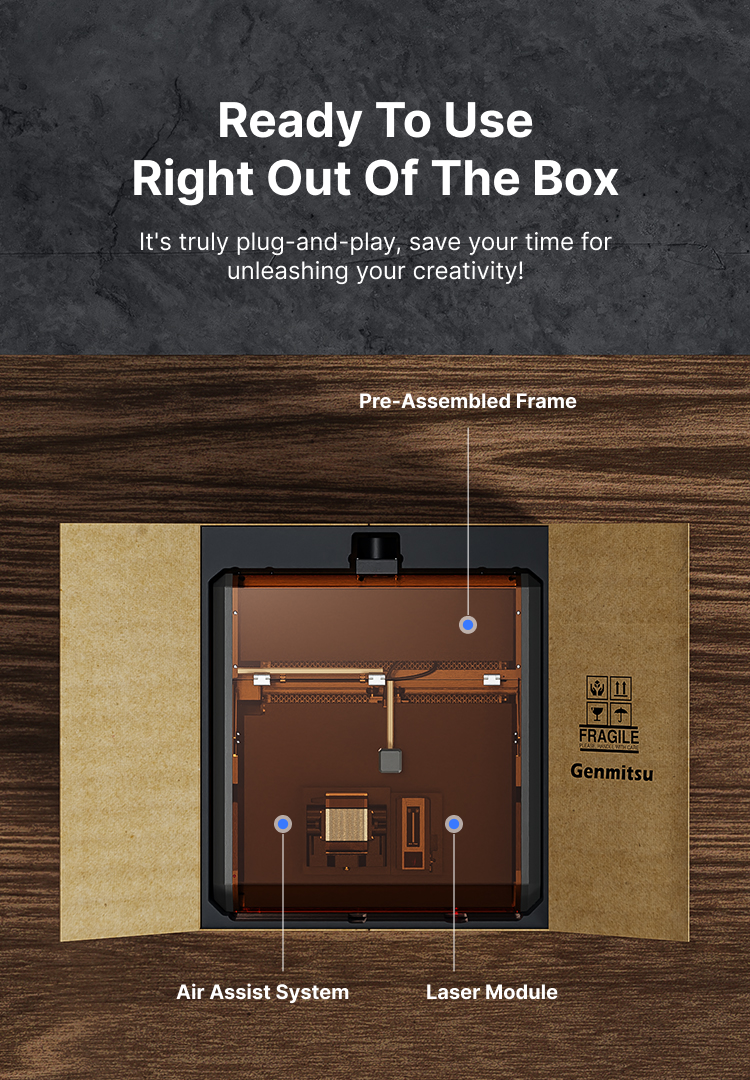

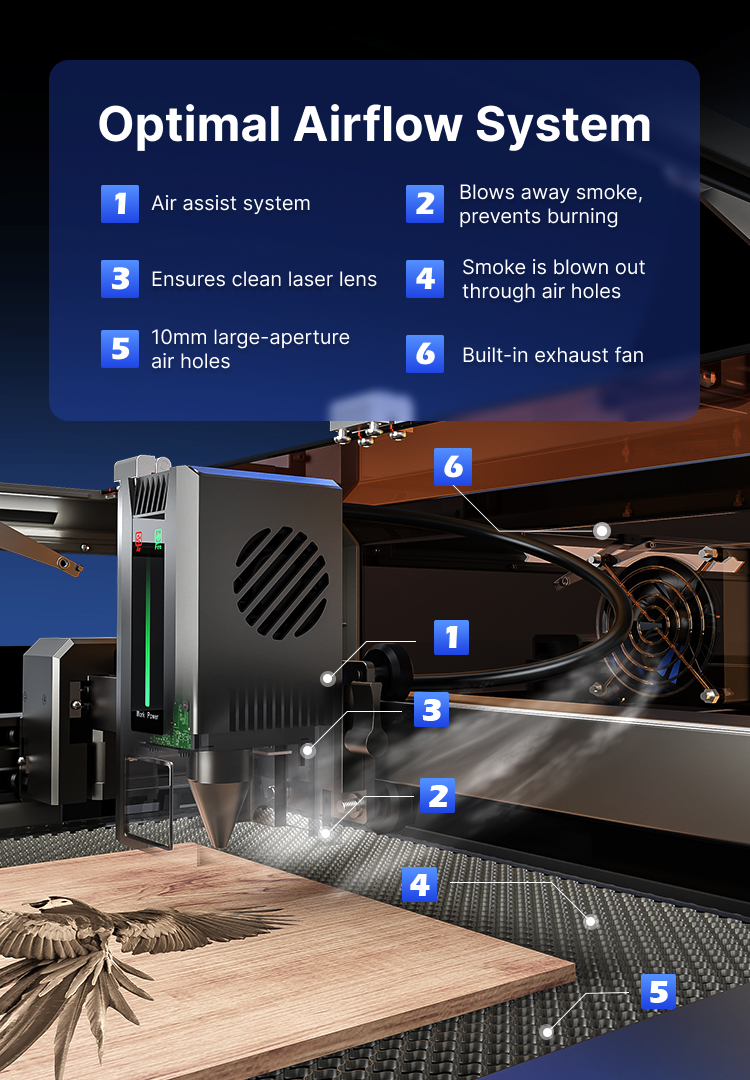

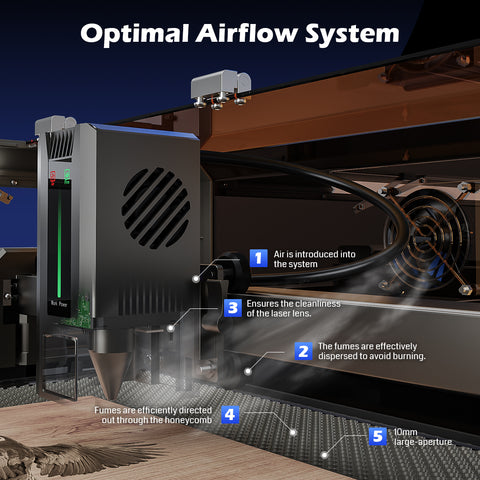

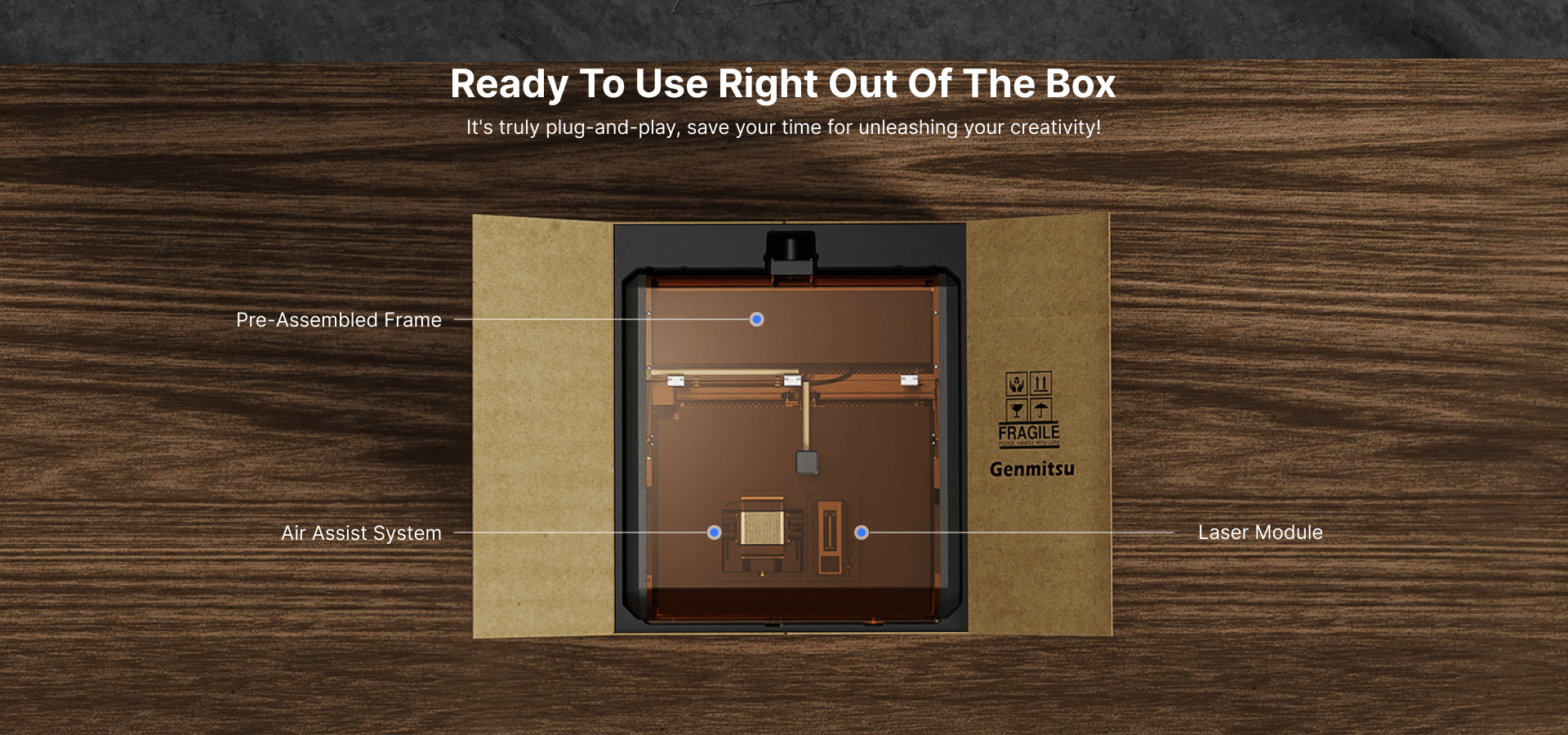

The accessories included are: Honeycomb plate, Air pump and air duct, Built-in Camera, and a Built-in One-piece Enclosure with a ventilation fan.

We also have new accessories coming soon, including: Air purifier, Y-axis Rotary Roller, 3-1 Rotary Roller with Jaw and Chuck, 40W Sole Laser Module, and other Laser Modules to be developed in the future.

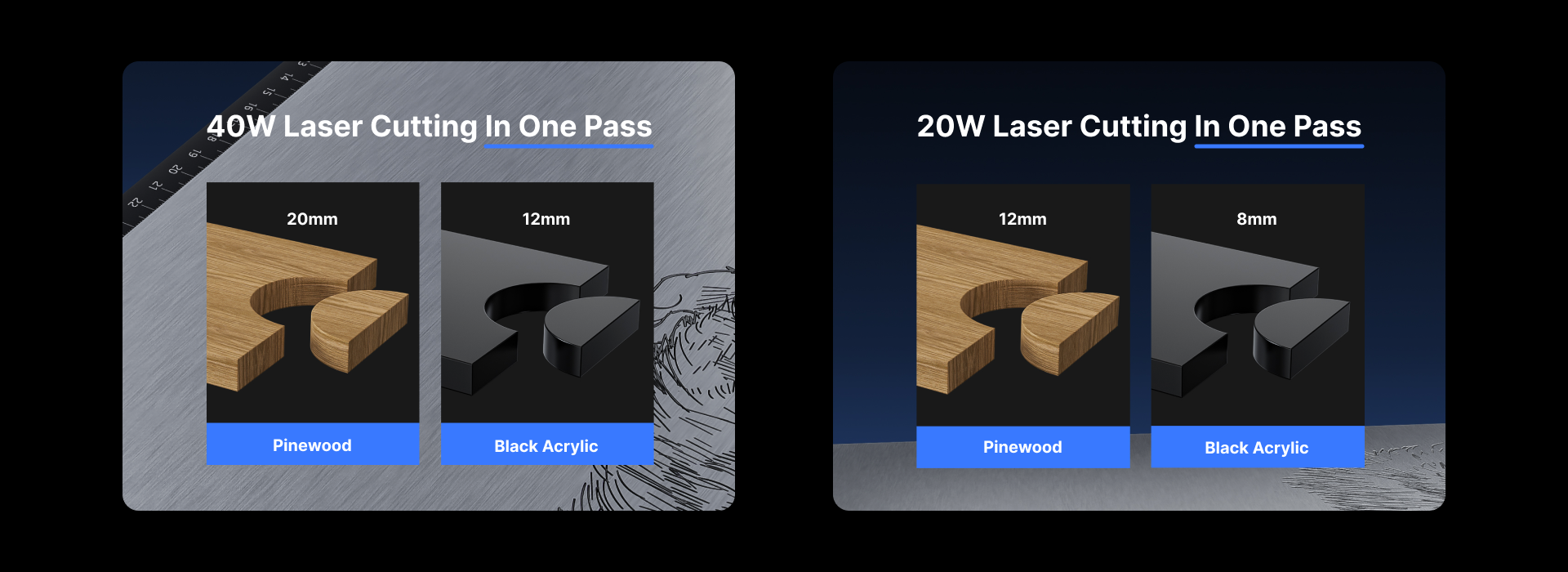

4. What types of materials can be engraved or cut with this device? Is there any data available for cutting different materials?

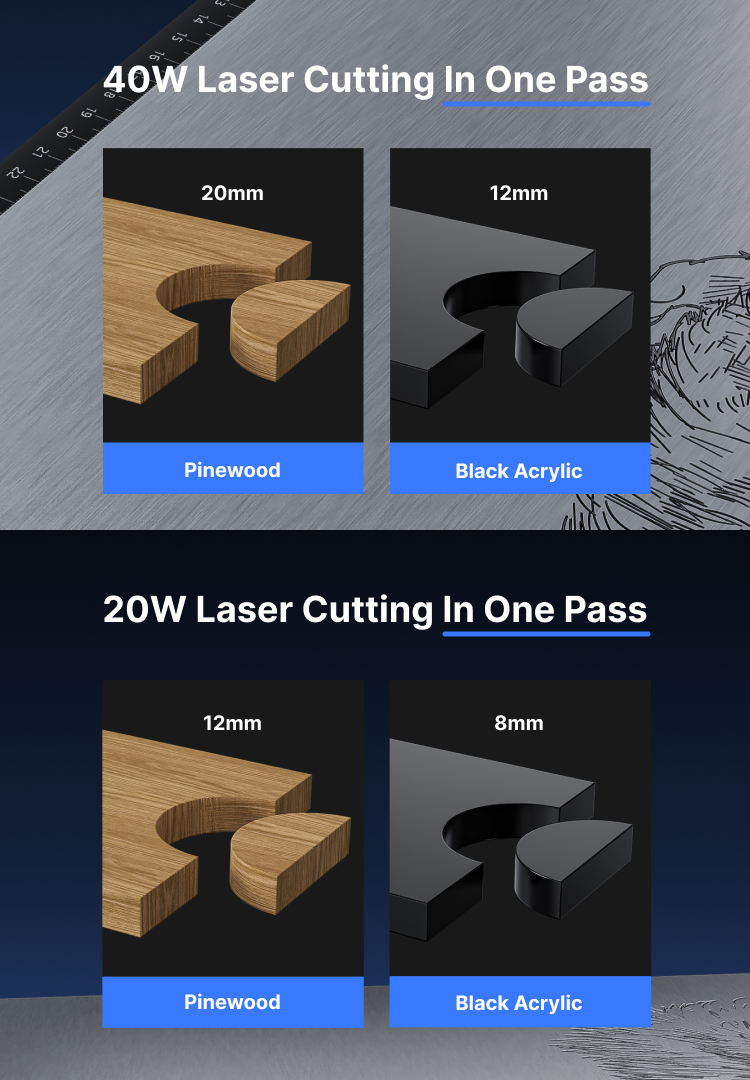

Cuttable Materials: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic, Basswood, Solid Wood, Kraft Paper, Non-woven Fabrics, Dark Plastic Sheet
Engravable Materials: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, Stone / Slate, Ceramic Tile, Coated or Painted Metal, Aluminum, Glass

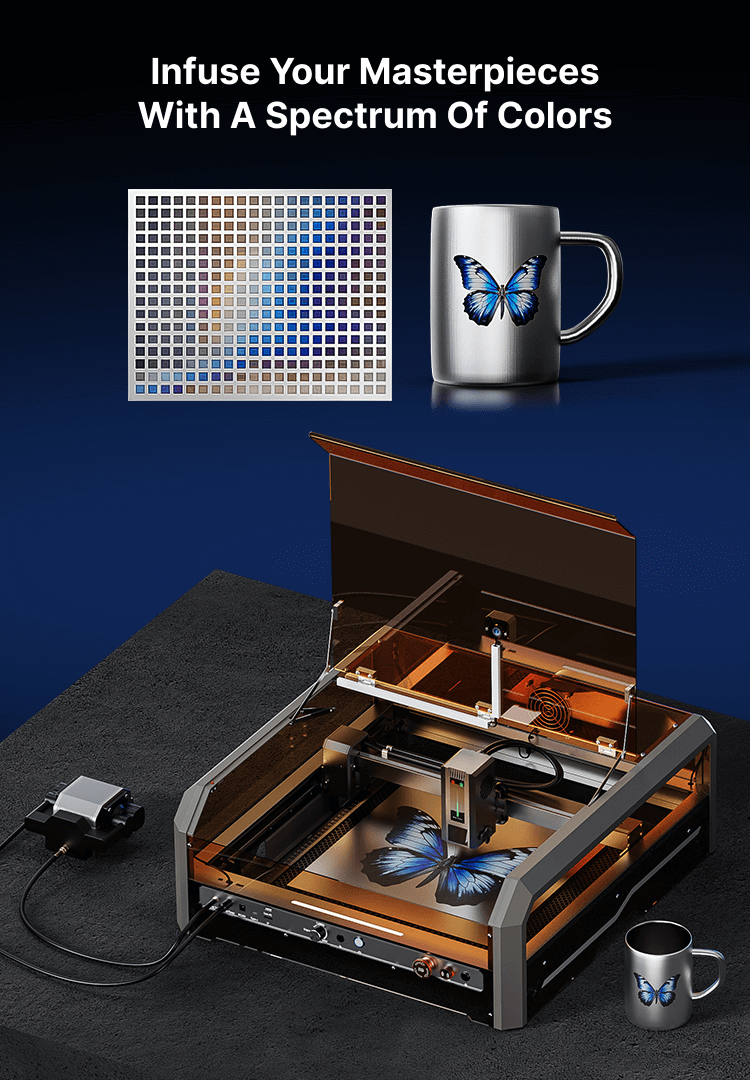

5. Can you explain how the advertised color feature functions?
Diode lasers can indeed be used to color stainless steel. The process works by absorbing enough of the laser’s blue light into the nickel and carbon in the surface layer of the stainless steel. This absorption heats the nickel and carbon, causing them to be briefly removed by the heat. This allows the warmed iron in the material to instantly oxidize, by adjusting different power and speed of the laser head, leaving colorful marks.
6. I’m a Mac user and I use LightBurn. Can I use the L8 with these?
Yes, the L8 fully support Lightburn, support system includes Windows/MAC/Android/IOS.
7. How does the camera feature function and is manual calibration required before use?
You can use the camera to position your product through lightburn. It is recommended to import preset parameters to calibrate the camera before use.
$999.00
Save $100.00
Customer Reviews
4.5 Based on 19 Reviews
5 ★
79%
15
4 ★
11%
2
3 ★
0%
0
2 ★
5%
1
1 ★
5%
1
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
GK
04/12/2024
greg k.
Canada Canada

locked and loaded

right out of the gate without any prior experience added Lightburn and hit the bullseye , remind people to learn on youtube.

JW
04/11/2024
Jack W.
Canada Canada

Amazingly fast machine!

I bought this to run a 20 card batch for aluminum business cards. And it cut the time down from 4.5hours for 9 cards with the proverxl 4030 with laser to 1 hour for 20!!

JE
04/09/2024
Jeff E.
United States United States

Built very well! Quick and powerful!

The folks at Sainsmart do a great job with customer service and quality manufacturing. I have the L8 40 Watt and a 4030 V1 with the bed extension kit. I’m very pleased with both! This L8 cuts through stuff like it’s nothing and built with obvious pride!
