P7-A 7-inch HD Touchscreen 4-Axis CNC Offline Controller | Standalone GRBL control with aluminum body, 7-inch HD touch display, and dust-free CNC router operation with no PC connection
P7-A 7-inch HD Touchscreen 4-Axis CNC Offline Controller | Standalone GRBL control with aluminum body, 7-inch HD touch display, and dust-free CNC router operation with no PC connection
- GA-P7-A
- GA-P7-A
- GA-P7-A
- GA-P7-A
- GA-P7-A
- GA-P7-A
Couldn't load pickup availability
- ULTRA-CLEAR 7-INCH IPS TOUCH SCREEN: Experience superior control with a large, responsive 1024*600 resolution display. This screen is a significant upgrade from standard 2.8" controllers, offering clarity that users describe as "Terrific for poor eyes."
- TRUE OFFLINE CNC OPERATION: Achieve total independence from your PC. This dedicated controller allows you to run G-code programs directly, ensuring you can work on your computer without worrying about ruining a cut and keeping your valuable laptop out of the dusty workshop environment.
- PREMIUM INDUSTRIAL BUILD QUALITY: Built with a "Heavy-duty premium hardware" focus, the controller features a solid, CNC-machined aluminum casing (679g). This professional design provides a machine-like interface similar to industrial milling systems.

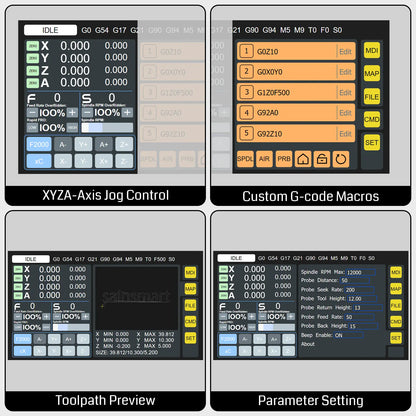

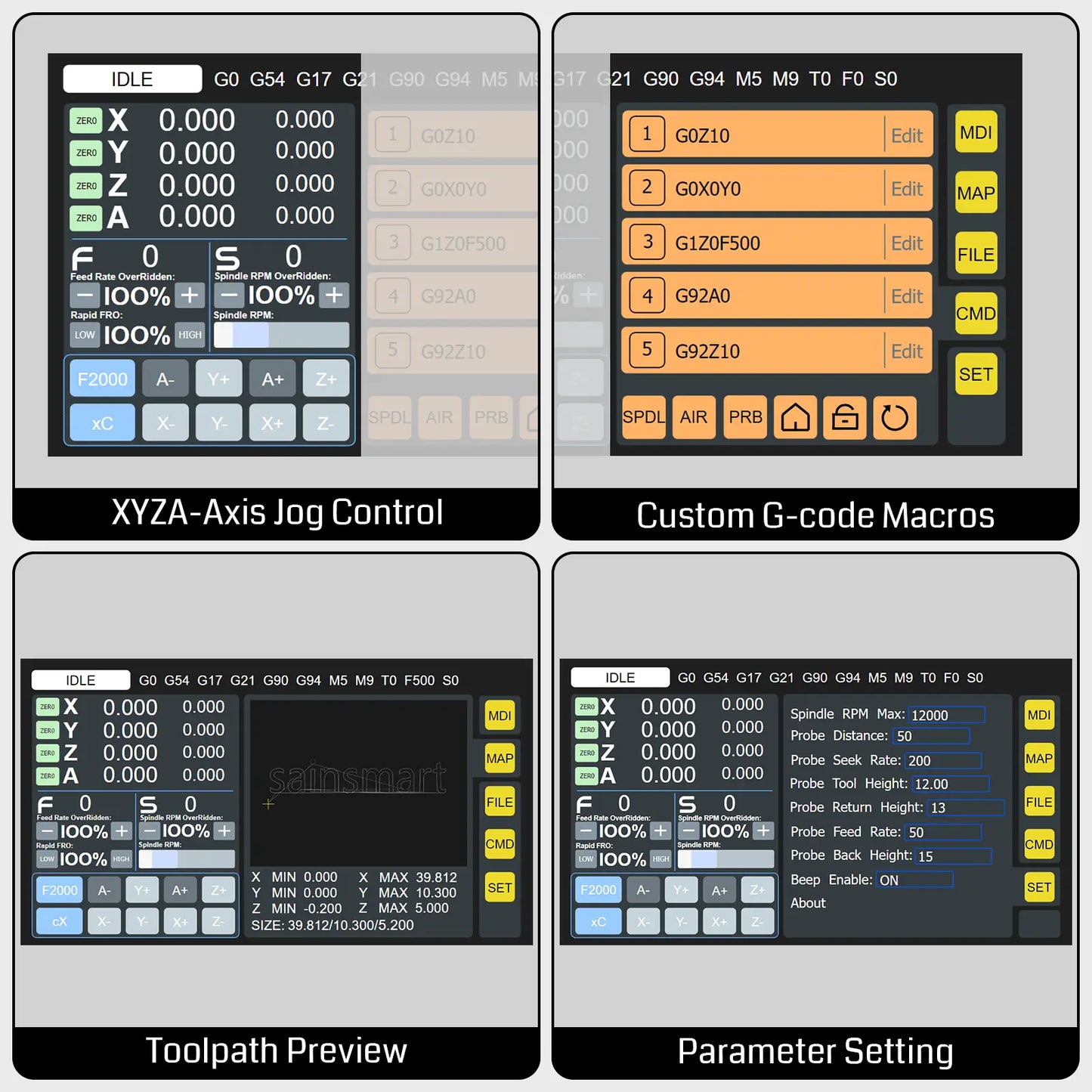

- ADVANCED CNC MANAGEMENT TOOLS: Take full command with essential features like real-time Toolpath Preview, custom macro buttons, and dynamic feed rate adjustment capabilities.
- 4-AXIS COMPATIBILITY & CHIP REQUIREMENT: Designed for true 4-axis control (42-4axis & cubiko mini 4axis models) and supports many GRBL v1.1f machines. CRITICAL NOTE: This controller requires your GRBL board to use the CH340 chip for serial port conversion at a baud rate of 115200.
Product Description
Upgrade Your CNC Workflow with True Offline Freedom

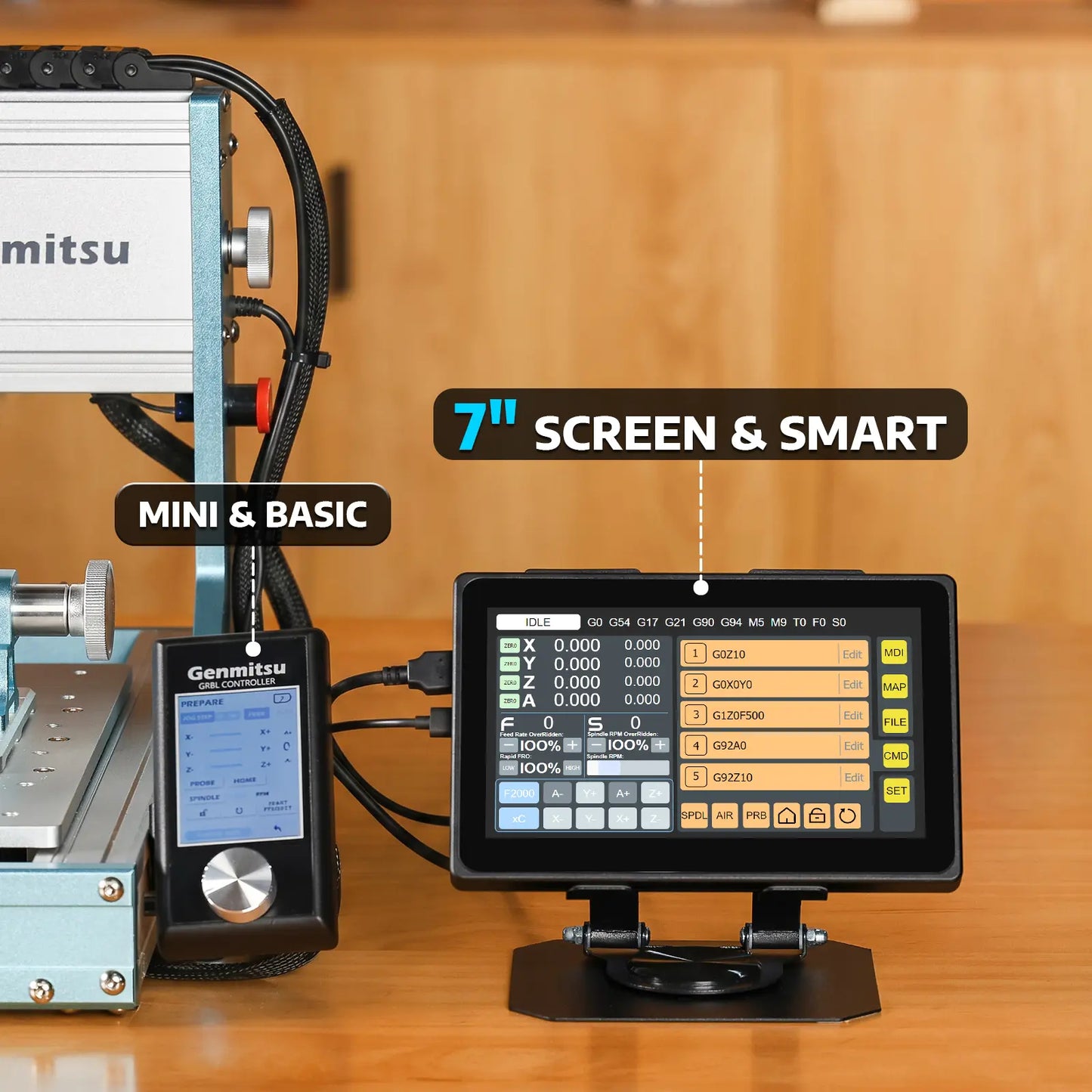

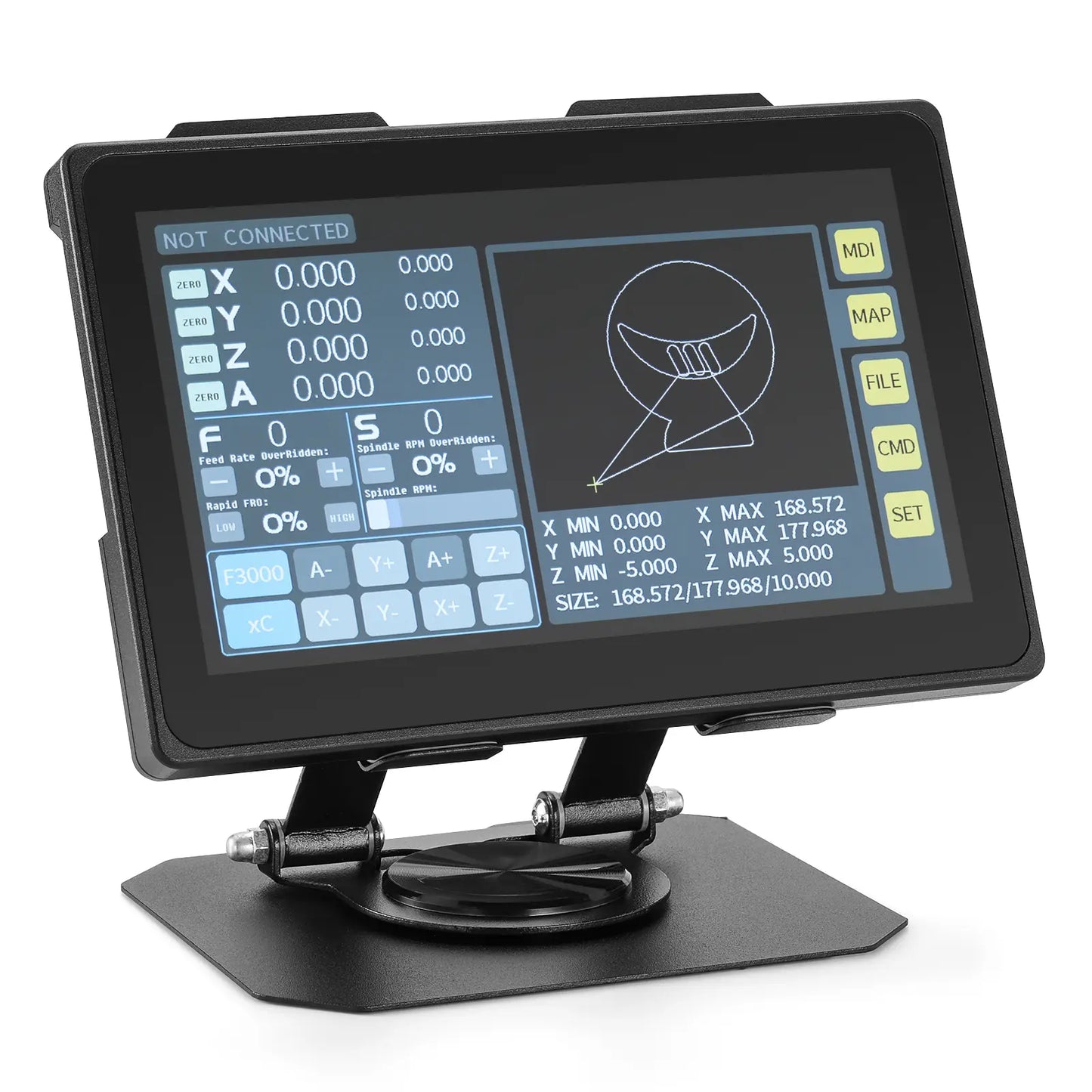

Take complete control of your CNC router without keeping a PC tied up in a dusty workshop environment. The GA-P7-A 7-Inch Offline Controller brings industrial-grade control directly to your setup through a vibrant, high-definition 1024x600 IPS touch screen.
Precision Monitoring & Dynamic Adjustments
Say goodbye to tiny displays and complex keypads. The oversized 7-inch interface allows real-time toolpath previews and intuitive menu navigation. Need to fine-tune speed or motion mid-job? Dynamically adjust feed rates on the fly to protect your workpieces and tools.
Rugged Industrial Build

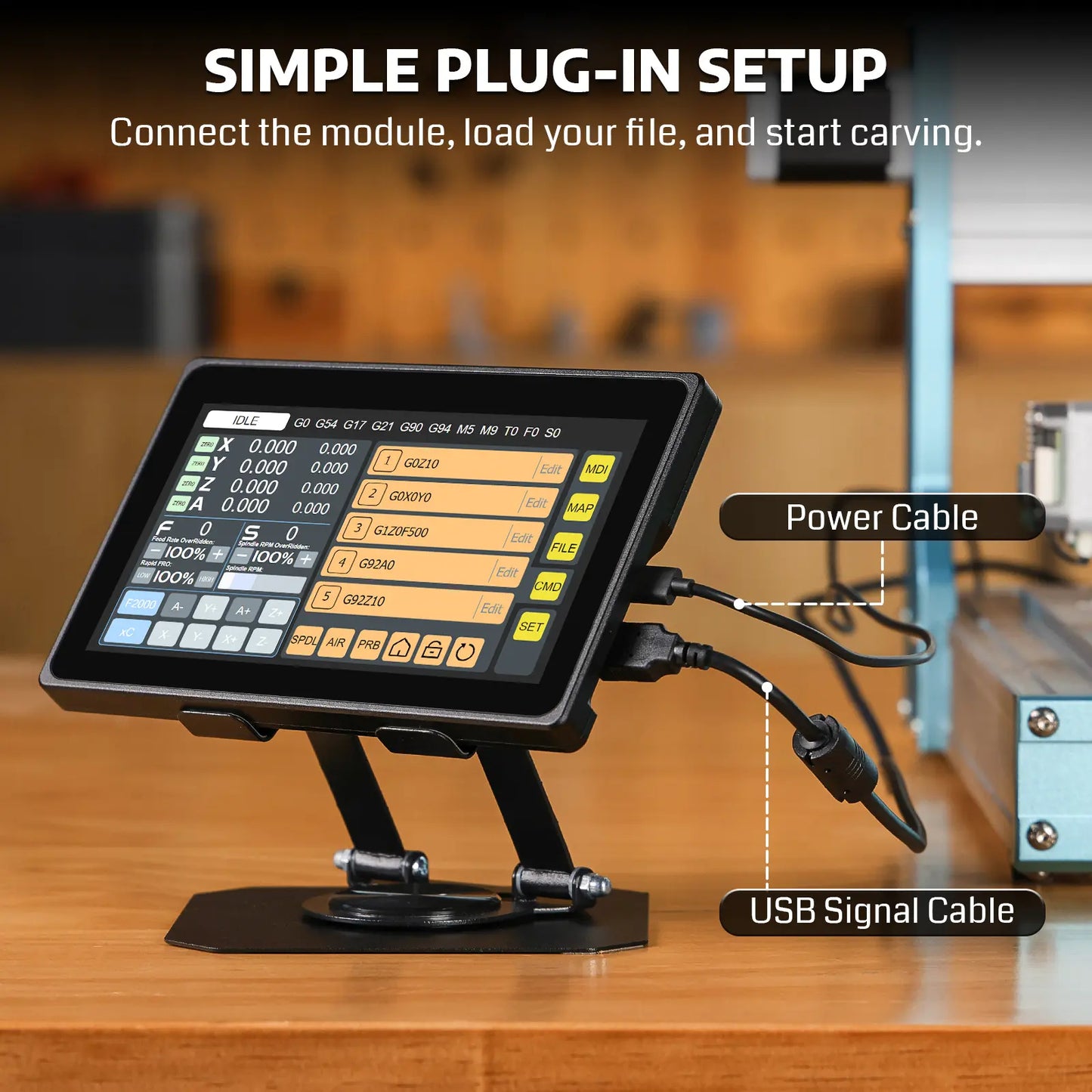

Encased in a heavy-duty CNC-machined aluminum body ($679\text{ g}$), this offline controller is built for durability and long-term stability in tough environments. With plug-and-play Type-C power, USB-A communication, and Micro SD expansion, upgrading your GRBL CNC workflow has never been easier.
Specifications
|
Model Name |
CNC Controller |
|
Screen Size |
7 Inches IPS |
|
Display Resolution |
1024 x 600 |
|
Input Power |
5V 0.5A |
|
Input Interface |
Type-C (Power supply), USB-A (Signal) |
|
Internal Storage |
128 MB |
|
External Expansion |
micro SD |
|
Supported 4th Axis |
Supports Genmitsu 42 4th Axis Module & Cubiko mini 4th Axis Module |
|
Supported Communication |
Only control boards using the CH340 chip for serial port conversion (Baud Rate: 115200) |
|
Product Dimensions |
117*181*21.4mm |
|
Weight |
679g (Without bracket) |
