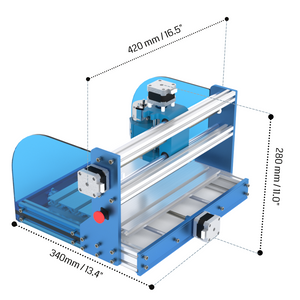

• The 3018-PROVer is the latest version of the 3018 Desktop CNC DIY Kit Series. Now Pre-assembled and no fuss with assembly taking less than 15 minutes out of the box.
• The 1.8” display will clearly display readouts and provide manual control of your mill without any computer. If a project gets out of hand the PROVer has an emergency stop control that is very visible and easy to access for an immediate shutdown of your machine.
• Make more with the all-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.
• Still based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent Toshiba TB6S109 drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.

*Join SainSmart Genmitsu CNC Router Facebook Group.

Mini Digital Power System

MDP is a system of programmable linear DC power supply based on a modular design, capable of connecting different modules for use as needed. MDP-XP provides programmable output, timing output, sequential control, automatic compensation, which can meet diversiform testing needs.

2.4G Wireless Connection

Thanks to the 2.4G wireless connection, this device achieves multichannel free combination at the power of 90W per channel, making you work effectively

Digital Power Module

With high-efficiency linear output, 0.25mV ripple wave, high-speed transient response, it also supports precise fine-tuning.

Easy to Use

Featured with a 2.8-inch TFT screen, which can display the voltage-current waveform in real-time, data statistics, and auto-matching control of six sub-modules (digital power modules), with dual thumb wheels and 90-degree scrolling user-friendly design.

Application

MDP-XP is used widely for electrical engineering test and teaching experiments in the R&D laboratory, maintenance of digital products, automotive test, etc.

Upgrade Version

DSO213 is the latest oscilloscope in the family of SainSmart DSO oscilloscope. Compared with DSO203, DSO213 upgrades its analog bandwidth to 15MHz (DSO203 is 8MHz) and max sample rate to 100MSa/s (DSO203 is 72MSa/s)

Color Display

Equipped with a 3 inch 400x240 color display, it presents any measured AC current, including sine, square, sawtooth, and triangle waveforms.

Simple to Use

Operation is simple and easy, just like play a smartphone.

Portable

Its small form factor conveniently fits inside any pocket so it’s always ready when you need it.

Easy Saving

The built-in 8 MB flash storage makes saving and transferring waveform images easier than ever.

Professional and Home Use

From home inspection to professional field use, the UNI-T i80 is perfect for jobs that require accurate temperature readings from-22°F to 752°F. Our intuitive design features a 20:1 DS (distance coefficient) ratio for safe measurements from long distances.

Fusion Image and High Resolution

Fusion visible light images and thermal imaging for quick troubleshooting.  The 80x60 pixel thermal imaging camera and 2.4 inches TFT LCD screen allow you to view and capture high-resolution professional images for later evaluation or reporting.

Dual Laser Measurement Tool

Our dual laser pointer design allows you to easily discern the distance between two points on screen for accurate measurements.

16GB Memory Card Storage

Images and data can be easily saved into the included 8GB microSD card for later troubleshooting and documentation.

Portable and Comfortable Grip

The UTi80’s compact design allows it to be easily stowed and transported and includes a rechargeable Lithium battery for extended use and a lower environmental impact compared to other disposable battery devices.

If you have already had the Genmitsu CNC Router 3018-PROver, this controller board can help you turn your PROVer to MX3.

• This controller board is compatible with SainSmart Genmitsu CNC 3018-MX3, 3018-PROVer.
• Suitable for Mach3mill and DrufelCNC, support Windows system, Note: Not applicable to Linux and iOS systems, GRBL related control software is not supported.
• USB interface communication, support 3-axis engraving, and laser module.
• Spindle motor interface can be connected to DC motors which can up to 100W, also suitable for 775 spindle motors.
• All control signals are isolated by optocoupler and have strong anti-interference ability.

• This controller can manually control the XYZ-Axis to run on CNC Router 3018-MX3.
• Three-speed modes can be selected on the handle. Low speed mode 50 pulse/s; Middle speed mode 500 pulse/s; High speed mode 5000 pulse/s.
• Easy to use, no driver needed. Just connect it on the controller board of the 3018-MX3, then it works.
• Compact design : 130mm x 60mm x 25mm
• SainSmart provides one year warranty on the MPG manual controller, if you have any questions, contact us via support@sainsmart.com.

Compatible With Mach3: Mach3 is professional software that can turn a PC into a CNC machine controller. 3018-PROVer Mach3 is the only budget-friendly and home CNC alternative to high-end industrial machines that allows you to learn Mach3 software and grow your CNC skills.

Semi-Assembled: It is mostly pre-assembled and no fuss with basic setup taking less than 15 minutes out of the box. Upgraded with the all-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.

Auto Tool Zero: With one mouse click, 3018-PROVer Mach3 will automatically return to a predefined position, allowing you to easily change and calibrate your tools.

Versatile: Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, 3018-PROVer Mach3 can be used on a wide range of projects and materials. The open design with an effective engraving area of 260 x 155 x 35mm (10.2 x 6.1 x 1.4'') allows you to work on even larger pieces with fewer limits.

TB6600 Stepper Driver put forward a easy solution to make your 3D printer and CNC machine. It's function is similar to the computer Host and you can easily handle it only plug few terminals.

• DC power input type:12V~40V
• Output current:0.6~4.5A
• Mirco-step: 1, 2, 4, 8, 16
• Protect form : Overheated protection, over-current protection, under voltage protection, Preventing reverse
• Connection of power supply
• The maximum pulse rate is 200KHZ
• Dimensions: 118mm*87mm*35mm  4.6"*3.4"*1.4"
• Weight:253g
• Working environment:Temperature-15~50℃/ 5℉~122℉ Humidity<90%

*Final Sale, no exchange or return. 6-Month Warranty.

Portable

The slim and compact design can fit perfectly inside your pocket, without losing any of the integral features found in a full-sized oscilloscope!

Powerful

System stores files in BMP, DAT, BUF, or CSV format. Uses a built-in flash disk to save/read waveform images. Math waveforms are as follows: DATA, -DATA, Inp+D, Inp-D, -Inp. Output test signal: 10Hz—1MHz (1-2-5 sequence step). Can be used in a wide range of environments including academic, electronic maintenance, electronic engineering, etc.

LCD Screen

The 2.8inch full-color TFT LCD screen provides a rich display for its smaller size.

Rechargeable

A built-in 500mAH rechargeable lithium battery provides power for your oscilloscope use, rechargeable through a mini USB port.

Large Storage

Comes with a built-in 8MB storage for saving waveform data and images!
