Brand: Genmitsu SKU: 101-61S-MSB-C08

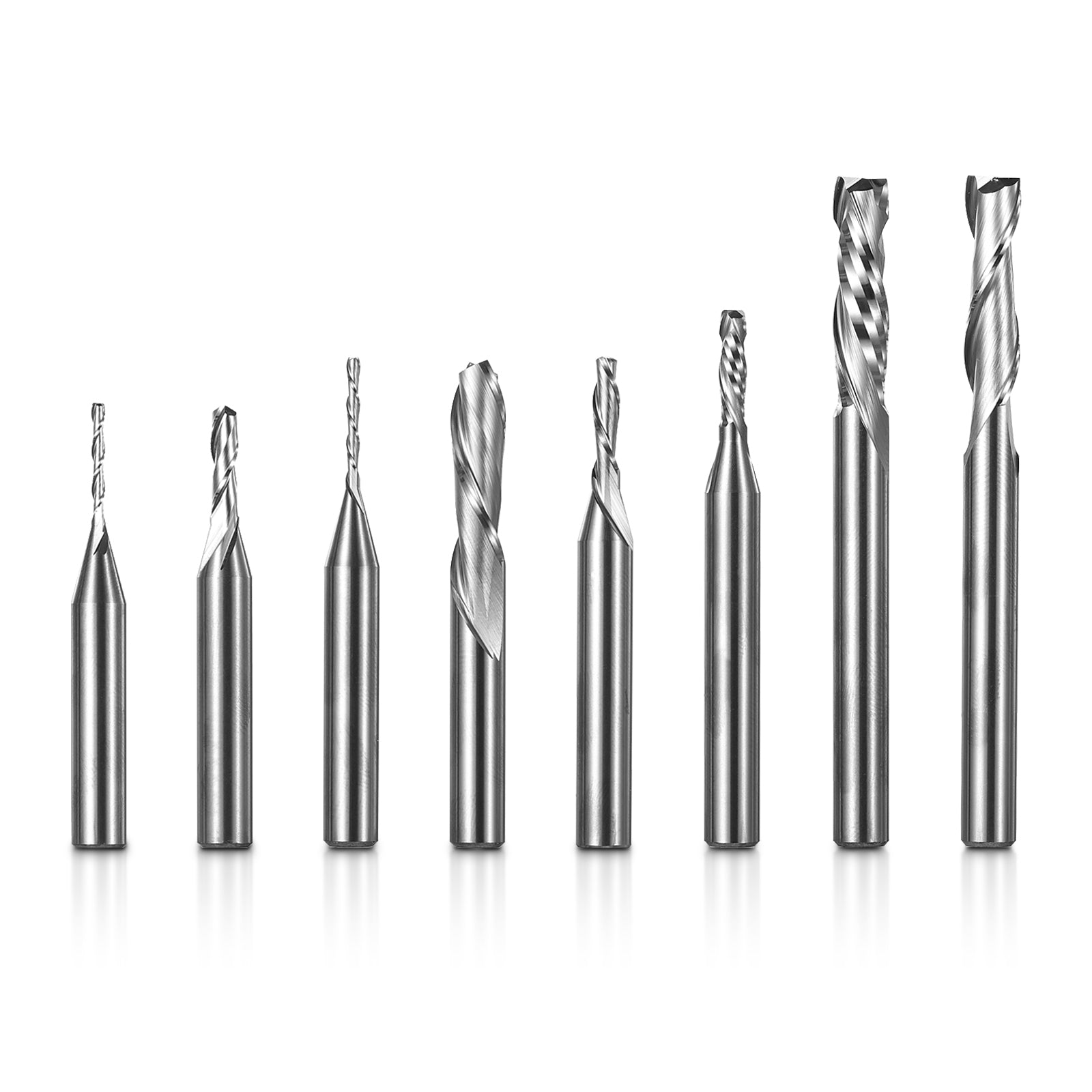

MSBC08, 1/4" Shank, End Mills CNC Router Bits, Tungsten carbide,Tool for Aluminum, Metal, Plastic, MDF & Wood

SKU: 101-61S-MSB-C08 Variants ID: 42138681278543
$99.99
Free Shipping

Spend & Save Up to $300 USD OFF

Ship to
USA

Up Cut Set – Shank Diameter: 6.35mm, Cutting Diameter: 1.58mm; 3.175mm; 6.35mm;, Cutting Length: 12mm; 12mm; 25mm, Overall Length: 50mm; 50mm; 75mm

Down Cut Set – Shank Diameter: 6.35mm, Cutting Diameter: 1.58mm; 3.175mm; 6.35mm;, Cutting Length: 12mm; 12mm; 22mm, Overall Length: 55mm.

Compression Cut Set – Shank Diameter: 6.35mm, Cutting Diameter: 3.175mm; 6.35mm, Cutting Length: 12mm; 25mm, Overall Length: 60mm; 75mm.



MSBC08, 1/4in shank end mills CNC router bits tungsten carbide for aluminum metal plastic mdf wood

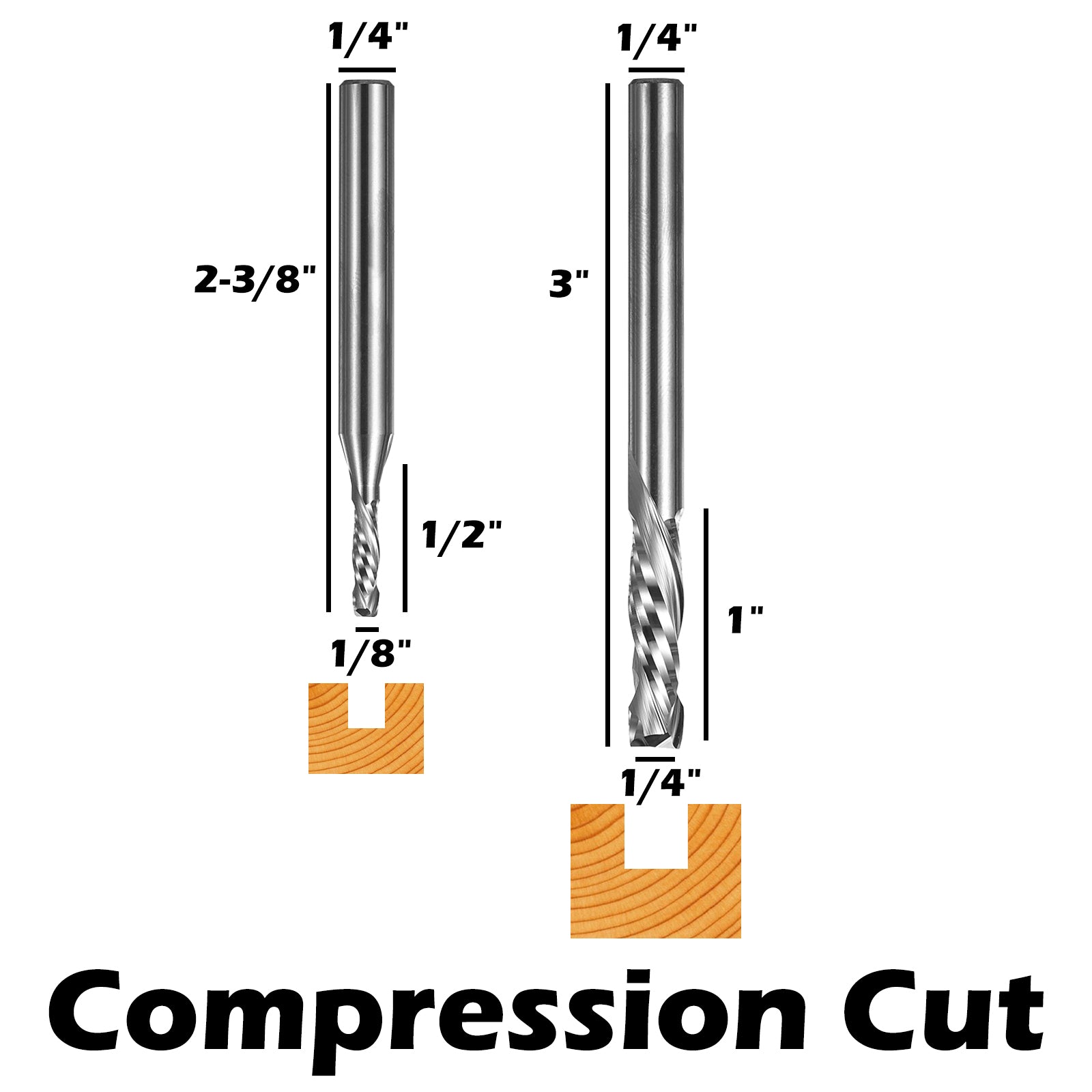

Compression Cut

Compression Cut

Ensure clean edges on both sides.

  • Shank Diameter: 6.35mm
  • Cutting Diameter: 3.175mm/ 6.35mm
  • Cutting Length: 12mm/25mm
  • Overall Length: 60mm/75mm

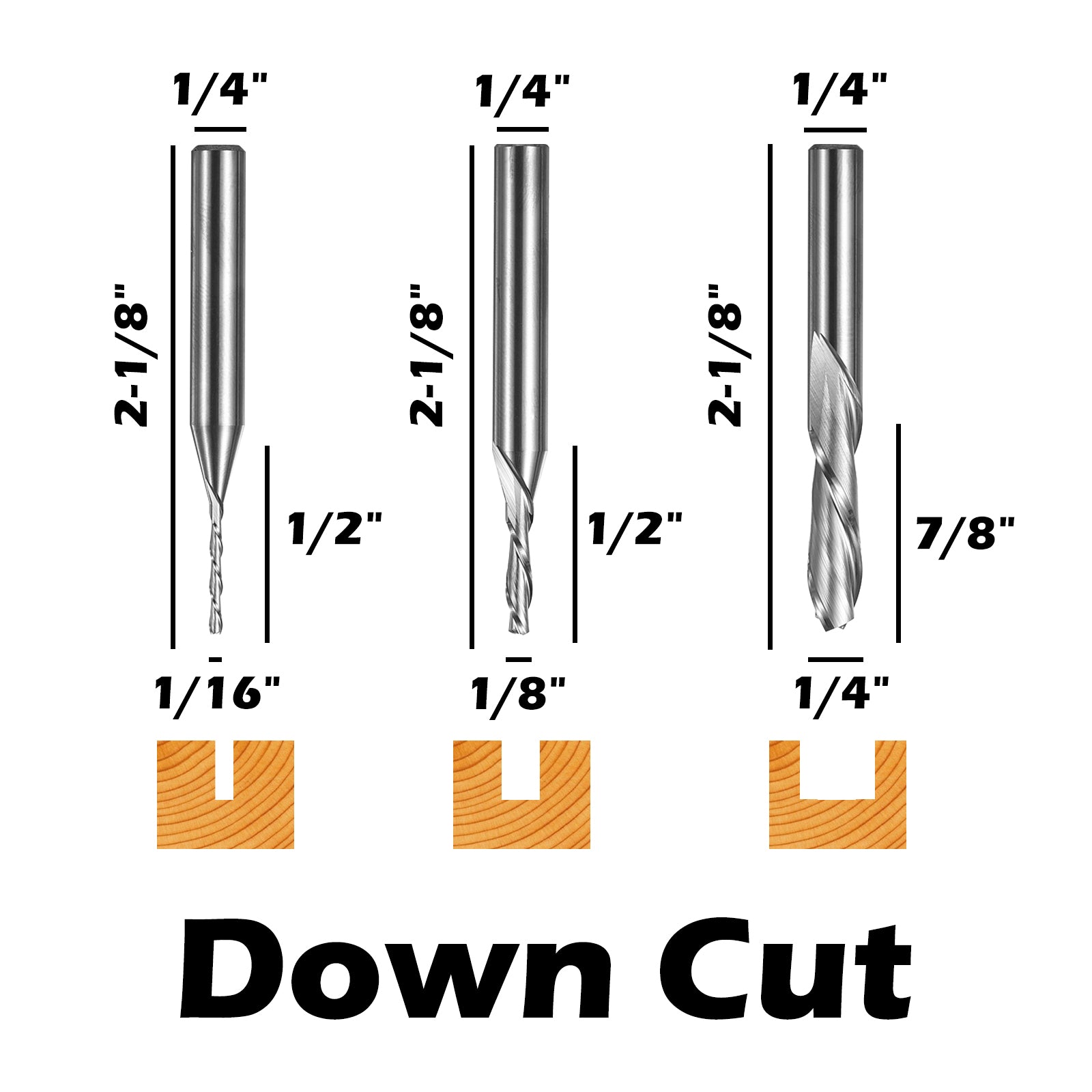

Down Cut

Down Cut

Deliver a smooth top surface.

  • Shank Diameter: 6.35mm
  • Cutting Diameter: 1.58mm/3.175mm/6.35mm
  • Cutting Length: 12mm/12mm/22mm
  • Overall Length: 55mm

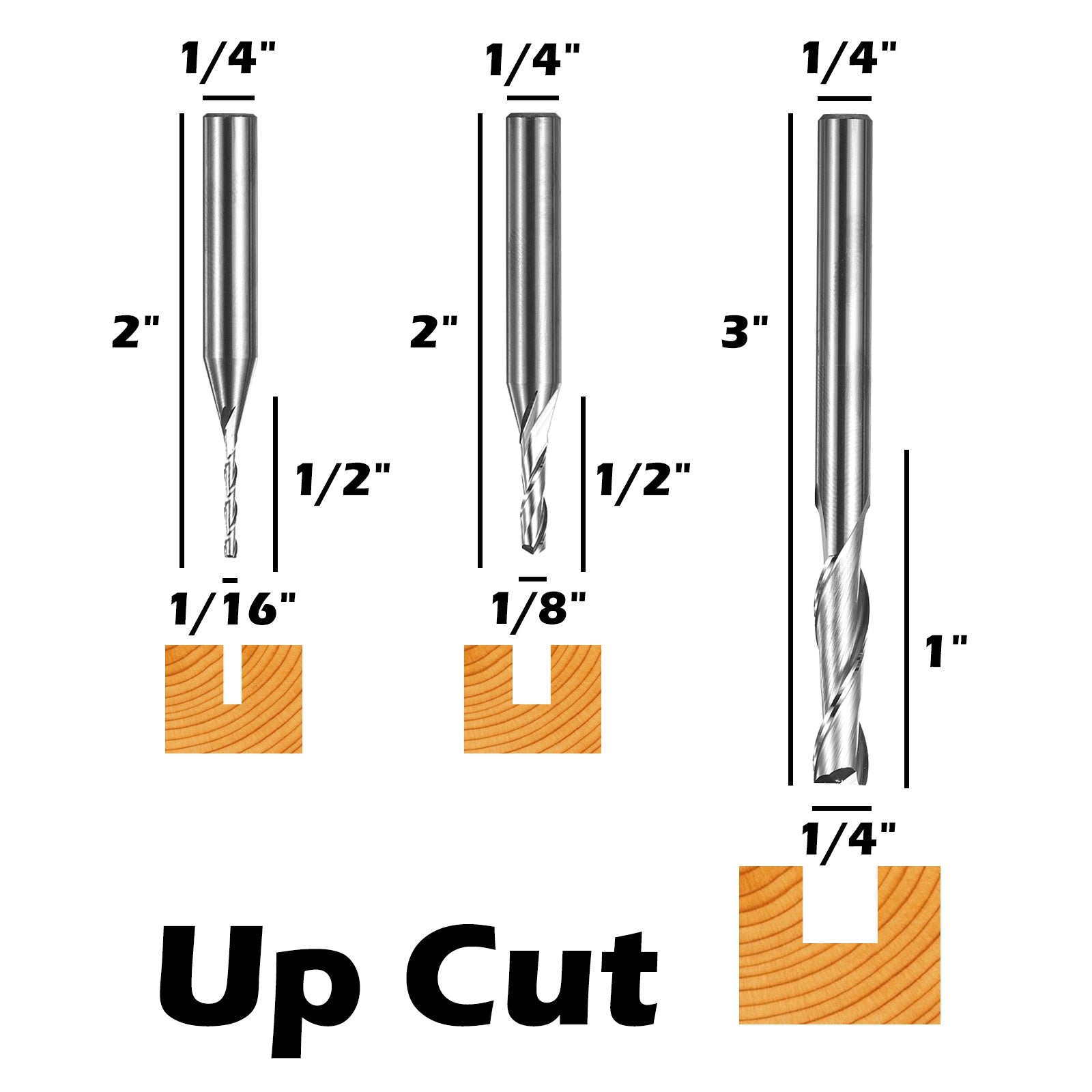

Up Cut

Up Cut

Deliver a smooth bottom surface.

  • Shank Diameter: 6.35mm
  • Cutting Diameter: 1.58mm/3.175mm/6.35mm
  • Cutting Length: 12mm/12mm/25mm
  • Overall Length: 50mm; 50mm; 75mm

High Performance: Crafted from premium tungsten steel with 60-70 HRC hardness, these spiral router bits stay sharp longer, reducing wear and replacement. The compression bit ensures clean edges on laminated boards, while the down/up cut bits provide smooth, tear-free surfaces, ideal for delicate materials. This set is perfect for plywood, MDF, and solid wood.



Precision Grinding: The rigorous precision grinding and polishing processes yield these CNC bits with high resistance to abrasion and high temperatures, as well as exceptional rigidity and durability. Their outstanding wear resistance ensures longevity even in the most demanding conditions, while excellent thermal stability permits high-speed cutting without any compromise in performance.



Wide Compatibility: The MSBC08 end mills are compatible with most desktop CNC machines, such as the Genmitsu as well as other CNC machines on the market. Just make sure you select the correct-sized collet for your device.
