Brand: Genmitsu SKU: 101-60-3030PVM-AJ

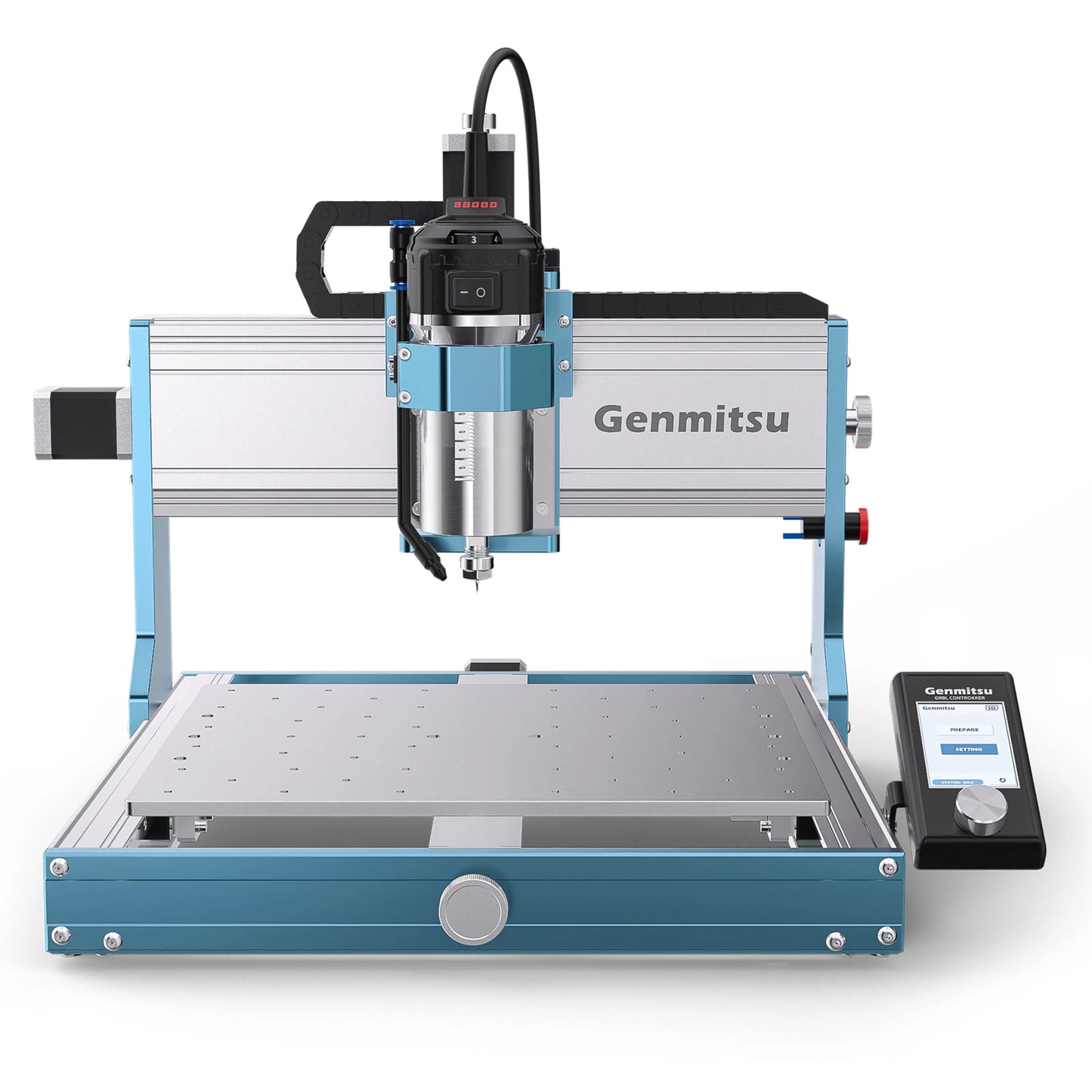

3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion

SKU: 101-60-3030PVM-AJ 9 reviews Variants ID: 40894422253647
$849.00
Free Shipping
Style
Standard Kit
Ship to
USA (ETD 2.15)
Elevate your metalworking game with the Genmitsu 3030-PROVer MAX Desktop CNC Router, a cutting-edge precision tool engineered for unrivaled accuracy and power.
3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion
3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion
3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion
3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion

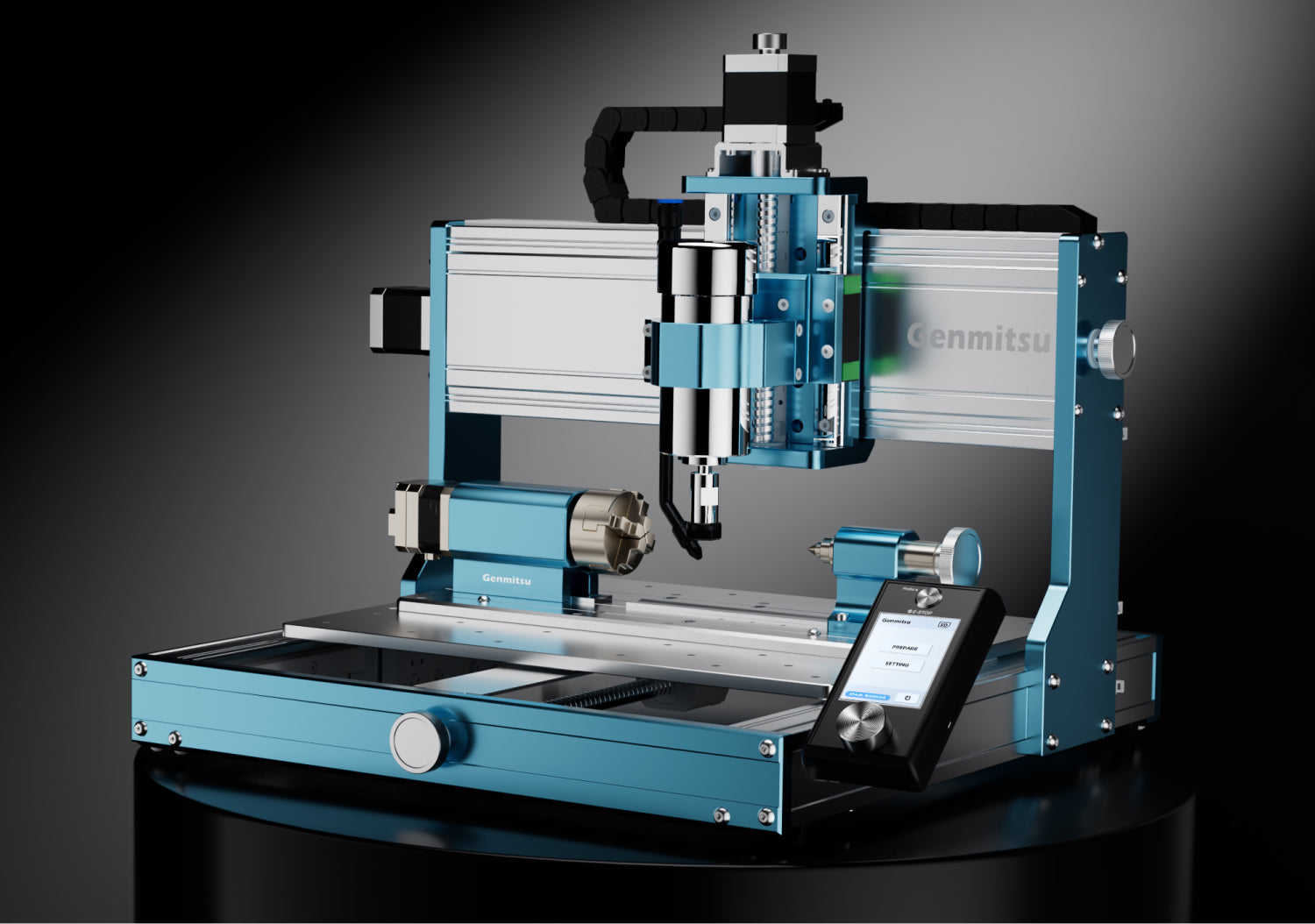

Genmitsu 3030-PROVer MAX

Precision Meets Versatility

All-Aluminum Benchtop CNC Router

Support Many Materials

Yes, it can create a lot things!

3030-PROVer MAX supports most material stock, such as solid woods, plywood, metal, acrylic, carbon fiber, etc.
Whether you're a hobbyist or a small business seller, you'll love this machine.

Wood

Metal

Plastic

Others

Wood

Metal

Plastic

Others

Down to 10-min Self Assembly

Its Y-axis notch design facilitates effortless alignment and balancing and ensures a smooth assembly down to 10 minutes.

High Quality and Cost-effective

Ball Screws and Dual Linear Guides are the X, Y, and Z-axis drive system for the 3030-PROVer MAX.

23.6kg

Weight

0.05mm

Accuracy

300W

Spindle Motor

2000mm/min

Max Speed

23.6kg

Weight

0.05mm

Accuracy

300W

Spindle Motor

2000mm/min

Max Speed

Z Axis

1204 Ball Screw
Dual HG15 Linear Guides

X Axis

1204 Ball Screw
Dual HG15 Linear Guides

Y Axis

1204 Ball Screw
Dual HG15 Linear Guides

Precision and Power Unleashed

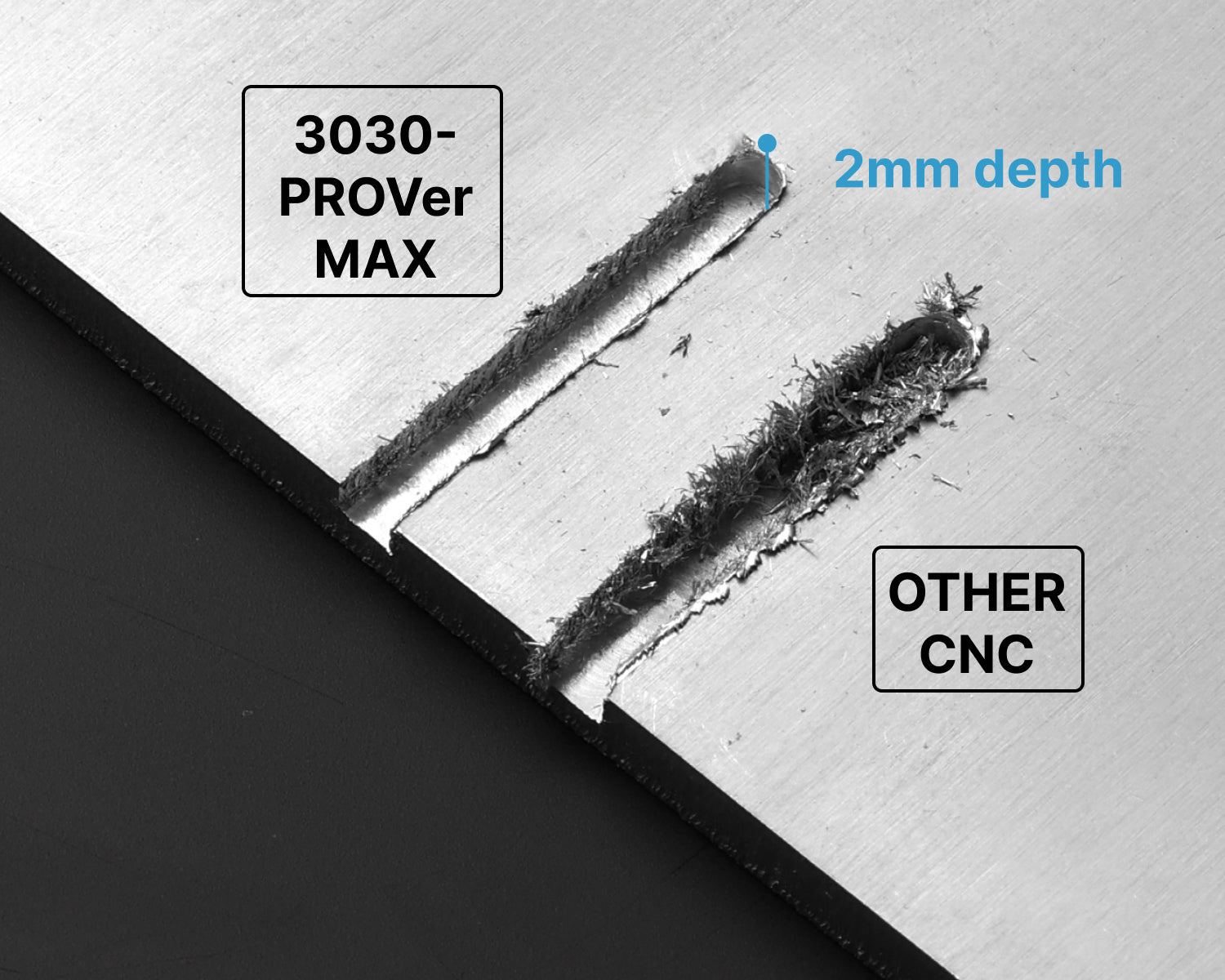

Compared to similar models on the market with 2mm engraving, the 3030-PROVer MAX produces flat edges without metal burrs, taking your projects to new heights.

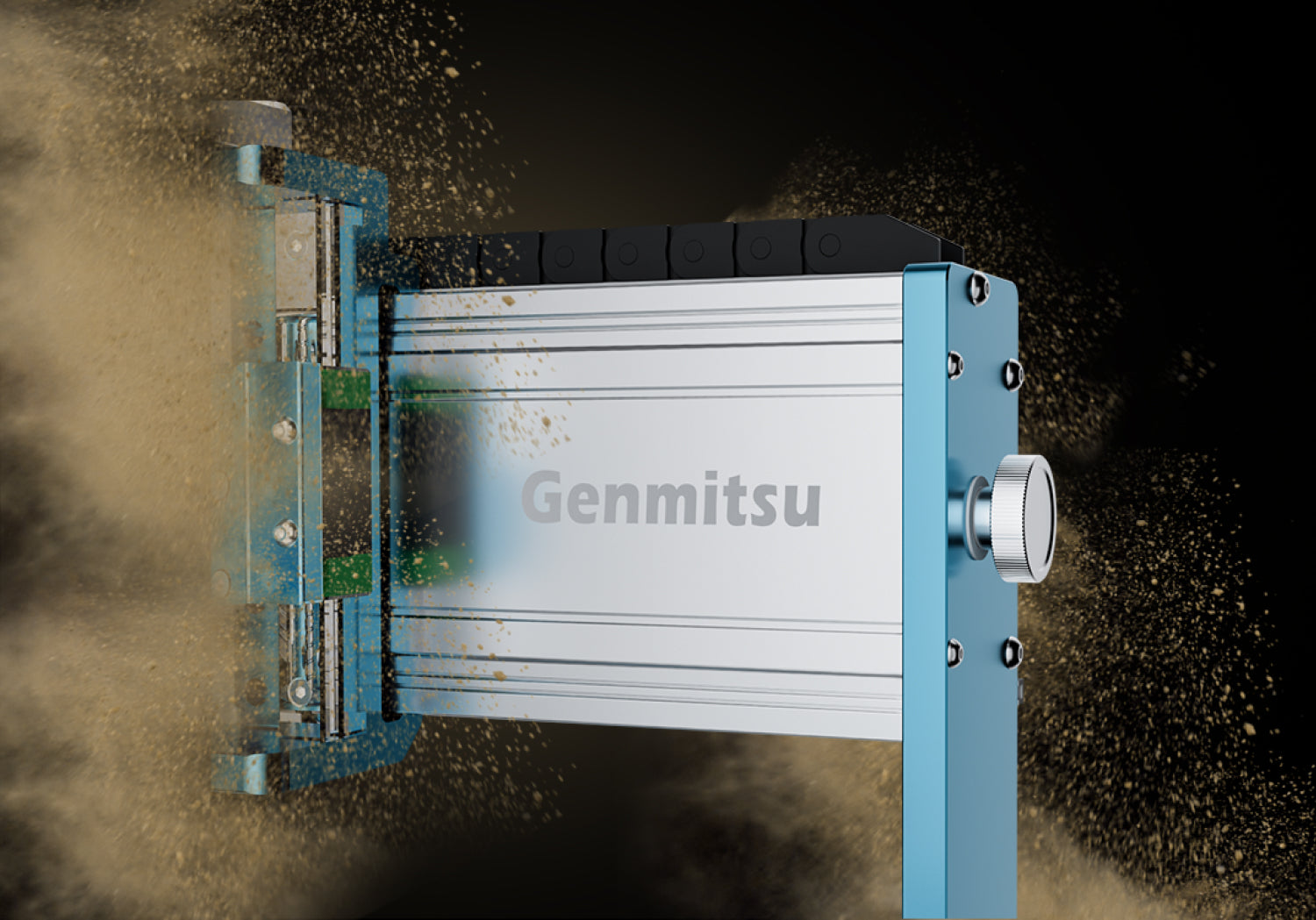

Sealed Dust Proof Design

This sealed dust-proof design protects the slide and screw assembly from dust and debris, thereby extending its life and simplifying maintenance.

Versatile Control Options

Taking control of your projects has never been easier. The 3030-PROVER MAX comes with a new offline controller

Upgraded Accessories

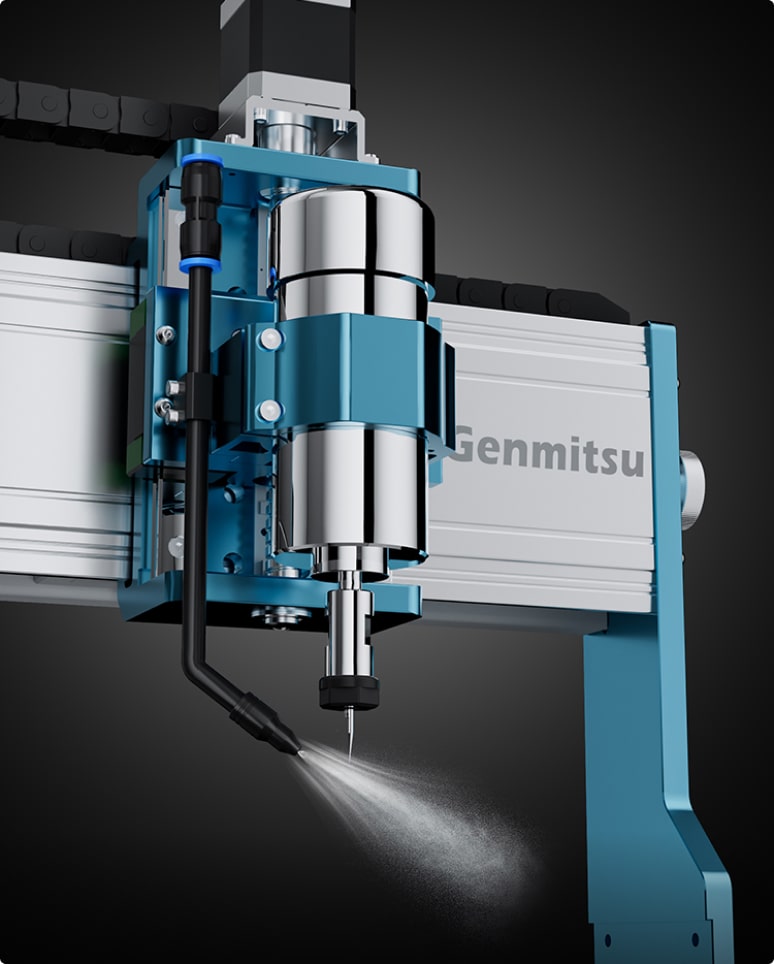

New Air-cooling Pipe New Air-cooling Pipe

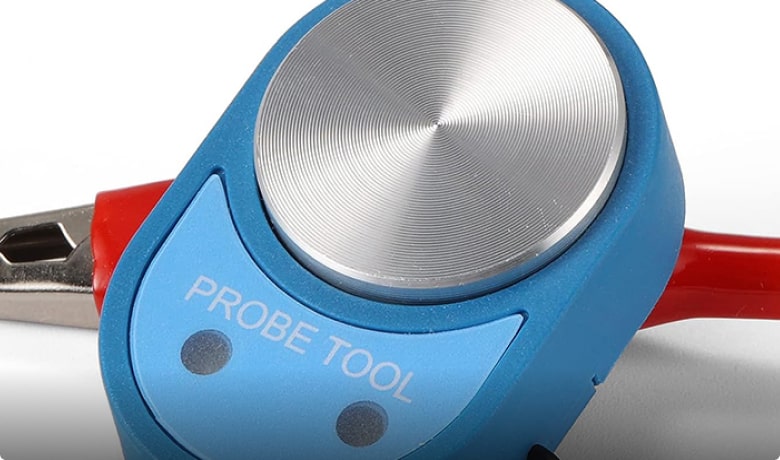

Z-probe Z-probe

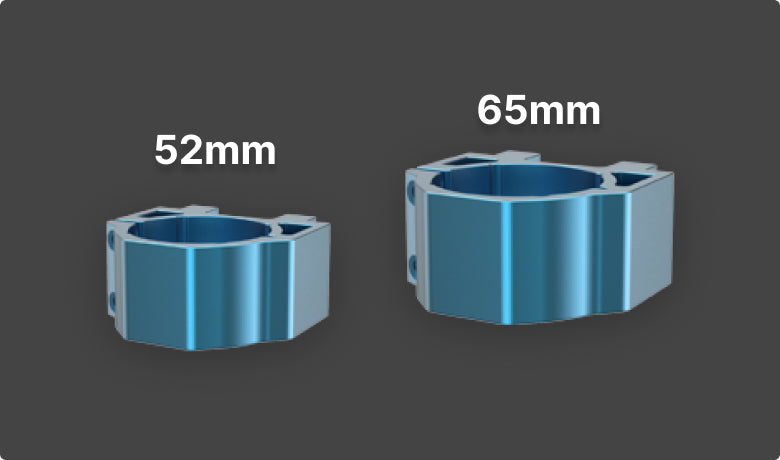

Spindle Holder Spindle Holder

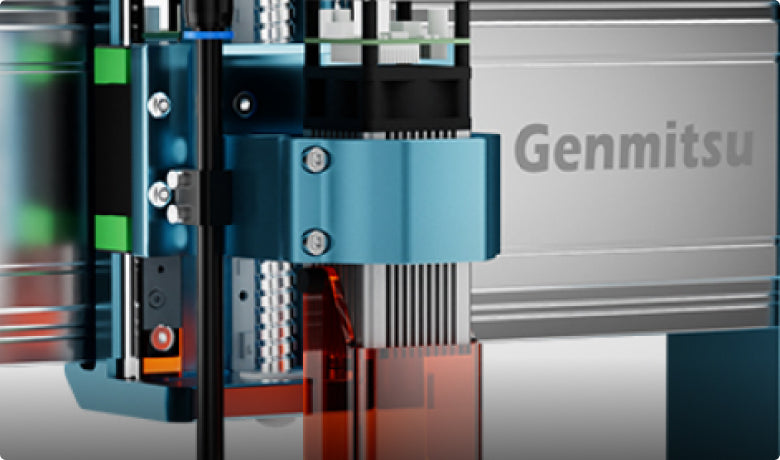

Laser Compatible Laser Compatible

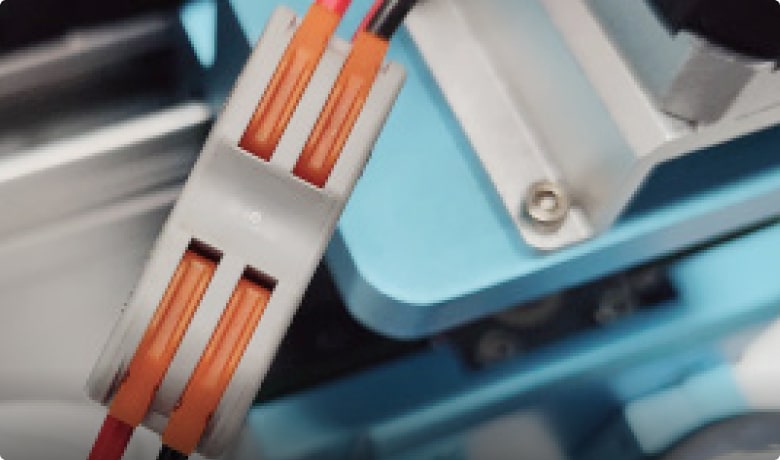

Wire Snap Wire Snap
Specifications
Model Model
Model 3030-PROVer Other CNC
Work Area 314 x 307.8 x 79mm (12.4" x 12.1" x 3.1") 290 x 220 x 70mm (11.4" x 8.6" x 2.7")
Assembly Time Down to 10 Minutes 30-45 Minutes
Control Board Compatibility GRBL 1.1h GRBL
MCU 32-Bit 32-Bit

Max Running Speed 2000mm/min -
Accuracy ±0.05mm -
CAM Software e.g. Candle, UGS Candle
Frame Material All Aluminum Metal
Leadscrew 1204 Ball Screw Ball Screw

Motion System Dual HG15 Linear Guides & Ball Screws Linear Rails & Ball Screws
Spindle Motor 48V DC 300W 300W
Spindle Holder Includes φ52mm, φ65mm φ52mm
Stepper Motor NEMA17 48mm 1.68A, 0.45Nm torque -
Resource Articles
What’s in the box

XZ Axis Assembly

XY Axis Base Assembly

Power Supply Box

Offline Controller

300W Spindle Motor

φ52mm Spindle Holder

φ65mm Spindle Holder

Air Pipe

Collet & 10x Router Bits

Z Probe

Clamps

Wrench

Limit Switch

Lubricant

SD Card

Cables & Ties

Screw Set

User Manual

View All

Close

Reviews
Review: 3030 Prover Max - Build and first look
Review: Genmitsu 3030 PROVer MAX CNC
Customer Reviews
4.3 Based on 9 Reviews
5 ★
78%
7
4 ★
0%
0
3 ★
11%
1
2 ★
0%
0
1 ★
11%
1
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
DS
12/05/2023
Dmitri S.
United States United States

An Absolute Beast of a Machine

I knew this thing was their most rigid design so far, which is why I got it, but boy did it exceed my expectations. The entire construction is very tough and rigid. The assembly was easy and only took a few minutes. I tried it with the ****** little 300W spindle that it comes with, and after seeing that it can rip through hard elder and oak at 2mm depth before it started choking, I swapped it out for a Makita clone 65mm router. With that in place, I'm now able to rip through 5mm cuts at 2000mm/min on hardwood without even a hint of chatter or vibration with a 1/4 2-flute EM. It eats aluminum for breakfast with a 1/4 mill, and the machining is only marginally slower than it would be for wood. However, with 1/8 EMs, one does need to go slower. I made an aluminum spoil board / fixture board with about 70 tapped holes in it because the base that comes with this machine just didn't have the hole spacing that I needed, and I didn't want to spoil it since it's really quite nice. At one point, the tap I was using broke in such a way that I couldn't take out the broken piece. So I put in a 1/8 EM that's actually intended to mill steel, and was able to mill the broken piece of CARBIDE tap right out of the hole without much trouble, though I did have to take it slow. So if you are planning on using this machine for metals, just make sure you're using the right EM, and you'll be surprised with what you can get out of this little tabletop beauty. I mainly use it for semi-pertified (basically soft stone) materials, amber, carbon fiber, and occasional wood milling, and it performs amazingly well every time. Can't recommend it high enough, and I hope they make an extension kit for it... or I'll have to get another one... or two... maybe three of these. All in all an amazing little machine for the money.

P
11/26/2023
Pavel
United Kingdom United Kingdom

Great machine (very precise and fast)

As my second machine from sainsmart I am yet again impressed with the build quality and customer support. This machine is very rigid and accurate so you can get good results without having to wait a long time. If you're making things within the work area then this is the best machine on the market.

SainSmart.com 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion Review
UP
11/22/2023
Unique P.
Canada Canada

Super quality out of the box

Super easy, crazy detail with no effort.

SainSmart.com 3030-PROVer MAX Desktop CNC Router for High Precision Metalworking, with Linear Guide & Ball Screw Motion Review
