Brand: Genmitsu SKU: 101-63-CFL55P-A

5.5W Compressed FAC Laser Module for 3018 CNC, 3020-PRO MAX, with Air Assist Nozzle

SKU: 101-63-CFL55P-A 7 reviews Variants ID: 40015857680463
$189.99 $219.99
Save $30.00
Free Shipping

🏷️ 12th Anniversary 20% OFF Sale Eligible, Auto Applied At Checkout.
Valid Aug 14 - 27, 2023 PDT.

Shop flash sale items now and save up to 33%..

Ship to
USA

Improved Power & Accuracy: This new laser module has a focal spot of 0.1mm x 0.1mm much smaller and consistent than current generation modules, allows for a leap in power and accuracy. It can cut up tp 4mm plywood in one pass.

Stock Air Assist Nozzle: Light-weight aluminum air nozzle delivers improved engraving speed and quality, protects your optics from smoke and dust for better performance and laser lifespan.

Longer Operation Life: Fixed focus laser diode with upgraded heat dissipation will let the module operate for extended periods with a longer operation life.

UV Laser Shield Protection: The laser head comes with a laser shield to filter laser radiation and avoid accidental laser exposure for safer operation.

Compatibility: This laser module is only compatible with Genmitsu 3018-PRO, 3018-PROVer, 3018-PROVer V2, 3020-PRO MAX CNC Router

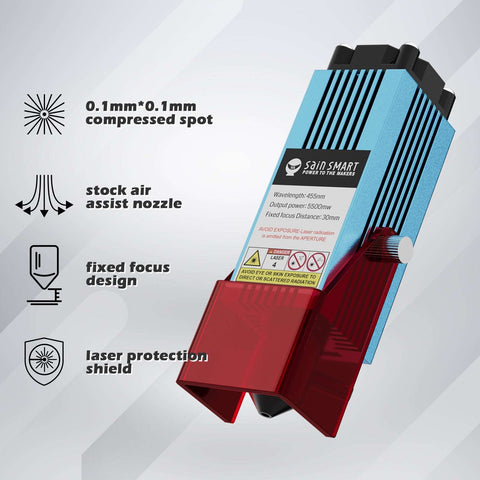

Compressed Spot Laser Fixed Focus Module

This 5.5W diode laser with a wavelength of 445nm is specially designed for use with the Genmitsu 3018-PROVer, 3018-PRO and 3020-PRO MAX CNC Machines.

Specifications

  • Laser power: 5.5W
  • Spot size: 0.1 x 0.1mm
  • Focal length: 30mm
  • Laser wavelength: 455 ± 5nm
  • Input: 12V / 2.5A

Applications

  • Application: Suitable for desktop laser engravers, CNC routers, laser cutters, and 3d printers
  • Engravable materials: cardboard, plastic, PCB, aluminum alloy, stainless steel, black metal, etc.
  • Cuttable materials: wood, acrylic, cardboard, non-woven fabric, bamboo, laser safe plastic, etc.

Ultra-fine Compressed Laser Spot

With an ultra-fine 0.1mm*0.1mm laser spot, this laser module upgrade provides you the possibility for more precise and demanding engraving and cutting projects. You can cut 4mm plywood in one pass.

Eye Protection Design

The laser shield on the module can filter most UV light to protect you from laser beam reflection for safer operation.

Stock Air Assist Nozzle

Taking advantage of a stock air assist nozzle and compressed laser spot, this laser module excels in engraving and cutting efficiency. The nozzle also allows for better lens protection and smooth cutting finish.

Wider Material Options

Taking advantage of a laser spot compression technology and air-assist nozzle, this upgraded Genmitsu laser module excels in engraving and cutting performance, allowing for a wider range of material selection.

What’s included:

  • 1 x Laser Module with Air Assist Nozzle
  • 1 x Connection Cable, Suitable for controller with 12V GND PWM terminal
  • 1 x 3018-PRO Connection Cable, Suitable for controller with 12V PWM terminal
  • 1 x Focus Calibration Tool, 30mm
  • 1 x Safety Goggles (Green), FDA-Certified
  • 1 x 12V Power Supply, Power Cord(US/EU), Power Adapter(UK)
  • 1 x M3 T-nut, M3*8 Screw
  • 1 x 2-Pin Connector
  • 1 x User Manual

Precautions

  1. Please read the instructions carefully before use.
  2. Direct exposure to the laser beam can cause severe burns and eye damage. Ensure that you are wearing proper laser safety goggles when working in the vicinity of the laser equipment.
  3. Know the compatibility of the laser module and its maximum input voltage and current so as not to damage the laser.
  4. When engraving reflective materials such as mirror stainless steel, it is recommended to paint the material surface black with a marker before engraving, preventing laser damage and unwanted laser exposure from the reflective laser beam.
  5. After long hours of laser working, residue from smoke and dirt will accumulate on the laser lens, cleaning the lens regularly is needed. After working with oily materials, such as pine boards, cleaning the lens in time is necessary.
  6. Cleaning method: use a cotton swab dipped in alcohol to wipe the lens.
  7. Please use a smoke exhaust device and ensure that the room or area you are operating the laser is well-ventilated

Performance

  • Electrical interface: XH2.54-3 Pin terminal (three-core cable, a: PWM +, b: GND, c: 12VDC)
  • Laser shield: A movable laser shield that effectively shields the laser beam without affecting its working position.
  • Air assist system: When performing laser cutting jobs, an air assist system blows air through the air nozzle, enhancing the cutting performance and reducing the burn marks. You can remove the air assist nozzle when you are doing non-cutter jobs. This laser kit only comes with an air assist nozzle, to make full use of the air assist feature, you may need to prepare an air assist pump and air tubing yourself.
  • Recommended Air Tubing: inner diameter Φ4.0mm,  outer diameter of Φ7.0mm)
  • Recommended air pump: flow rate 5-8L/min

Which Laser Module is right for you?

Genmitsu 3018-PROVer CNC Router Kit | SainSmart
SHOP NOW

3018-PROVer
3018-PRO
3020-PRO MAX

Compatibility


Compressed FAC

Type


5.5W

Laser Power


Air Assist Nozzle

Extension Feature


0.1*0.1mm

Spot Size


Laser Shield & Goggles

Safety


4mm PlyWood

Cutting in One Pass


Genmitsu 3018-PROVer CNC Router Kit | SainSmart
SHOP NOW

PROVerXL 4030
LC-60A
LE-1620

Compatibility


Compressed FAC

Type


5.5W

Laser Power


Air Assist Nozzle

Extension Feature


0.1*0.1mm

Spot Size


Laser Shield & Goggles

Safety


4mm PlyWood

Cutting in One Pass


Genmitsu 3018-PROVer CNC Router Kit | SainSmart
SHOP NOW

PROVerXL 4030
3020-PRO MAX
3018-PRO

Compatibility


Fixed Focus

Type


5.5W

Laser Power


X

Extension Feature


X

Spot Size


Goggles

Safety


3mm PlyWood

Cutting in One Pass


Genmitsu 3018-PROVer CNC Router Kit | SainSmart
SHOP NOW

3018-PROVer
3018-MX3
LE5040

Compatibility


Fixed Focus

Type


5.5W

Laser Power


X

Extension Feature


X

Spot Size


Goggles

Safety


3mm PlyWood

Cutting in One Pass
