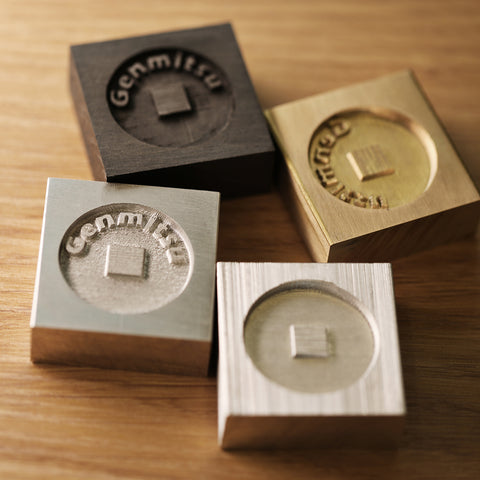

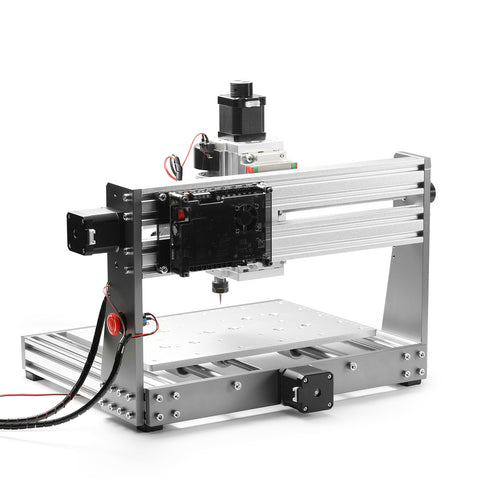

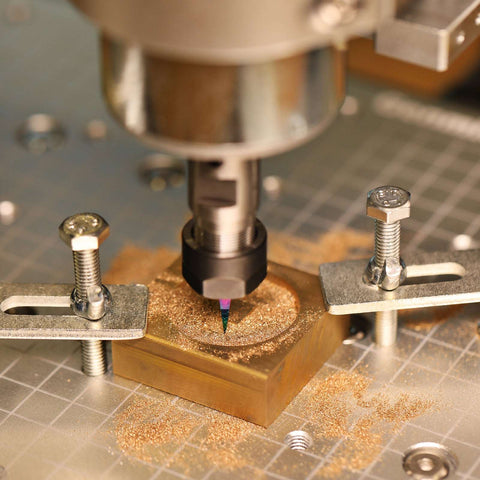

Enhanced design and increased Z Height of 72mm with the Genmitsu 3020-PRO MAX. The all-metal spindle holder and 300W spindle makes metal carving easier, ideal for an endless variety of drilling, and carving operations on various metals

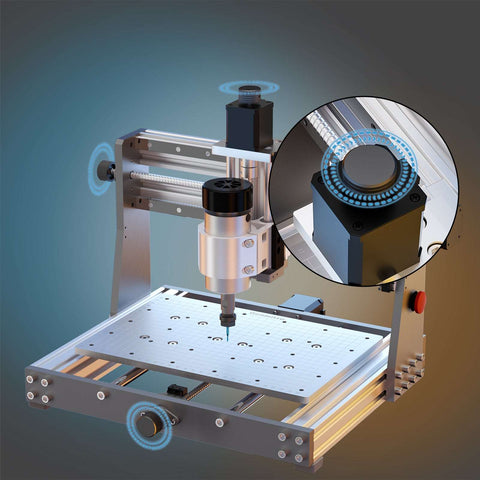

Powerful CNC
- 300W Spindle, Compatible with 52mm dust shoe
- 72mm Height Aluminum Z-Axis
- 4040 V-Slot Extrusion Profile
- Engraving Area: 300X200X72(mm)，11.8x 7.9x2.8 (in)
High Strength
With the all-aluminum body, high rigidity spindle holder and new linear guide structure, the 3020-PRO MAX can easily mill on a wider range of materials with high precision, the increased speed would not compromise the carve.

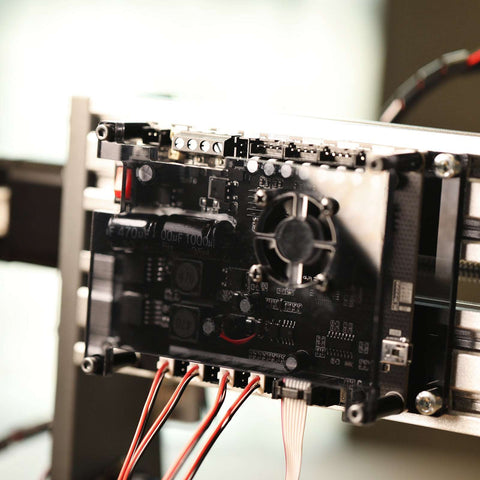

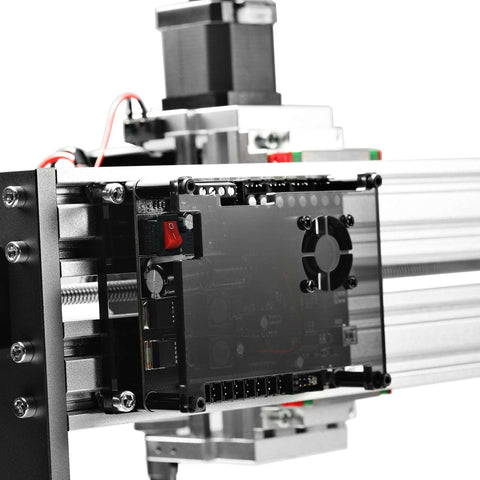

Redesigned Control Board
Still based on open-source Grbl v1.1, the redesigned control board provides more operational capability and extensibility for the 3020-PRO MAX CNC machine. It integrates the interface for offline controller, XYZ axis limit switches, emergency stop switches, Z-probe and more. Also, it supports the laser engraving (Need to order the laser module separately).

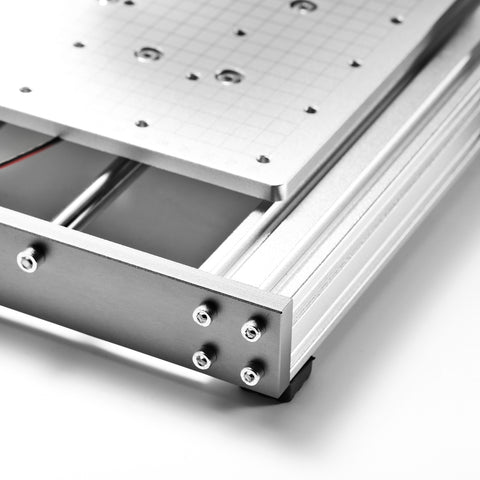

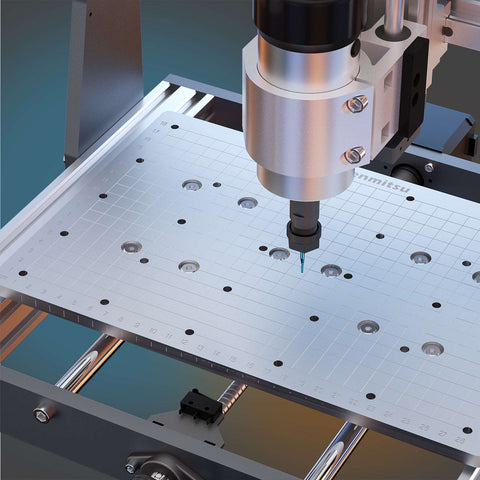

Integrated Scale Aluminum Platform
One-piece machined and molded aluminum design ensures flatness and strength of the platform. Integrated scale design is convenient for material positioning. The platform compatible with most of the CNC clamps on the market.
Reviews
Specifications
Resource Page Click to learn software guide, user manual, and assembly guide.
| 3020-PRO MAX | 3020-PRO MAX V2 | |
| Effective Working Range | 300 x 200 x 72mm | 300 x 205 x 78mm |
| Power Supply | Need to place separately | Install on the backplate of the X-axis |
| X axis Structure | Dual steel X axis guide rails | Dual steel X-axis guide rail with an enclosed mold material and added X-axis back plate |
| Upgrade to bigger spindle mount | X | Easy upgrade to 65mm or 69mm |
| Limit Switches | X-, Y-, Z- (total 3 pieces) | X+, X-, Y+, Y-, Z+, Z- (total 6 pieces) |
| Driver Chip | A4988, 8 bits | TB67S109, 32 bits |
| MPG Port | X | √ |
| Air Assistance Pump Port | X | √ |
| Z-Probe | Normal Z-Probe | Photoelectric Z-probe with indicator |
| Offline Controller included | √ | Upgraded Version |
| Control Board Pre Assembled | X | √ |
| Emergency-Stop Pre Assembled | X | √ |
| Limit Switches Pre Assembled | X | √ |
| Cable Management Pre Assembled | X | Pre assembled with drag chain |
