Brand: Genmitsu

CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040

SKU: 101-63-FL55 24 reviews Variants ID: 32735698518095
$159.99
US Free Shipping

Application: The laser module is ideal for engraving, cutting, scribing, and drilling. Desired patterns can be made easily on the wood or plastic by this unit. This module is only compatible with 3018-MX3/3018-PROVer, but not compatible with 1810-PRO/3018/3018-PRO.

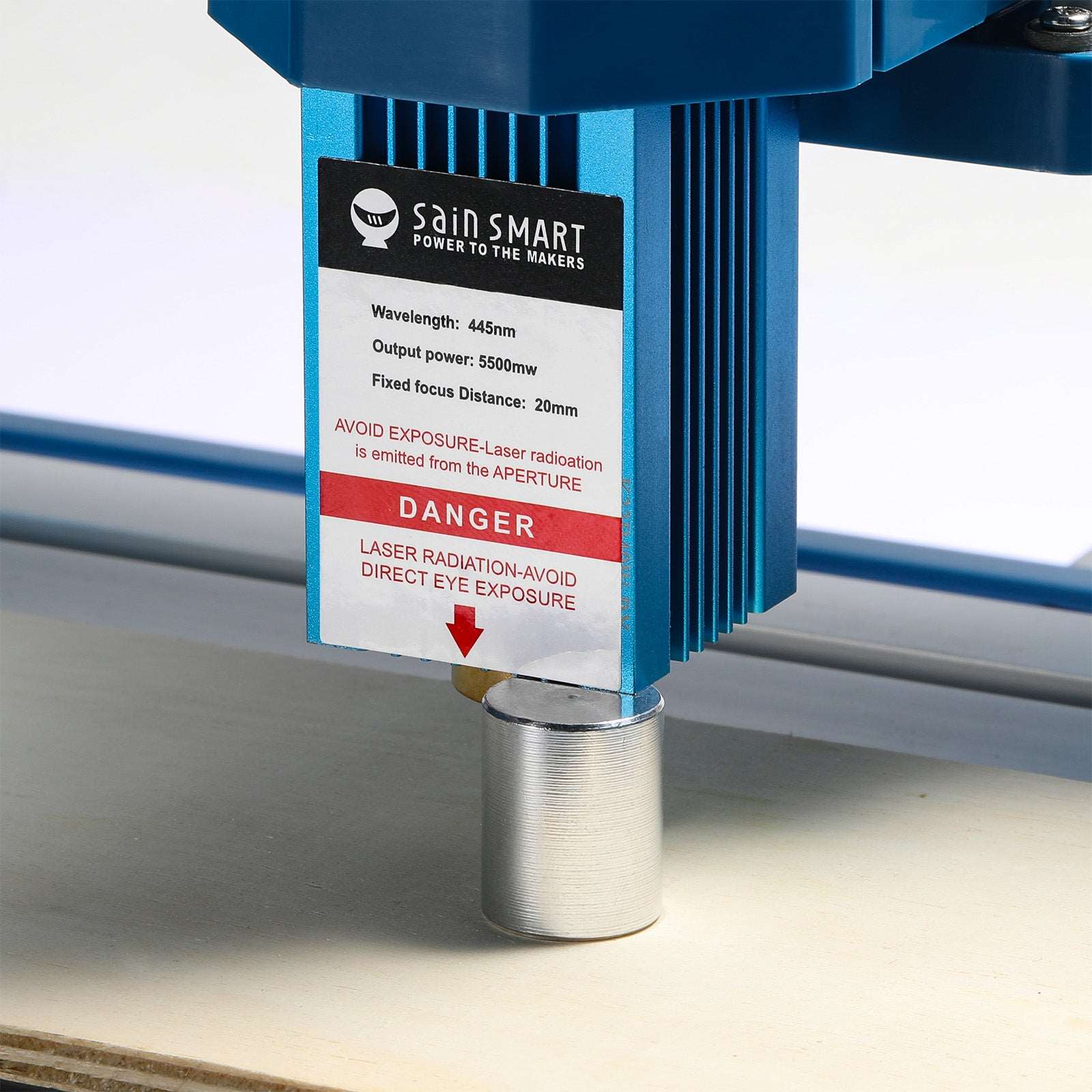

Fixed Focus: The fixed focus distance is 20mm. Compared with the adjustable focus laser module, the light spot of the fixed focus laser module is smaller. At the same power, the fixed focus laser module can cut 3mm linden wood in one pass, not possible with current adjustable laser modules.

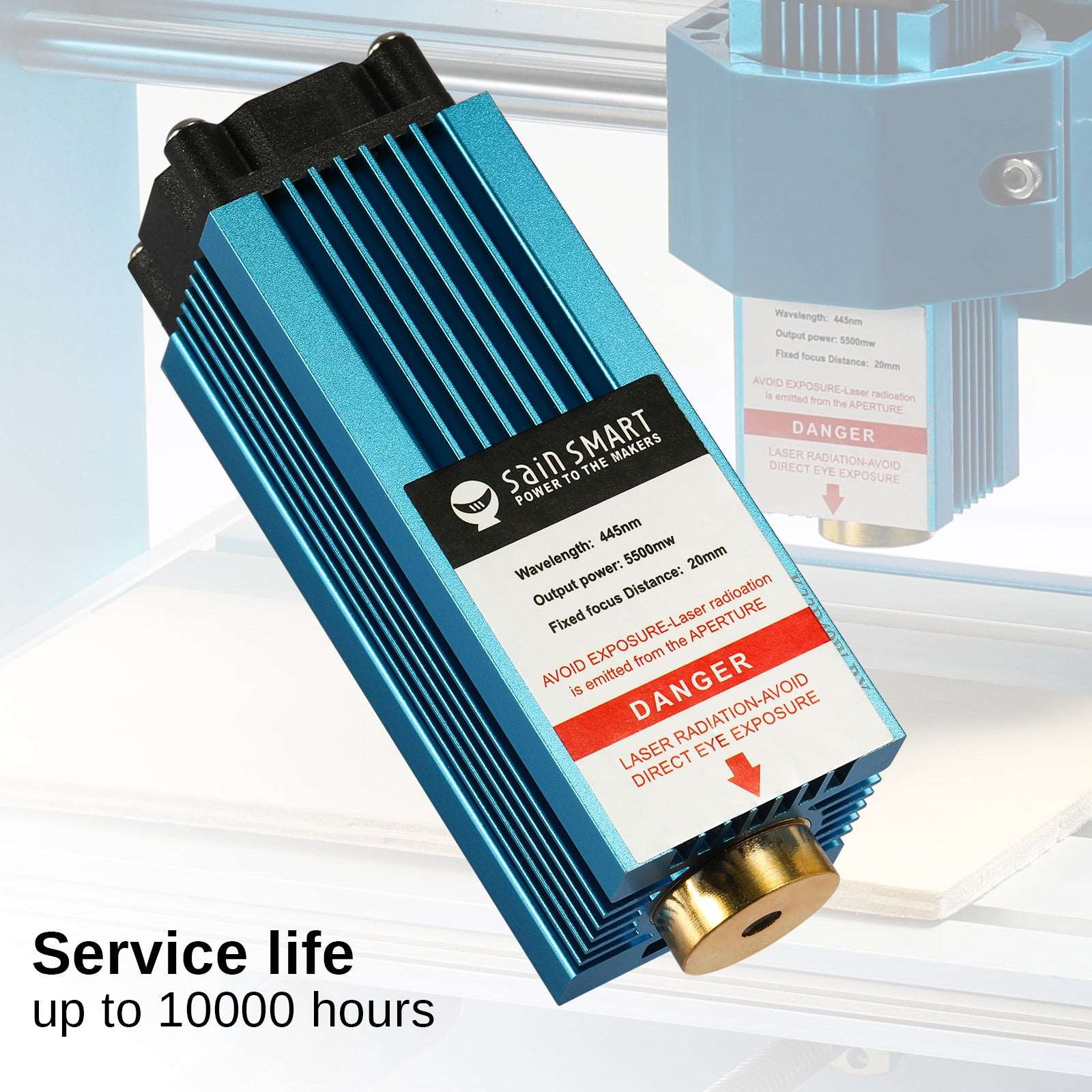

Longer Service Life: The fixed focus laser module can work at full power for 8 hours without any light decay. The service life can be up to 10,000 hours.

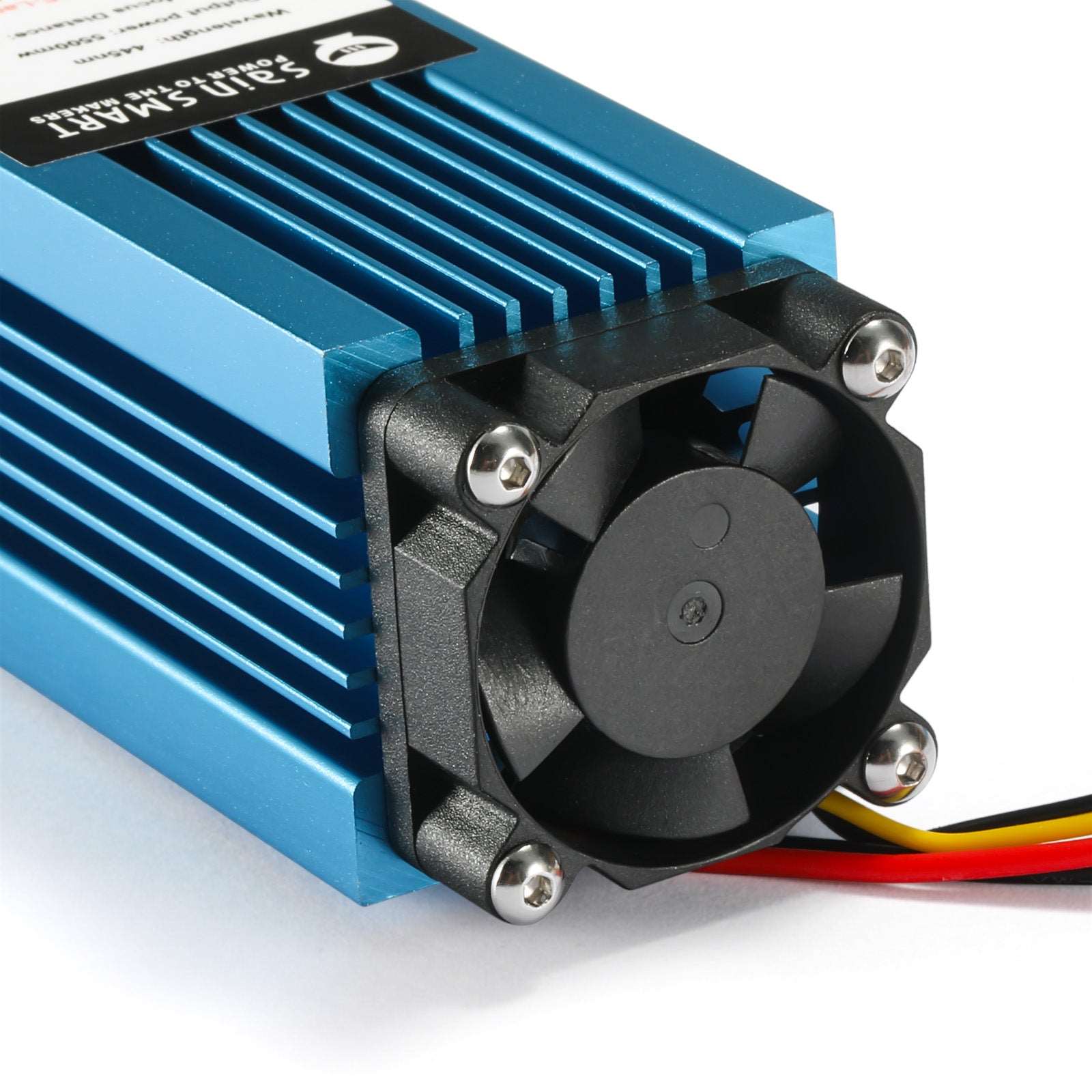

Excellent Heat Dissipation: Equipped with a large aluminum heatsink and cooling fan, this can help the heat dissipate fast and ensure the laser module works continuously.

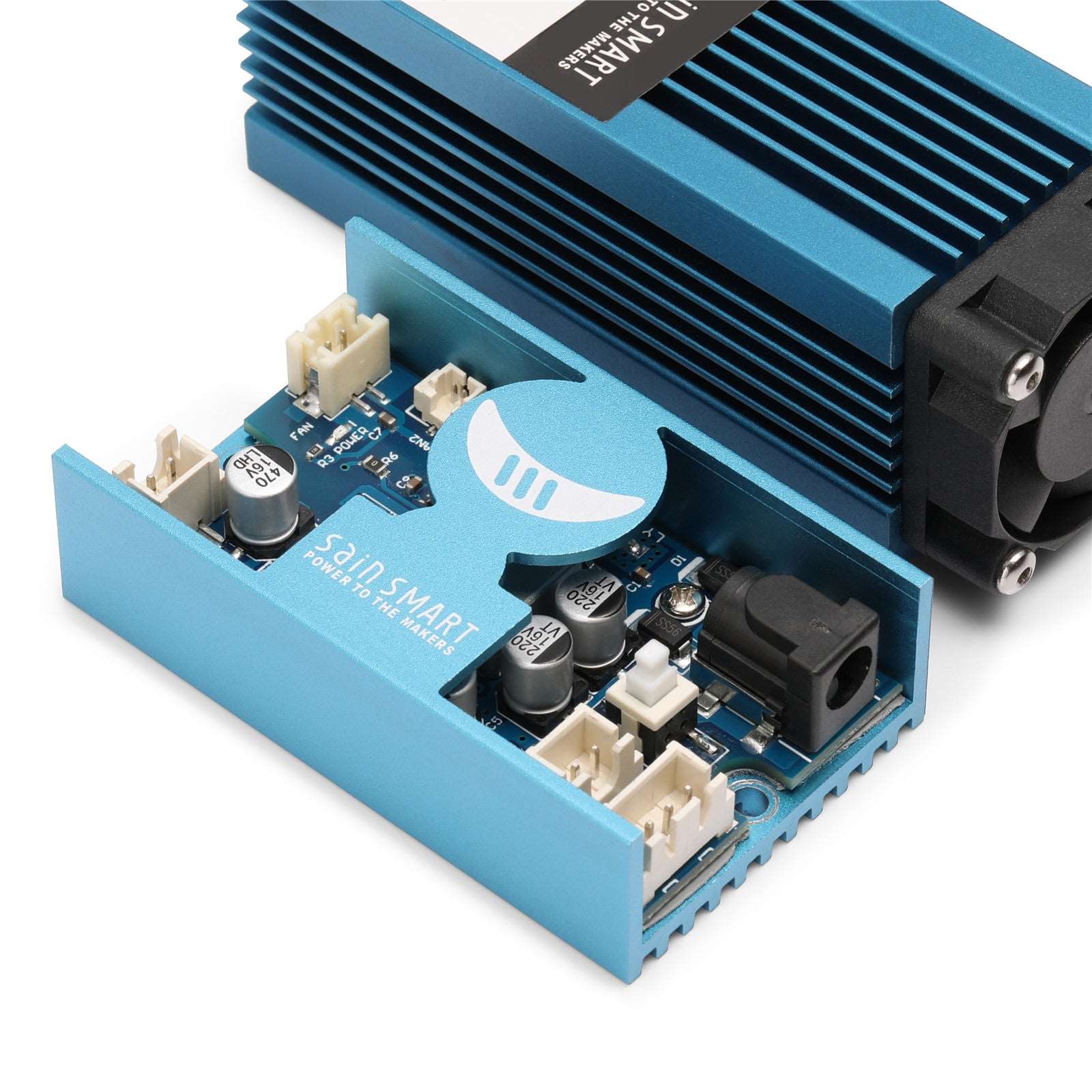

Industrial Grade Design: It is designed for industrial laser engraving machine, it adopts an intelligent feedback control circuit, external ACC constant current driving Mode. Featuring reliability, high stability, high efficiency, low noise, and excellent laser beam quality.

YOU MAY ALSO LIKE: Laser Module for Genmitsu 3018-PRO

Power
5.5W
Ship to
USA

Application: The laser module is ideal for engraving, cutting, scribing, and drilling. Desired patterns can be made easily on the wood or plastic by this unit. This module is only compatible with 3018-MX3/3018-PROVer, but not compatible with 1810-PRO/3018/3018-PRO.

Fixed Focus: The fixed focus distance is 20mm. Compared with the adjustable focus laser module, the light spot of the fixed focus laser module is smaller. At the same power, the fixed focus laser module can cut 3mm linden wood in one pass, not possible with current adjustable laser modules.

Longer Service Life: The fixed focus laser module can work at full power for 8 hours without any light decay. The service life can be up to 10,000 hours.

Excellent Heat Dissipation: Equipped with a large aluminum heatsink and cooling fan, this can help the heat dissipate fast and ensure the laser module works continuously.

Industrial Grade Design: It is designed for industrial laser engraving machine, it adopts an intelligent feedback control circuit, external ACC constant current driving Mode. Featuring reliability, high stability, high efficiency, low noise, and excellent laser beam quality.

YOU MAY ALSO LIKE: Laser Module for Genmitsu 3018-PRO

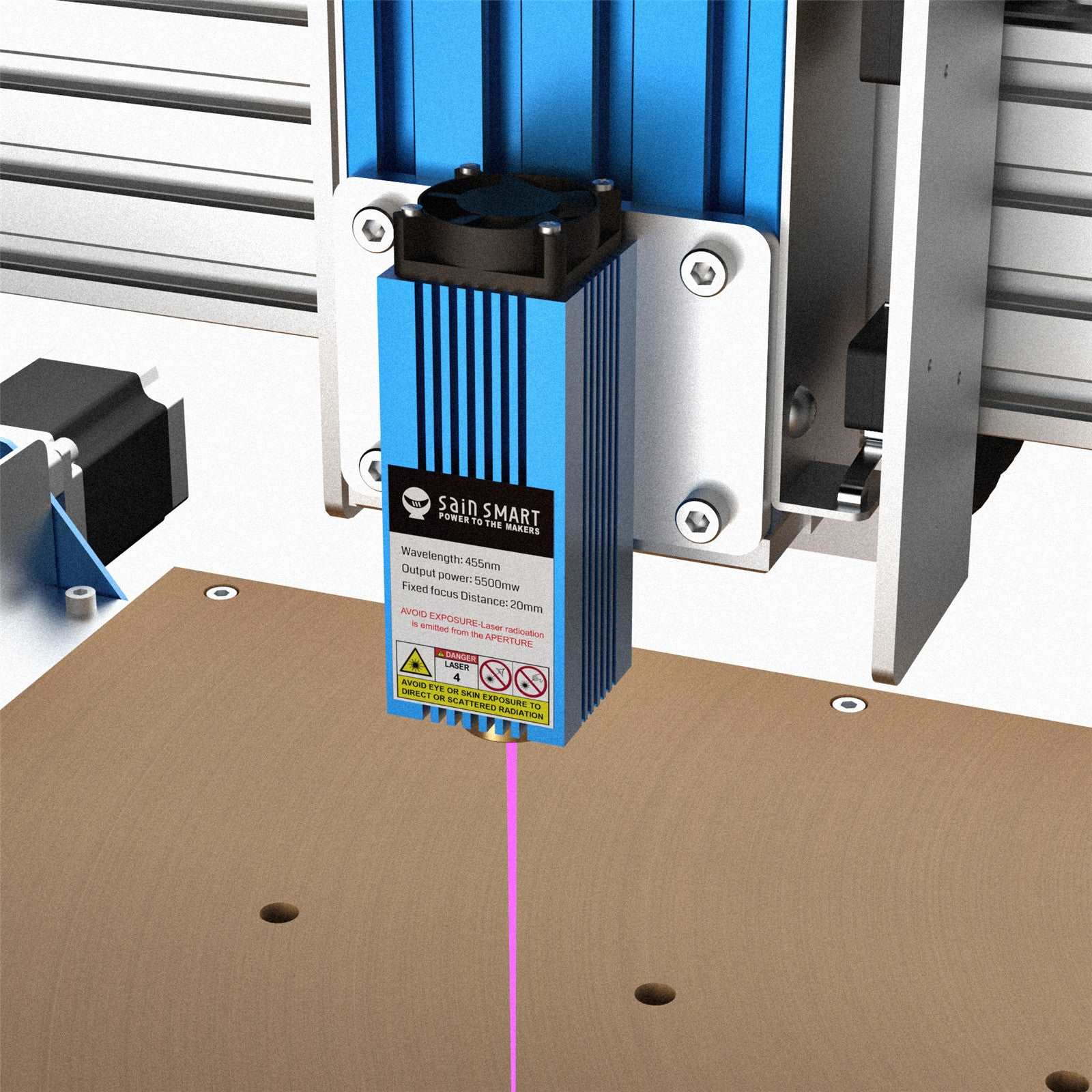

Special Design for Genmitsu 3018-PROVer
& 3018-MX3 & LE5040

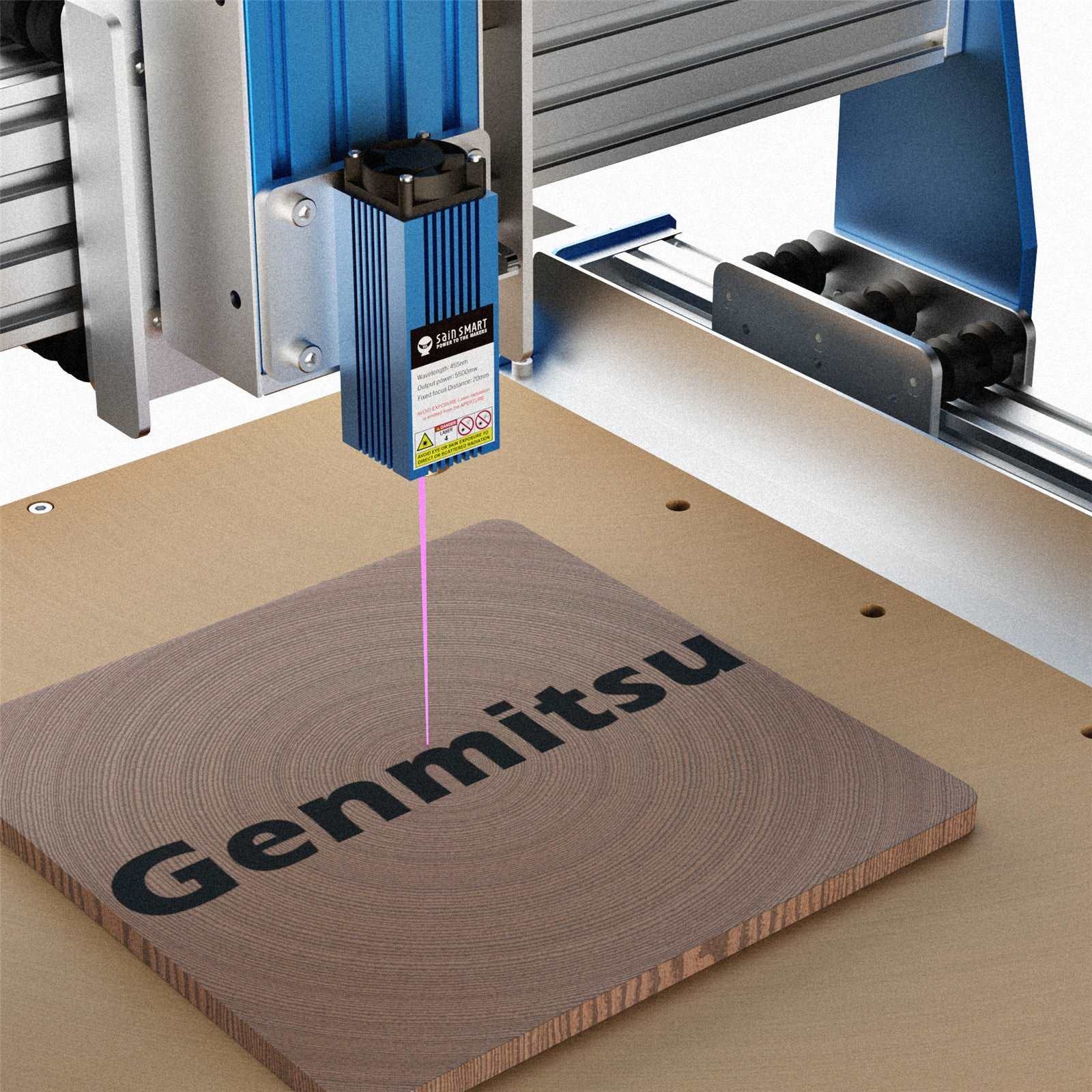

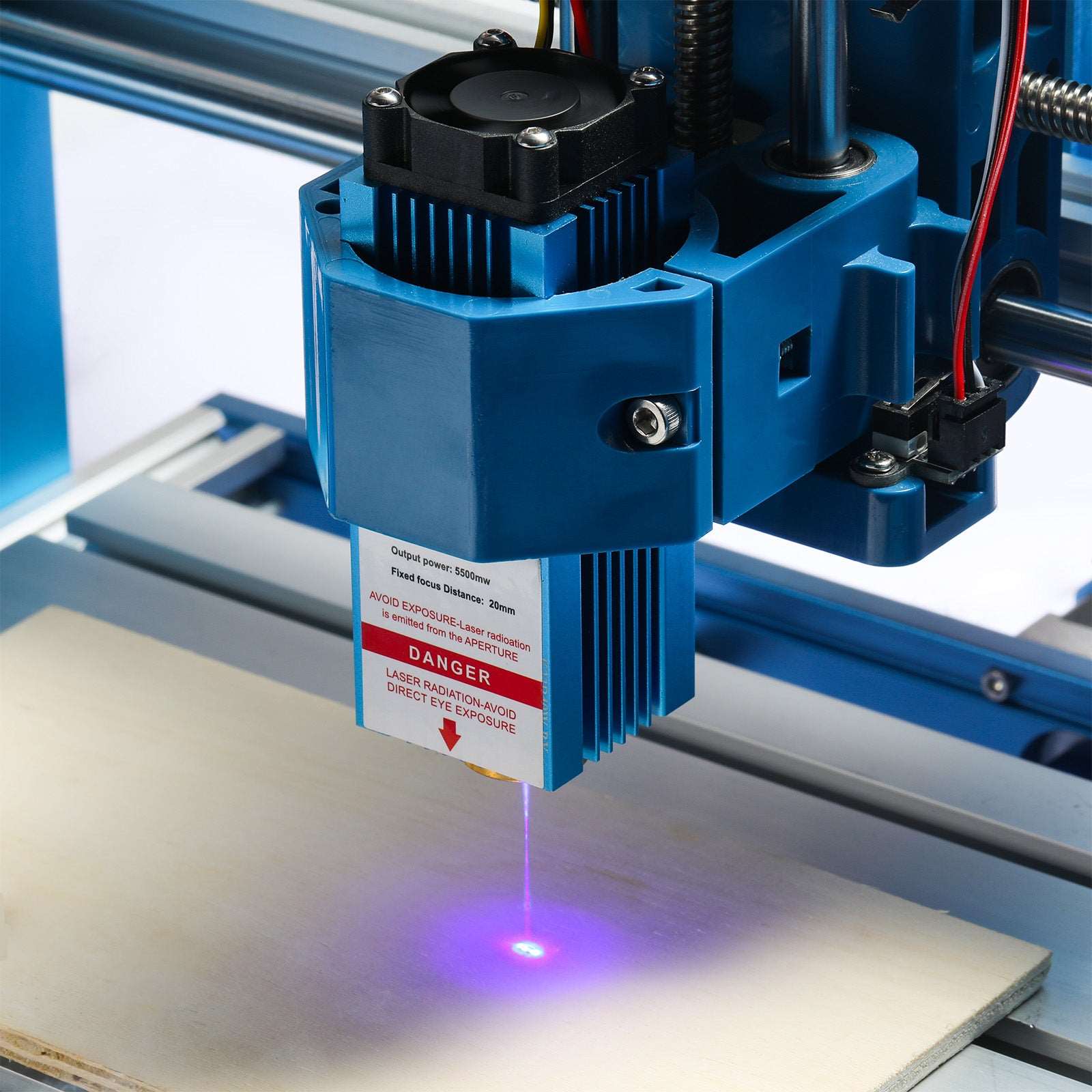

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the laser module kit to the Genmitsu CNC machines (3018-PROVer & 3018-MX3). With this module, it can absolutely give you different ways to unleash your creativity.

Versatile

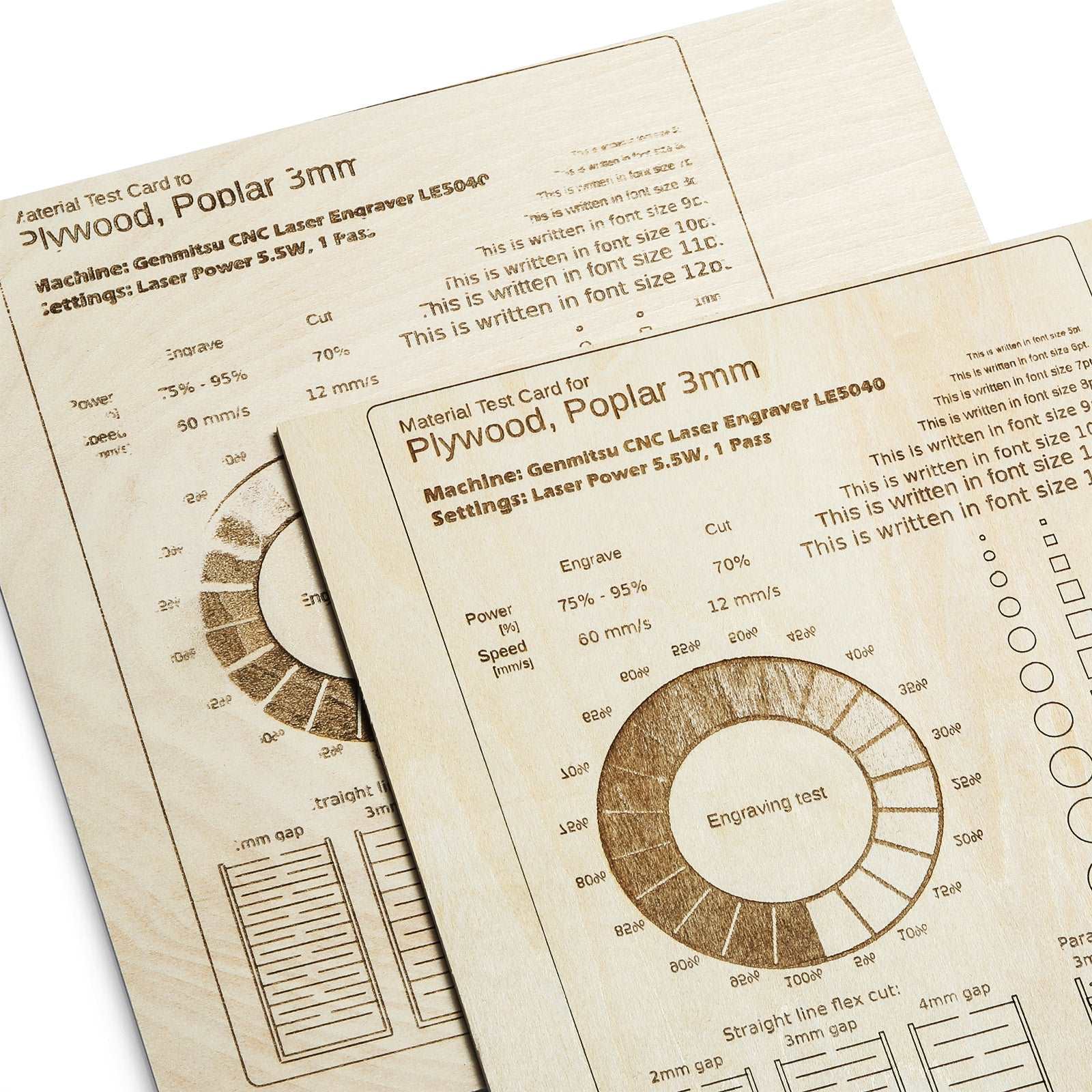

Able to engrave wood, paper, plastic, leather, and more, the SainSmart 455nm blue laser module kit will let you personalize your DIY projects. You can use it to add features like curved words, exquisite patterns, and logo picture marking.
Support GRBL & Mach3 Control

You can control this module via Mach3 and GRBL, it depends on the machine which you purchased. Lasergrbl for 3018-PROVer, Mach3 for 3018-MX3.

⁉️  Note:
- This blue laser module is designed for SainSmart Genmitsu CNC Router 3018-MX3/3018-PROVer/LE5040.
- Please wear laser goggles during usage, avoid touching the laser directly to the eyes and skin.
- In order to avoid unexpected accidents, please stay with the machine while the laser module is working.

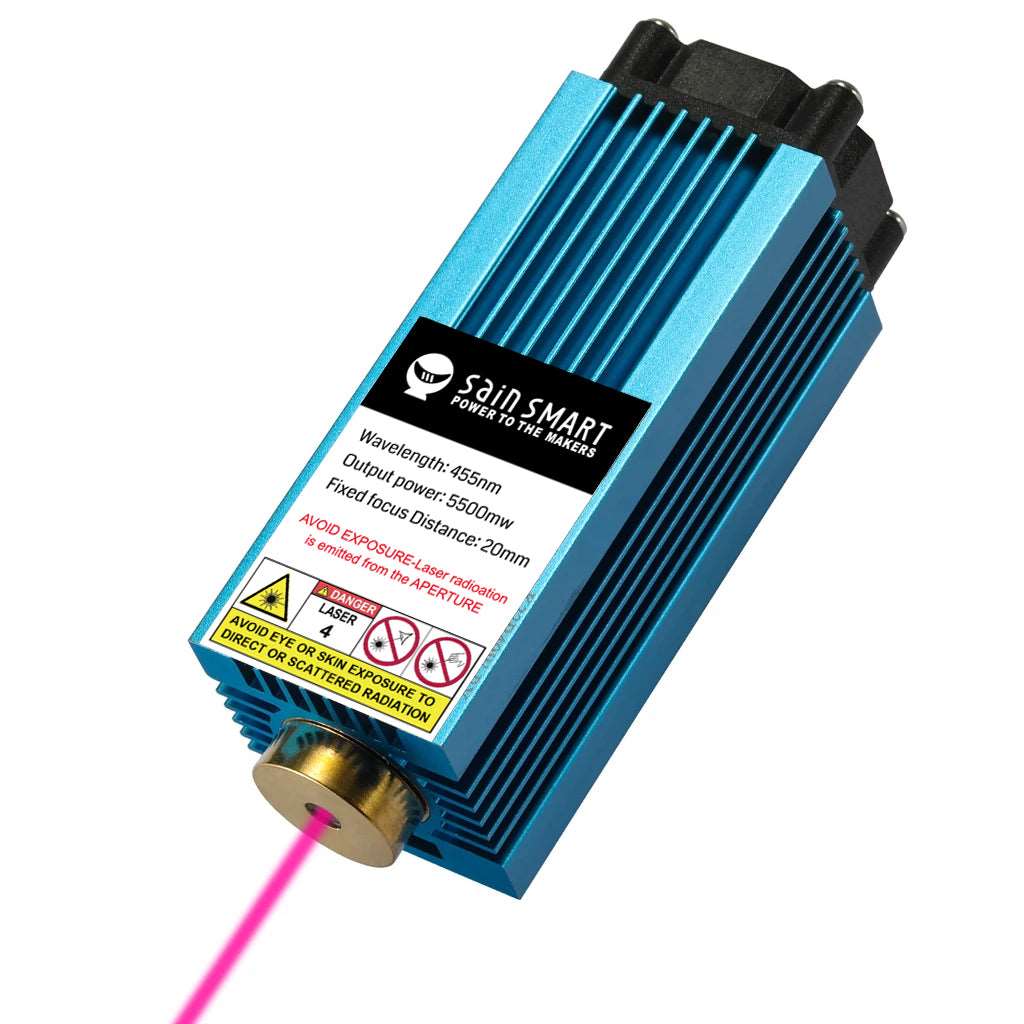

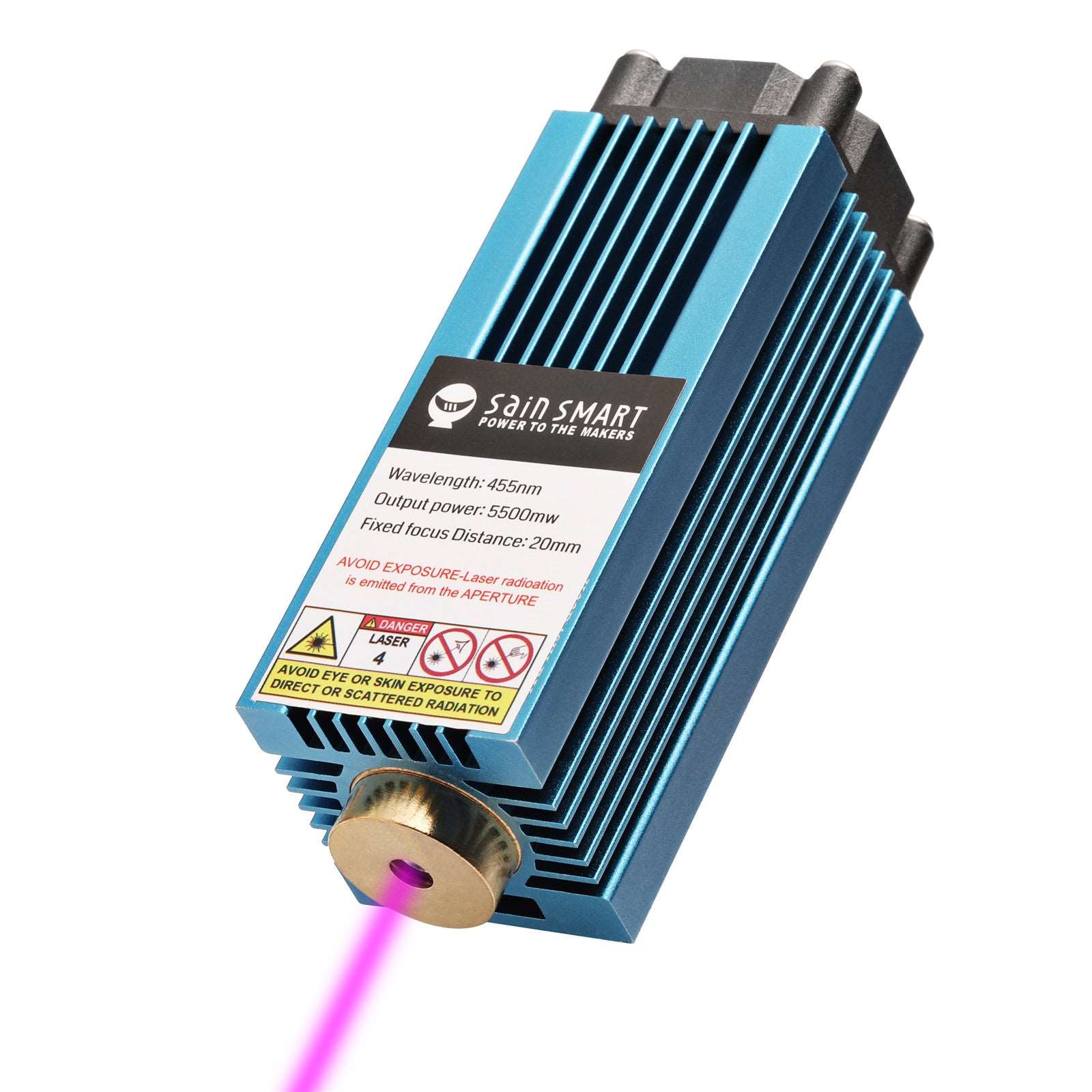

Heatsink Material  Aluminum
Output Power  5.5W
Wavelength  455nm ±5nm blue laser
Voltage  12V
Current  2A
Beam Shape  Dot (fixed focus)
Service Life  10,000 hours

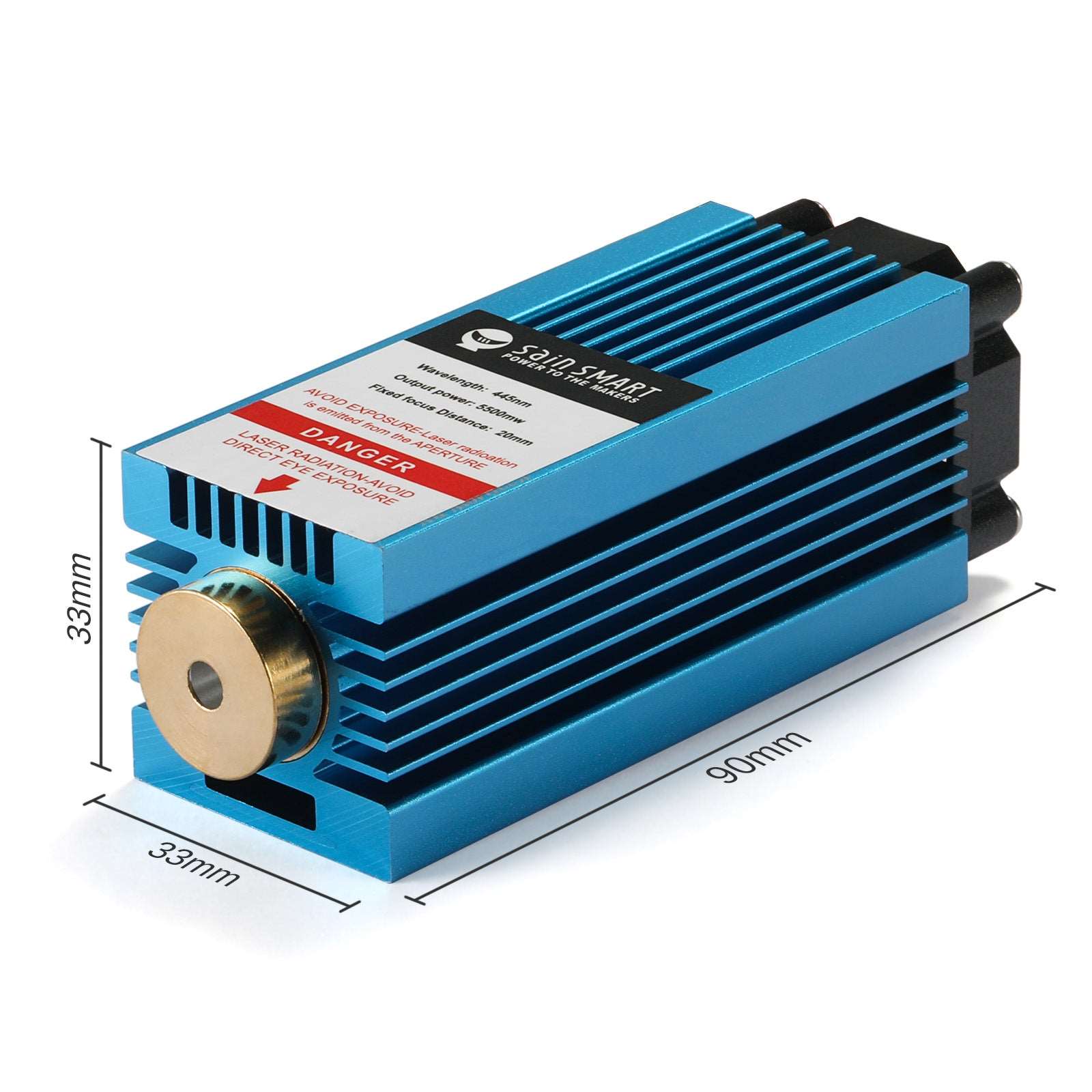

Size  90mm x 33mm x 33mm
Working Temperature  -40~75℃

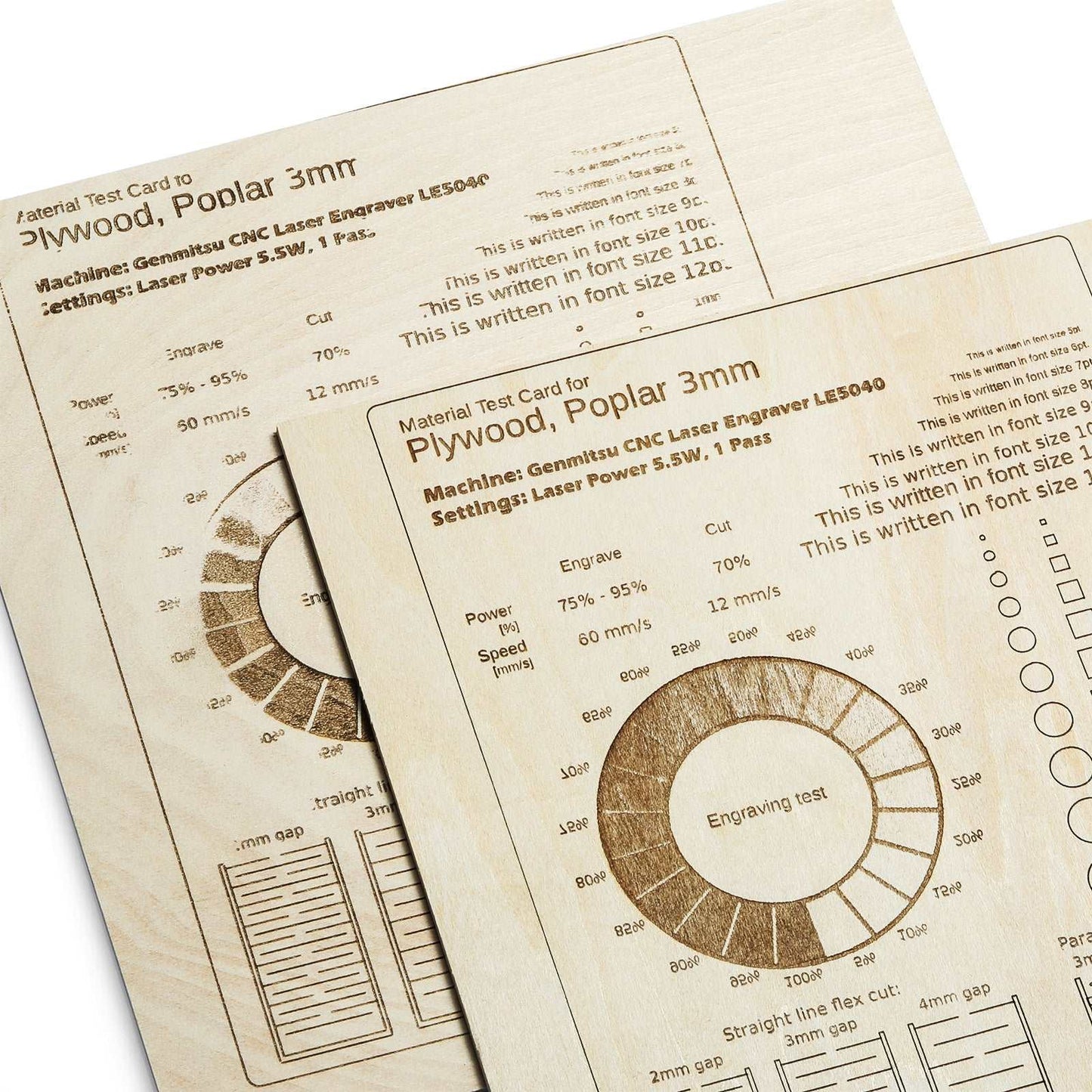

Applied Materials

 MDF/ Balsa/ Paper / Wood/ Fabric/ Plastic/ Leather/

 Plywood/ Foam Paper/ Anodized Aluminum

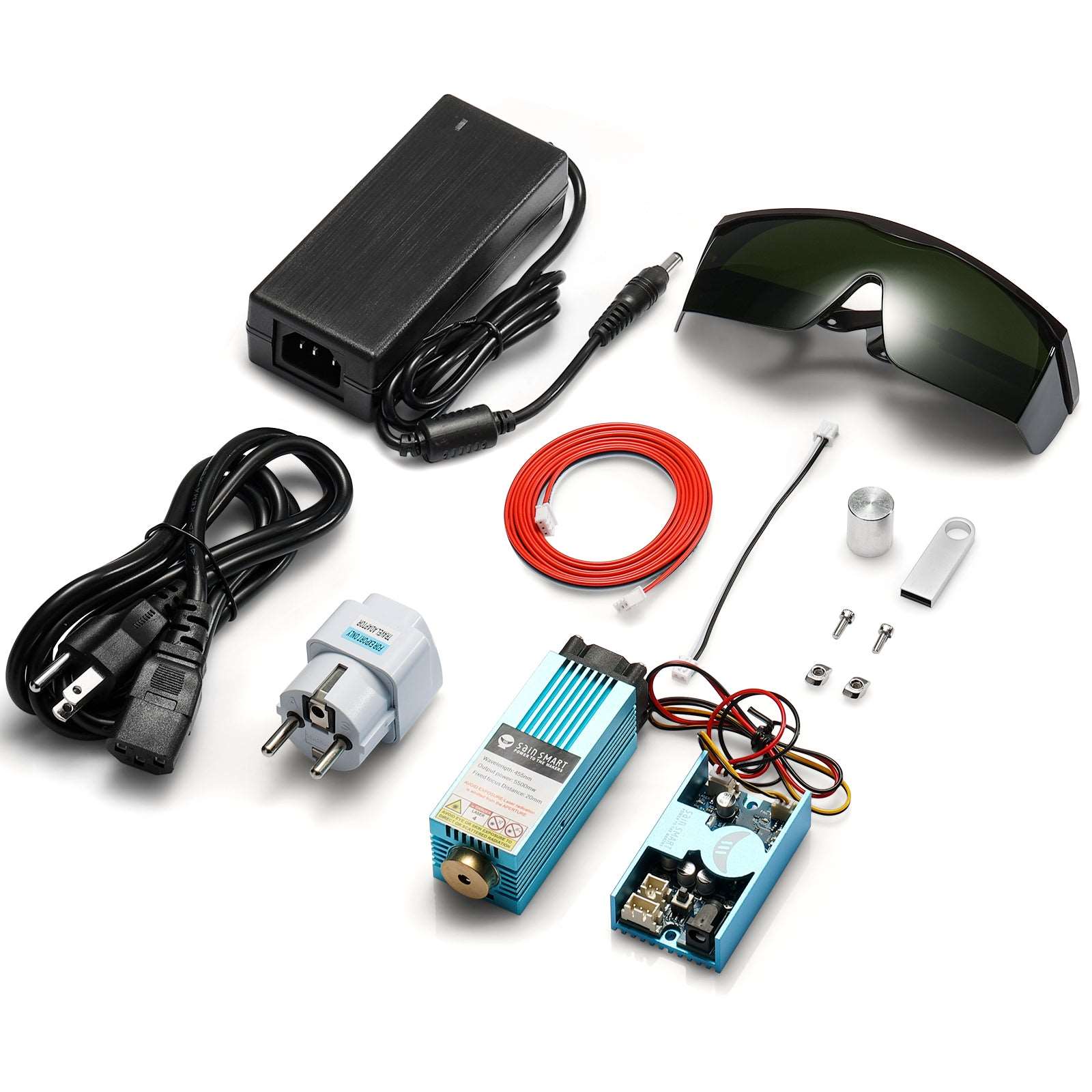

WHAT'S INCLUDED?

1 x SainSmart Fixed Focus Blue Laser Module Kit
1 x Red Goggles
1 x Power Supply
1 x CD (Click to download)

SPECIFICATIONS

Heatsink Material Aluminum
Output Power 5.5W
Wavelength 455nm blue laser
Voltage 12V
Current 2A
Beam Shape Dot (fixed focus)
Service Life 10,000 hours
Size 90mm x 33mm x 33mm
Working Temperature -40~75℃
Applied Materials

 MDF/ Balsa/ Paper / Wood/ Fabric/ Plastic/ Leather/

 Plywood/ Foam Paper/ Anodized Aluminum

WHAT'S INCLUDED?1 x SainSmart Fixed Focus Blue Laser Module Kit
1 x Red Goggles
1 x Power Supply
1 x CD (Click to download)
▶ Introduction to CNC for a Total Novice: Setting up a Laser
▶ Download the associated files
▶ Download the LaserGBRL

Learn





    Laser Module TypeAdjustable FocusFixed Focus
    AdjustmentManual adjust each time before usingFixed distance, no need to adjust
    Improve the processing efficiencyx
    Reduce Laser Engraving Timex
    CompatibilityFor 3018-PRO, 1810For 3018-PROVer/LE5040/LE620

Customer Reviews
4.8 Based on 24 Reviews
5 ?
83%
20
4 ?
8%
2
3 ?
8%
2
2 ?
0%
0
1 ?
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
CG
09/11/2021
Charles G.
Canada Canada
Great laser, easy installation

Had no problems installing in the 3018 PROVER, first cuts were good. I was a little surprised by how powerful it is, had to crank it WAY back to keep from cutting through wood on the first pass even with relatively quick feed-rates. Only problem I had was with removing fumes from some materials, so I bought a good quality solder fume remover which seems to be doing the trick, removing it rapidly.

KW
06/29/2021
KEITH W.
United States United States
Cannot get it to work

I cannot get the computer to find the Laser

08/05/2021
SainSmart.com

Hi, the laser works with the software Lightburn.

MK
04/27/2021
Mike K.
Canada Canada
Substantial update!

Much easier to focus. Very tight beam! I can run it at much lower power at higher speeds. Cut project time by 2/3. Very impressed.

04/13/2021
Anonymous
United States United States
Blue violet fixed focus

I actually got this with the prover xl. It took a minute to figure it out but not too complicated. The members of the FB page were of great help in getting me going. Thank you Everyone for the support!

SainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 Review
EK
03/28/2021
Eugene K.
United States United States
Terrific

Works very well was able to focus down to a pin point

NB
03/24/2021
Nick B.
United States United States
Amazing customer service

Ryan from customer service made my issue a pleasant experience and solved my issues with ease. Thanks to the great support of the Sainsmart staff I am back up and running.

JD
03/23/2021
James D.
United States United States
Good laser, but setup confusing

It took me a couple of hours to figure out how to set up and run my first job. The software is not intuitive and the instructions were not very clear. Also, the power supply connection to the laser is not great, so I had to push hard to make sure the connection was good. A bad connection kept the laser from working, but I didn’t get any feedback as to what the problem was. Through trial and error, I figured out the connection issue and his the software worked and ran my first job. I was etching a design on to a black ash board and was surprised by the amount of smoke it produced. I’m guessing that is normal, but it surprised me. In the end, the laser job was precise and fairly quick. I was impressed with the final result.

SainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 Review
SN
03/22/2021
Steve N.
United States United States
Great inexpensive laser

Mounted this laser to my CNC4N machine, works very well and is a fraction of the cost of other comparable lasers, works great.

SainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 Review
TP
03/13/2021
Timothy P.
United States United States
Powerful, has some design and possibly quality flaws

I have a 3018PROver with the extension kit. This laser was very easy to install, and the laser is vgery powerful, but I did have some issues - 1) the incoming power line socket on the supplied power "brick" (transformer) is poorly made. The connection is so loose that on my first kit, the laser wouldn't turn on and it took me ages to figure out you needed to hold the brick at just the right angle to make the power flow. The connection is "better" on my second power brick (more on that later), but not much - Sainsmart need to kick their supplier's butt for poor QC 2) The design is flawed as follows - the cables supplied will only allow for a very close placement of the laser control module to the 3018 machine's control board - the left side of the laser board needs to be very close to the right side of the machine control board because of this and also the fact the laser module itself has very short cables. The problem is some brainiac designed the laser control module to have the power input on that same left hand edge as the location for the takeoff to the main machine control board (the black and white cables in the photo). If you place the laser module far enough away from the machine control board to conveniently put the laser power input in and out (which has a large moulded plug that gets in the way) you will stress the connection from the laser module to the laser control board when it moves to full travel left and right - the connection then will fall off the laser board and you are dead in the water. If Sainsmart specified to their manufacturer to add 50mm to the cable which goes from the laser control module to the main board and the same from the laser module, all these problems would go away. 3) the instructions for use as supplied conflict with the instructions Sainsmart will send you when you are frustrated beyond belief and things aren't working right (tip - follow the Sainsmart instructions) My first unit, between wonky power supply, erroneous instructions, and short cables gave me so much grief {and eventually broke) that Hiong in Sainsmart customer service sent me a whole new kit. I rate the unit 3 stars for all the problems, and add one becuase Hong was very helpful. If Sainsmart fixed these issues, I'd give the unit 5 stars - it is very powerful (even a 3% power "frame" of your project can leave a burn mark!) and every thing you need is in the kit - just be careful of the issues I have cited.

SainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 ReviewSainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 ReviewSainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 ReviewSainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 Review
RC
02/26/2021
Rob C.
Canada Canada
great service

got the laser going and it was working great. highly recommended for a beginner especially due to the fixed focus. i ha a problem with it stopping once in a while in the middle of a engraving project and contacted them and they helped me out and sent me a replacement part right away. will but more from them

SainSmart.com CNC Blue-Violet Light Fixed Focus Laser Module Kit, For 3018-PROVer, LE5040 Review
