Φ65-69mm Acrylic Dust Shoe for Spindle Motor, Trimmer Router, for PROVerXL 4030, 6050 Plus CNC
Brand: Genmitsu SKU: 101-63-DS69-CL

Φ65-69mm Acrylic Dust Shoe for Spindle Motor, Trimmer Router, for PROVerXL 4030, 6050 Plus CNC

SKU: 101-63-DS69-CL 18 reviews Variants ID: 40781756694607
$34.99

Spend & Save Up to $300 USD OFF

Diameter
Ф65-69mm with tube Ф38mm (1.5")
Ship to
USA

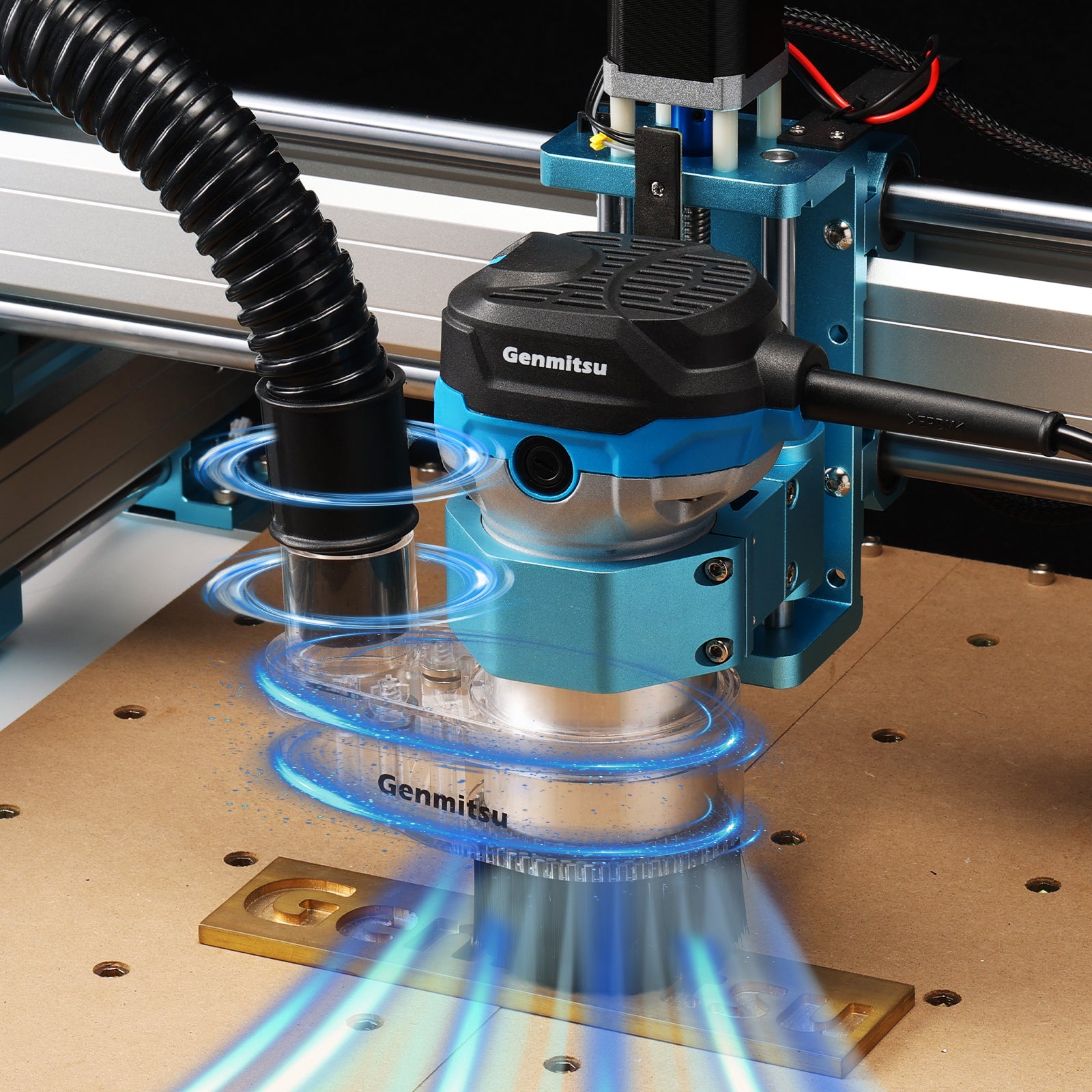

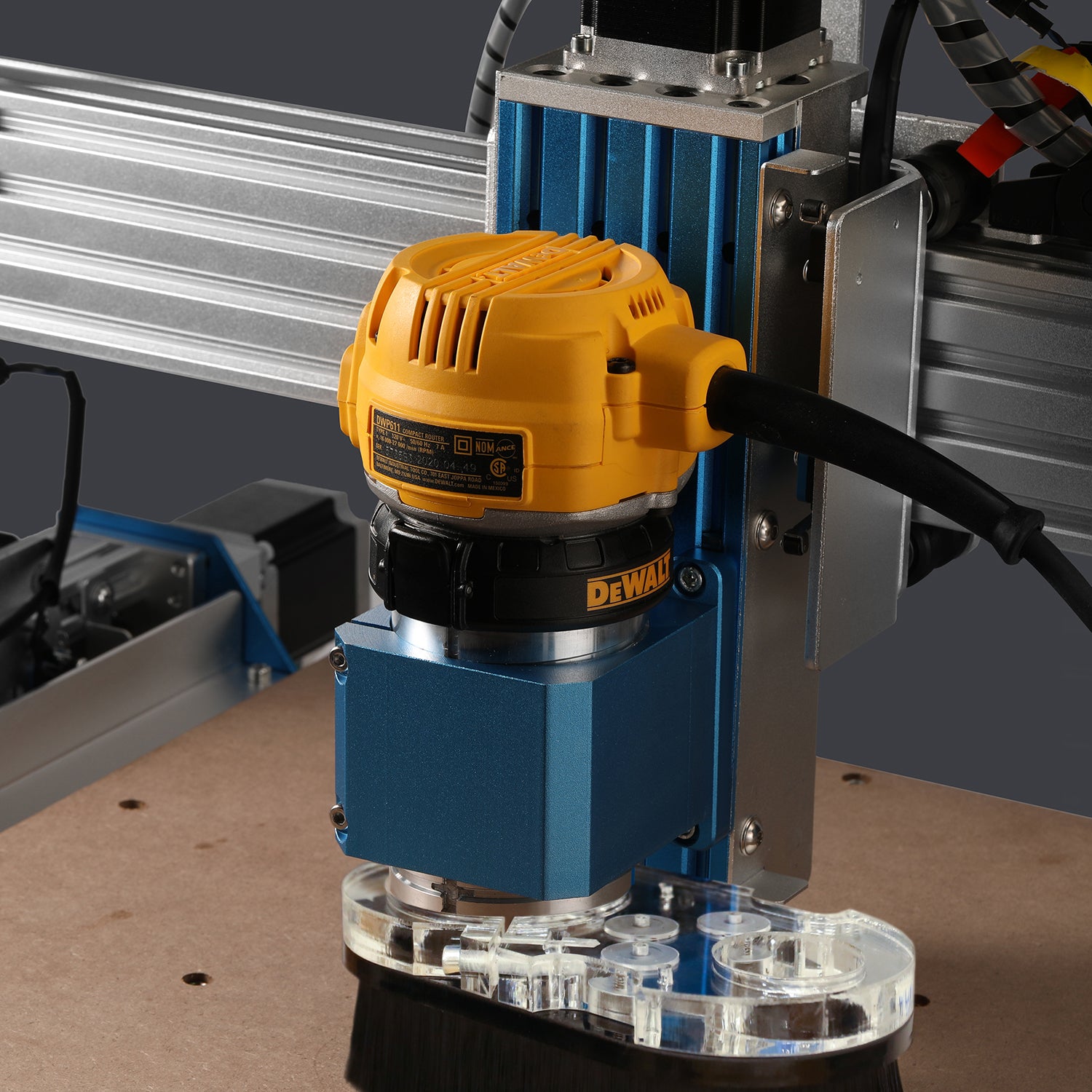

Compatibility: The Dust shoe is compatible with a 69mm diameter spindle, If you are using a big size & high power spindle, like the DeWalt spindle installed on our Genmitsu PROVerXL 4030 or other CNC machines, this dust shoe will bring you a clean workspace.

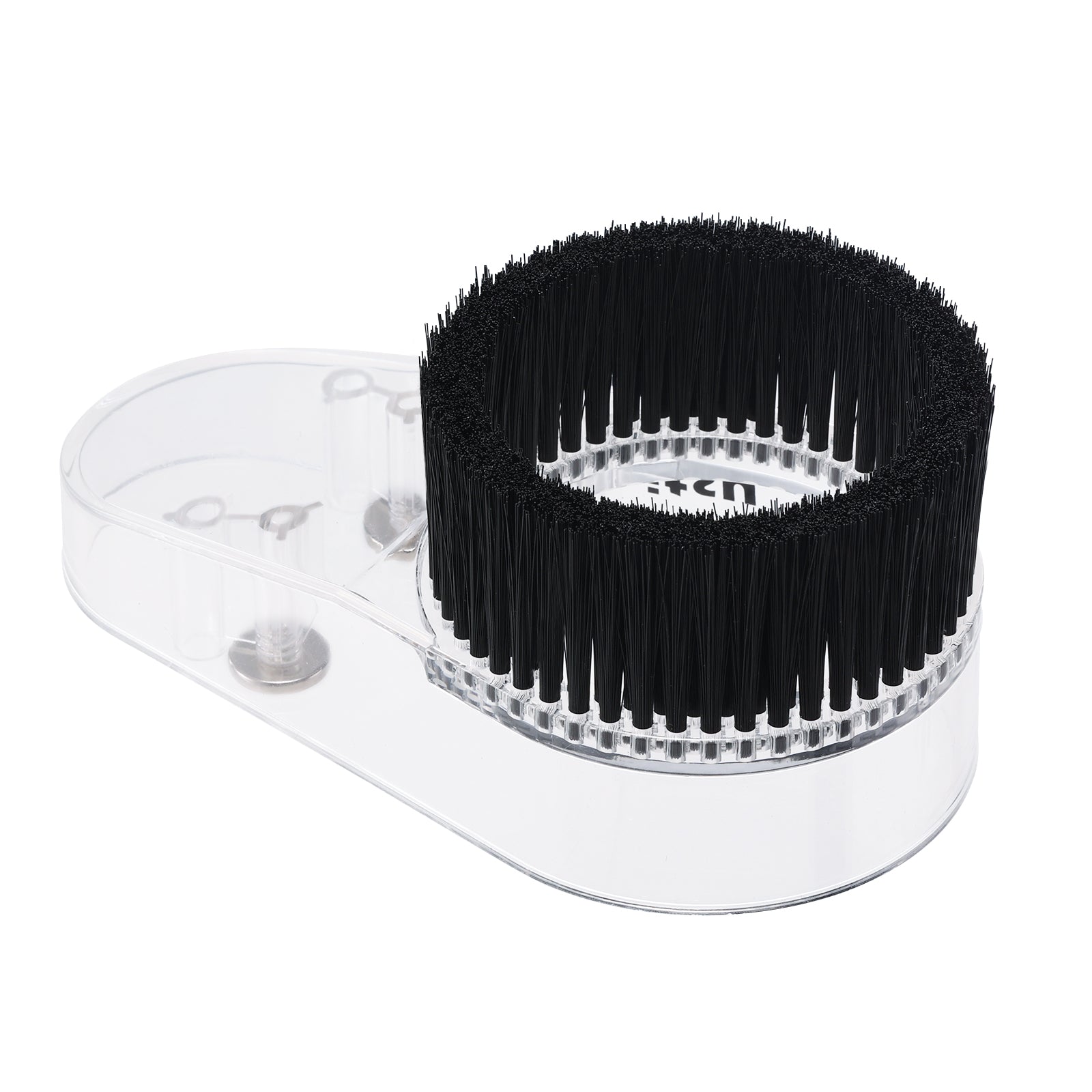

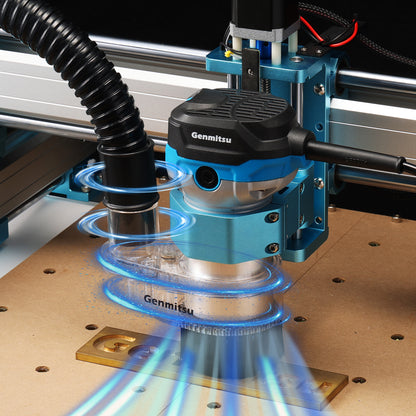

Equipped with Nylon Brush for strong vacuum capability. High dust removal efficiency. Keep your machine and work area clean while cutting, drilling, and carving. (Not compatible with the original Φ52mm spindle.)
Easy to use: Just simply put the motor into the motor hole and align the dust shoe with the spindle upwards, then  fix the motor by tightening the screw.

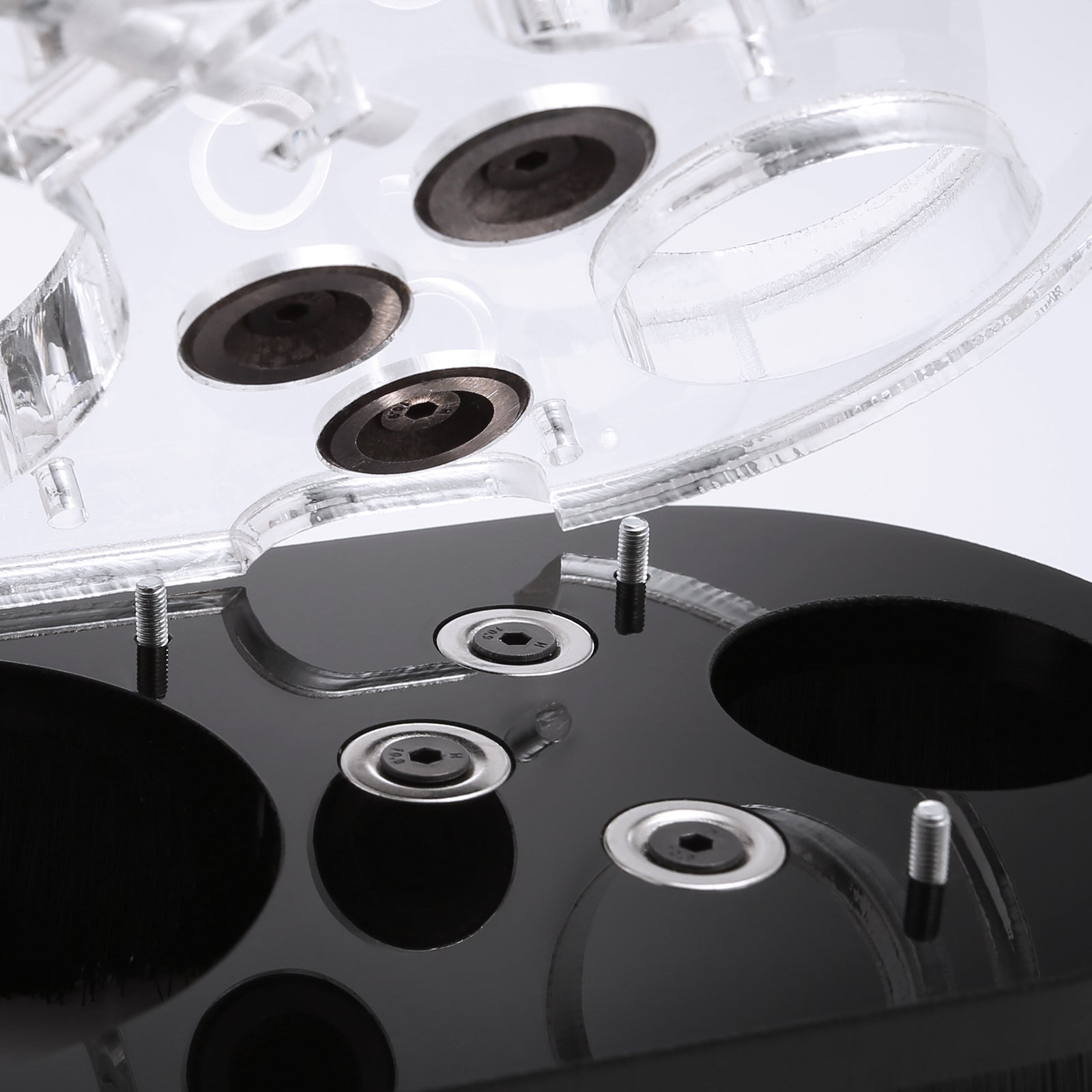

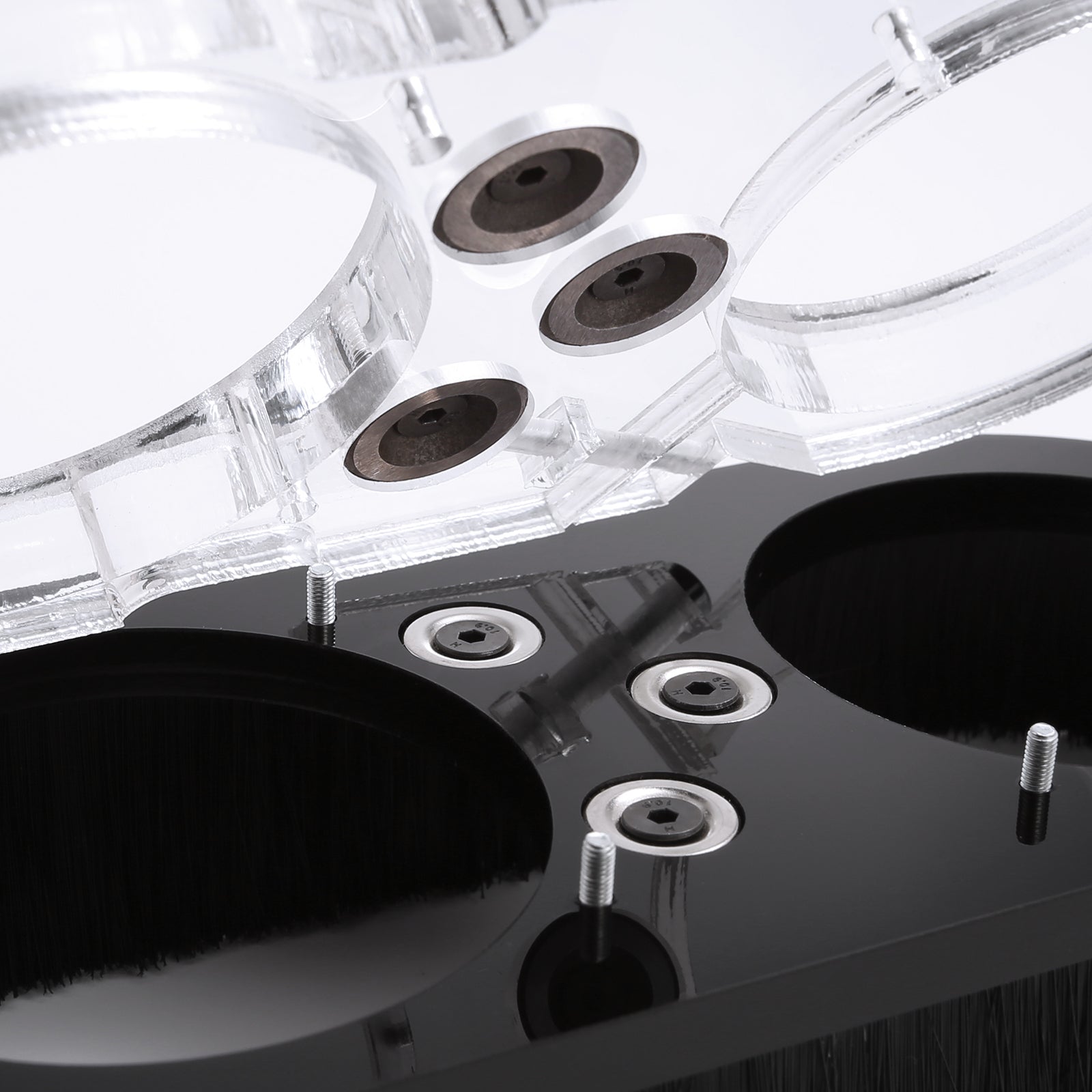

Magnet Design: Durable, light and flexible, convenient  for daily use and maintenance. Easy to assemble and install. Quickly  pop off the nylon brush to change bits with the magnet design.

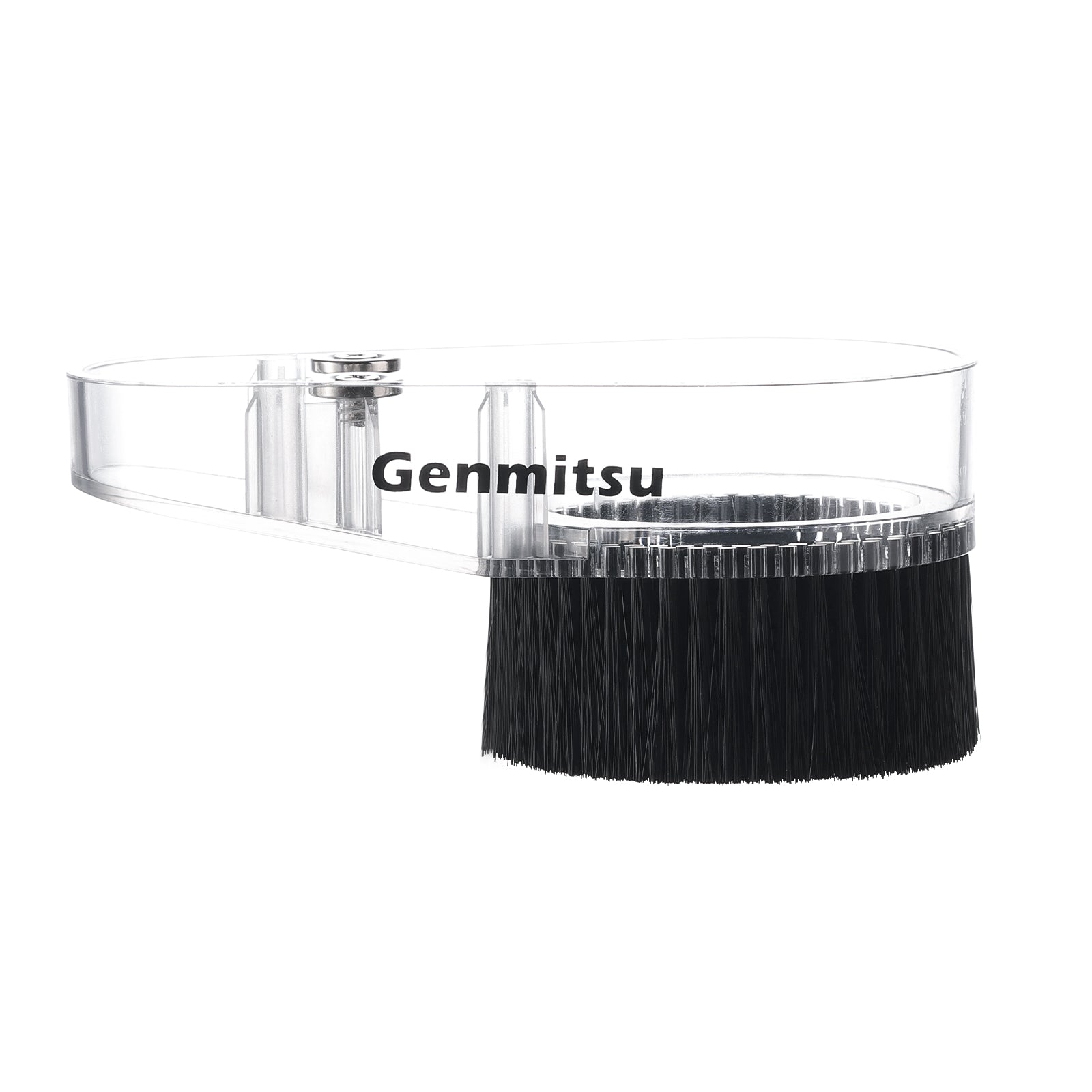

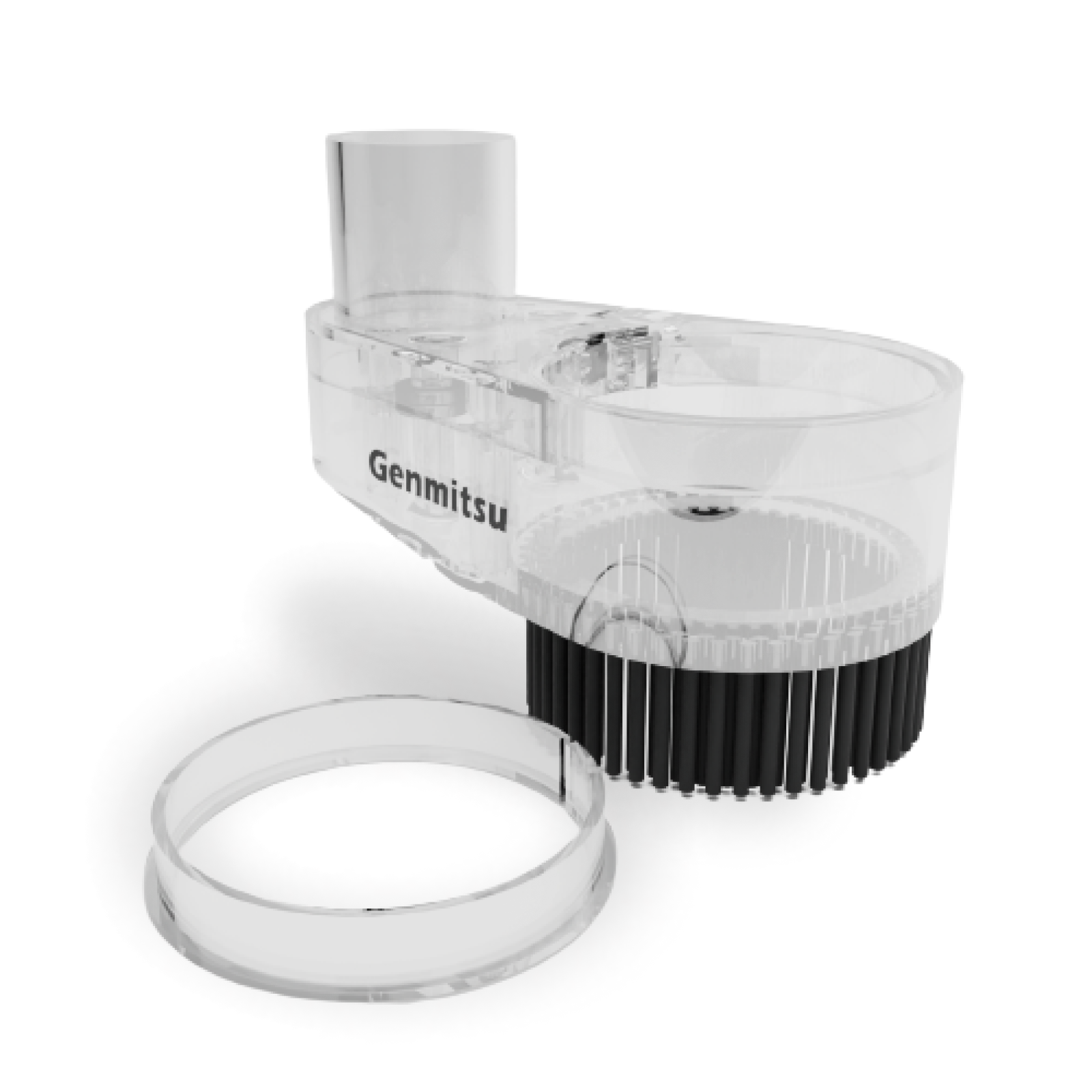

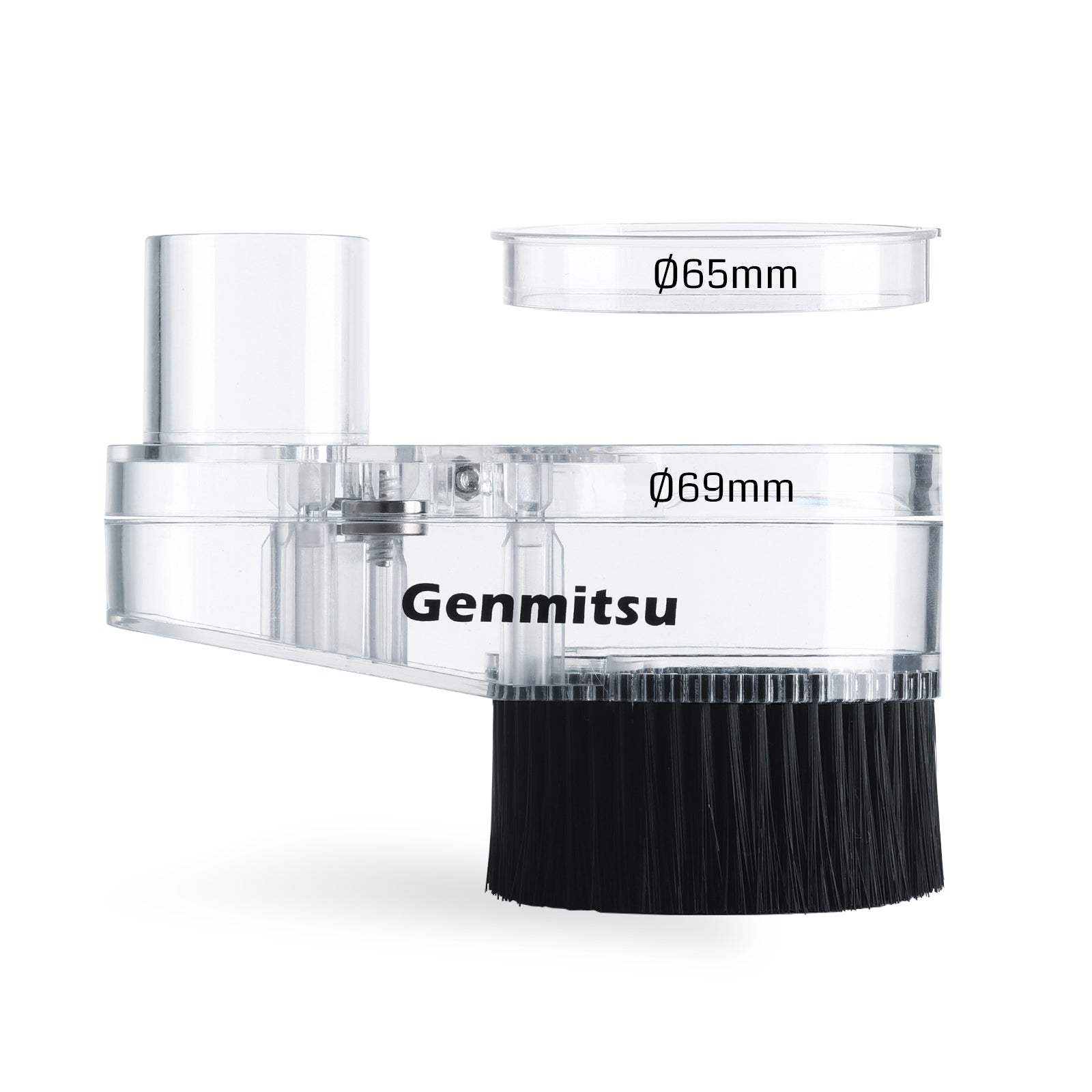

   Genmitsu 65mm/69mm CNC Dust Shoe

Genmitsu 65mm/69mm CNC Dust Shoe

Compatible with Most 65mm/69mm Spindle Motor and Compact Router, Hose Adapter Inner Diameter 38mm (1.5″)

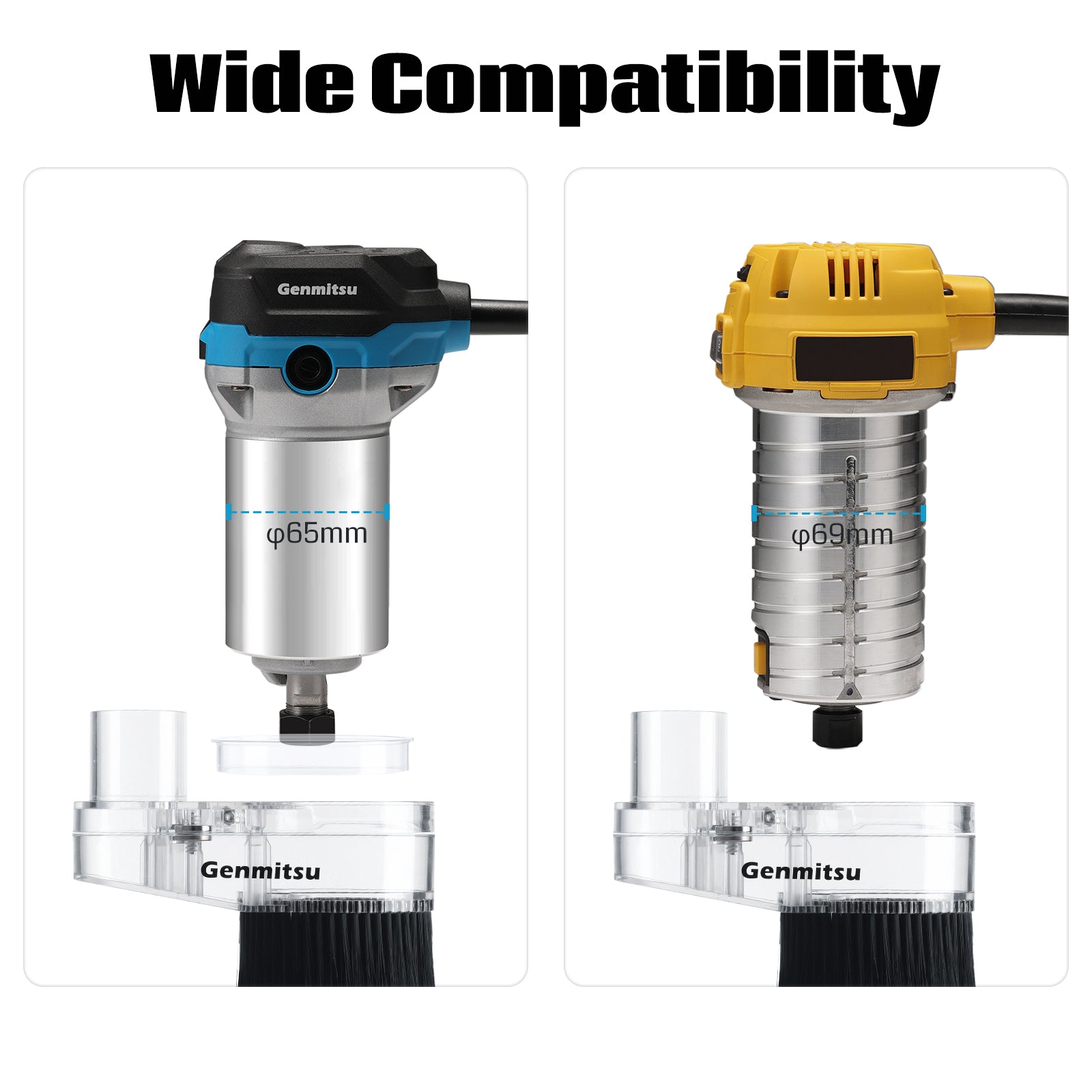

  • Universal compatibility: The innovative gasket design allows seamless adaptation to 65mm or 69mm CNC spindle motors or compact routers. It's a perfect fit for the Genmitsu PROVerXL Series, 4040-PRO, 3020-PRO MAX V2 and 3030-PROVer MAX CNC machines that support adding the 65mm/69mm trimmer router.

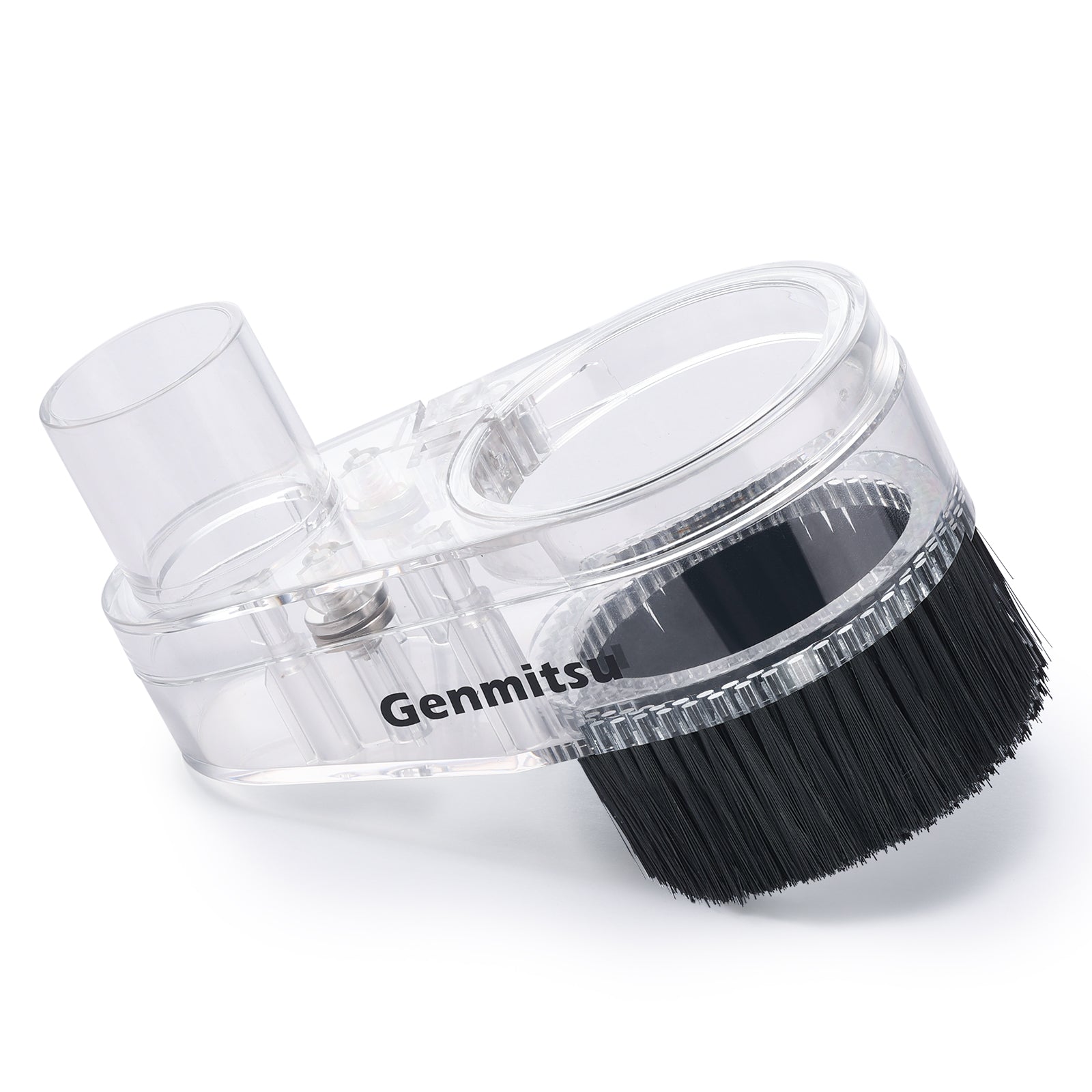

  • Durable & Effective: The dust shoe is constructed from high-quality and durable ABS material. Its transparent design allows you to keep an eye on your operations.

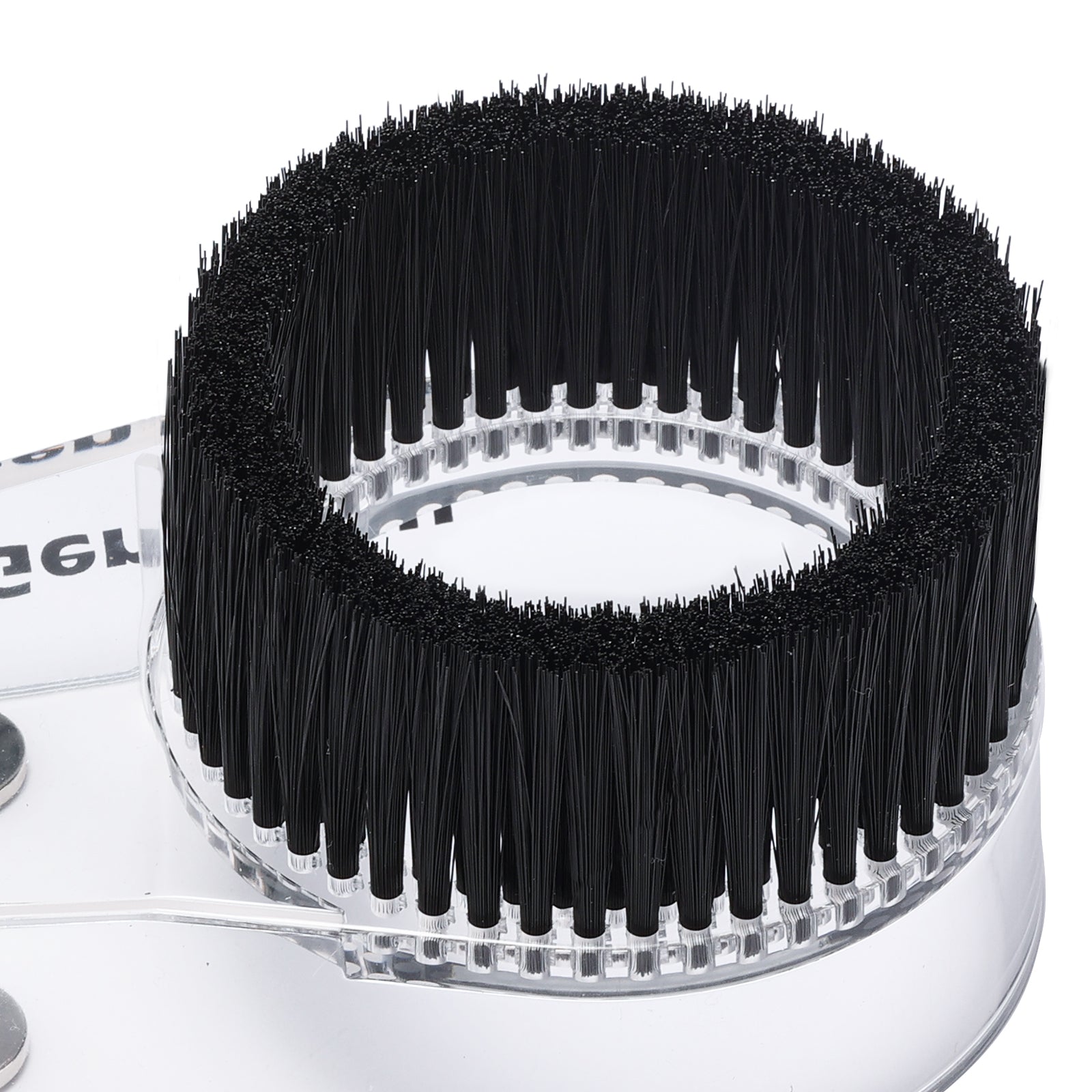

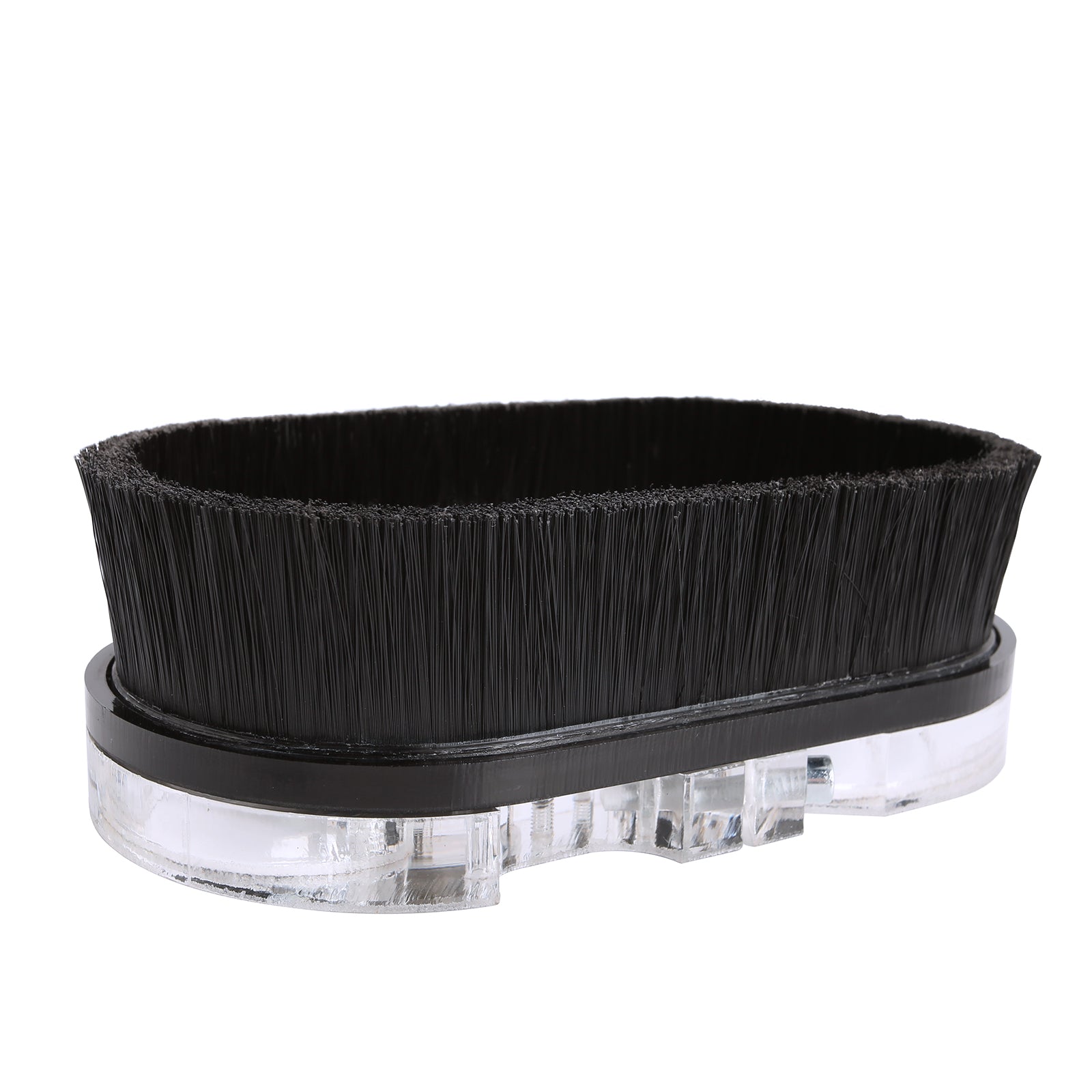

  • Tidy Planting Brush: The planting brush used in this dust shoe is neater and firmer compared to glued alternatives. This contributes to effective dust collection and sweeping.

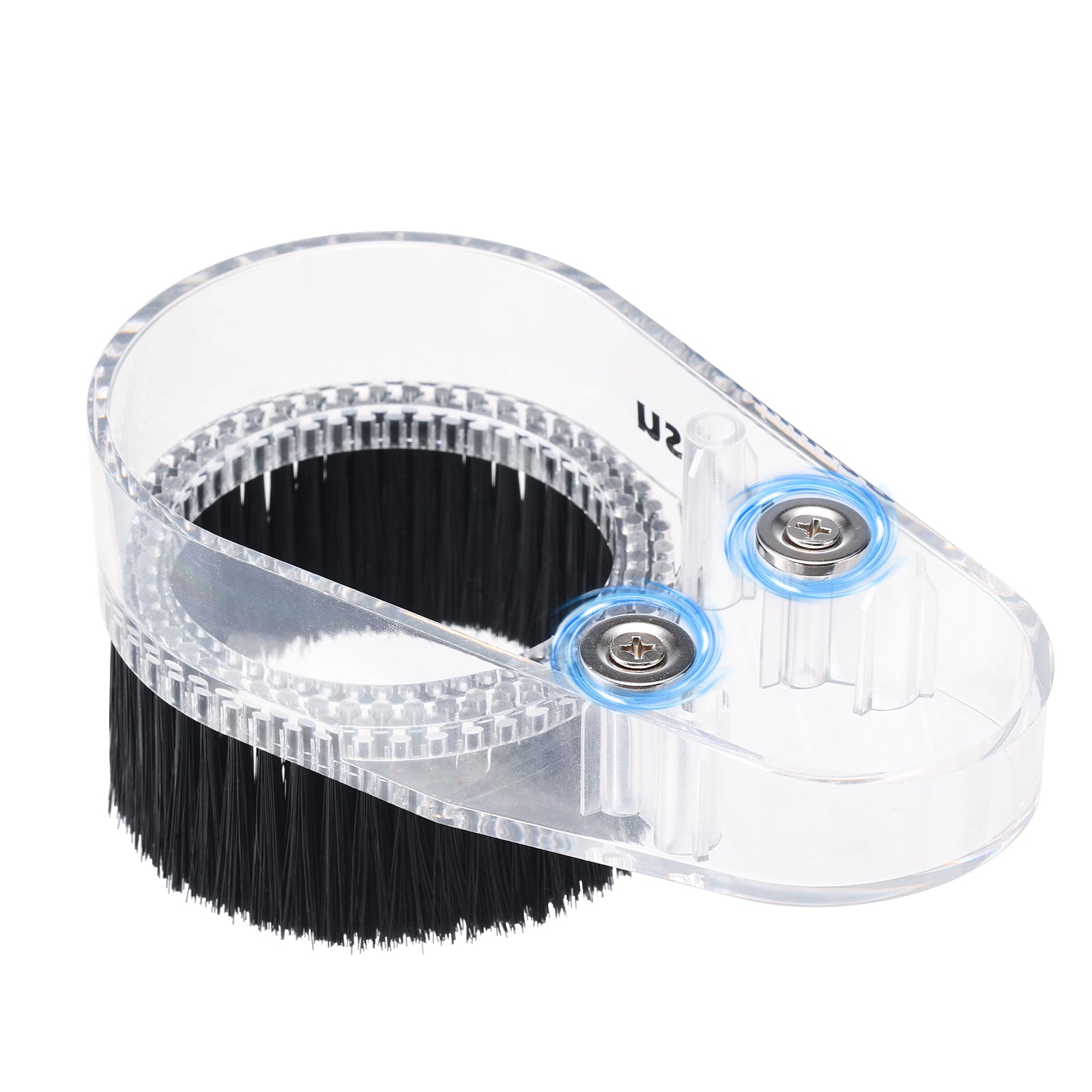

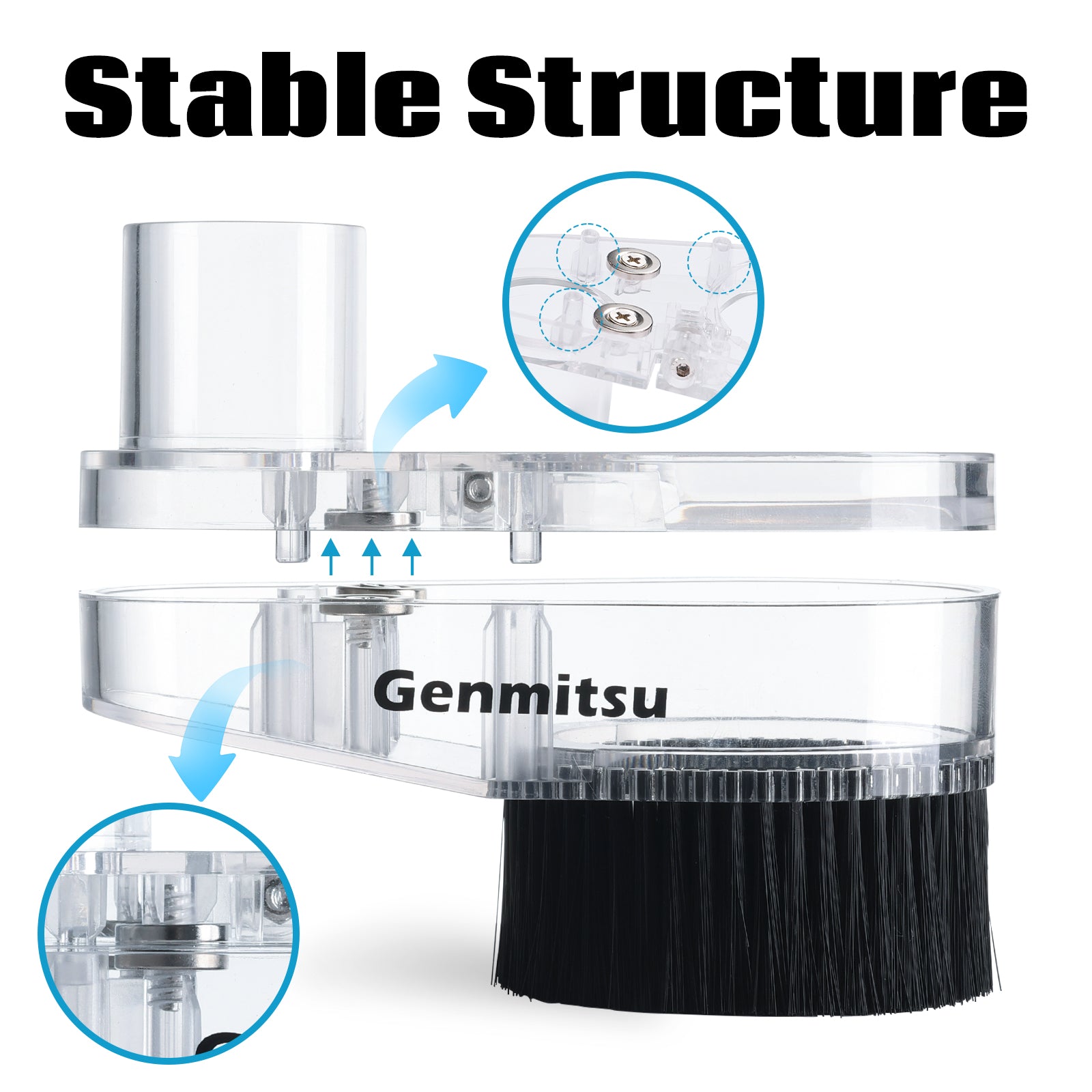

  • 2-step assembly: Simply insert the top cover into the router, align the magnets on the bottom cover to the top, and you're done. This simple assembly process ensures that you can start using it without hassle.

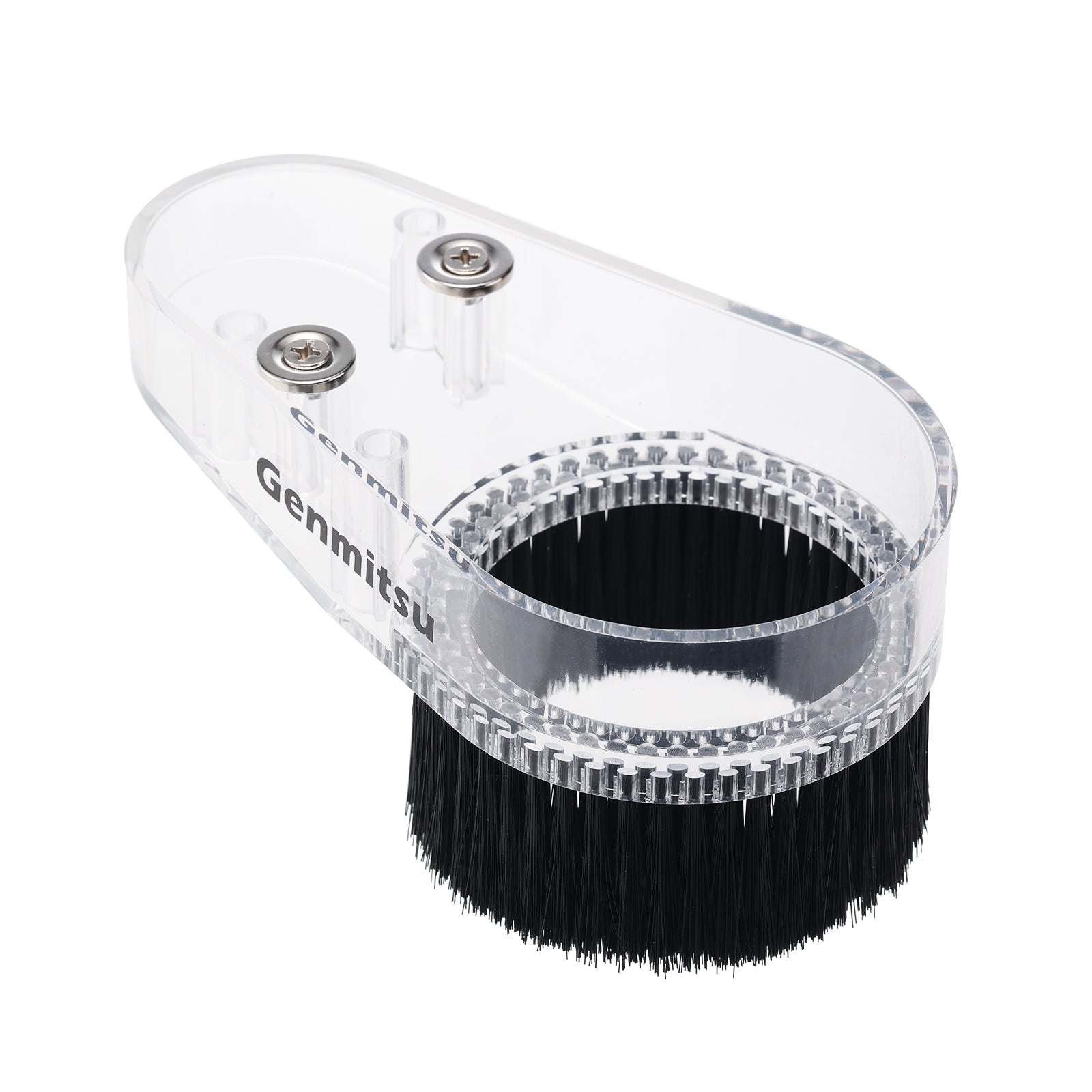

  • Split design: The dust shoe's integrated split design makes it easy to replace cutting bits and worn brushes. Simply pop off the bottom cover without needing tools or complicated procedures. When the brush wears out, replace the entire bottom cover for continuous and efficient dust control, saving time and effort.



Specifications:

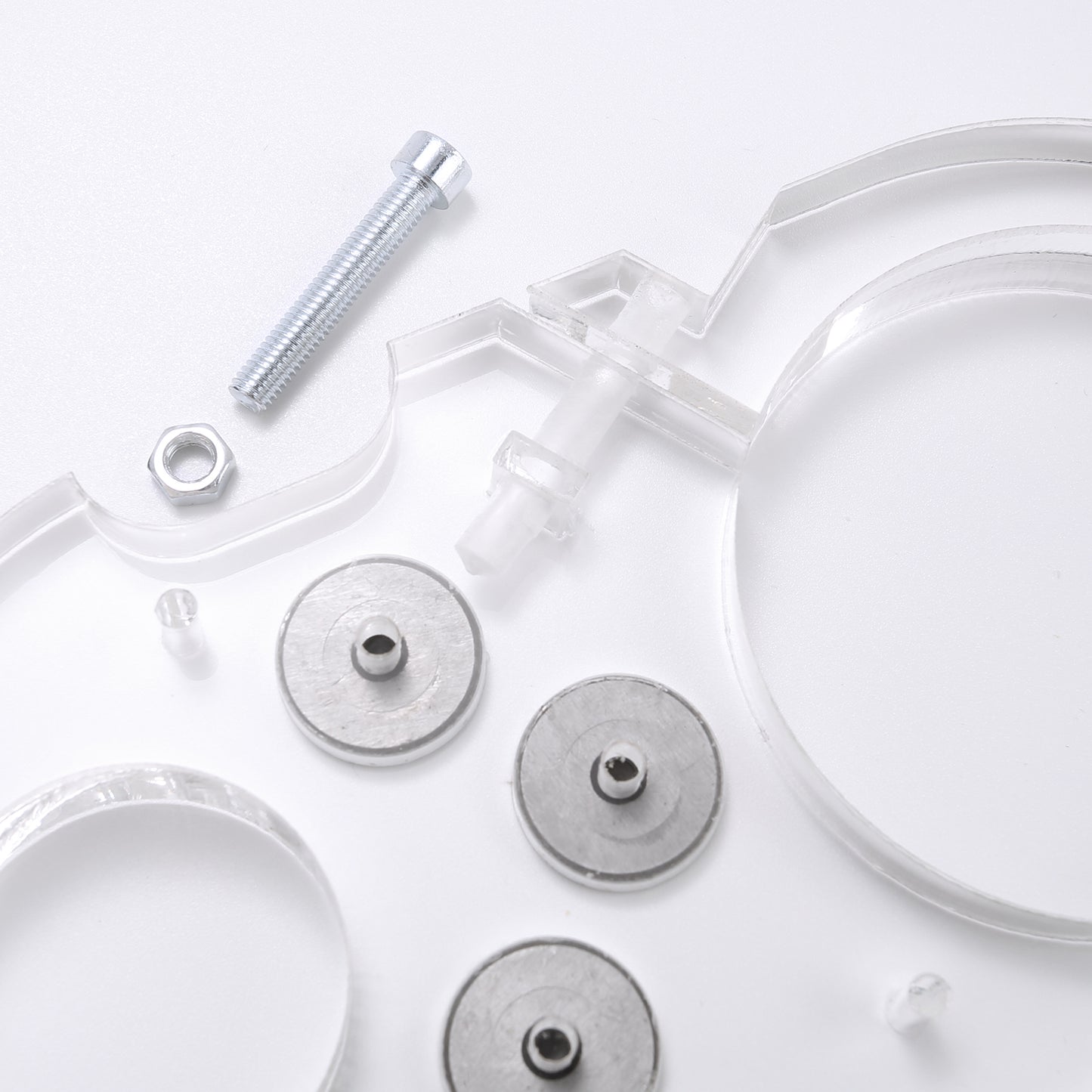

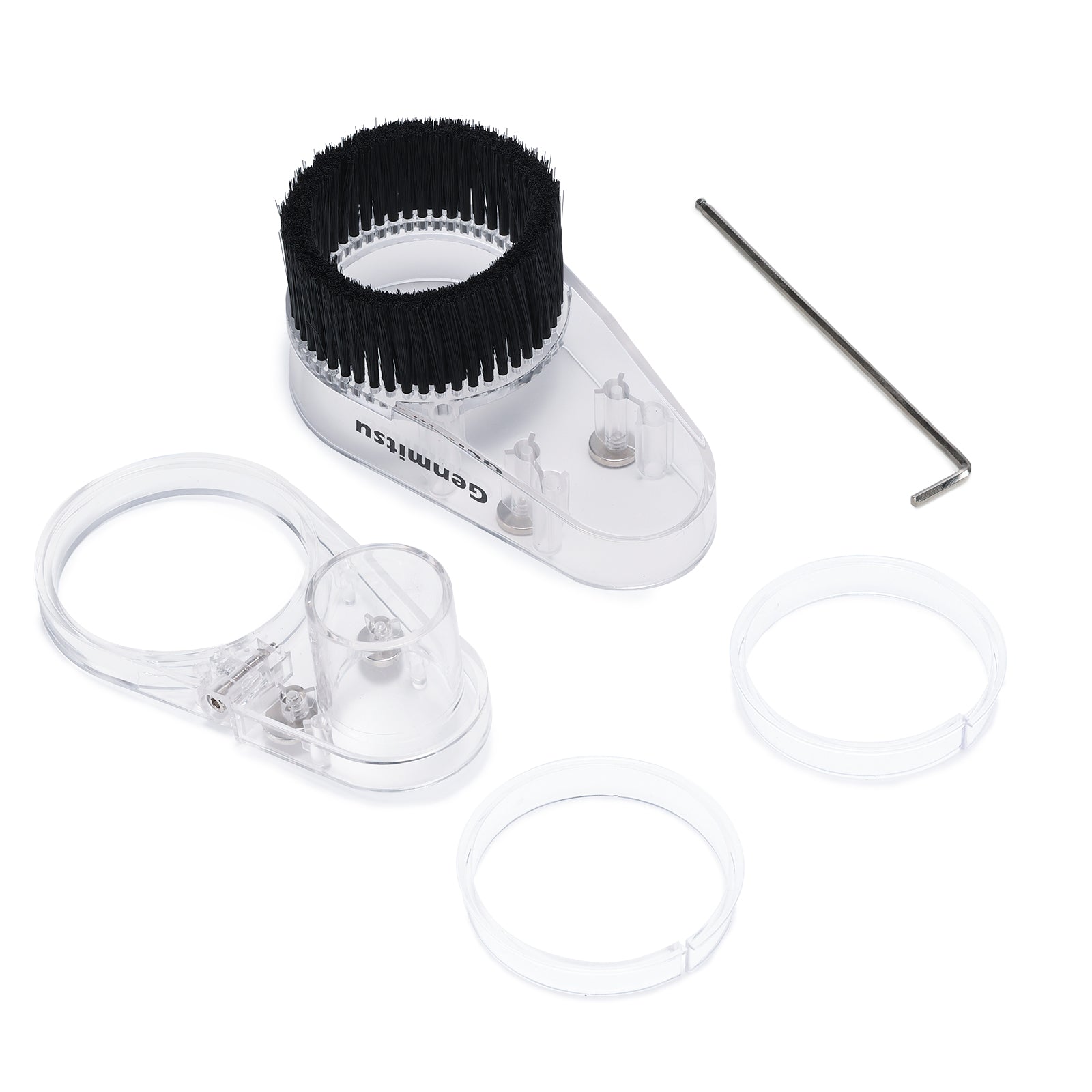

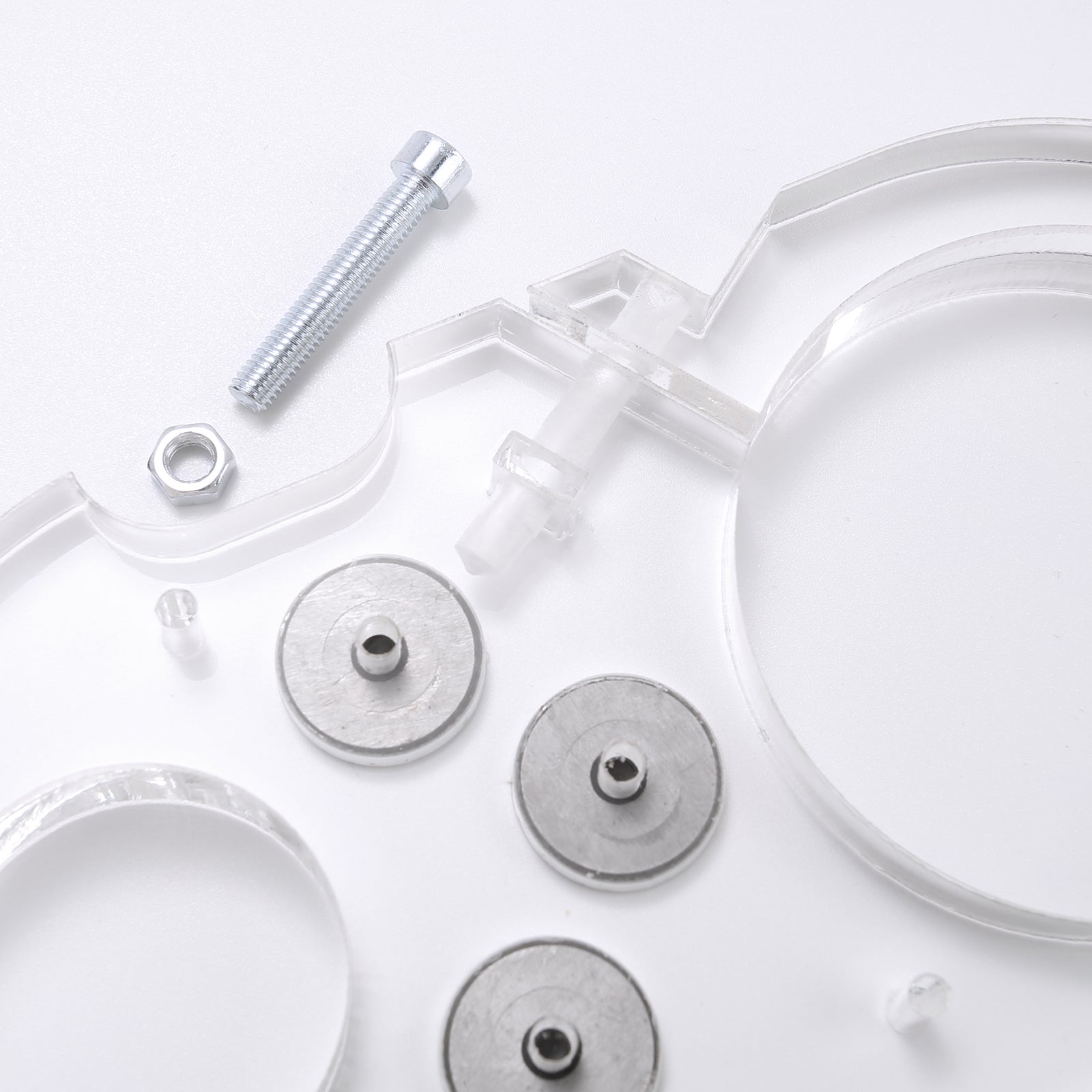

Package List：
  • 1 x Dust Shoe
  • 1 x Spare 65mm Gasket
  • 1 x M4 Nuts
  • 1 x M4*25 Allen Screw
  • 1 x M4 Allen Key

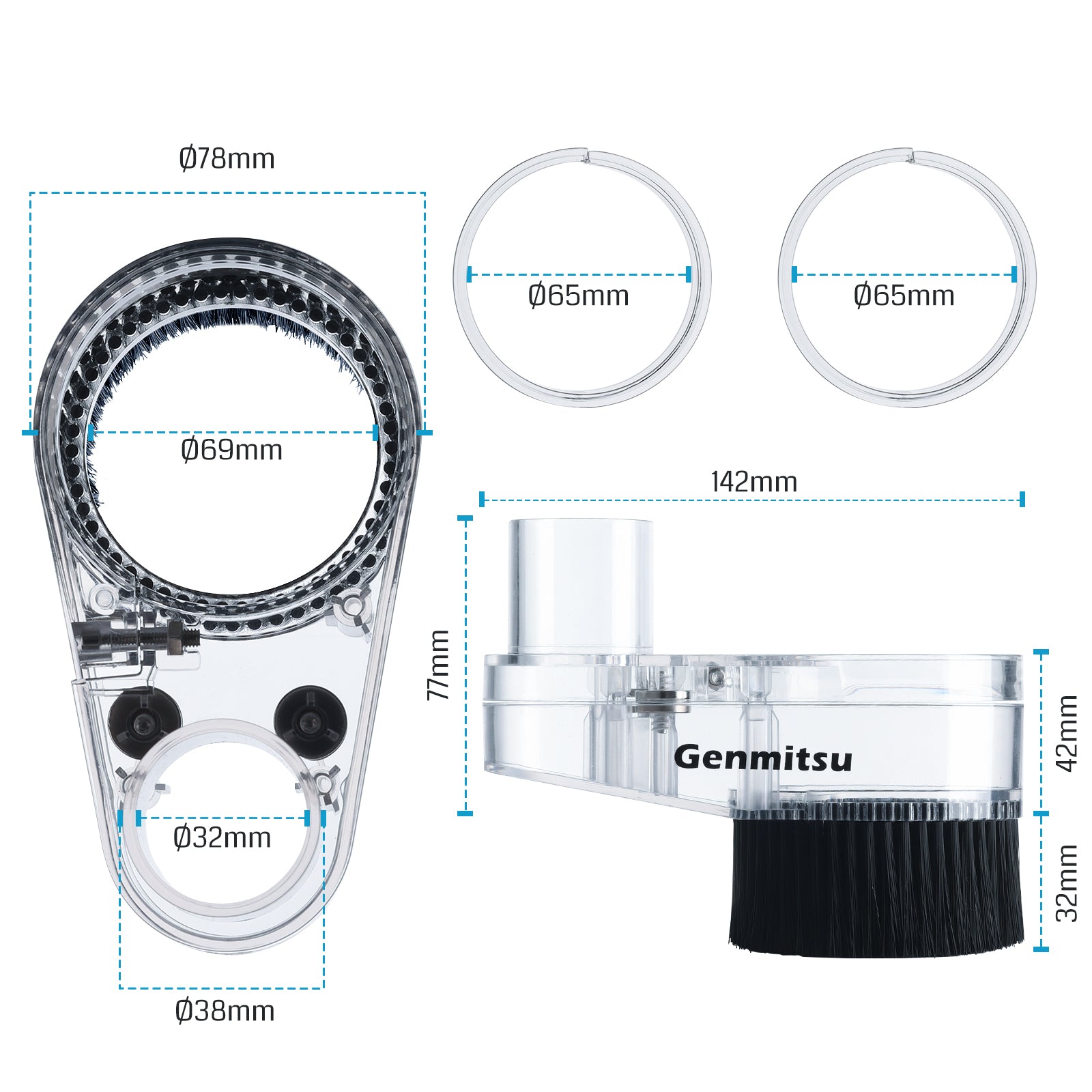

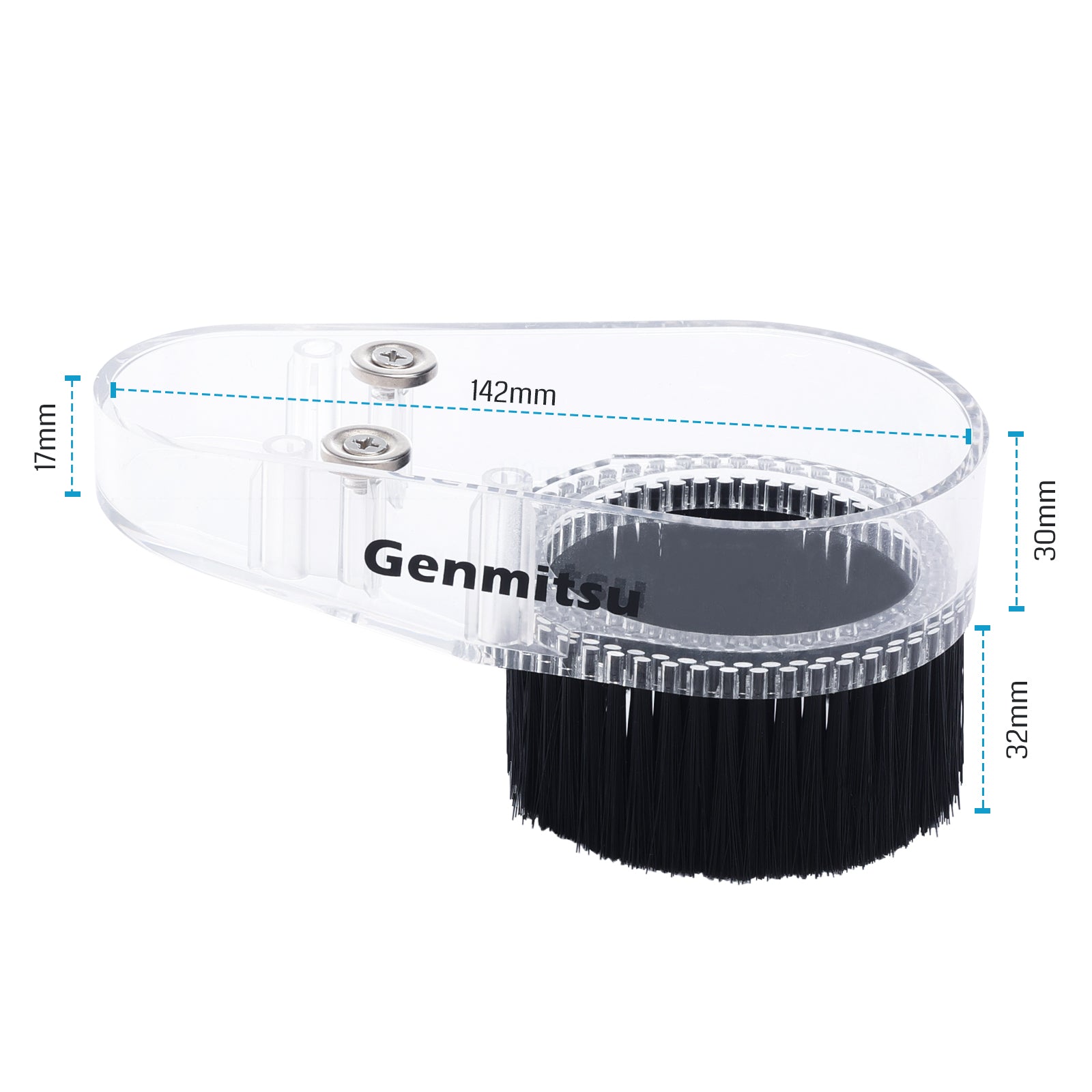

Specifications

Model DS3018

 DS52

 DS69
Spindle Diameter 42mm (1.65") 52mm (2.05") 65-69mm (2.72")
Material ABS ABS & Aluminum ABS
Vacuum Port Inner Diameter 32mm (1.26") 32mm (1.26") 32mm (1.26")
Vacuum Port Outer Diameter 38mm (1.5") 38mm (1.5") 38mm (1.5")
Compatibility
(Not Genmitsu Product? Contact us for detailed size guide.)

3018-PRO

3018-PROVer V2

4040-PRO

3018-PROVer

3018-PROVer Mach3

GS-775M Spindle

GS-775MR Spindle

PROVerXL 4030

PROVerXL 4030 V2

PROVerXL 6050 Plus

3020-PRO MAX

4040-PRO

3030-PROVer MAX

300W Spindle

R119 Trimmer Router

R118V Trimmer Router

PROVerXL 4030

PROVerXL 4030 V2

PROVerXL 6050 Plus

DeWalt DWP611, Other large size spindle
With Short Brush Bottom Cover Yes Yes Yes
Assembly Guide User Manual User Manual User Manual
