Brand: Genmitsu

300W Spindle Upgrade Kit for 3018 Series CNC Machines

SKU: 101-60-SPM300 4 reviews Variants ID: 32332702416975
$99.99
US Free Shipping

  • Spindle Motor: New chrome-plated DC motor;
  • Install this spindle set into your CNC machines, then your machines can easily engrave light metal or other hard-to-cut materials.
  • This spindle comes equipped with air-cooled function, which can work for a long time.
  • Radial run out of spindle: 0.01-0.04; Speed: 3000-12000 r/min (12V-3000r/min,24V-6000r/min,36V-9000r/min,48V-12000r/min)
  • The output voltage is adjustable, the output current is not adjustable, and the output current is determined by the load.
Ship to
USA
  • Spindle Motor: New chrome-plated DC motor;
  • Install this spindle set into your CNC machines, then your machines can easily engrave light metal or other hard-to-cut materials.
  • This spindle comes equipped with air-cooled function, which can work for a long time.
  • Radial run out of spindle: 0.01-0.04; Speed: 3000-12000 r/min (12V-3000r/min,24V-6000r/min,36V-9000r/min,48V-12000r/min)
  • The output voltage is adjustable, the output current is not adjustable, and the output current is determined by the load.

SPECIFICATIONS

Air-cooled. If you would like to add it on 3018 series CNC machines, you need to add an extra motor mount. You can download the 3D model to print one.

Spindle Motor

  • Voltage: 12-48V DC
  • Torque: 400mN.m
  • Insulation Resistance: > 2 megohms
  • Spindle Diameter: 52mm
  • Dielectric Strength: 400V
  • Motor length: 172mm

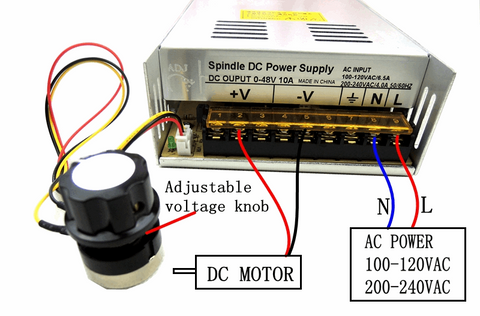

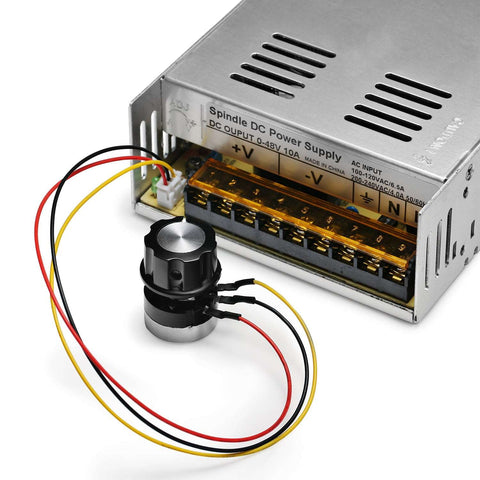

Power Converter

  • Input Voltage: 110-220V ±15% AC
  • Output Voltage: 0-48V DC
  • Output Current: 10A (MAX)
  • Output Voltage Regulation: External potentiometer adjustment
  • Rated Power: 480W

WHAT'S IN THE PACKAGE

  • 1 x Spindle Set
  • 1 x ER11 Collet
  • 1 x Spindle Speed Power Converter
Customer Reviews
5.0 Based on 4 Reviews
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
HW
03/08/2021
Harold W.
United States United States
upgraded spindle

It has been great. I tried a couple of other brands but had trouble with RF interference with both of them. I am very happy with this one.

SainSmart.com 300W Spindle Upgrade Kit for 3018 Series CNC Machines Review
JA
02/13/2021
John A. Wilson
United States United States
smooth running

this is a great improvement for the 3018 prover runs smooth quiet and very efficient at cutting . Working superbly with my new aluminum spindle holder on my 3018 prover.

SainSmart.com 300W Spindle Upgrade Kit for 3018 Series CNC Machines Review
JP
08/26/2021
Jose P.
Portugal Portugal
Many power

I like. Very good

GG
02/17/2021
Gilles G.
France France
Perfect .

good product, perfect for my uses.
