CNC Dust Shoe ABS Cover Cleaner, for 3018 Series CNC Router Φ42mm Spindle Motor
SKU: 101-63-DS3018-CL
8
$18.99

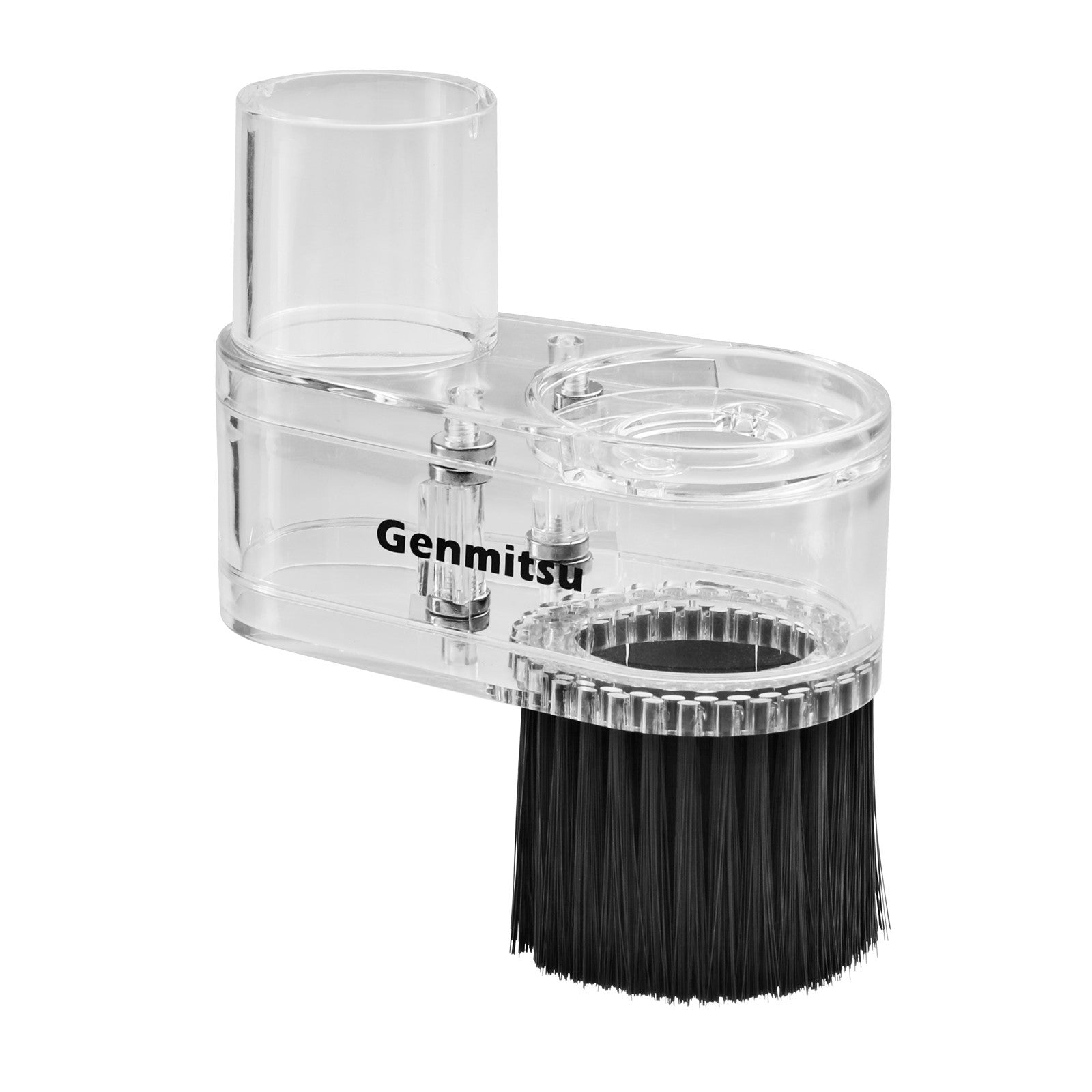

Φ42mm Dust Shoe

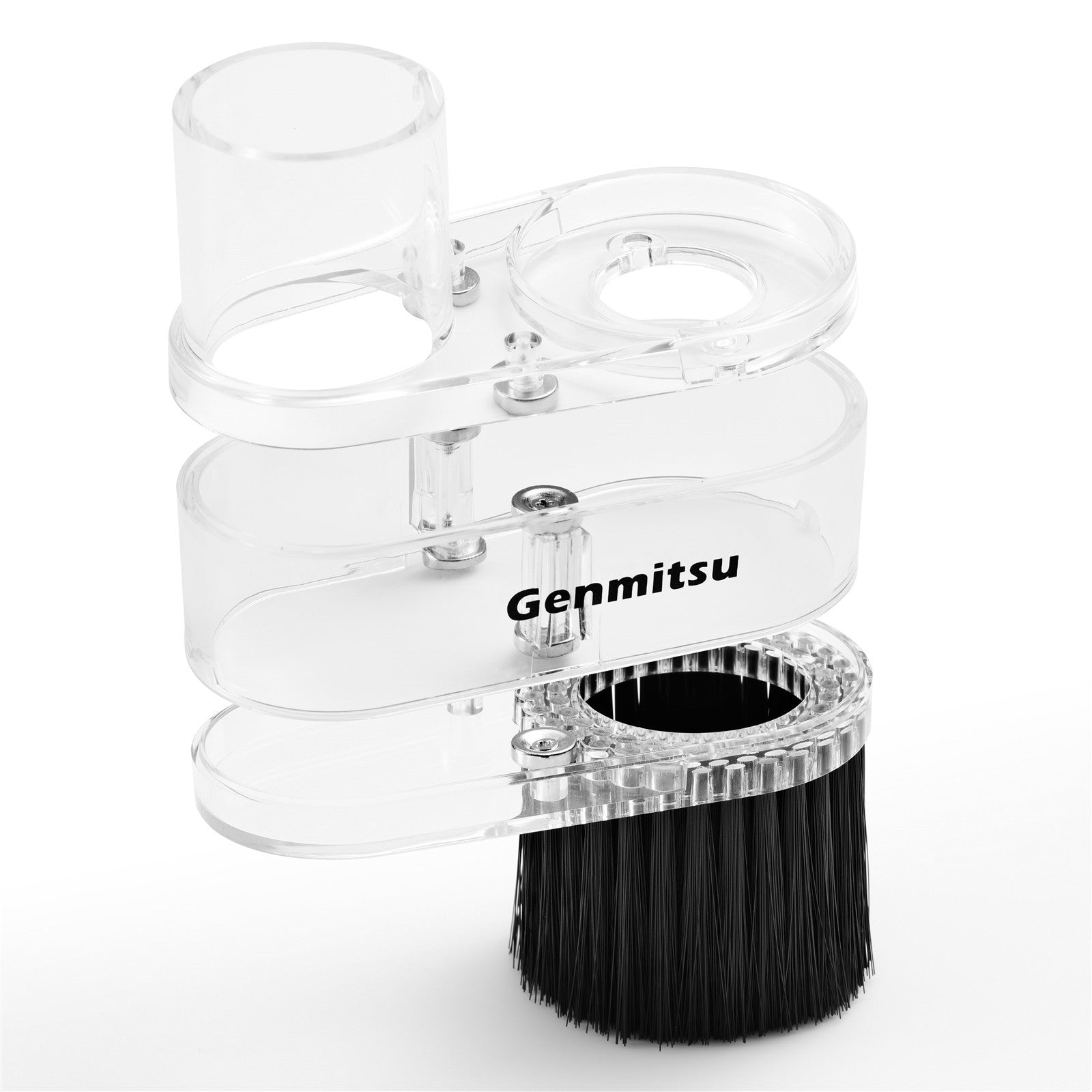

This dust shoe is made of high-quality transparent ABS . The transparent design helps you keep an eye on your operations. Equipped with a nylon brush to maximize vacuum suction and help act as a dust sweep with high dust removal efficiency. Keep your machine and work area clean while cutting, drilling, and carving.
You may also like the Dust Shoe for Φ52mm spindle motor (compatible with PROVerXL 4030 & 3020-PRO MAX)

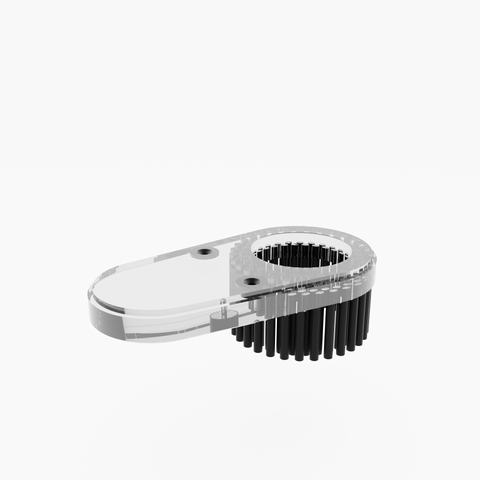

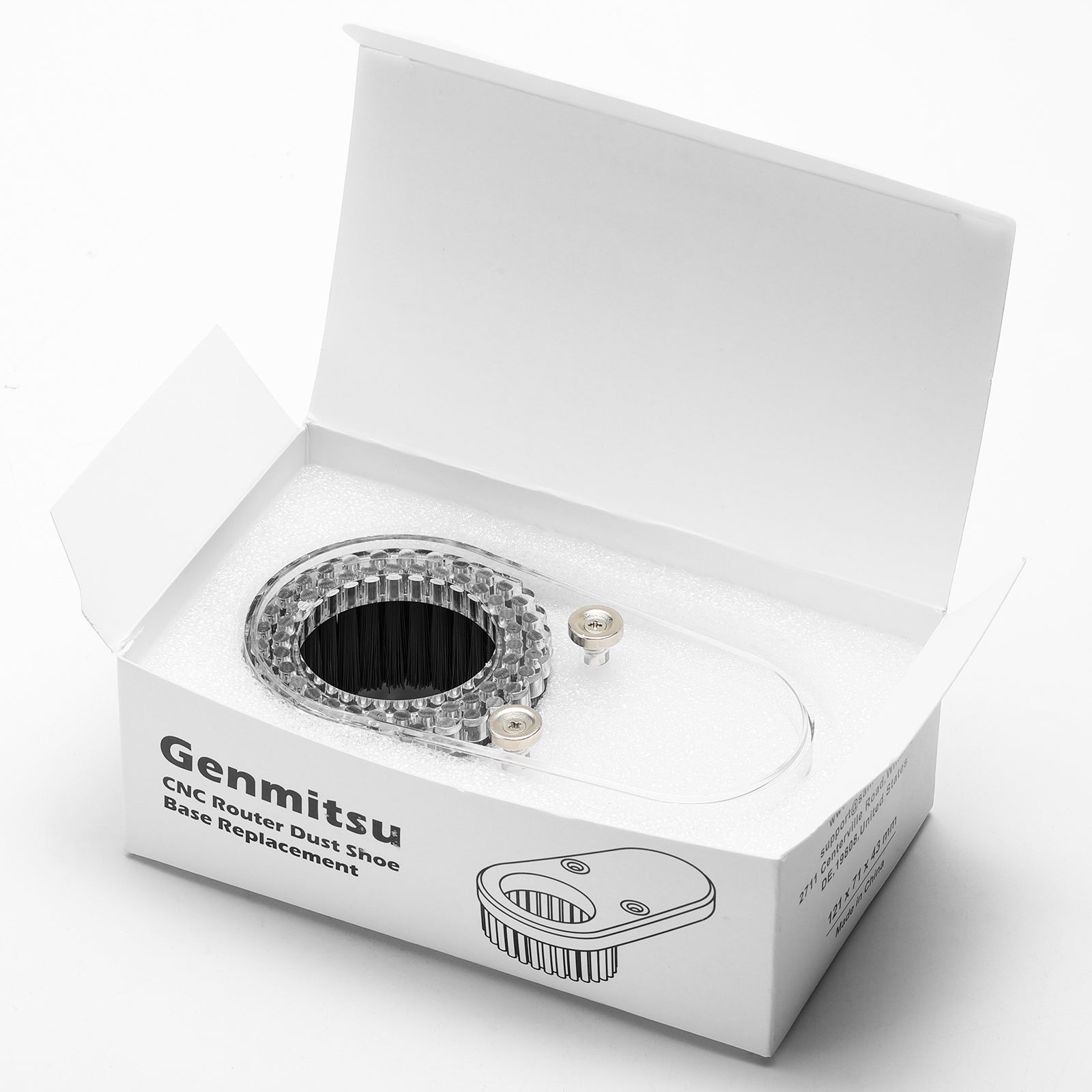

Replacement Base Bottom Cover

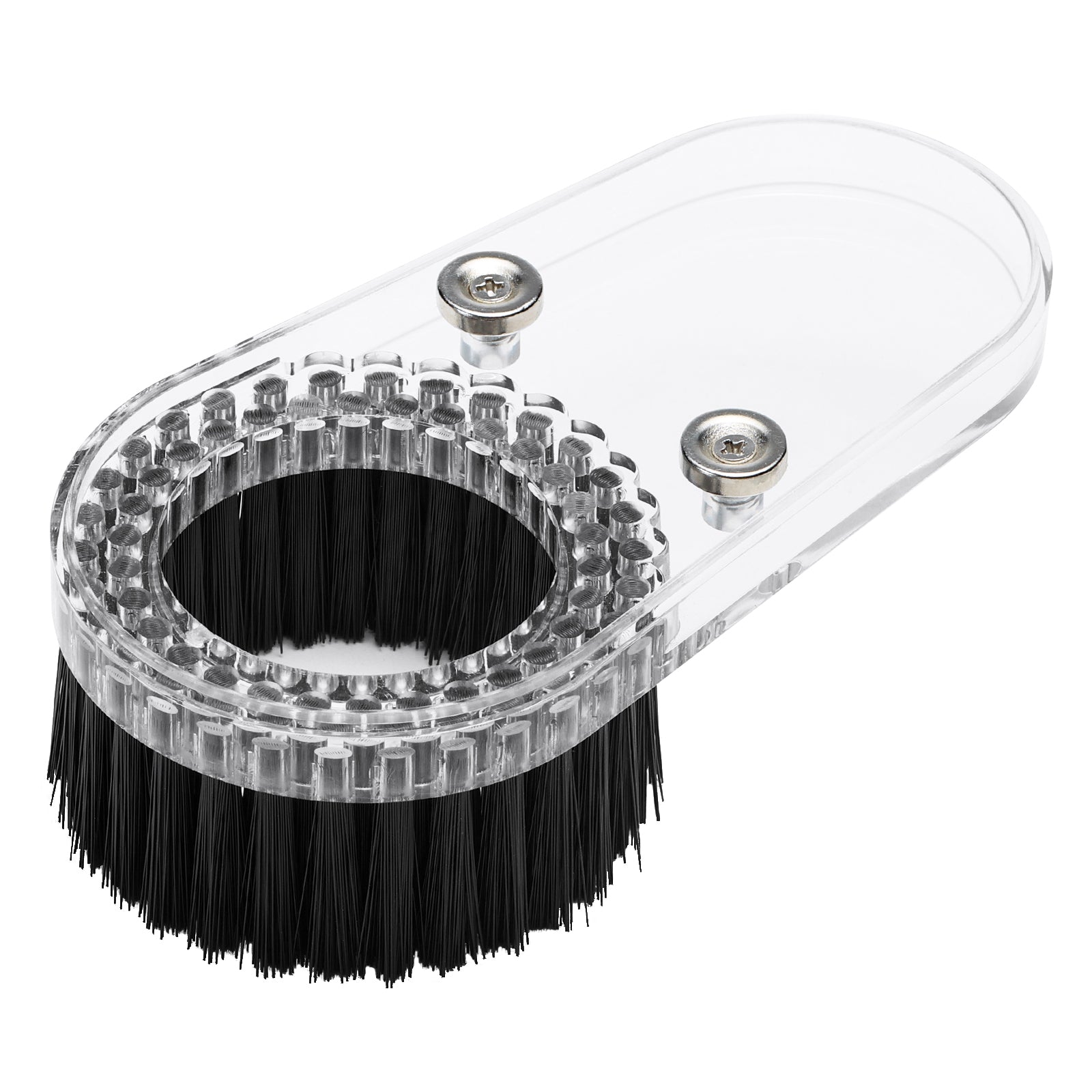

- This Bottom Cover is made of high-quality transparent ABS and preinstalled 20mm long nylon brush. Compatible with Genmitsu CNC Dust Shoes for 42mm and 52mm diameter spindle motors.
- The 20mm Nylon Brush is perfect for shorter cutting tools, such as V bits. Avoid snags and tangles. Don’t need to spend time reinstalling a new brush. Just replace the whole bottom cover when the brush is worn. One step replacement.
200 Points for Free Shipping Redeem
Make it cleaner

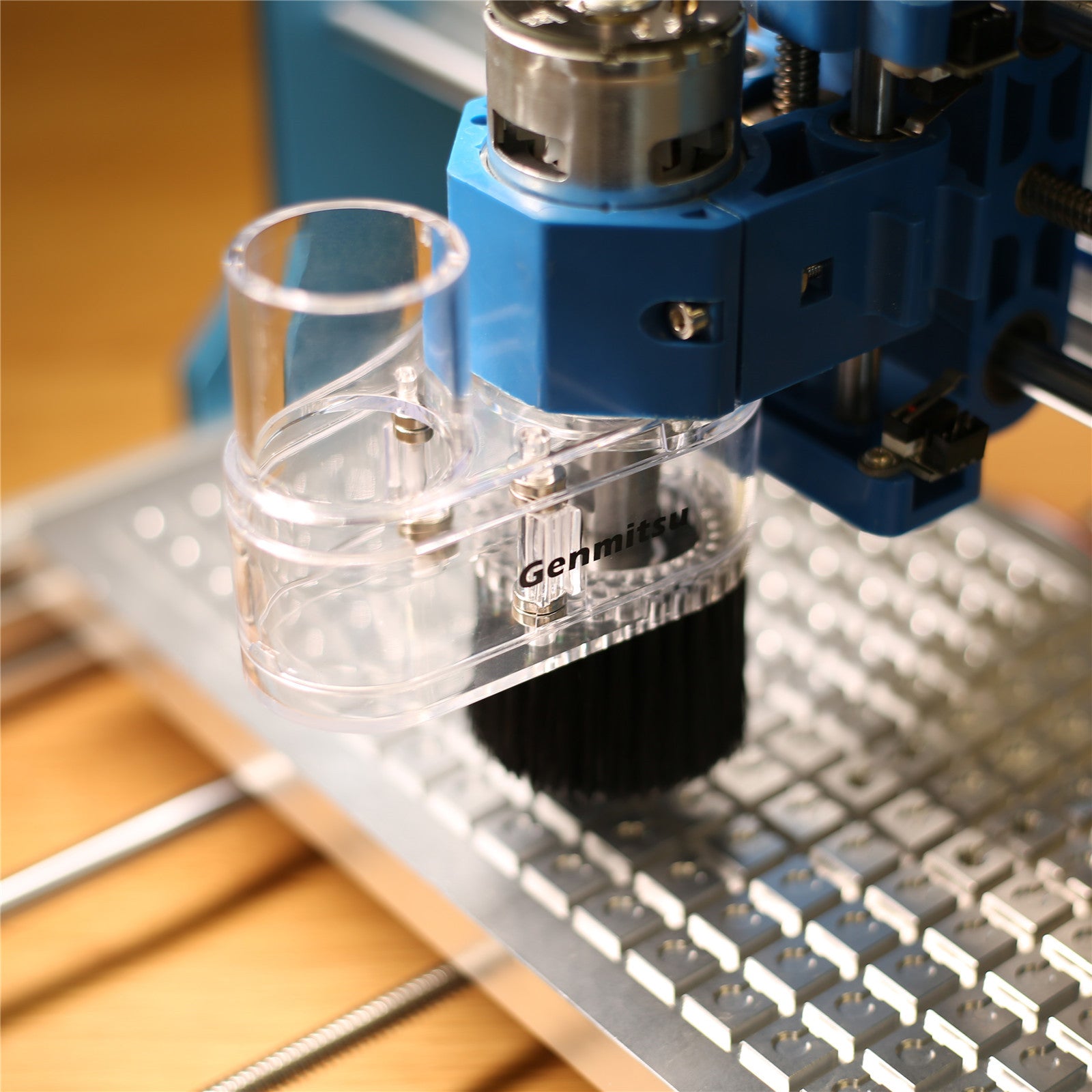

Enjoy a cleaner work area with our Genmitsu CNC Dust Shoe. This dust shoe is designed to be a high performing economical option for CNC routing.
What's included: 1 x 3018 Dust Shoe
High quality

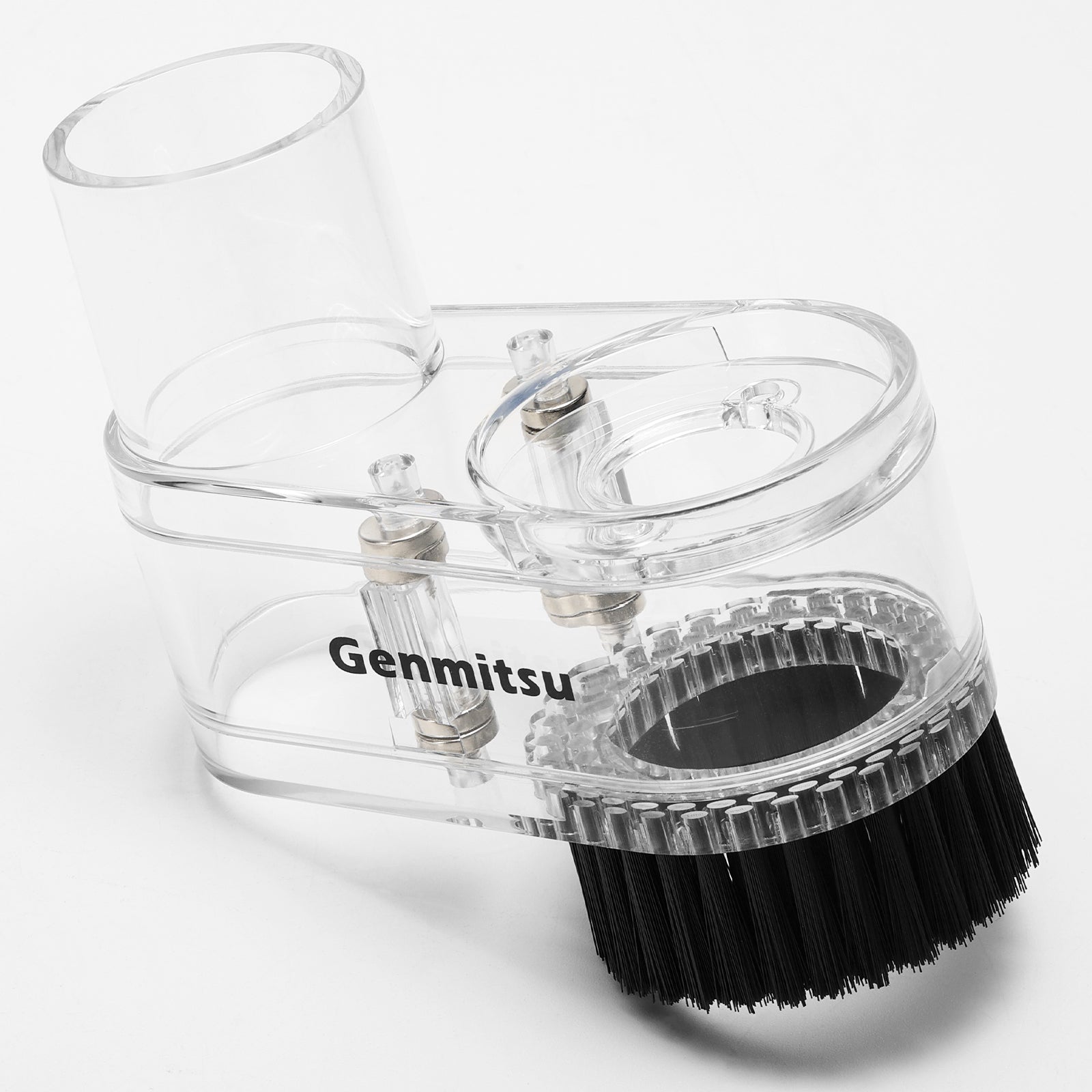

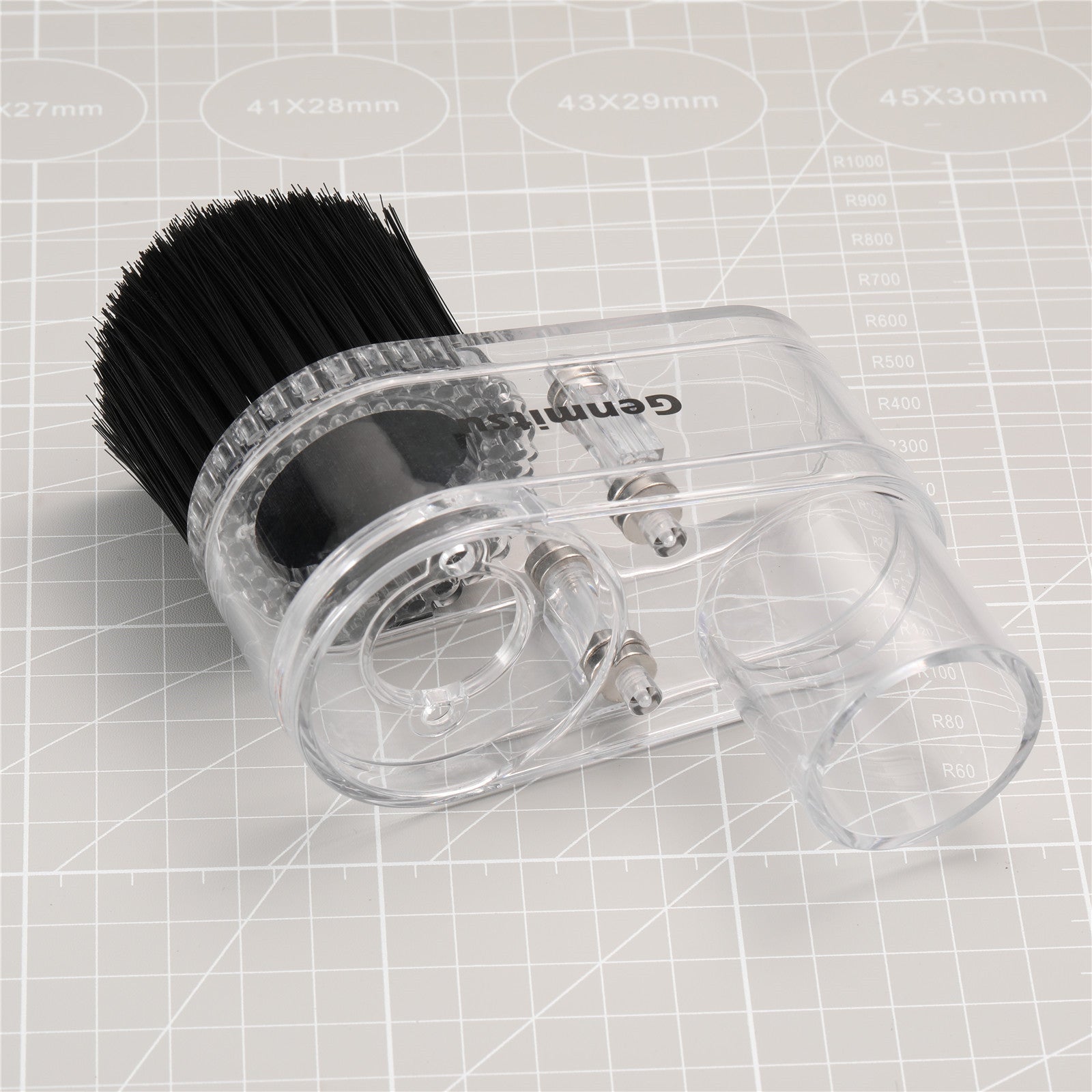

Made of high-quality transparent ABS. The transparent and split design helps you keep an eye on your operations and replace the bits easier.

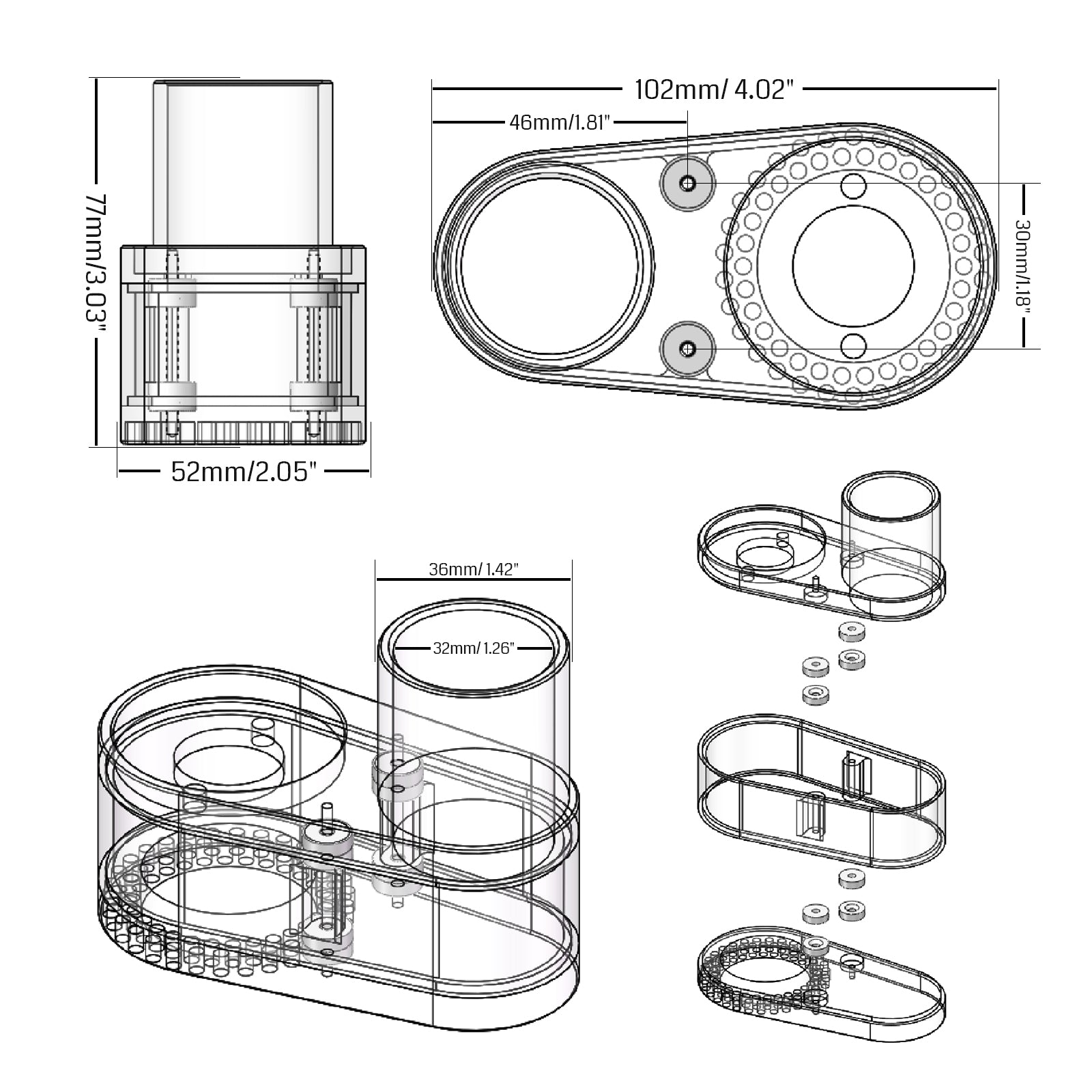

Specifications:
- Material: ABS
- Weight: 86g (0.18lb)
- Vacuum Port Outer Diameter: 38mm/ 1.5”
- Vacuum Port Inner Diameter: 32mm/1.26”
- Compatible Machine: Genmitsu 3018-PRO, 3018-PROVer, 3018-PROVer Mach3, 3018-MX3, 1810-PRO and other generic 3018-PRO CNC Machines

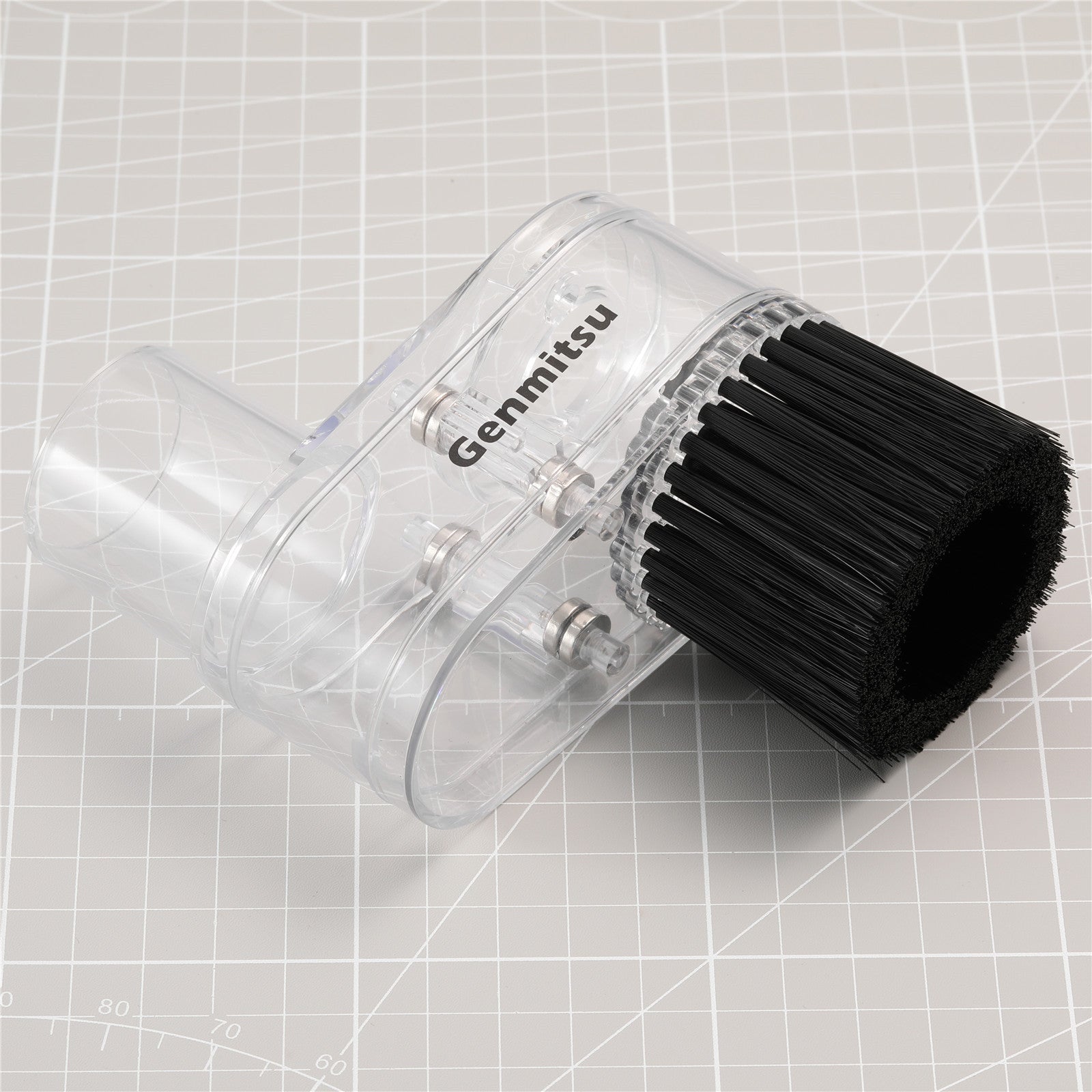

Nylon brush
The planting 40mm long nylon brush is much tidy and firmer than other glued ones, it could maximize vacuum suction and help act as a dust sweep with high dust removal efficiency.
Note: Ideally the tip of the bit should be mounted to be level with the bottom of the bristles when they are refitted. If the bristles is too long for your bits, we suggest that you could trim it off from the bottom according to the bits length, otherwise the bristles will be compressed against the top of the stock as it starts a cut.
Installation Guide

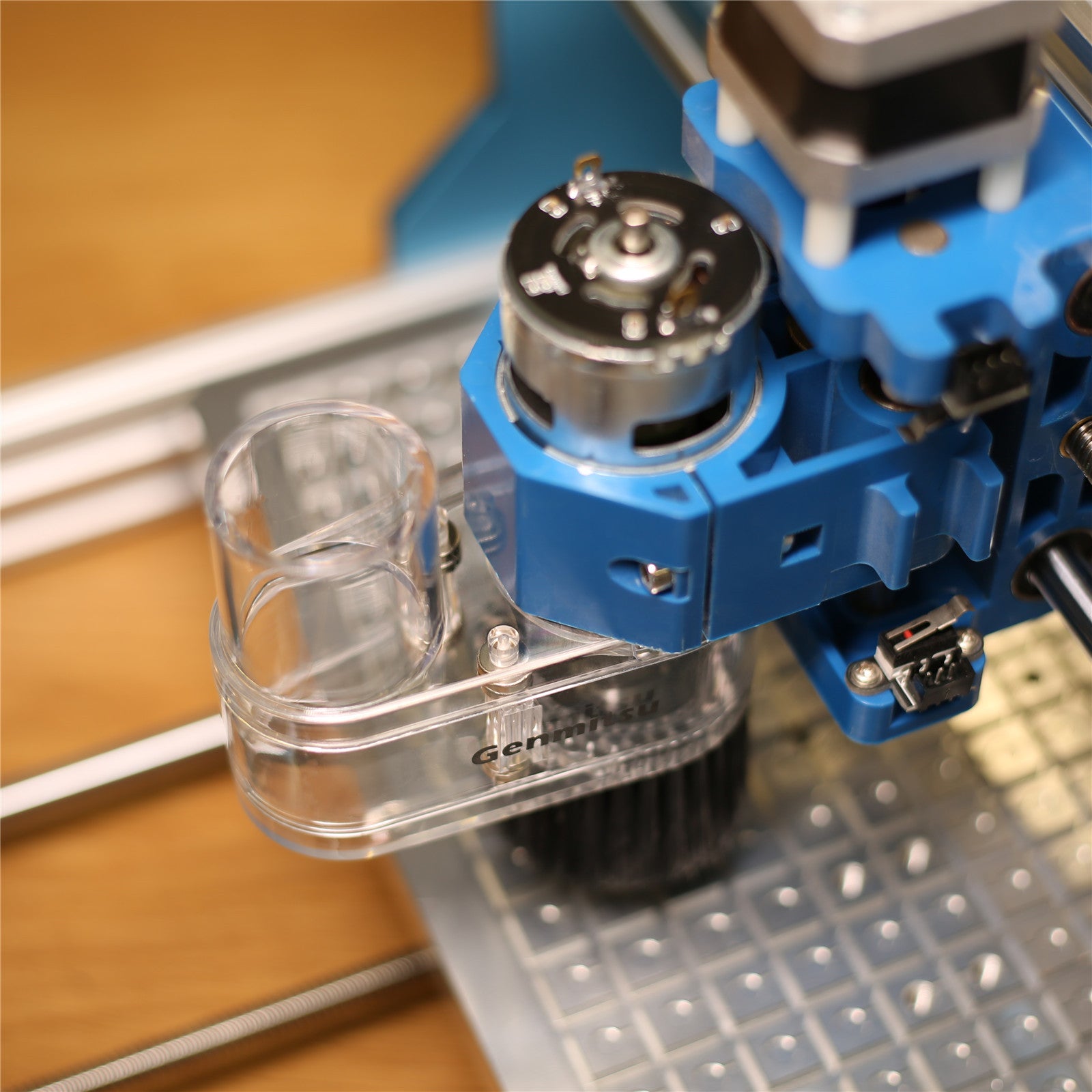

Install the Top Cover of the dust shoe on the spindle with 2 pieces of M4x8 screws.

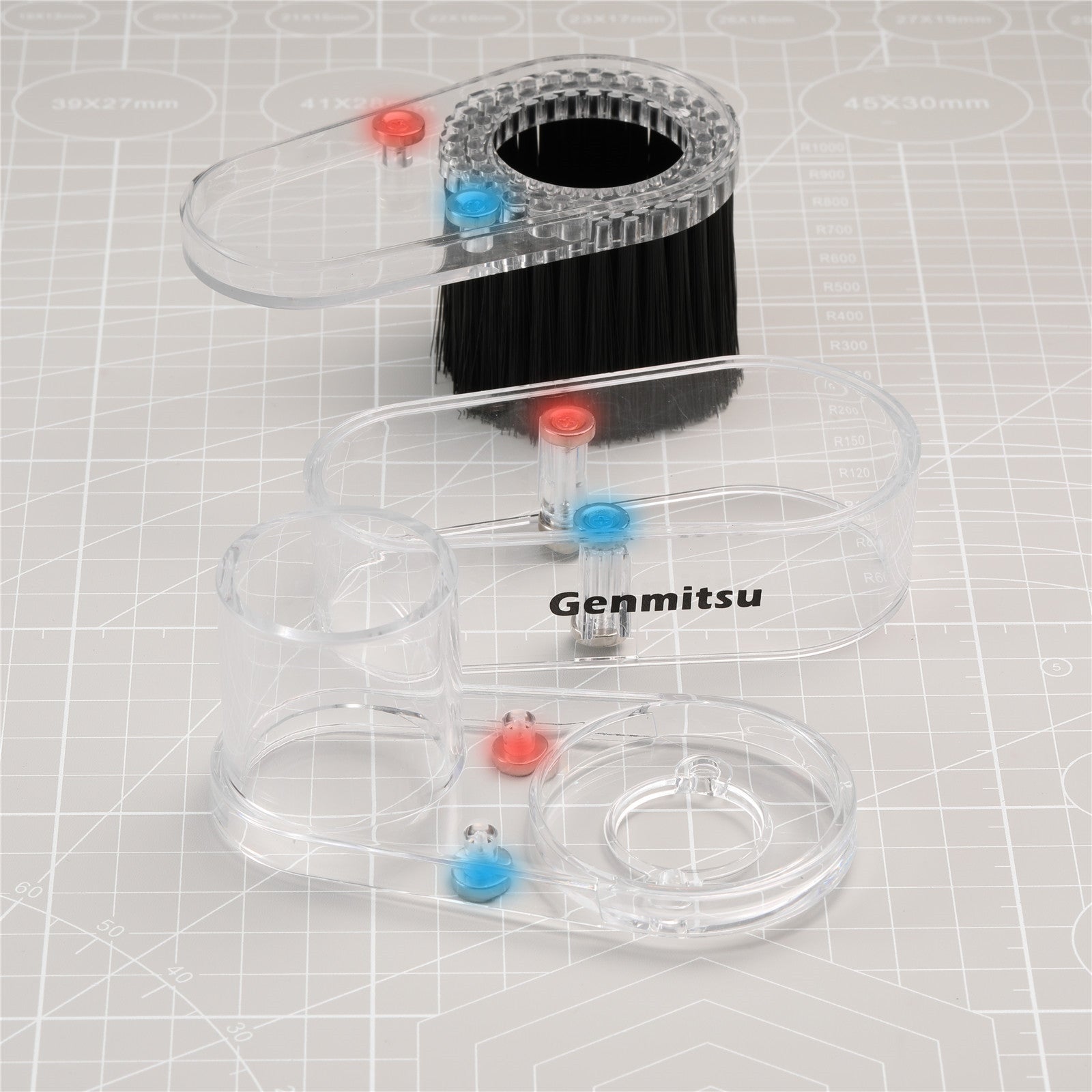

Align the magnets on the top of the Central Chamber with the magnets on the Top Cover and Bottom Cover .
Insert the vacuum cleaner tube with 32mm outer diameter into the tube connection of the dust shoe Top Cover
Which Dust Shoe Is Right For You?
| Model | DS3018
|
DS52
|
DS15
|
DS30
|
|---|---|---|---|---|
| Spindle Diameter | 42mm (1.65") | 52mm (2.05") | 69mm (2.72") | 69mm (2.72") |
| Material | ABS | ABS & Aluminum | Acrylic frame | Acrylic frame |
| Vacuum Port Inner Diameter | 32mm (1.26") | 32mm (1.26") | 38.1mm (1.5") | 76.2mm (3") |
| Vacuum Port Outer Diameter | 38mm (1.5") | 38mm (1.5") | - | - |
| Compatibility (Not Genmitsu Product? Contact us for detail size guide.) |
3018-PRO 3018-PROVer 3018-PROVer Mach3 GS-775M Spindle GS-775MR Spindle |
PROVerXL 4030 3020-PRO MAX 300W Spindle |
DeWalt DWP611, Other large size spindle |
DeWalt DWP611, Other large size spindle |
| With Short Brush Bottom Cover | No | Yes | - | - |
Customer Reviews
3.9 Based on 8 Reviews
Write a Review Ask a Question - Reviews
- Questions
Filter Reviews:
J
01/10/2022
J United States
Inconvenient when using spoil board and thicker materials
I was super excited to get this dust shoe, thinking it'd be quick/easy to slide on or off. Due to the limit switch and overall Z axis height on the 3018 Prover - especially with a spoil board, I can't ever use it! I tried multiple times with various projects, but I wasn't able to lift the spindle high enough. I usually decide to try it after I have material already placed with adhesive, which makes ******** in the top piece nearly impossible. With 1/2" material or thicker, I struggled to get the brush on around the bit. Once the screws are in, you can't lift the spindle out of it's housing to slide on the pieces either. It's a nice design but not very practical for how small the 3018 Prover is. It was a hassle every time I wanted to use it.
J
01/10/2022
J United States
Inconvenient when using spoil board and thicker materials
I was super excited to get this dust shoe, thinking it'd be quick/easy to slide on or off. Due to the limit switch and overall Z axis height on the 3018 Prover - especially with a spoil board, I can't ever use it! I tried multiple times with various projects, but I wasn't able to lift the spindle high enough. I usually decide to try it after I have material already placed with adhesive, which makes ******** in the top piece nearly impossible. With 1/2" material or thicker, I struggled to get the brush on around the bit. Once the screws are in, you can't lift the spindle out of it's housing to slide on the pieces either. It's a nice design but not very practical for how small the 3018 Prover is. It was a hassle every time I wanted to use it.
KF
12/30/2021
Kenneth F. United States
It sucks the brush hairs up and clogs the vac we��re it don��t **** up dust.
I used it on my cnc and it doesn��t work very well.
JS
12/22/2021
Javier S. United States
Great concept
Gets too close to material even when cutting low profile. Laying anything thicker than 1/4 inch will have the brush part obstructing.
PE
11/14/2021
Perry E. United States
Long bristles will get into the work.
It would be nice to have a set of bristle parts of varying lengths.What I have done is rearrange the magnets so I have the option to leave out the middle part. This leaves a gap between the parts, but a length of tape solves that.
RH
11/03/2021
Richard H. United States
Appear it will do a good job
Was a bit difficult to attach. Only two screws but aligning them and getting them started took a bit of work.
M
10/16/2021
Mike United States
Easy fit and works well.
I use a small rechargable vac and does the job. I'm sure way better with a full size vac
RG
09/21/2021
randall g. United States
Fits perfectly
This fit perfectly for my Yora 3018 pro. I had to shorten the bristles, but other than that it fits great. Test run came out perfect with no dust.
