Brand: Genmitsu SKU: 101-61S-EM05A

[Discontinued] EM05A, 1/4" & 1/8", CNC Router Bit Carving Set, for Wood Detail Profile, 5pcs

SKU: 101-61S-EM05A Variants ID: 39448158961743
$49.99


Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile

Genmitsu EM05A CNC Router Bit Carving Set

With 1/4" & 1/8" shank, theEM05A router bit set is compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device.

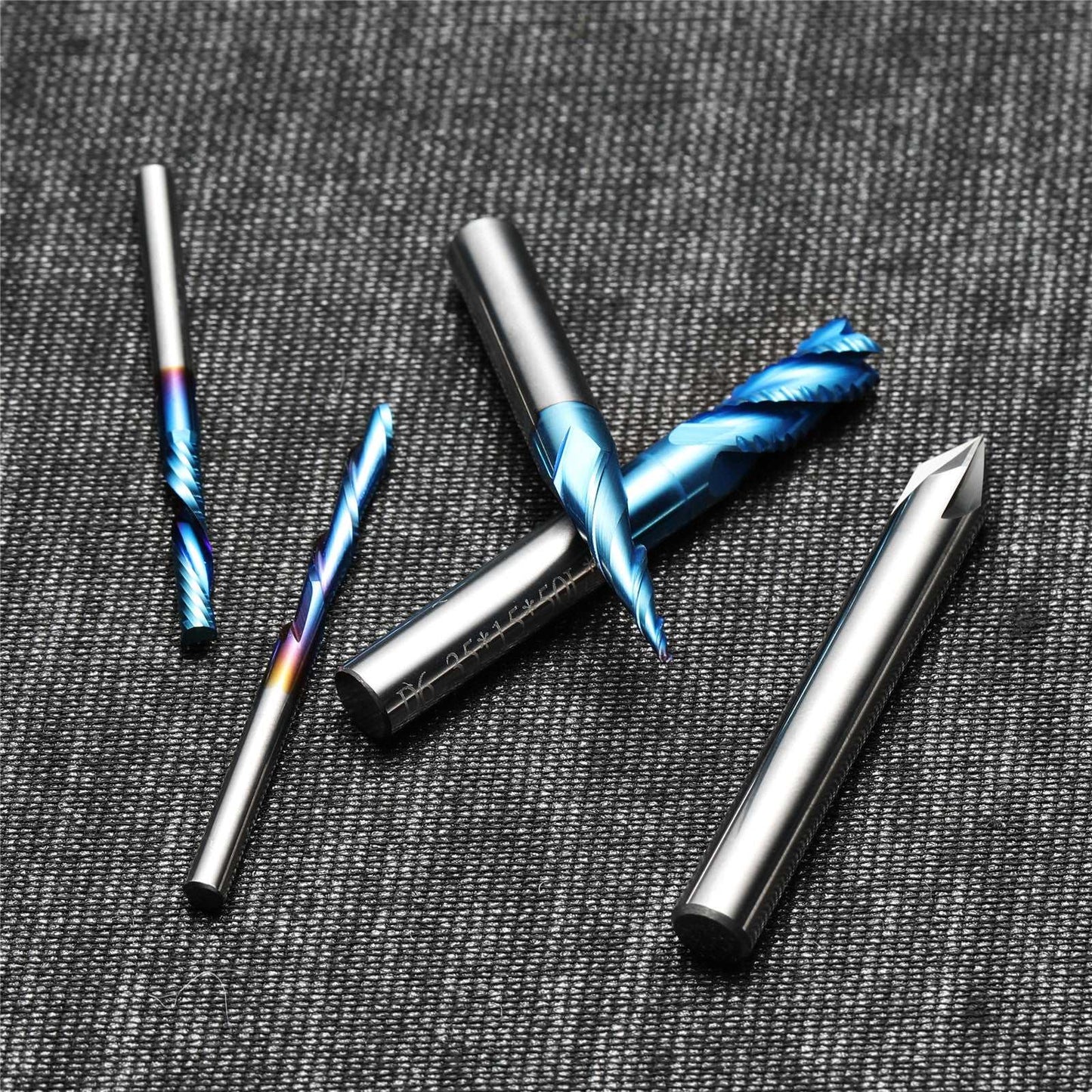

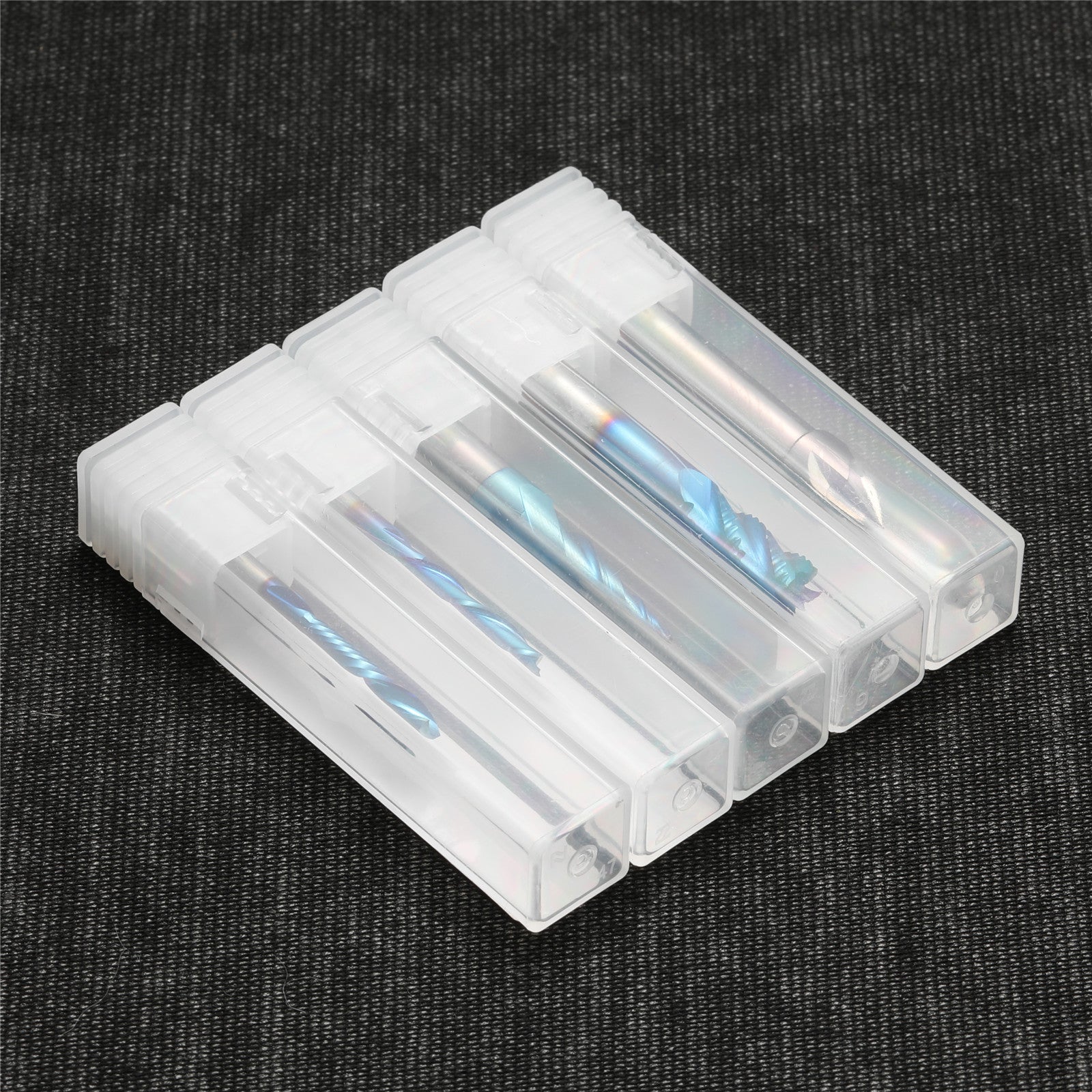

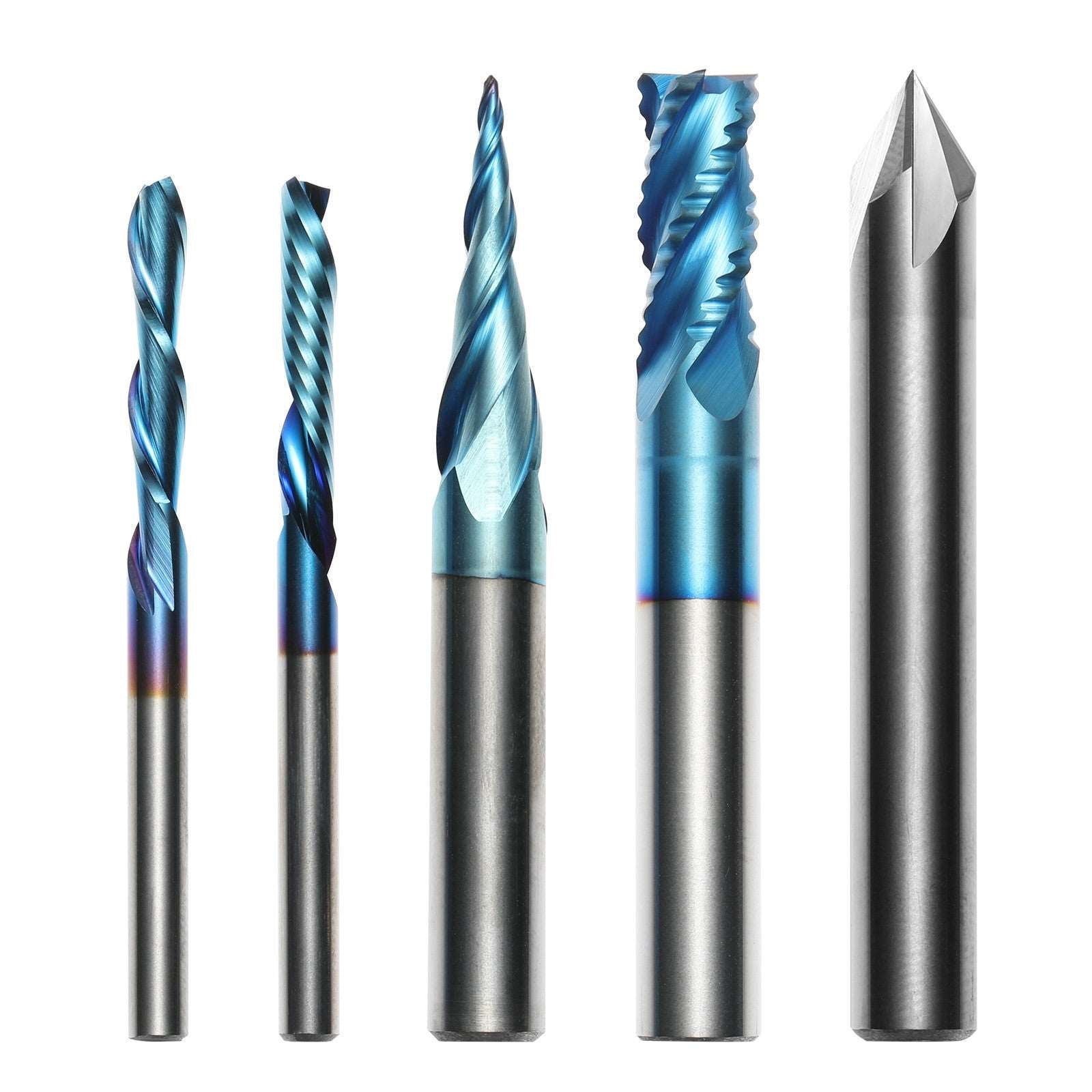

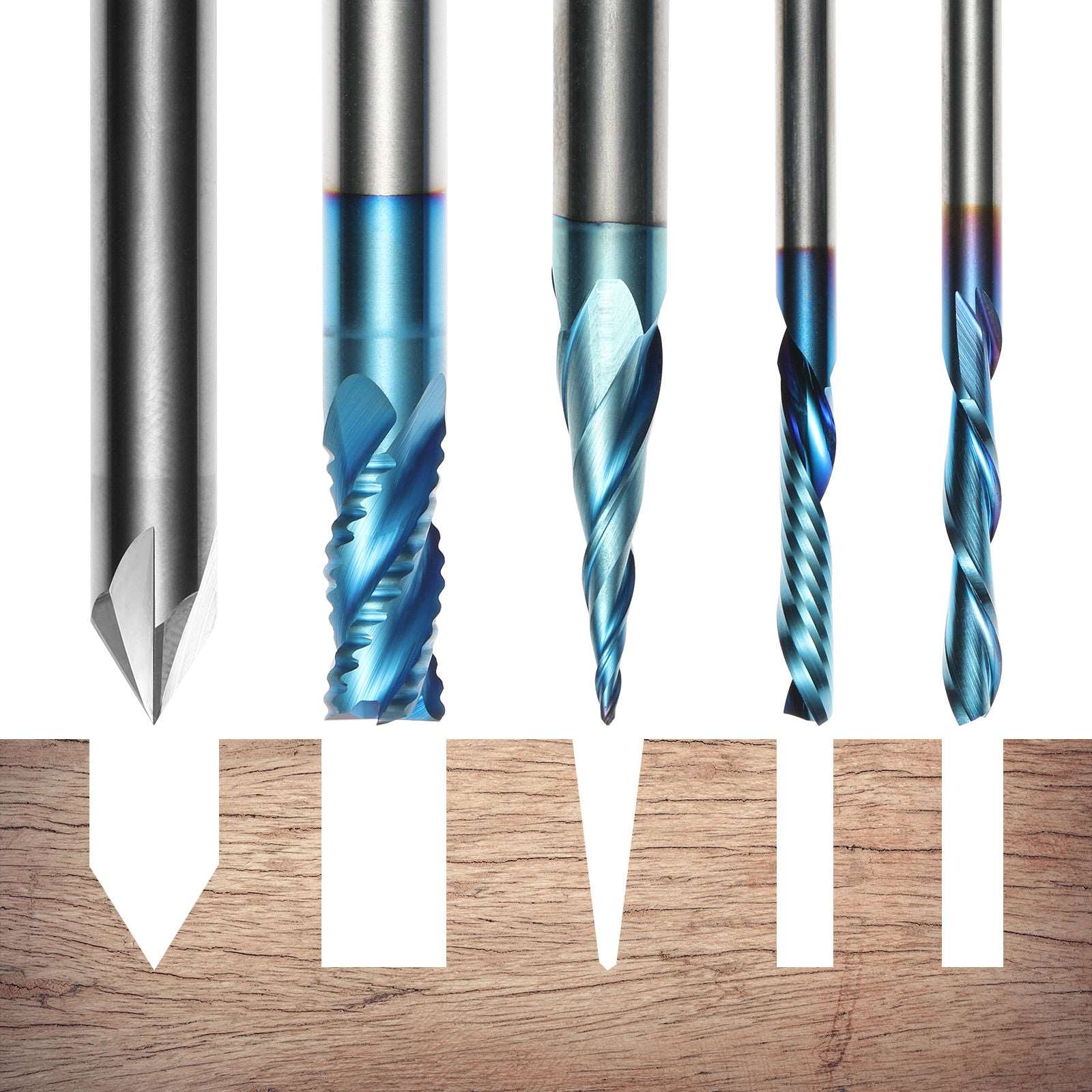

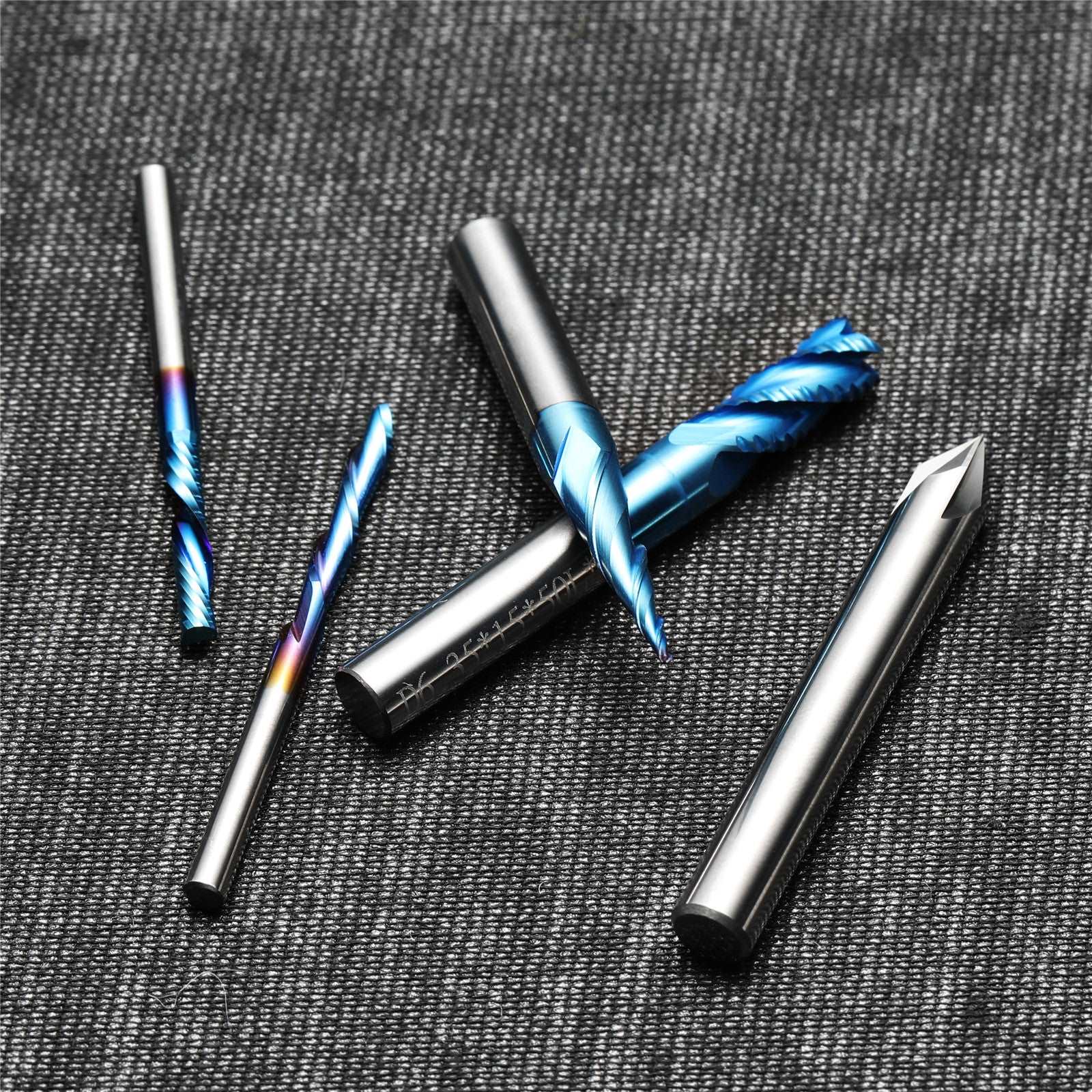

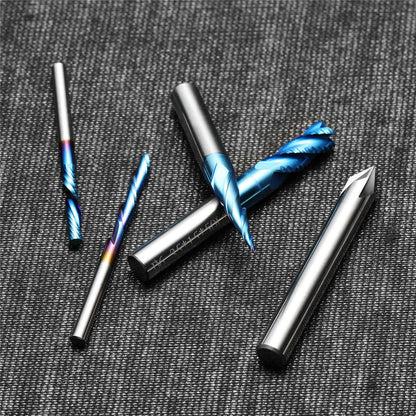

What's In The Package

  • 1 x 0-Flute Down-Cut Spiral Down-Cut Router Bit
  • 1 x 2-Flute Down-Cut Router Bit Spiral Down-Cut Router Bit
  • 1 x Coarse Tooth End Mill Bit
  • 1 x Tapered Ball Nose End Mill
  • 1 x V-Groove Router Bit



  • Material: Tungsten Carbide Steel Alloy
  • Coating : Nano Blue Coating
  • Shank Diameter: 1/4" (6.35mm) & 1/8" (3.175mm)
Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile
Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile

Spiral Down Cut Router Bit

Downcutting bits presses the chips and the material back into the cut, leaving a nice finish on the top surface of your material. Generally used for smoothly downcut groove and slots and more.

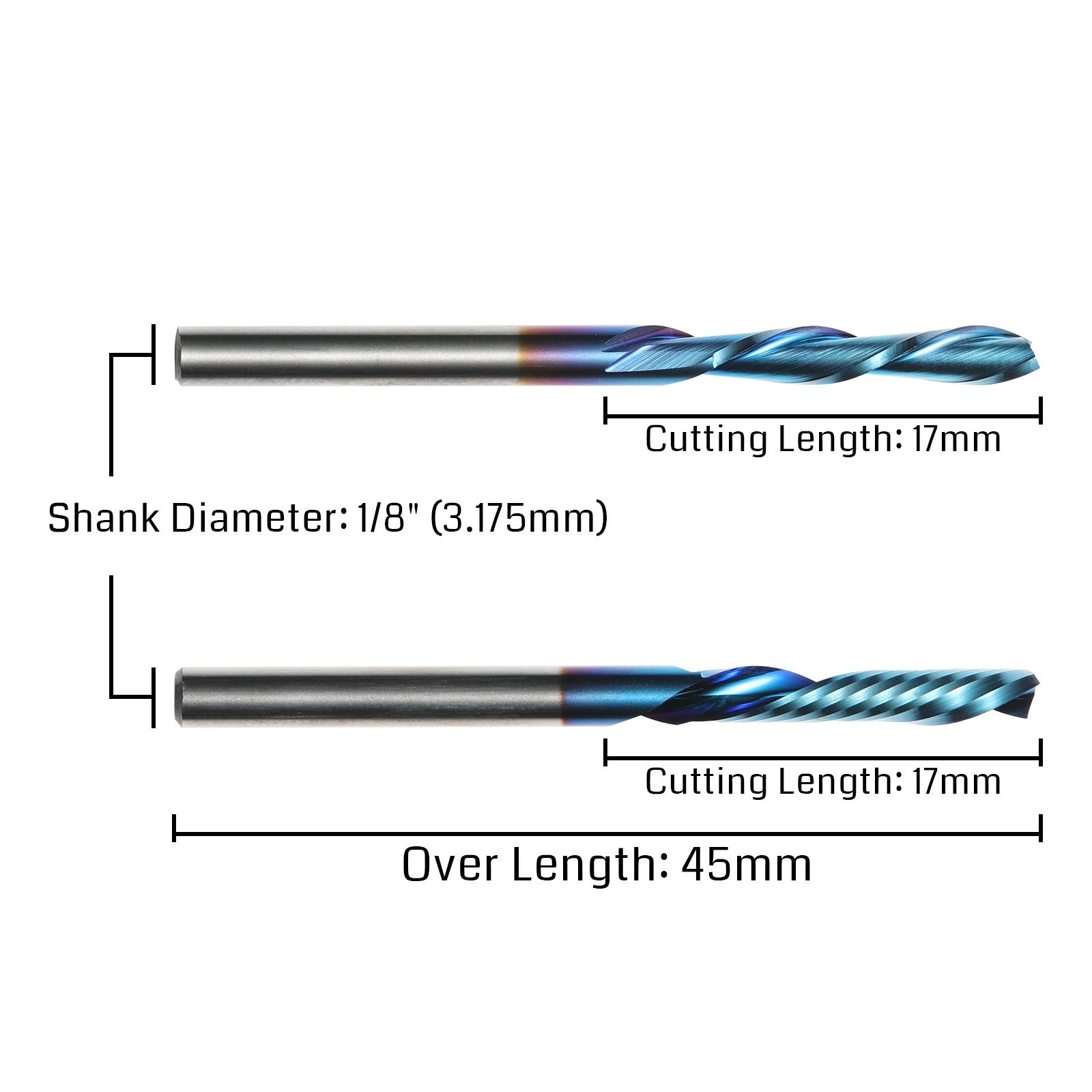

0-Flute Down Cut Router Bit:
Shank Diameter: 1/8" (3.175mm),
Cutting Diameter: 1/8" (3.175mm),
Cutting Length: 17mm,
Over Length: 45mm
2-Flute Down Cut Router Bit:
Shank Diameter: 1/8" (3.175mm),
Cutting Diameter: 1/8" (3.175mm),
Cutting Length: 17mm,
Over Length: 45mm

Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile

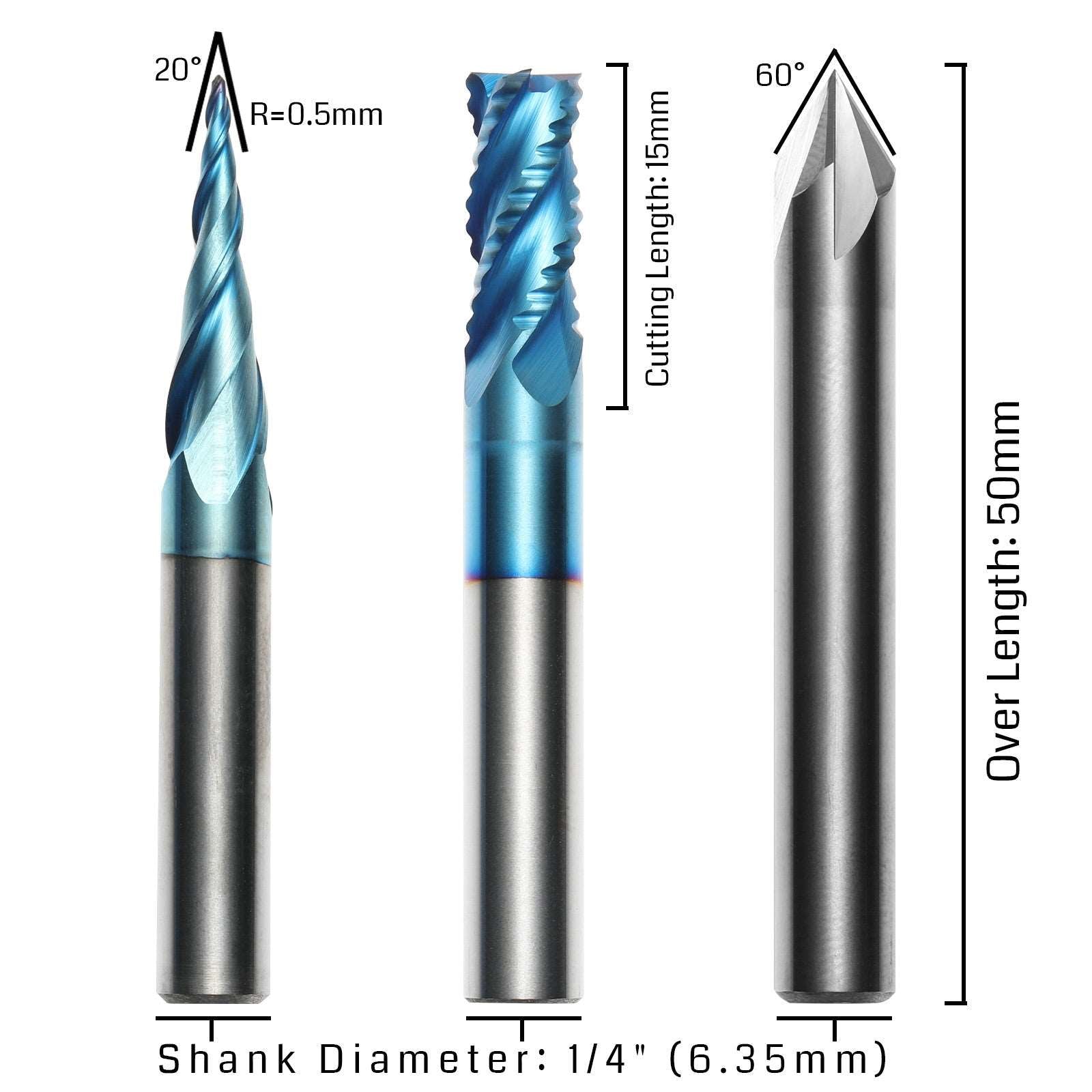

Coarse Tooth End Mill

Coarse Tooth End Mill Used for aggressive machining. Excellent performance in hard materials that are difficult to cut.

Shank Diameter: 1/4" (6.35mm),
Cutting Diameter: 1/4" (6.35mm),
Cutting Length: 15mm,
Over Length: 50mm

Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile

Tapered Ball Nose End Mill

Used for 3D machining jobs like molds, rapid prototyping, models and other other precision parts processing.

Shank Diameter: 1/4" (6.35mm),
Radius:0.5mm,
Degree: 20°,
Over Length: 50mm

Genmitsu EM05A 5pcs CNC Router Bit Carving Set for Wood Detail Profile

V-Groove Router Bit

Used for grooving in many workpieces in woodworking projects.

Shank Diameter: 1/4" (6.35mm),
Degree:60°,
Over Length: 50mm.
