[Discontinued] Mega 2560 ATmega 16U2, Arduino Compatible

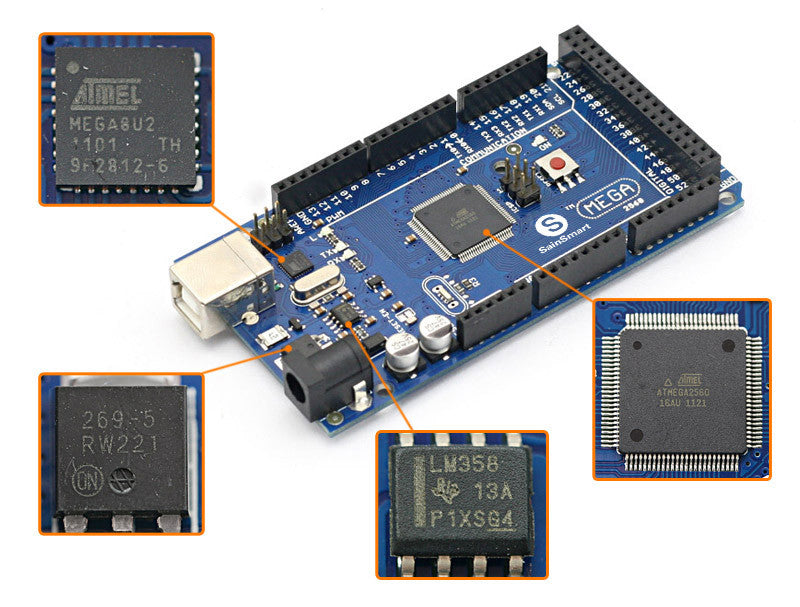

This is the new Arduino compatible Mega 2560. The new ATMega16U2 chip allows for faster transfer rates and more memory. No drivers needed for Linux or Mac
- Two new pins are placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes
- Works with all existing shields but also compatible with new shields that require the additional pins.

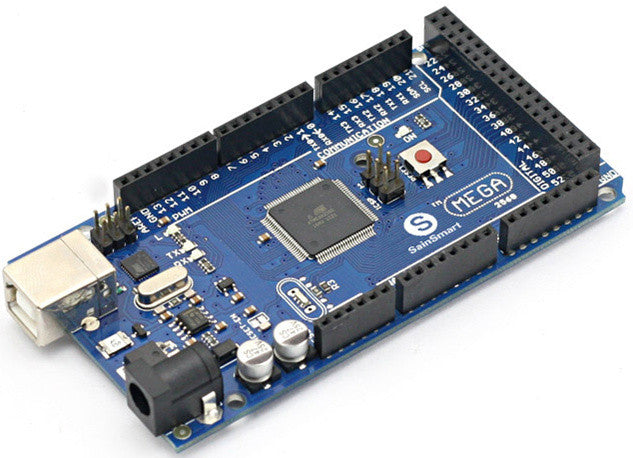

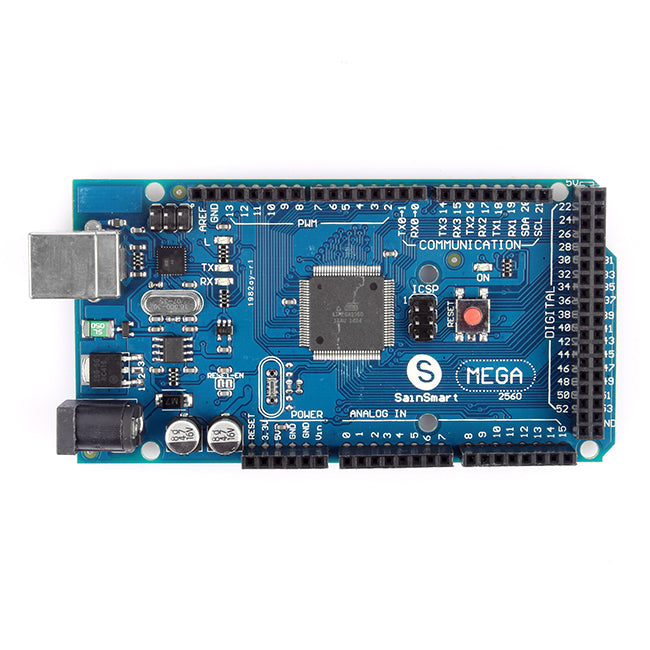

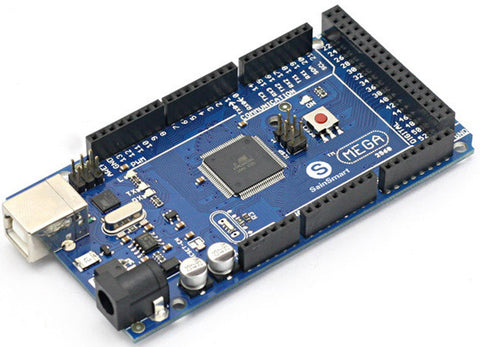

The SainSmart Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
|Input Voltage (recommended)||7-12V|
|Input Voltage (limits)||6-20V|
|Digital I/O Pins||54 (of which 14 provide PWM output)|
|Analog Input Pins||16|
|DC Current per I/O Pin||40 mA|
|DC Current for 3.3V Pin||50 mA|
|Flash Memory||256 KB of which 8 KB used by bootloader|
WHAT'S IN THE PACKAGE
- 1x SainSmart Mega 2560 for Arduino
- 1x Free USB Cable
