Brand: SainSmart SKU: 101-70-111

2/8-Channel 5V Solid State Relay

SKU: 101-70-111 Variants ID: 45102885332
$15.99

Spend & Save Up to $300 USD OFF

Channel
8-Channel
Ship to
USA


SPECIFICATION

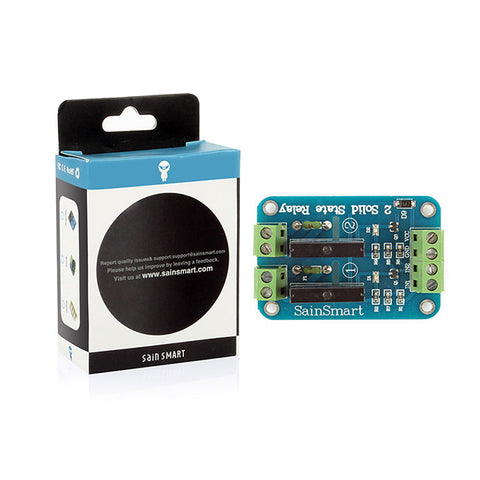

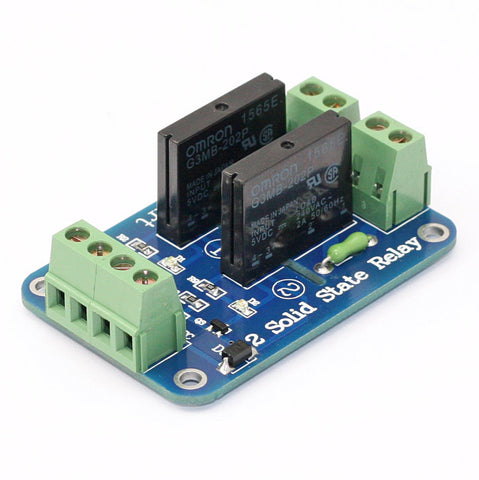

1. 2CH OMRON 5V Solid State Relays

Each relay supports 240V at 2A output with a resistive fuse of 240V at 2A.

  • Size: 62 x 42 x 24 mm
  • Power supply: 5V DC (160mA)

Input control signal voltage:

  • (0-0.5V) Low stage: SSR is OFF
  • (2.5-20V) High stage: SSR is ON

SSR Output (each channel):

  • Load voltage range: 75 to 264VAC (50/60Hz)
  • Load current: 0.1 to 2 AMP

Power supply:

  • 5V DC / 160mA (all channels ON)

SSR Specifications:

  • Manufacturer: OMRON
  • Part number: G3MB-202P, 5V version
  • Isolation: Phototriac
  • Zero cross: Yes
  • Rated output load: 2A at 100 to 240VAC (50/60Hz)
  • Load type: General purpose
  • Datasheet: Download Link
  • Raspberry Pi Interface

Reference:

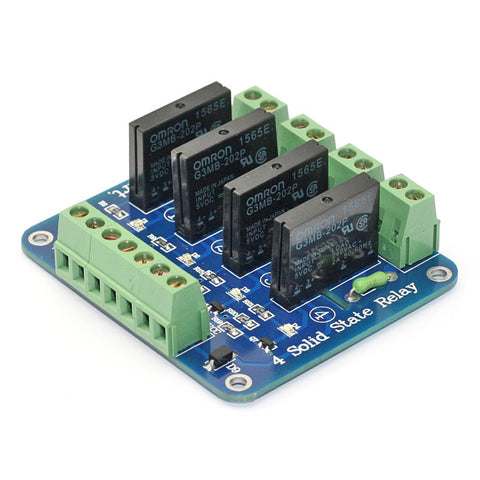

2. 4-CH OMRON 5V Solid State Relays

Each relay supports 240V at 2A output with a resistive fuse of 240V at 2A.

  • Size: 71 x 62 x 24 mm
  • Power supply: 5V DC (160mA)

Input control signal voltage:

  • (0-0.5V) Low stage: SSR is OFF
  • (2.5-20V) High stage: SSR is ON

SSR Output (each channel):

  • Load voltage range: 75 to 264VAC (50/60Hz)
  • Load current: 0.1 to 2 AMP

Power supply:

  • 5V DC / 160mA (all channels ON)

SSR Specifications:

  • Manufacturer: OMRON
  • Part number: G3MB-202P, 5V version
  • Isolation: Phototriac
  • Zero cross: Yes
  • Rated output load: 2A at 100 to 240VAC (50/60Hz)
  • Load type: General purpose

Document:

3. 8-CH OMRON 5V Solid State Relays

This item has been assembled and passed electrical tests.

  • LED indicator for each relay
  • FR-4 fiberglass PCB (Double Layer)
  • PCB thickness: 1.6 mm
  • Size: 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inches)

SSR Output (each channel):

  • Load voltage range: 75 to 264VAC (50/60Hz)
  • Load current: 0.1 to 2 AMP

Power supply:

  • 5V DC / 160mA (all channels ON)

Input control signal voltage:

  • 0V - 0.5V Low stage (SSR is OFF)
  • 0.5V - 2.5V (unknown state)
  • 2.5V - 20V High state (SSR is ON)

SSR Specifications:

  • Manufacturer: OMRON
  • Part number: G3MB-202P, 5V version
  • Isolation: Phototriac
  • Zero cross: Yes
  • Rated output load: 2A at 100 to 240VAC (50/60Hz)
  • Load type: General purpose

DOCUMENT
