Micsig DP10007 High Voltage Differential Probe Kit

Brand: SainSmart SKU: 101-10-DP07 SKU: 101-10-DP07 Variants ID: 32840716353615

Widely Used: The attenuation rate is 10X/100X, widely used in any brand of an oscilloscope.

Maximum differential test voltage (DC+ACPK-PK): 70V (10X), 700V (100X). You can safely measure floating voltages up to 700V and have a bandwidth of up to 100 MHz.

Easier and Safer Use: High voltage differential probes sample high impedance isolation between input and output to protect personal safety. Power supply USB DC 5V output, more portable while Oscilloscope has a USB interface.

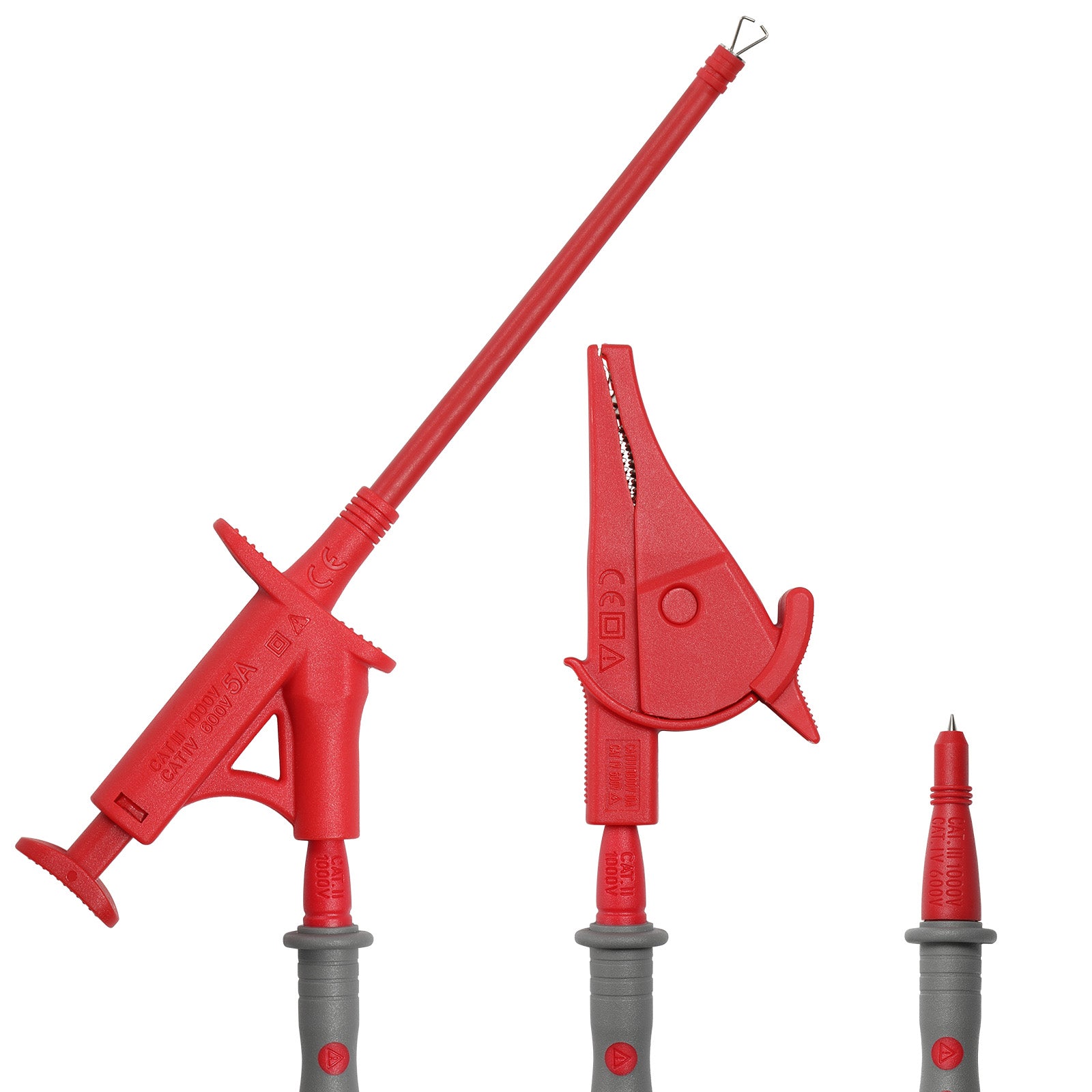

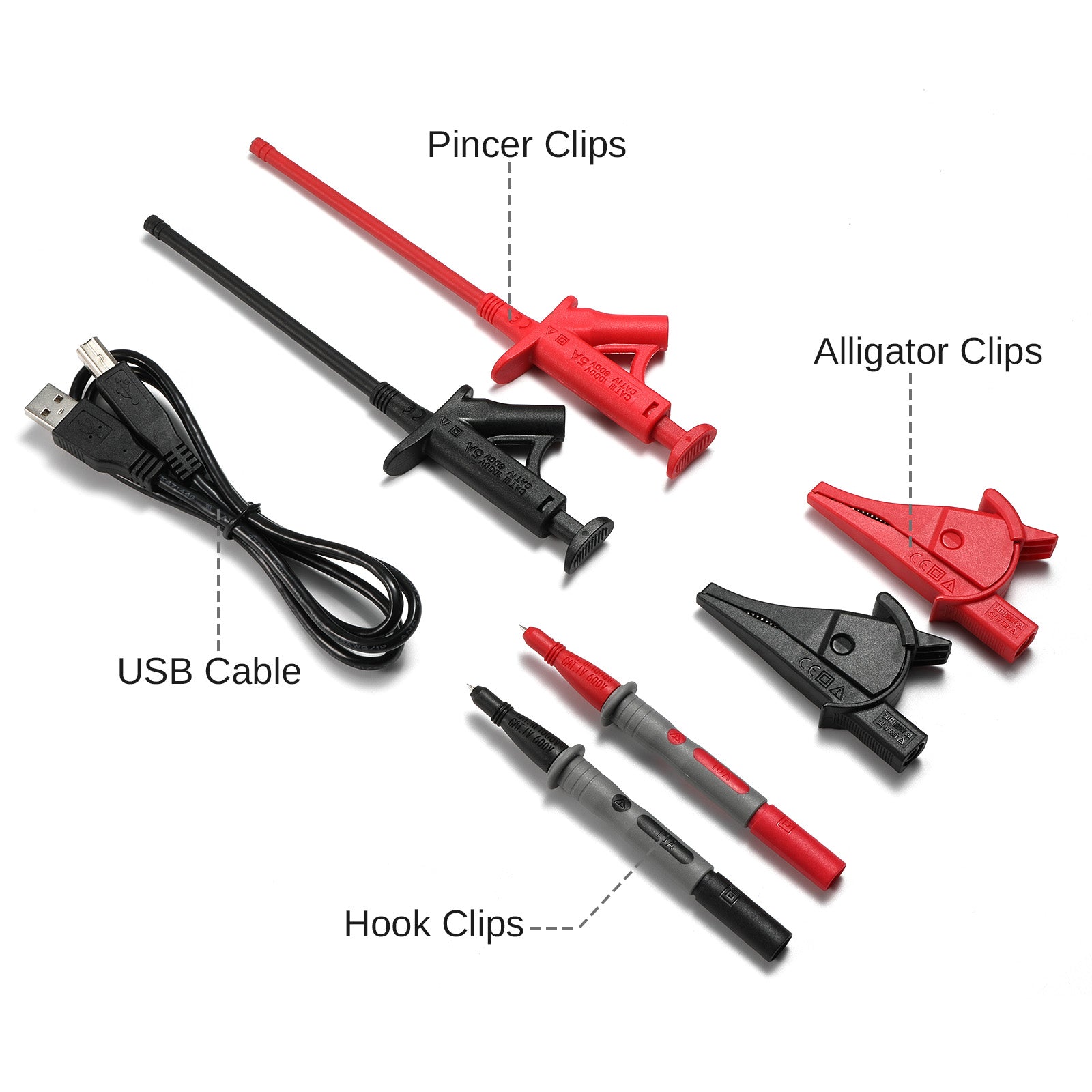

Versatile Kit: All 6 pieces with three different connectors help to test various on different occasions, including 2 alligator clips, 2 hook clips, and 2 pincer clips.

Applications: Floating Measurements, Switch-Mode Power Supply (SMPS), Motor Drive Design, Power Device Testing & Evaluation, Power Converter Testing & Design.

$169.99

Oops, 0 In Stock

Micsig DP10007 High Voltage Differential Probe is designed for professionals and experts like you to be used with most oscilloscopes in the market. It allows you to safely measure floating voltages up to 700V and has a bandwidth of up to 100 MHz. DP10013 can work in two different attenuation ranges: 100X for a maximum test voltage of 700V and 10X for a maximum test voltage of 70V.

FEATURES

Widely Used
The attenuation rate is 10X/100X, widely used in any brand of the oscilloscope.
Floating Vlotages up to 700V
The Maximum differential test voltages are 70V (10X) and 700V (100X). You can safely measure floating voltages up to 700V and have a bandwidth of up to 100 MHz.
Easier and Safer Use
High voltage differential probes sample high impedance isolation between input and output to protect personal safety. Power supply USB DC 5V output, more portable while Oscilloscope has a USB interface.
Versatile Kit
All 6 pieces with three different connectors help to test various on different occasions, including 2 alligator clips, 2 hook clips, and 2 pincer clips. You can switch them anytime to meet your testing needs.
How to use the DP10007
  • Only qualified personnel should perform service procedures.
  • Do not touch exposed connections and components when power is present.
  • While the probe is over the range, please cut off the power and input it immediately.
  • Do Not Operate in an Explosive Atmosphere.
  • Do Not Operate in Wet/Damp Conditions.
  • Keep Product Surfaces Clean and Dry.
Specification

Bandwidth: 100MHz
Rise Time: 3.5ns
Range Selection(Attenuation Rate): 10X/ 100X
Accuracy: ±2%
Maximum Differential Test Voltage(DC+ACPK): 70V(10X)/ 700V(100X)
Maximum input common mode voltage(DC+ACPK): 70V(10X)/ 700V(100X)
Maximum Input Voltage-to-Earth: 600V CAT Ⅰ/ 1000V CAT Ⅱ
CMRR:≤-80dB@50Hz, ≤-60dB@20KHz, ≤-50dB@1MHz, ≤-40dB@10MHz
Input Impedance: 8MΩ/1.25pF(differential), 4MΩ/2.5pF(single-ended to ground)
Output Voltage: ≤7V
Overload Alarm: Button light flashes
Power Supply: DC 5V, USB Supply
Power: 1.25W

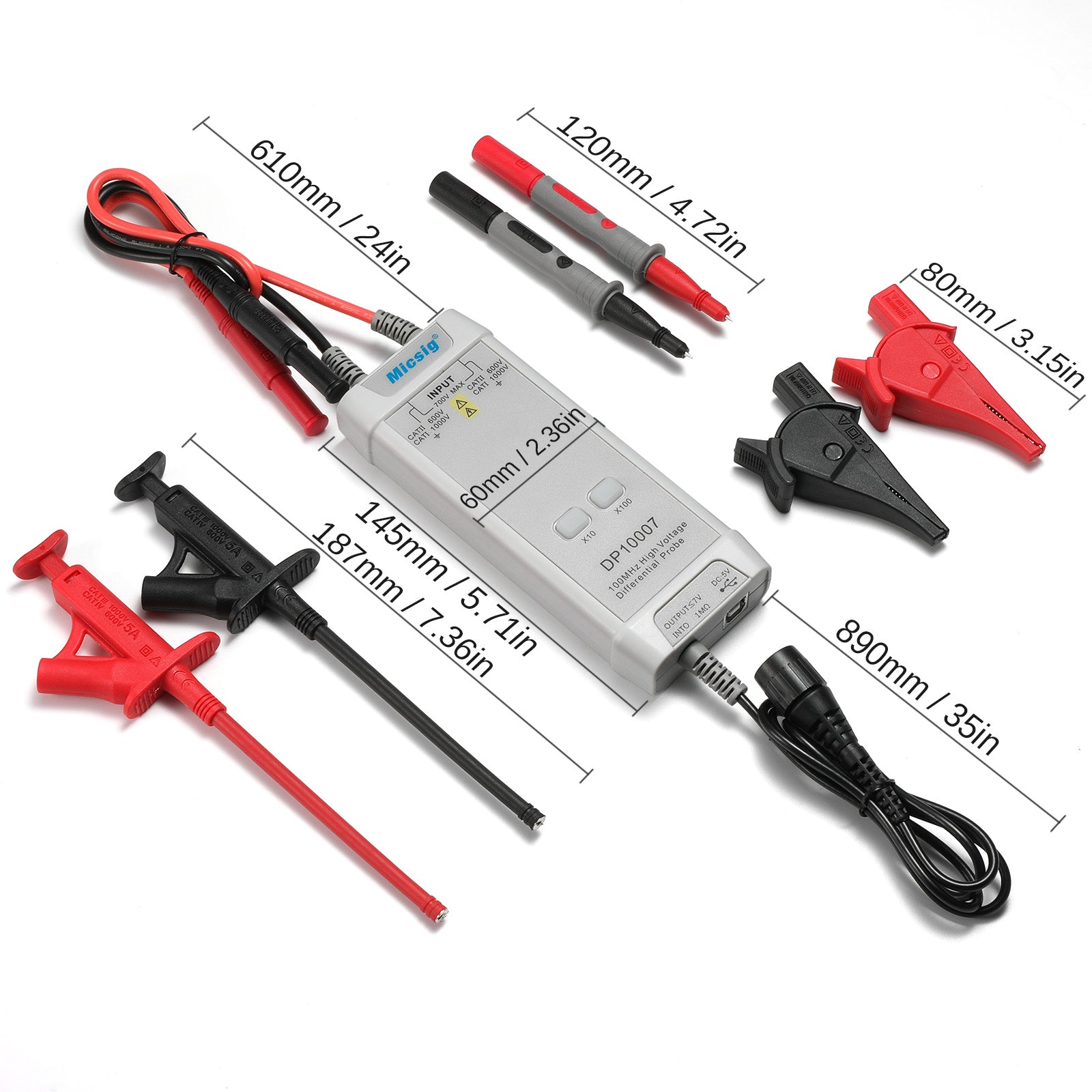

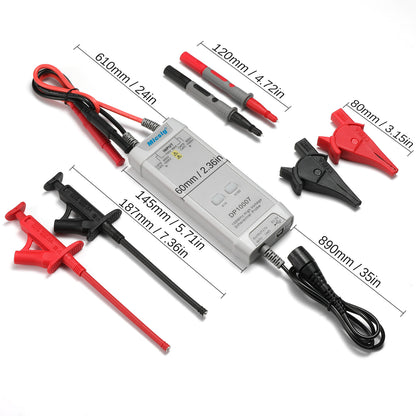

Dimension: 1.45cm*6cm*2.7cm
Input cable length: Approx 45cm
Output cable length: Approx 90cm
Operating Temperature: 0℃~40℃
Operating Humidity: 10%~85%RH
Storage Temperature: -30~70℃
Storage Humidity: 5%~90%RH

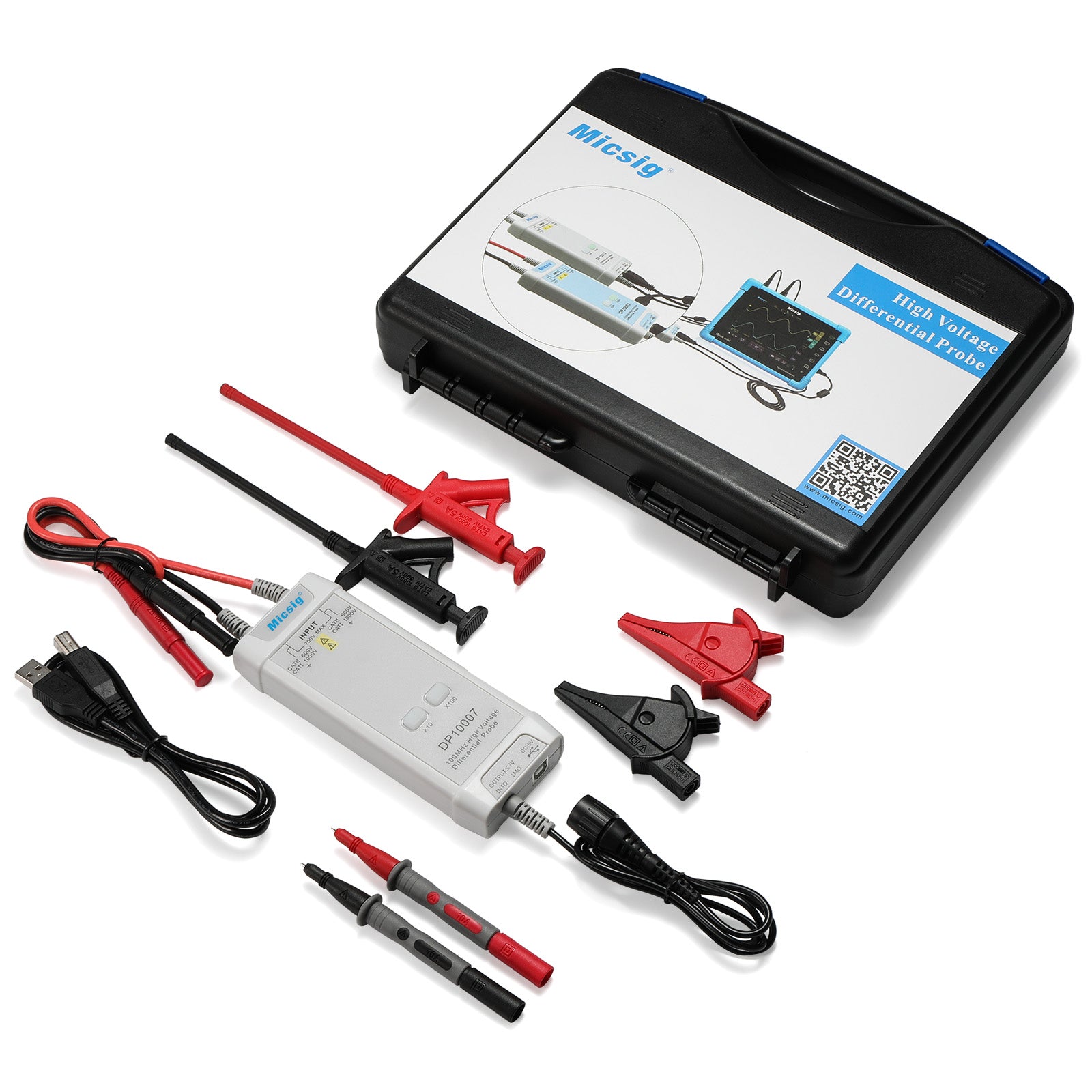

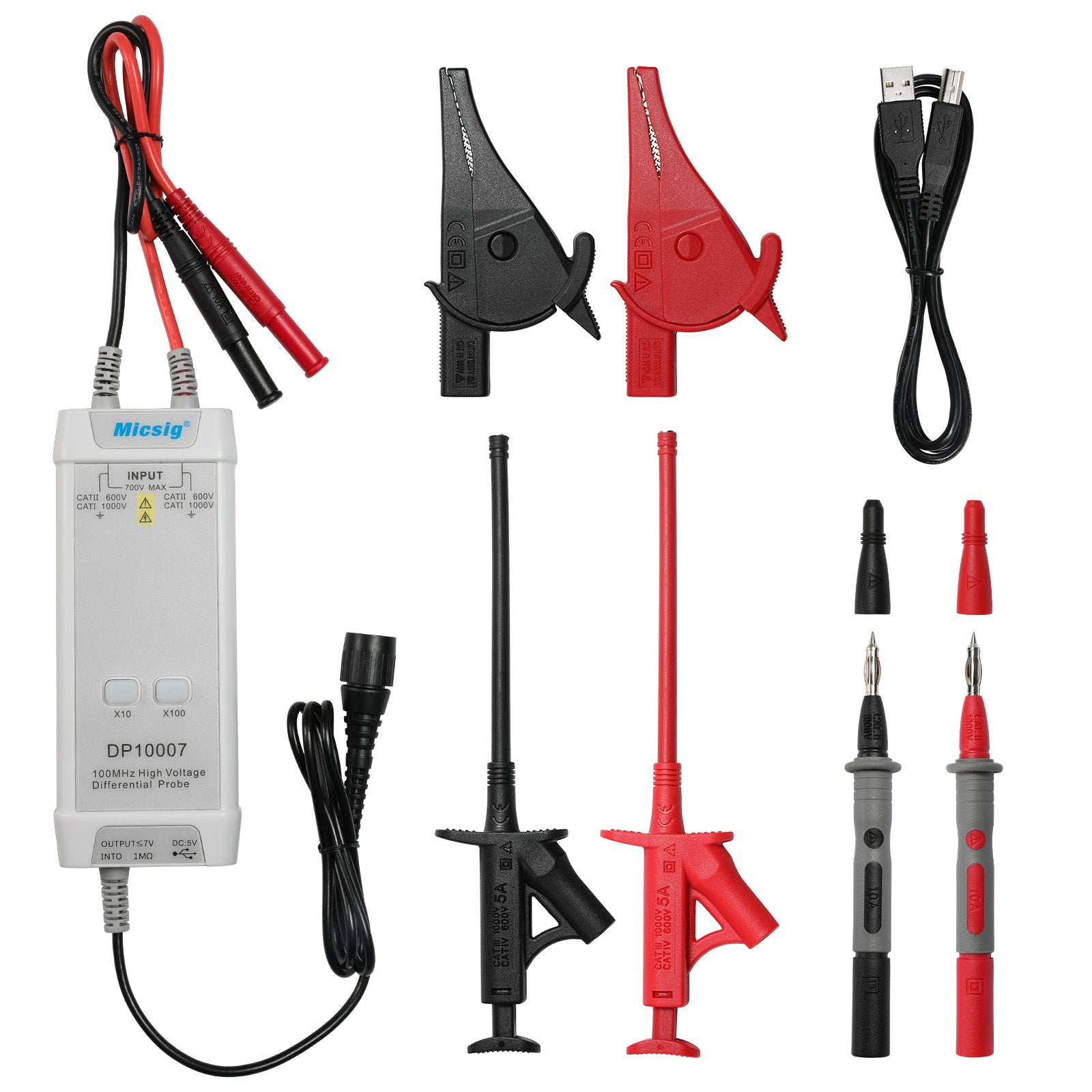

WHAT'S INCLUDED?

1x Power Supply
1x USB power cable
2x hook clips, in red and black pairs
2x alligator clips, in red and black pairs
2x pincer clips, in red and black pairs

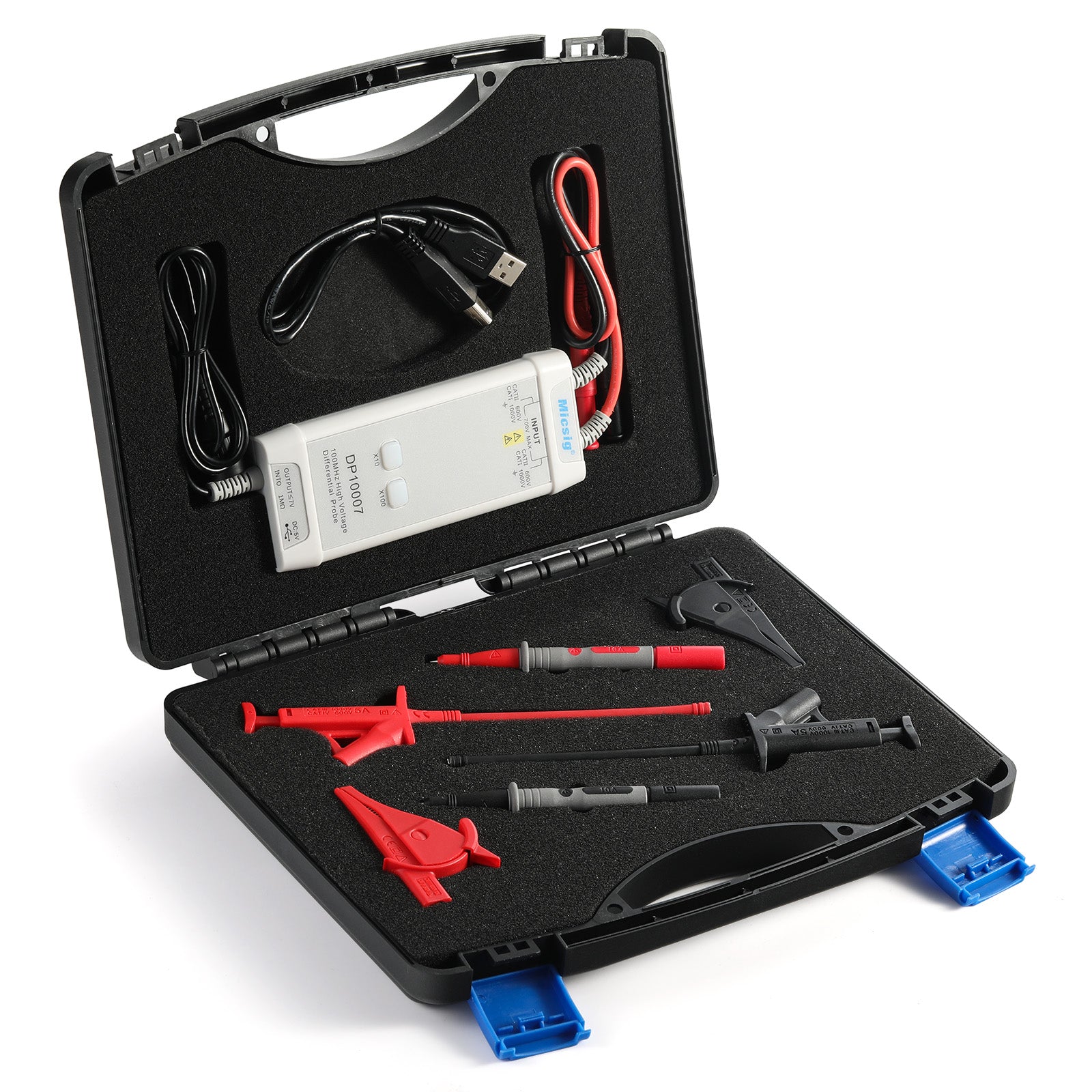

1x storage box
1x Chinese manual
