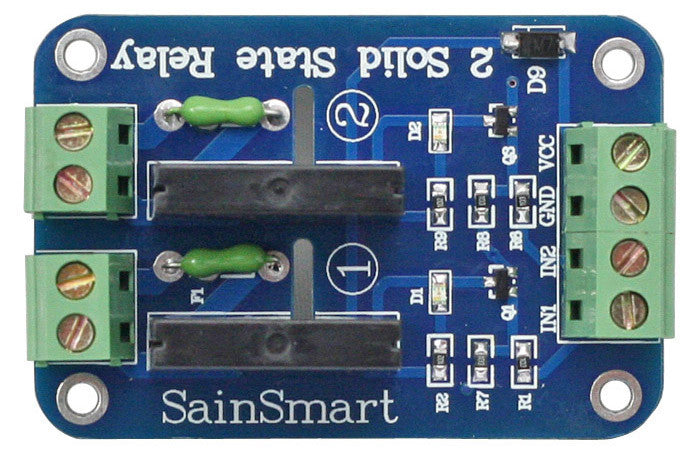

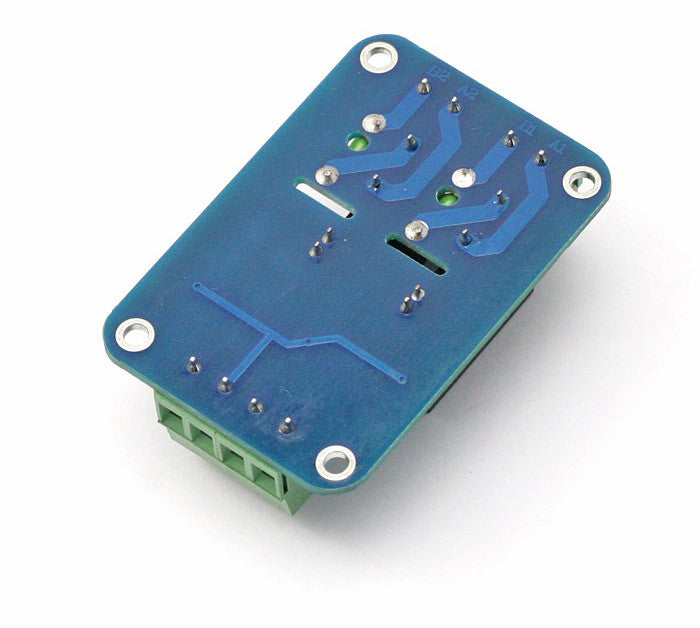

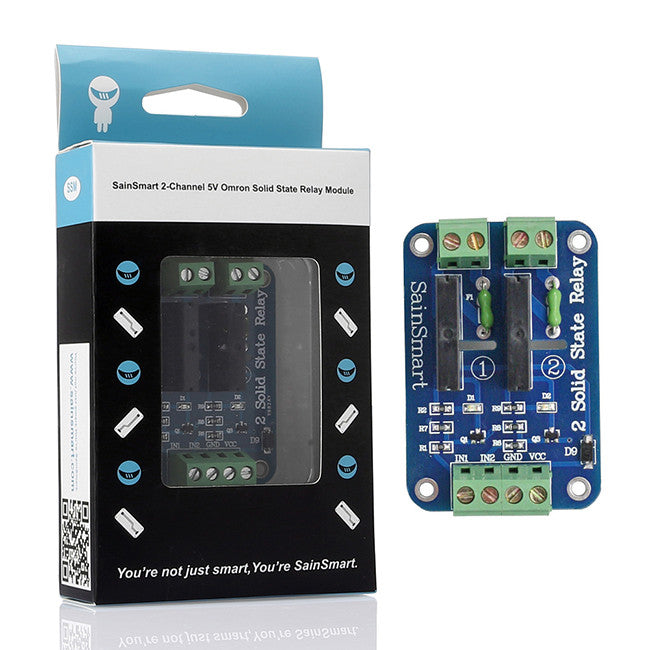

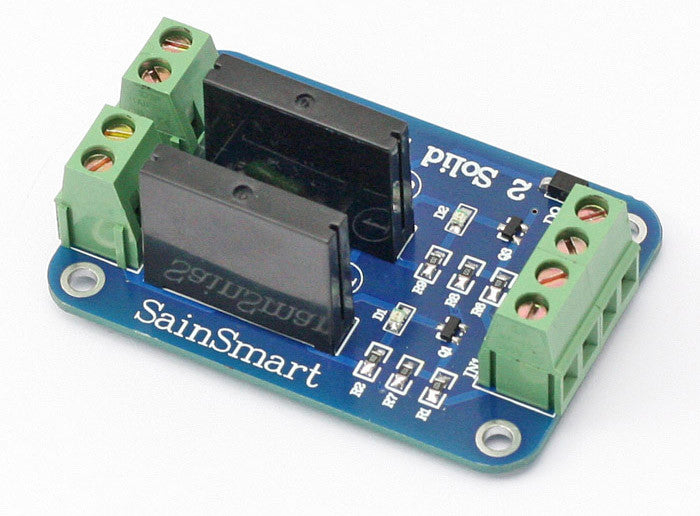

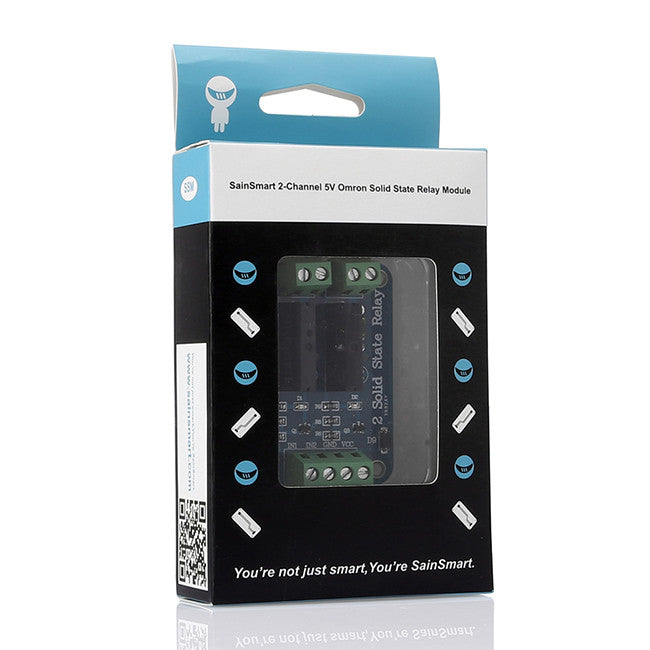

2-Channel 5V Solid State Relay

brand: SainSmart SKU: 101-70-109
$9.99
SPECIFICATION
OMRON 5V solid state relays every channel 240V 2A, output with resistive fuse 240V 2A.
  • Size:62*42mm*24mm
  • Power supply: 5V DC(160mA)

Input control signal voltage:

  • (0-0.5V low stage SSR is OFF)
  •   (2.5-20V high stage SSR is ON)

SSR Output (each channel):

  •   Load voltage range: 75 to 264VAC (50/60Hz).
  •   Load current: 0.1 to 2 AMP.

Power supply:

  •   5VDC / 160mA (all channel ON).

Input control signal voltage:

  •  0V - 0.5V Low stage (SSR is OFF),
  •  0.5V â€?2.5V (unknown state).
  •  2.5V - 20V High state (SSR is ON).

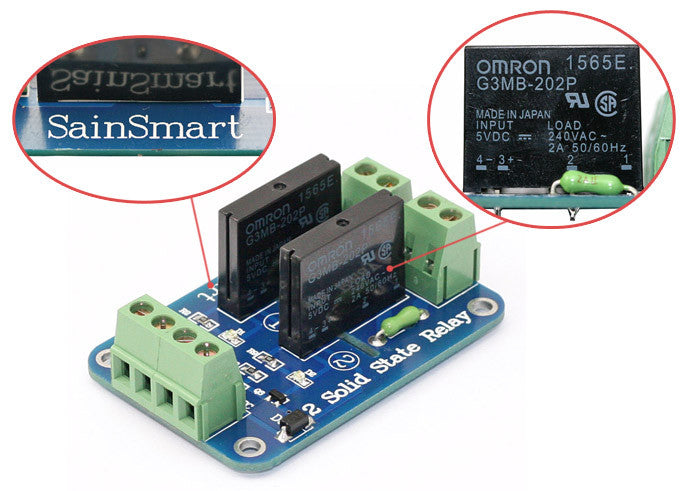

SSR Spec:

  • Manufacturer: OMRON
  • Part number: G3MB-202P, 5V version.
  • Isolation: Phototriac.
  • Zero cross: Yes.
  • Rated output load: 2A at 100 to 240VAC.(50/60Hz).
  • Load type: General purpose.
