Brand: SainSmart SKU: 101-40-210

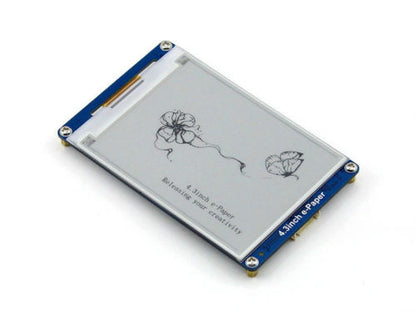

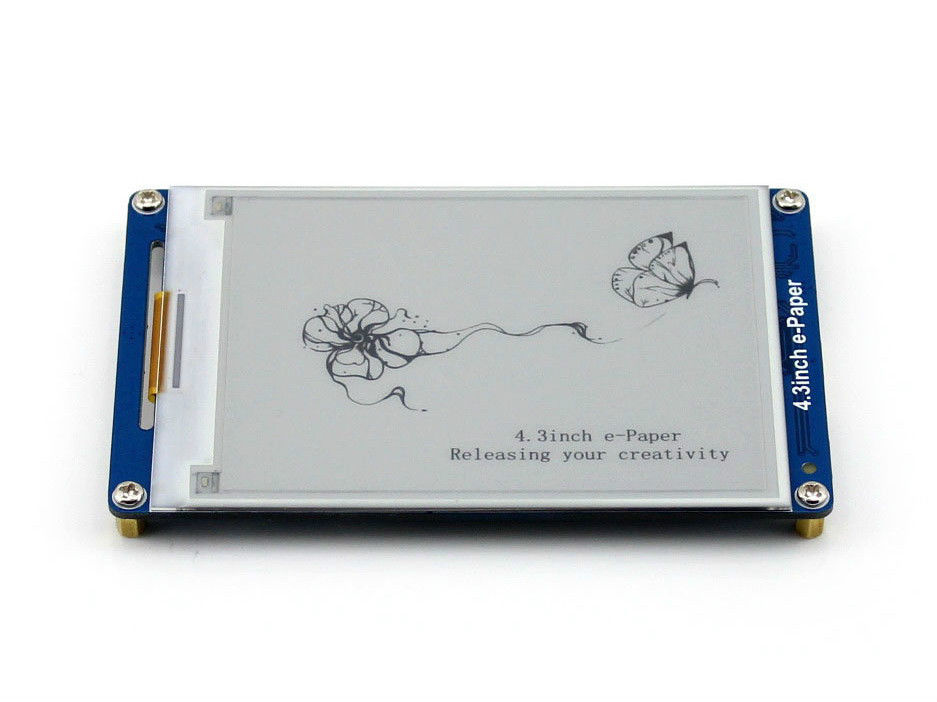

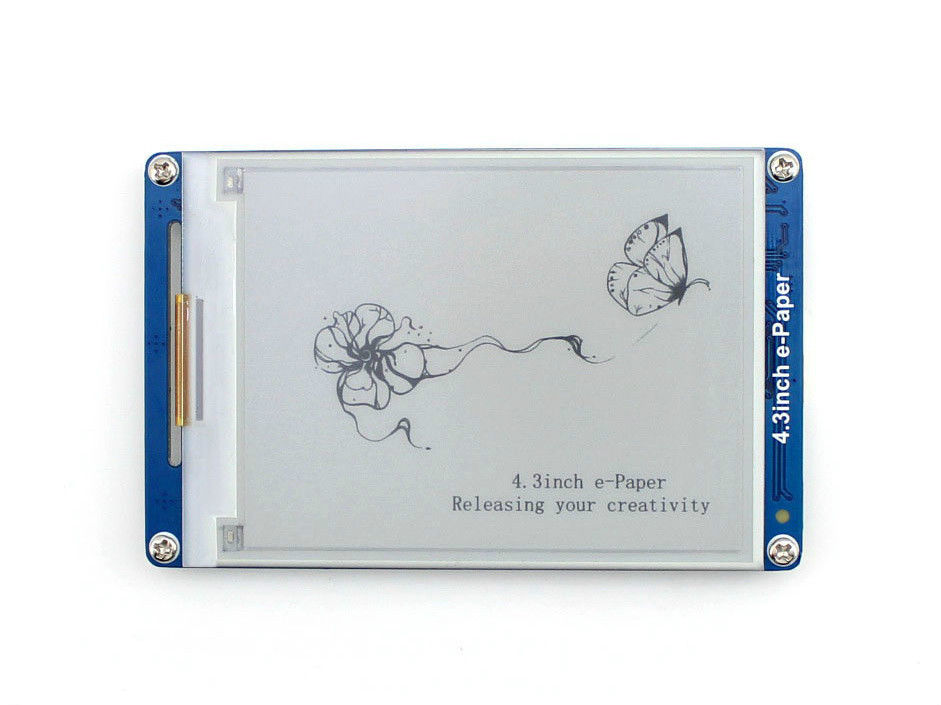

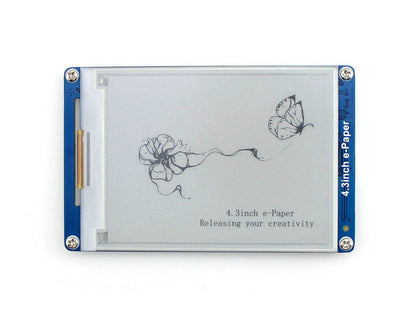

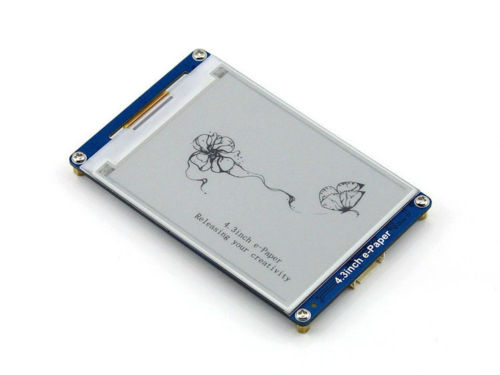

[Discontinued] 4.3" E-Ink 800×600 LCD Display 128MB UART Serial Port

SKU: 101-40-210 Variants ID: 50102419412
$49.99

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.

  • Built-in 128MB NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer

This is a serial interface E-Ink display module, 4.3inch, 800×600 resolution, with embedded font libraries, ultra low power consumption.

  • Built-in 128MB NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer

DESCRIPTION
  • Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
  • Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
  • Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
  • 4 grey level displaying, 800×600 resolution
  • Adjustable serial interface baud rate, 115200 by default when power up
  • Powered from 3.3V to 5V, compatible with logic level
  • Ultra low power consumption, sleeping current lower than 5mA
  • Comes with host computer software, control it directly on your computer



APPLICATION
  • e book
  • Shopping mall POS
  • Price label
  • Industry instrument

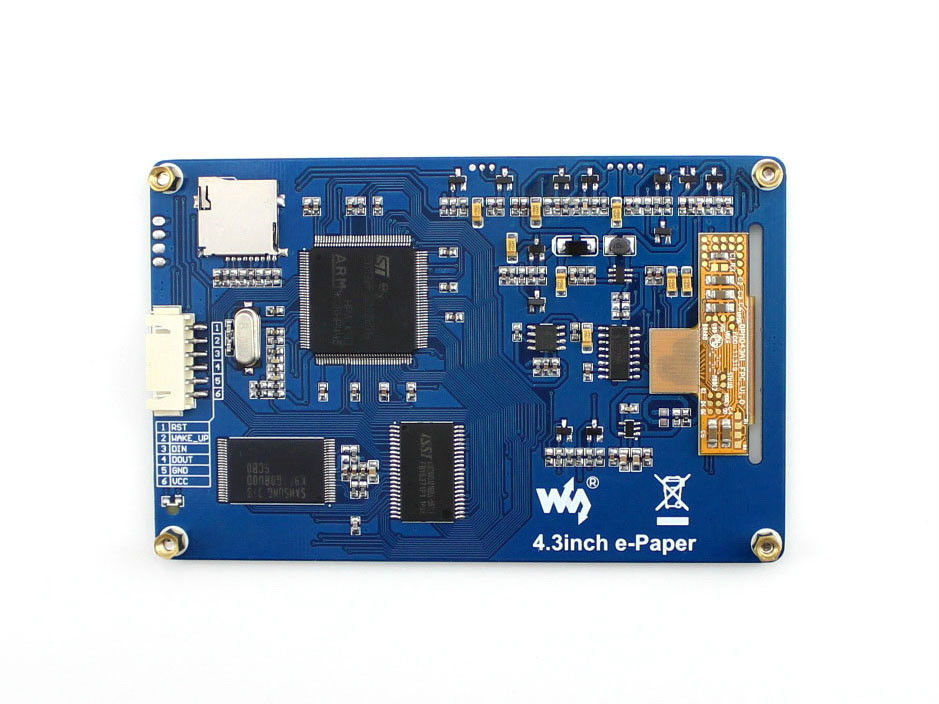

Pin Definitions:

  • VCC : 3.3V~5.5V
  • GND : GND
  • DOUT : Serial data out
  • DIN : Serial data in
  • WAKE_UP : External wake up
  • RST : External reset

Limited by the hardware processing, it usually takes 1.5s to refresh each single frame image, therefore, this e-Paper is NOT capable of playing animations



WHAT'S IN THE PACKAGE
  • 1x 4.3inch e-Paper
  • 1x XH2.54 6-pin cable
