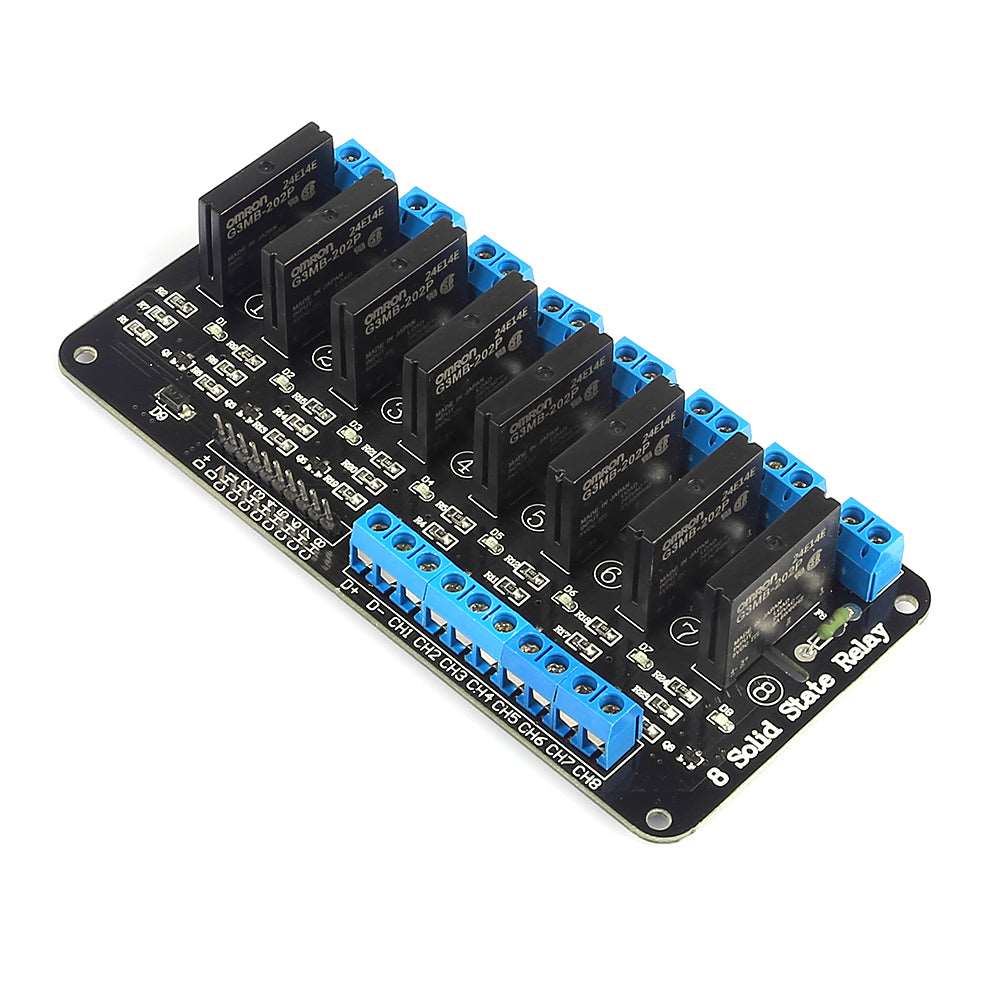

4/8-Channel 5V 2A Solid State Relay, High Level Trigger

brand: SainSmart 1 review SKU: 101-70-149 Variants ID: 45101447572
$13.99
Channel
SPECIFICATION
  • Power supply: 5V DC (160mA)
  • Input control signal voltage: (0-0.5V low stage SSR is OFF) (2.5-20V high stage SSR is ON)
  • SSR Output (each channel):
  • Load voltage range: 75 to 264VAC (50/60Hz).
  • Load current: 0. 1 to 2 AMP.
  • Power supply: 5VDC / 160mA (all channel ON).
  • Input control signal voltage: 0V - 0. 5V
  • Low stage (SSR is OFF): 0.5V-2.5V.
  • 2. 5V - 20V High state (SSR is ON)



Use it to control various appliances, and other equipments with large current.
It can be controlled directly by Microcontroller (Arduino , Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

WHAT'S IN THE PACKAGE

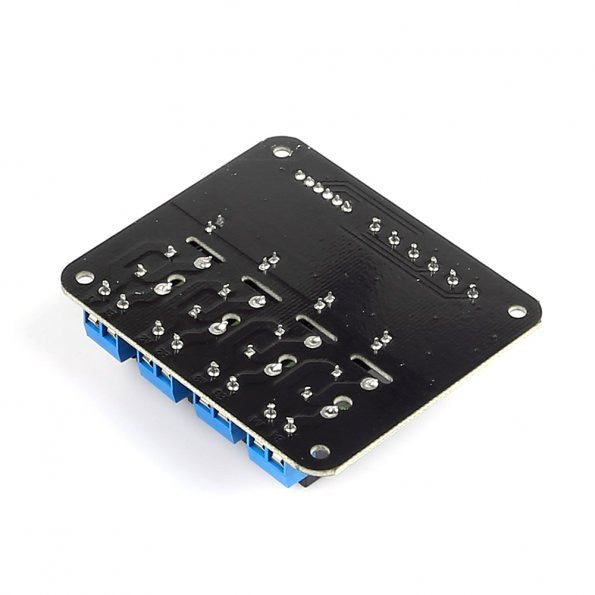

  • 1x  SainSmart 5V 2A 4-Channel SSR Solid-State Relay Module



Customer Reviews
5.0 Based on 1 Reviews
Write a Review Ask a Question
  • Reviews
  • Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
BC
06/29/2020
Brian C.
United States United States
Works perfectly

Already connected the 8 channel relay to my raspberry pi and it works as advertised. Very convenient to have a a full 8 channel ssr with fuses and protection built in for quick projects.
