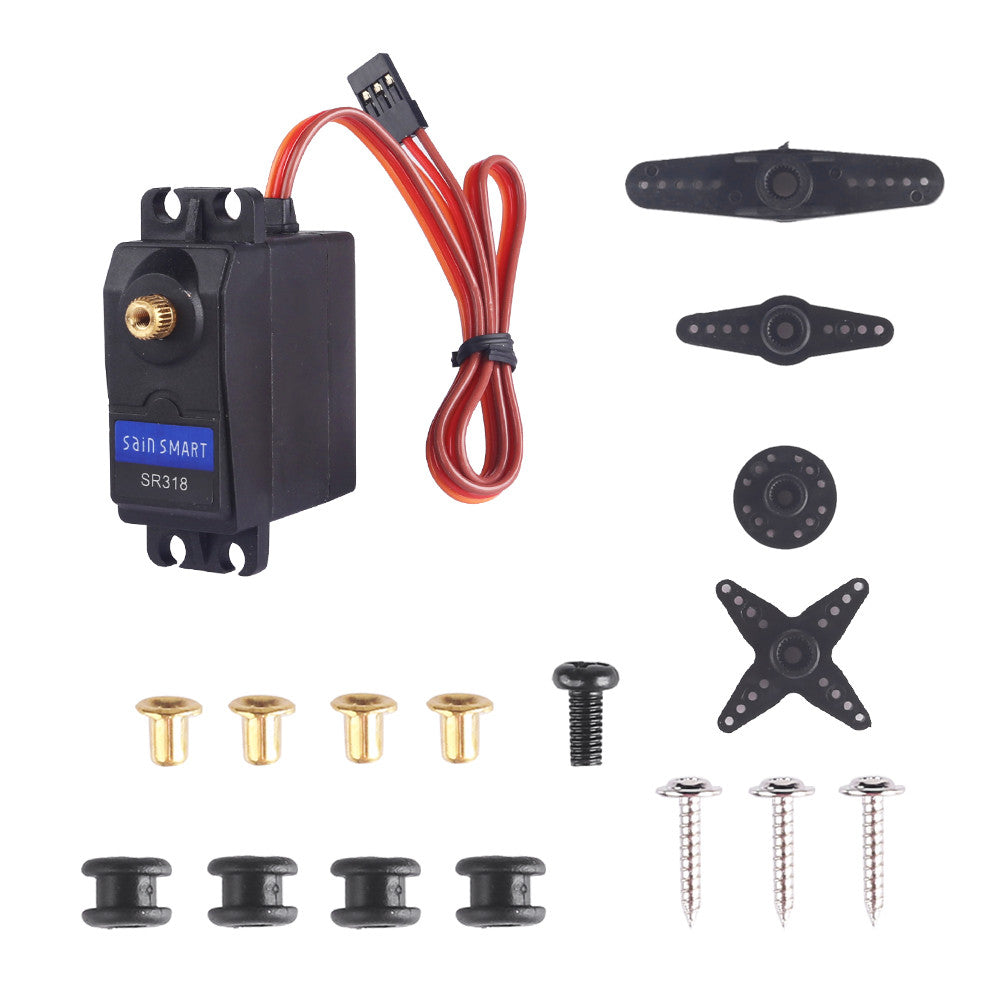

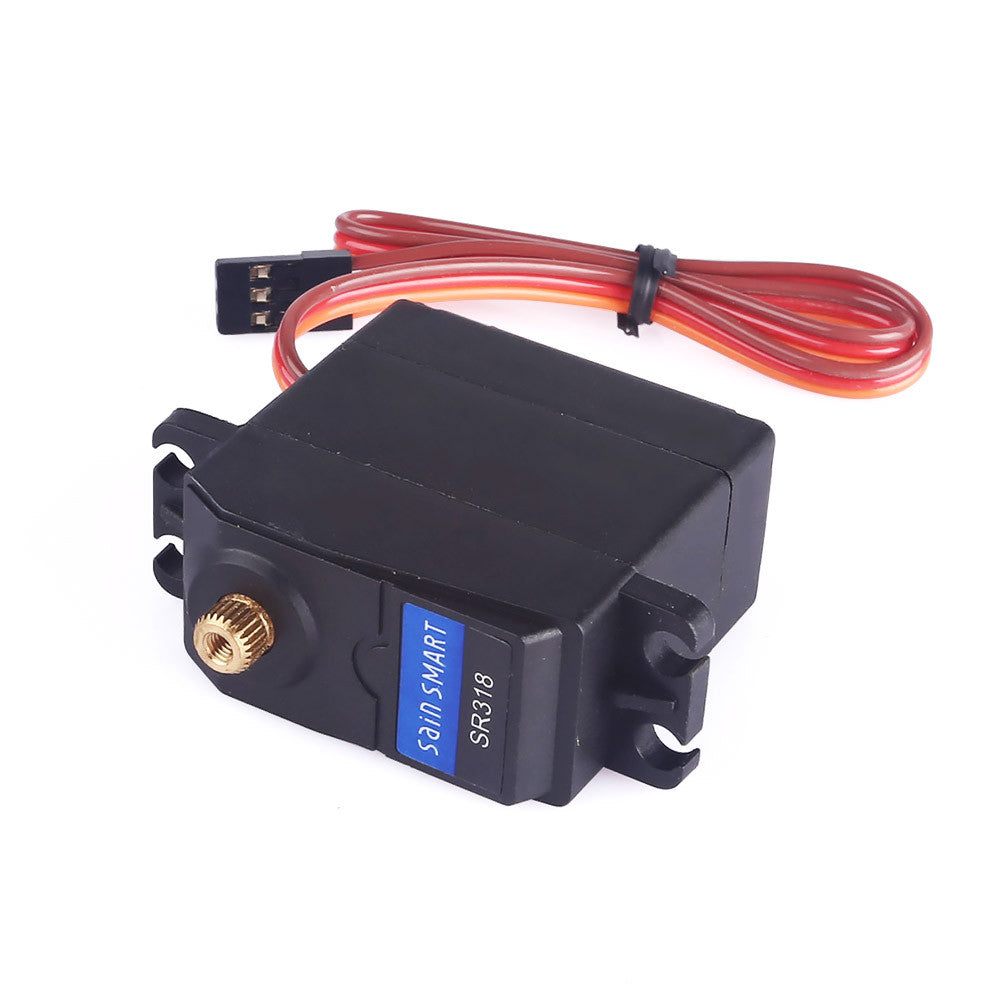

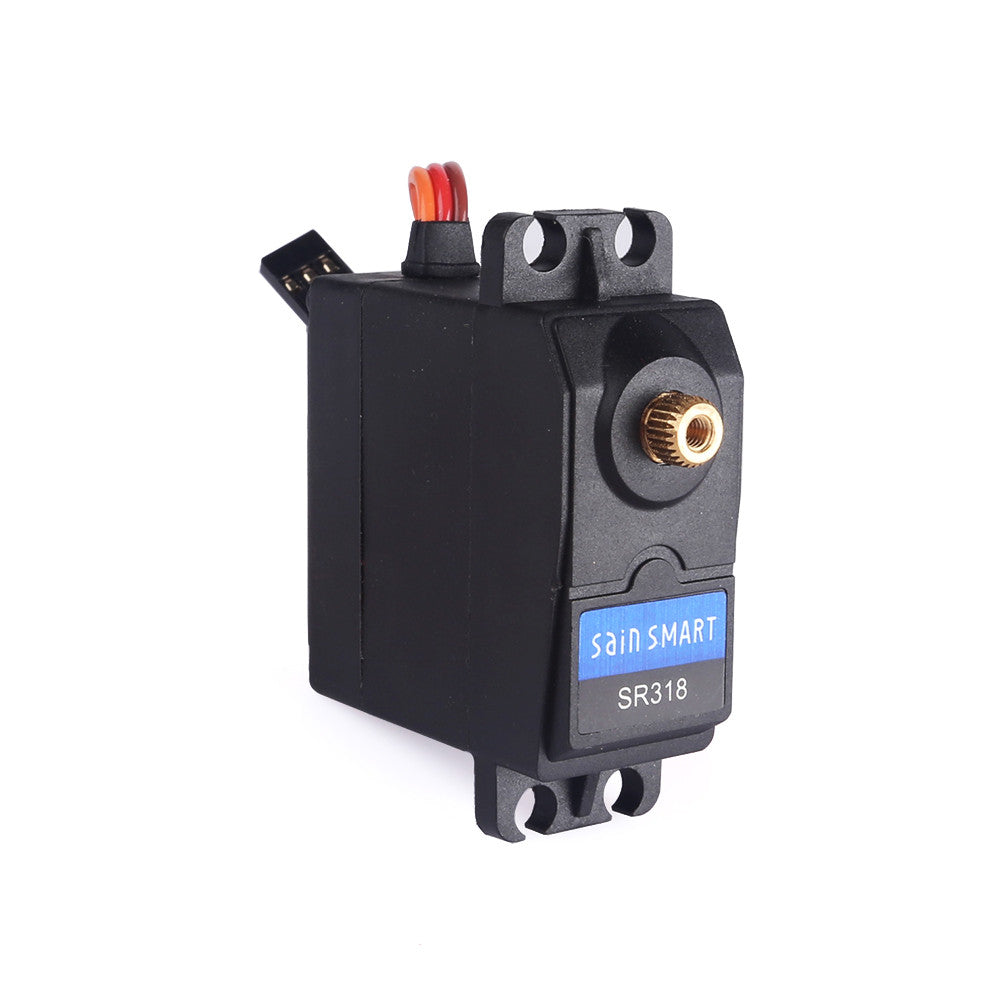

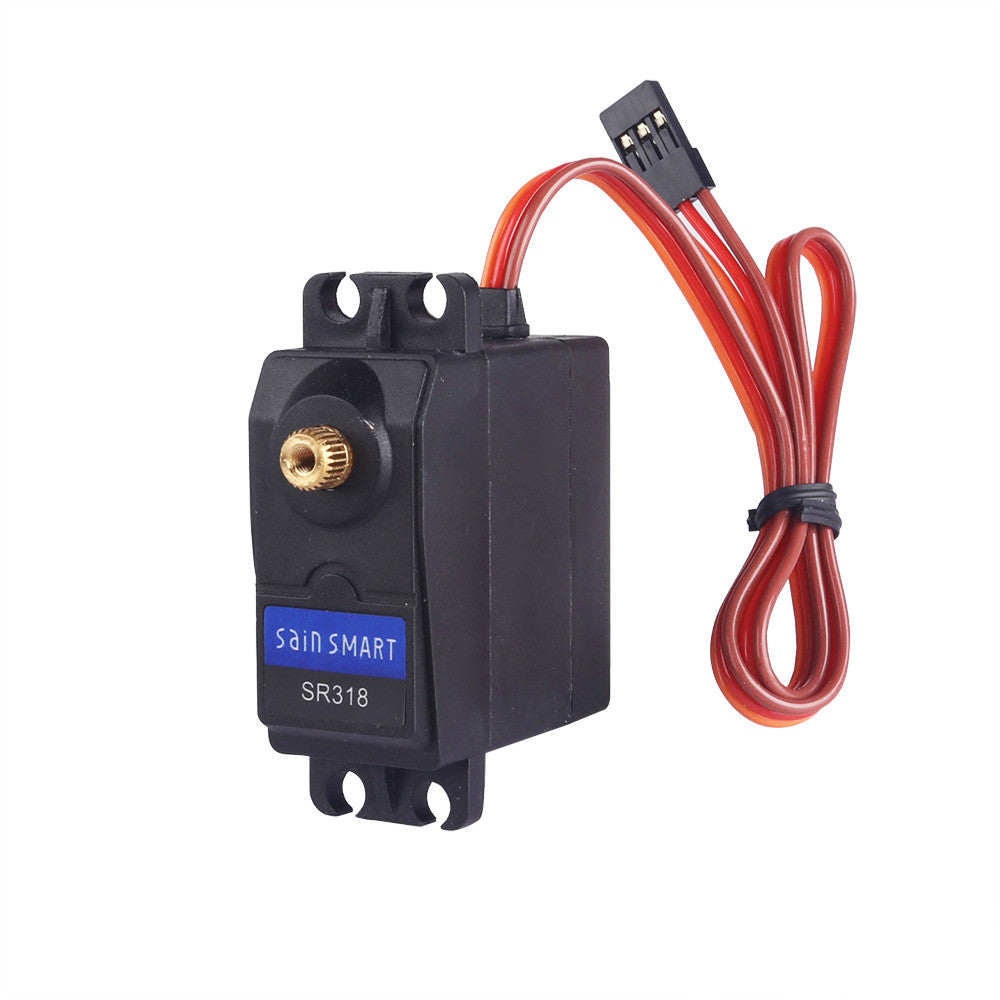

[Discontinued] All-Purpose Digital Servo, SR318

Terms

Parameter

Storage Temperature Range

-20℃～60℃

Operating Temperature Range

-10℃～50℃

Operating Voltage Range

5V～7.4V

Item

6V

7.4V

Operating speed (at no load)

0.15sec/60°

0.13sec/60°

Running current (at no load)

80 mA

100 mA

Stall torque (at locked)

13.5 kg-cm,

15kg-cm

Stall current (at locked)

1.8A

2A

Idle current (at stopped)

4 mA

5 mA

Terms

Parameter

Materials of the gear

Metal

Limit angle

360°

Weight

60± 1 g

Connector wire gauge

＃28  PVC

Connector wire length

320 ± 5 mm

Horn gear spline

25T/ψ5.80

Horn type

Cross, disc, hexagon, bar

Reduction ratio

310：1

Terms

Parameter

Control system

Change the pulse width

operating frequency

50-330Hz

Operating Angle

180° (when 500→2500 μsec)

Neutral position

1500 μsec

Dead band width

3    μsec

Rotating direction

Counterclockwise (when 1500→2000 μsec)

Pulse width range

500→2500 μsec

Mechanical Angle

360°
