[Discontinued] Altera Cyclone SOPC EP2C8Q208C8N Chip Development Board with FPGA SDRAM, ADC 2.4'' TFT LCD, USB Blaster

 RCQ208_V3 Main Chip:

• FPGA Core Chip: EP2C8Q208C8N
• FPGA Configure Chip: EPCS16 (16MBit)
• SDRAM : HY57V561620 (256MBit)
• ADC(High speed): AD9280 (32Msps/8Bit)
• DAC(High speed): AD9708 (125Msps/8Bit)
• USB(Host/Device): CH376T
• LAN Chip: ENC28J60 (10Mbps)

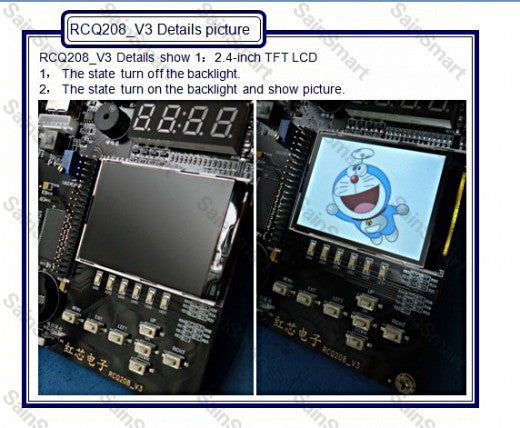

• TFT LCD: 2.4-inch?260K colors, 320*240
• RTC: DS1302Z
• EEPROM: 24C08N
• Dual-active crystal: 40MHz/50MHz
• Temperature sensor: DS18B20

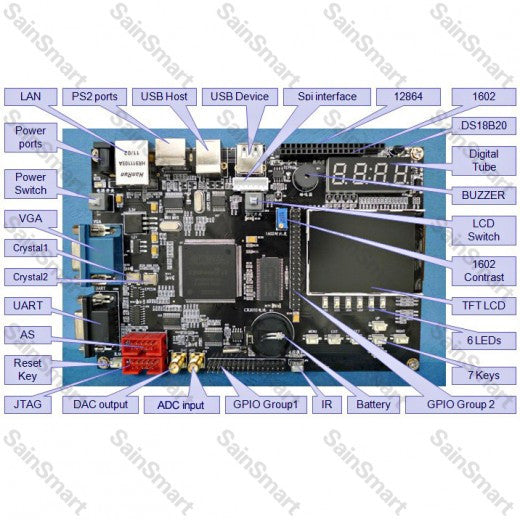

RCQ208_V3 Interface:

• Network interface, HR911105A.
• 2, USB Host interface.
• USB Device interface.
• SMA Gilded Analog port *2(Used for AD/DA).
• Infrared remote control receiver.
• PS2 keyboard interface.
• 4 Digital Tube.
• 1602/12864 interface.
• VGA interface.
• RS232 interface.
• Standard Spi interfa.
• 6 LED.
• 7+1 Keys.
• 30PIN/40PIN GPIOs.
• Passive buzzer.
• SD Card interface.

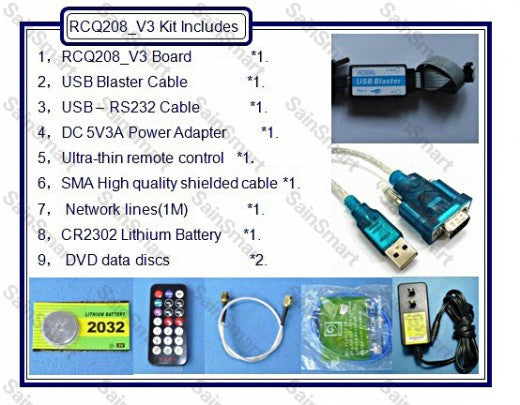

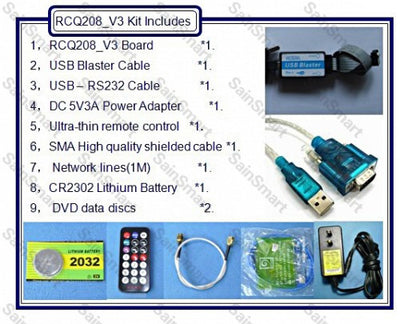

RCQ208_V3 Kit Includes:

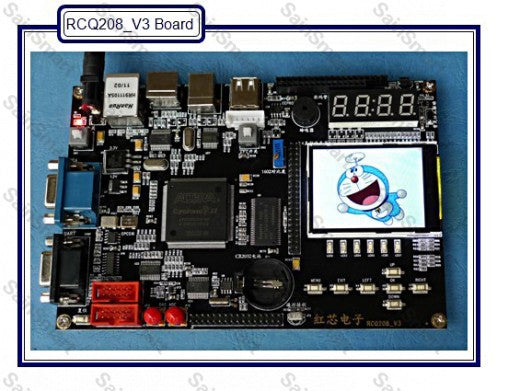

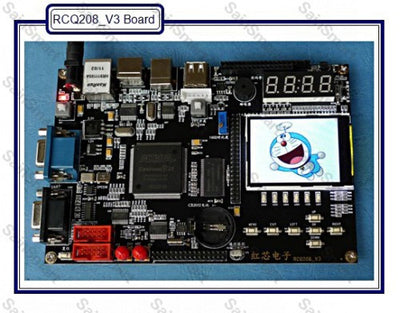

RCQ208_V3 Board ×1
USB Blaster Cable ×1
USB - RS232 Cable × 1
DC 5V3A Power Adapter ×1
Ultra-thin remote control ×1
SMA High quality shielded cable ×1
Network lines(1M)×1.
CR2302 Lithium Battery ×1
DVD data discs ×2
