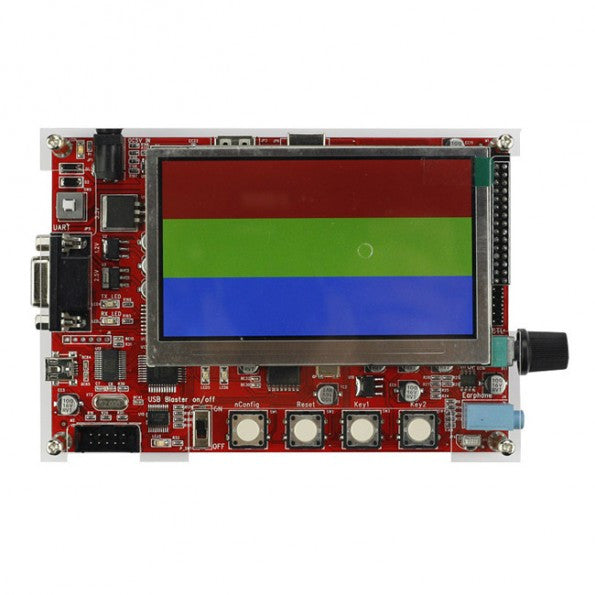

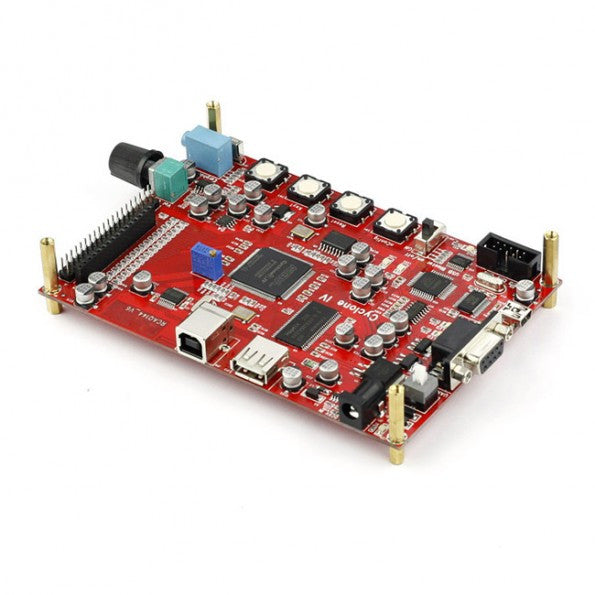

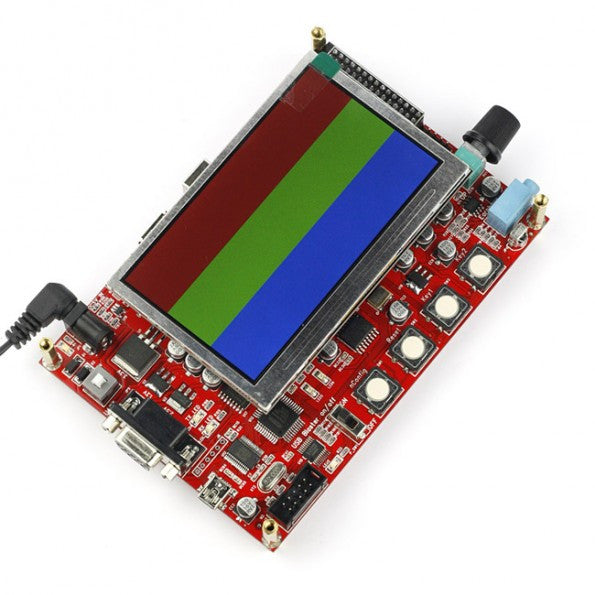

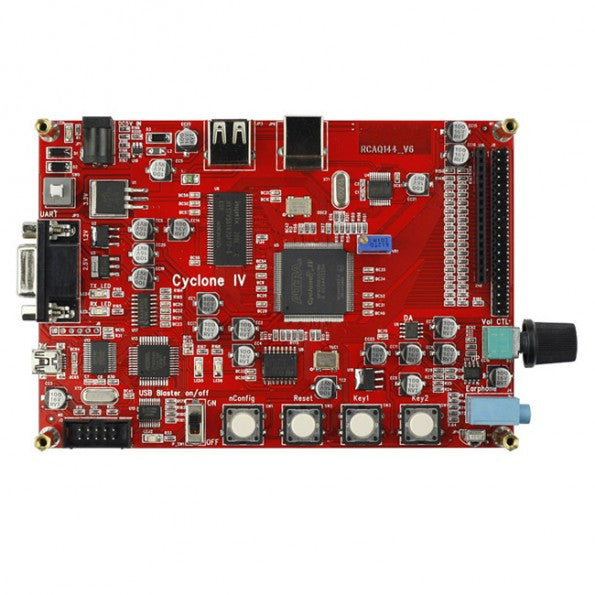

[Discontinued] Altera FPGA EP4CE6 EP4CE6E22C8N Cyclone IV Board 6K 144EQFP + 4.3 inch LCD
Brand: SainSmart SKU: 20-016-112

[Discontinued] Altera FPGA EP4CE6 EP4CE6E22C8N Cyclone IV Board 6K 144EQFP + 4.3 inch LCD

SKU: 20-016-112 Variants ID: 45100435668
$129.99


Overview:

Altera's new Cyclone IV FPGA device family extends the Cyclone FPGA series leadership in providing the market's lowest-cost, lowest-power FPGAs, now with a transceiver variant. Cyclone IV devices are targeted to high-volume, cost-sensitive applications, enabling system designers to meet increasing bandwidth requirements while lowering costs. Built on an optimized low-power process, the Cyclone IV device family offers the following two variants:

Cyclone IV E,lowest power, high functionality with the lowest cost
Cyclone IV GX,lowest power and lowest cost FPGAs with 3.125 Gbps

Transceivers

Cyclone IV E devices are offered in core voltage of 1.0 V and 1.2 V.

For more information, refer to the Power Requirements for Cyclone IV Devices chapter.

Providing power and cost savings without sacrificing performance, along with a low-cost integrated transceiver option,

Cyclone IV devices are ideal for low-cost, small-form-factor applications in the wireless, wireline, broadcast, industrial, consumer, and communications industries.

Description



EU RoHS

Compliant

China RoHS

Compliant

Family Name

Cyclone IV

Number of Logic Blocks/Elements

6272

# I/Os (Max)

91

Operating Supply Voltage (Typ)

1.2V

Logic Cells

6272

RAM Bits

276480

Operating Supply Voltage (Min)

1.16V

Operating Supply Voltage (Max)

1.24V

Operating Temp Range

0C to 85C

Operating Temperature Classification

Commercial

Mounting

Surface Mount

Pin Count

144

Package Type

EQFP
