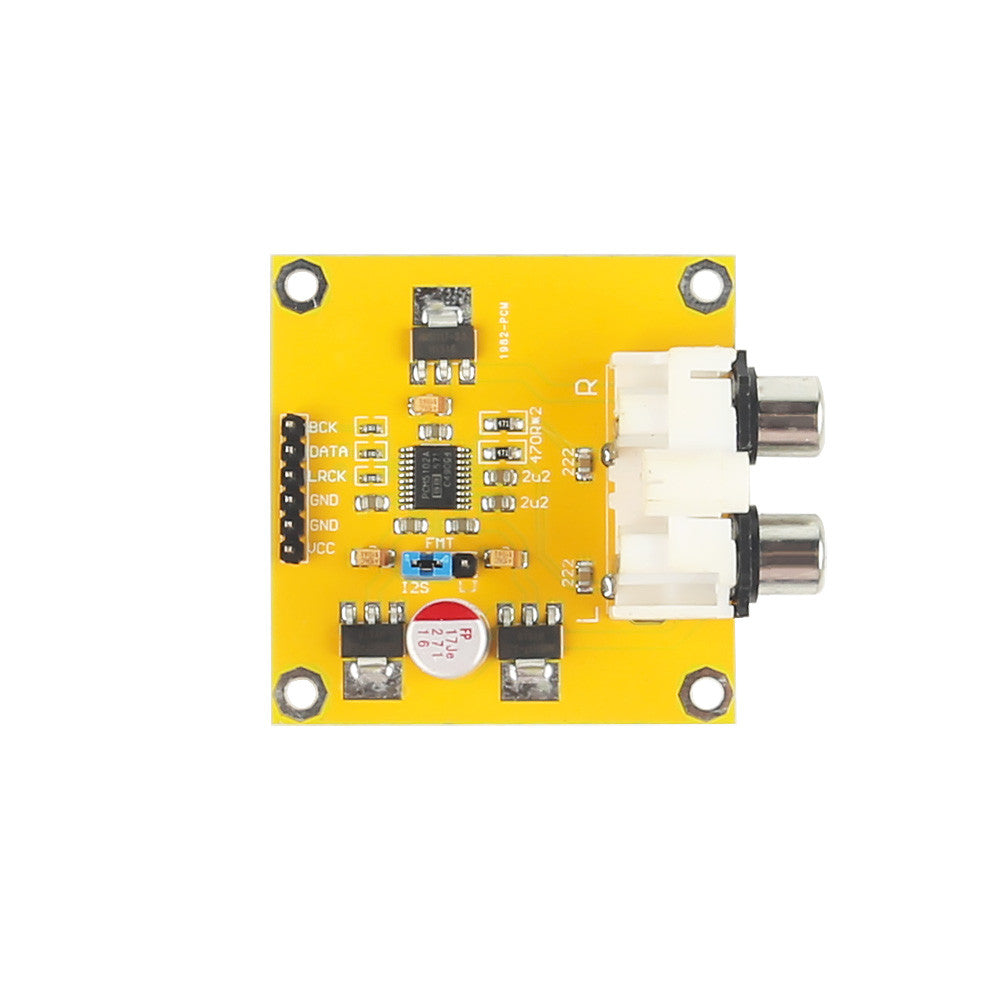

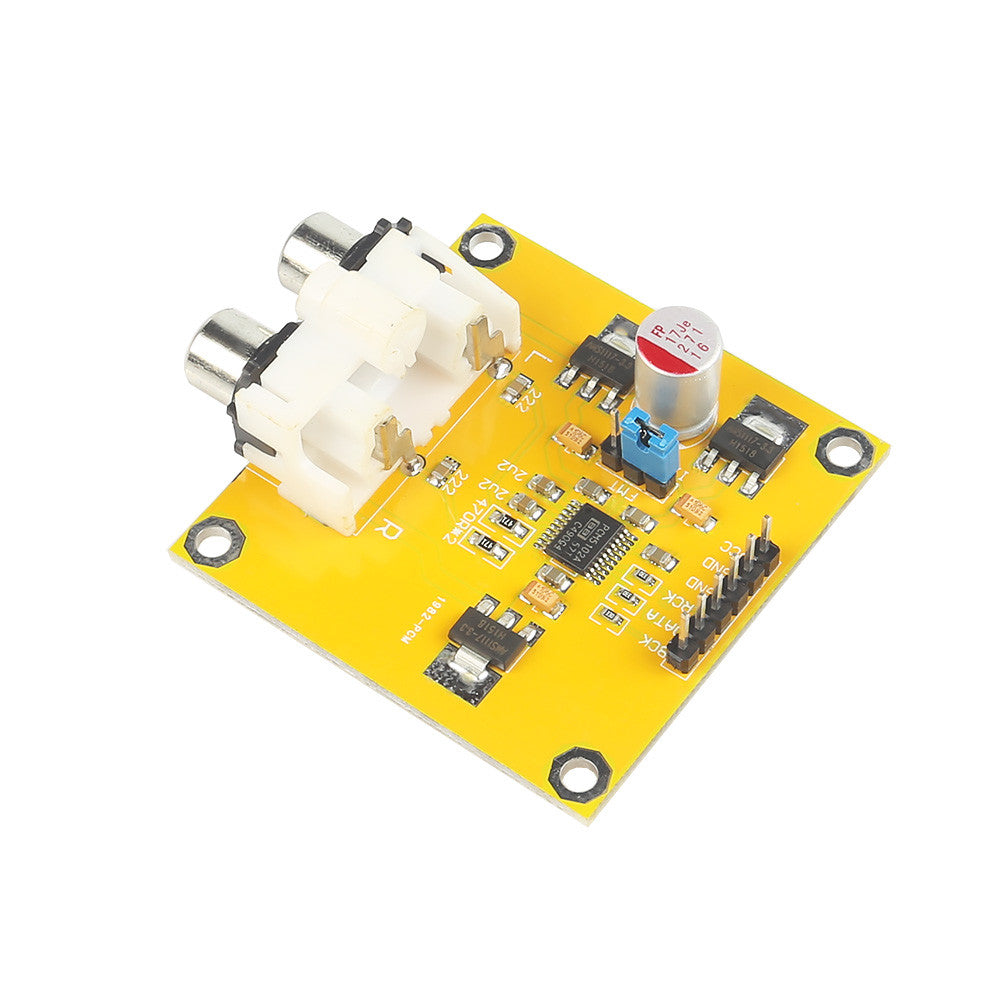

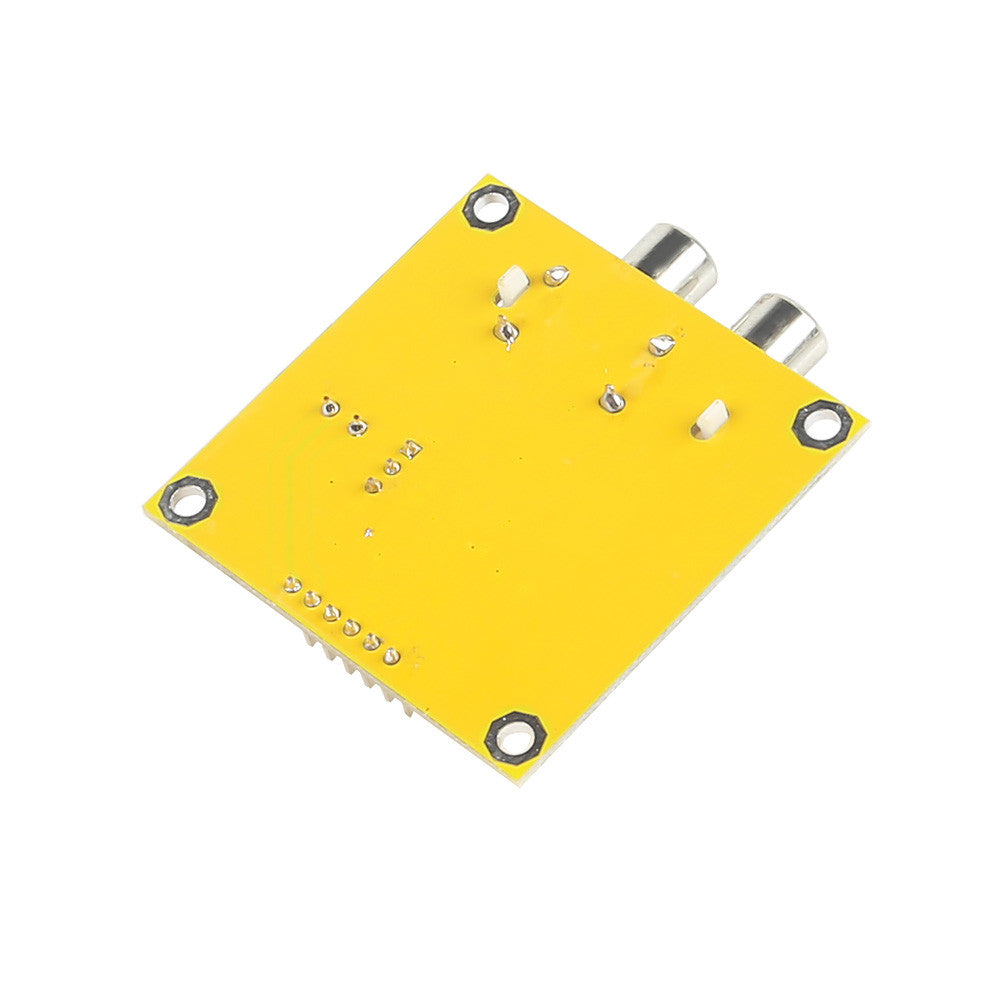

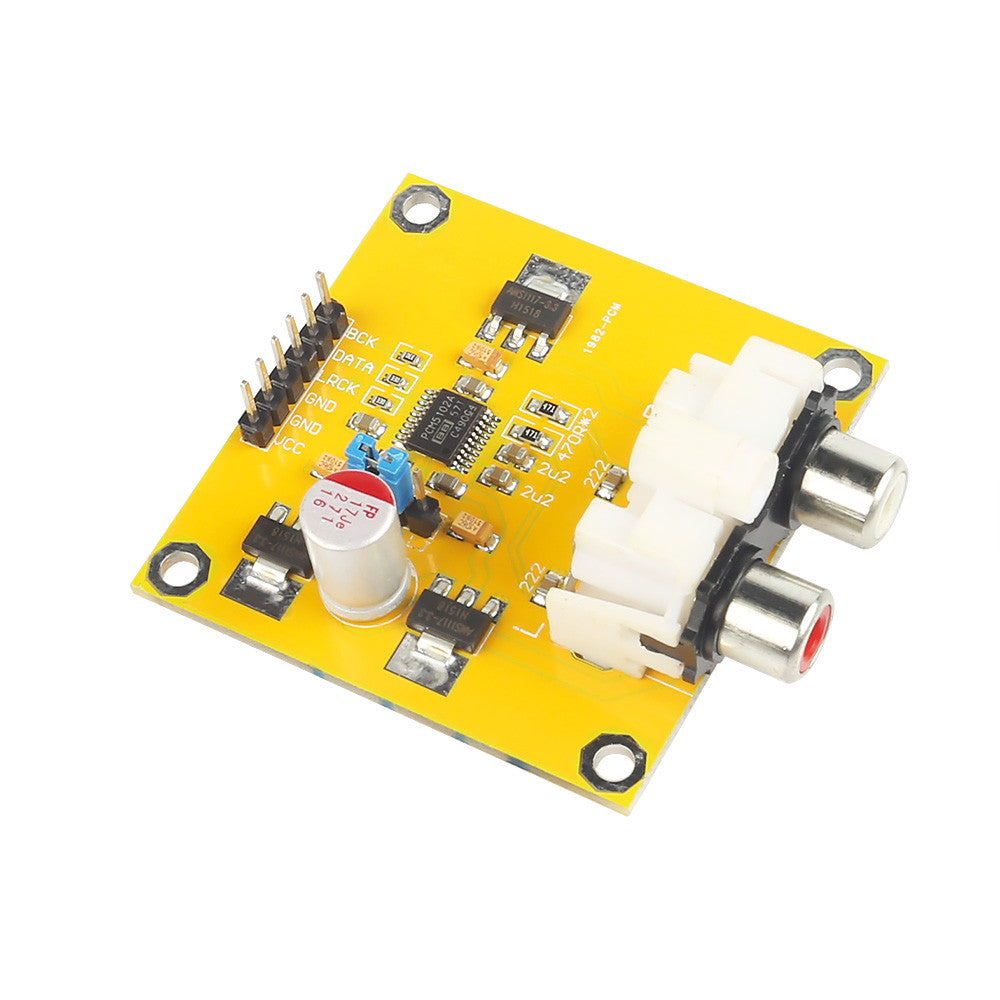

Assembled PCM5102 DAC Decoder I2S Player

brand: SainSmart SKU: 101-30-273 Variants ID: 45102122452

BCK and DATA marked inverse!When using pls make BCK as DATA , DATA as BCK.Assembled PCM5102 DAC decoder I2S player 32bit 384K beyond es9023

Oops, 0 In Stock
  • PCB size:4.8x4.8cm
  • Power supply:DC 5V-10V
  • support I2S/left-justified signel directly input (can switch by hand)
  • The maximum support 32 Bit 384K Sampling rate! Beyond es9023 or PCM1794
  • Can setting two FLT filter mode (NOM normal mode or LOW Delay mode)-Need switch by hand!
  • SNR :112db
  • Distortion:-93db
  • Directly output is 2.1V RMS audio voltage ,High frequency is pure ,Low frequency is satiation ,Beyond ES9023
