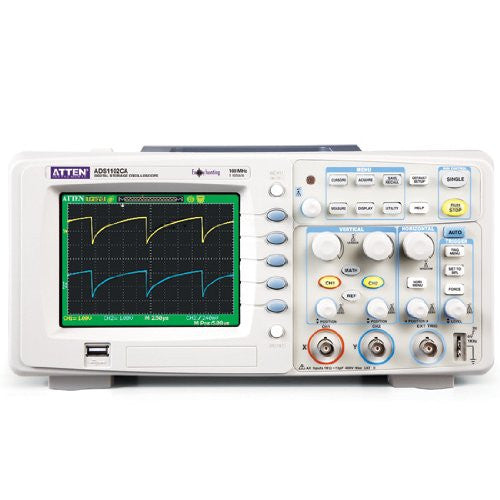

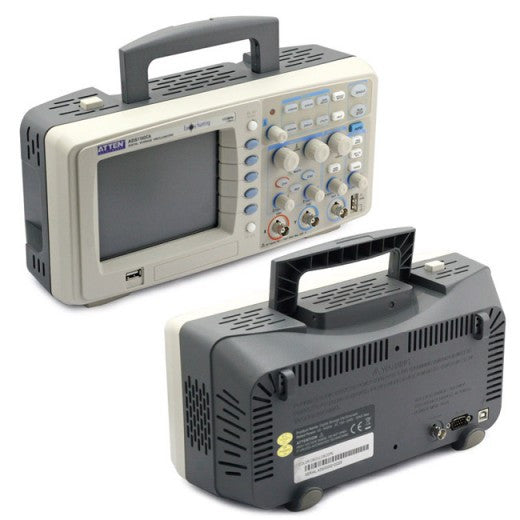

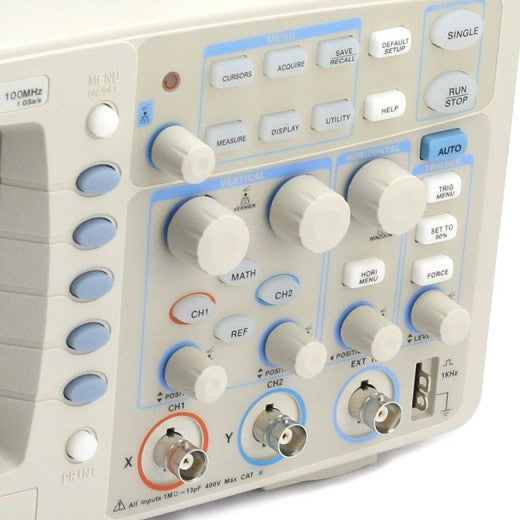

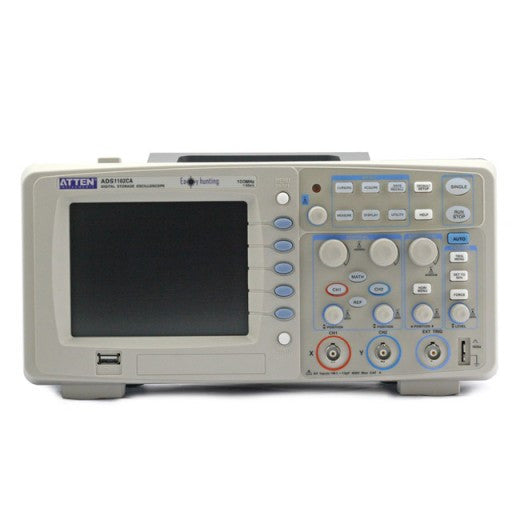

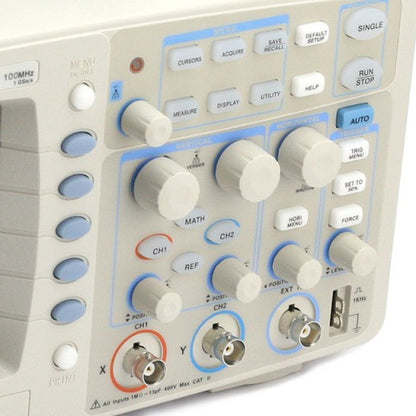

- Dual channel - channel bandwidth 100MHZ
- Bright and vivid TFT 5.7" LCD display((320*234),Screen Saver Function
- Up to 1GSa/s Sample Rate, Up to 2M Memory depth
- Edge, Pulse, Video, Slope, Alternative, Delay
- Support USB flash drive storage and PictBridge compatible printers and PC Remote control RS-232
Specifications:
|
MODEL INDEX |
ADS1102CA |
|
Bandwidth |
100MHz |
|
Sampling Rate |
1GSa/s |
|
Equivalent Sampling Rate |
50GSa/s |
|
Memory Depth |
Single Channel: 40K/CH; Double Channels: 20K/CH |
|
Rise Time |
<3.5ns |
|
Input Impedance |
1MΩ||13pF |
|
Sec/div Range |
2.5ns/div-50s/div |
|
Roll:100ms-50s/div |
|
|
Display |
Color TFT(320*234)5.7�LCD |
|
Common Specifications Of All ADS1000 Series Products |
|
|
Display |
12 divides full screen display |
|
Channels |
2 |
|
Vertical Sensitivity |
2mv-5v/div(1-2-5 Sequence) |
|
Vertical Resolution |
8bit |
|
Input coupling |
DC, AC, GND |
|
Input Max voltage |
400V(Vpp) |
|
Trigger Types |
Edge, Pulse, Video, Slope, Alternative, Delay |
|
Trigger Modes |
Auto, Normal, Single |
|
Trigger Source |
CH1, CH2, Ext, Ext/5, AC Line |
|
Save/Recall |
Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function |
|
Auto Measure Types |
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF |
|
Cursor measure |
Manual, Track, Auto |
|
Sample Types |
Real Time, Equivalent Time |
|
Averages |
4, 16, 32, 64, 128, 256 |
|
Math |
+, -, *, /, Invert |
|
FFT |
Window: Hanning, Hamming, Blackman?RectangularSampling Points: 1024 points |
|
XY Mode |
Phase Error: ±3 degrees |
|
Persist |
Off, 1sec, 2sec, 5sec, Infinite |
|
Display Model |
Main, Window, Window Zoom, Roll, X-Y |
|
Menu Display |
2Sec, 5Sec, 10Sec, 20Sec, Infinite |
|
Skin |
Classical, Modern, Tradition, Succinct |
|
Display Language |
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean |
|
Power Source Voltage |
100-240VAC?47HZ-440HZ?50VA Max |
|
Size and Weight |
305mm x 154mm x133mm, about2.3kg |
|

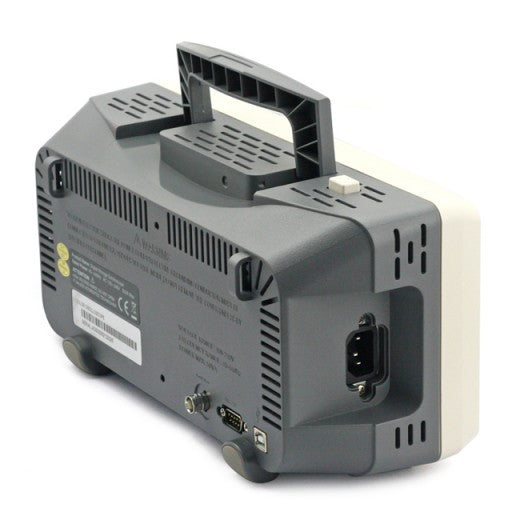

USB Host |
Support USB flash drive storage |
|
USB Device |
Support PictBridge,compatible printers and PC Remote controlRS-232 |
|
ACCESSORIES |

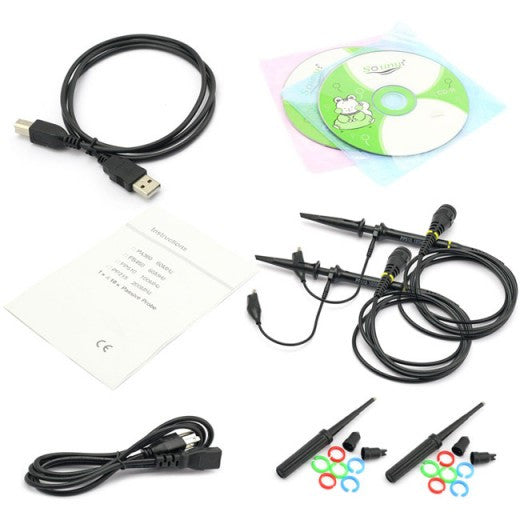

(1:1, 10:1) Probe x 2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual |
|
OPTIONALS |
GPIB Communication Module, Serial Interface Communication Module, Pass/Fail Interface Module |
