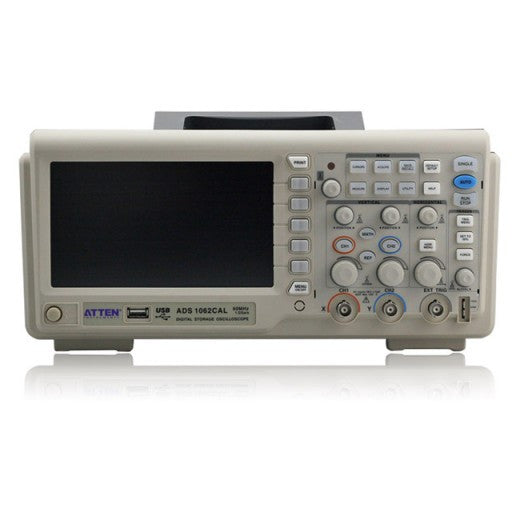

ATTEN ADS1062CAL 60MHz 1GSa/s Sampling 2-CH LCD Digital Oscilloscope

brand: SainSmart SKU: 20-010-301
Oops, 0 In Stock

ADS1000CAL Series Characteristic:

  • The volume exquisite and it is convenient for carrying;
  • Used Colored TFT LCD, the waveform display is clearer and stable;
  • Dual channel-channel bandwidth 60MHZ-100MHZ;
  • The real time sampling rate is 1GSas;
  • Memory depth of ADS1000CAL is 40Kpts;
  • Trigger Models Edge, Pulse, Video, Slope, Alternative and Delay trigger modes;
  • Unique Digital Filter function and Waveform recorder function;
  • Pass/Fail function;
  • Thirty two parameters Auto measure function;
  • Cursor measure covers Manual mode, Track mode and Auto mode;
  • Channel waveform and its FFT waveform display on split screen;
  • Pop-up Menu display pattern is more convenient for users using it;
  • Multiple Language User Interface;
  • Support multilingual online help system.


Multi-country Language User Interface Display Function:
ADS1000CAL series product has 11 languages user interface display function Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese and Korean, which has further developed the ADS1000CAL series product international market and has laid the foundation for ADS1000CAL series making for the international well-know brand products

Digital Filter Function:
ADS1000CAL series provide a digital filter function and users can use it setting upper limit and lower limit of frequency to reduce signal noise and filter error signal. So they can observe their interested signal, which will advance users�work efficiency consumedly

Cursor Survey Function:
ADS1000CAL series cursor survey function has three kind modes Auto manual mode, Track mode, Auto mode. The user may according to own need to choose the survey pattern nimbly, thus with ease read measure results from the top right of the screen or experience completely automatic intelligent design pattern

Pass/Fail Function:
Users may use the Pass/Fail function which the ADS1000CAL series provides to carry on the product test. Through a series of setups, the oscilloscope can output the test result automatically which enhanced the product production efficiency greatly

Waveform Recorder Function:
Using this function, users can continue record data of their need signals as the form of frame. Waveform recorder can record input waveform from CH1 and CH2, with maximum record length of 1500 frames. This record behavior can also be activated by the pass/fail test output, which makes this function especially useful to capture abnormal signals in long term without keeping and eye watching it.

ADS1000CAL series products use the colored TFT LCD. The screen display parameter value and the waveform are clearer, stably and nature; that is also more advantageous to alleviate tiredness of users using the instrument extended periods at a time

Powerful EasyScope3.0 Software:

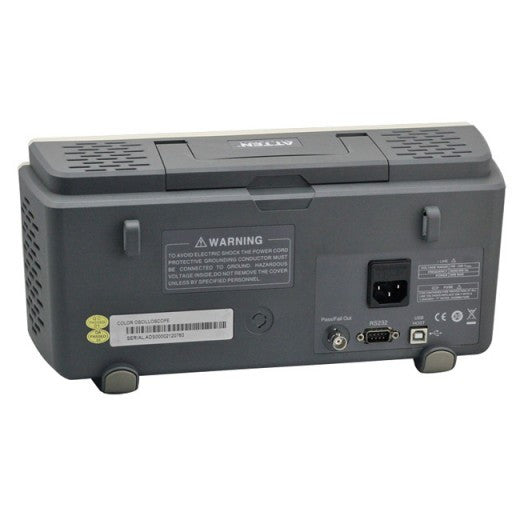

EasyScope3.0 software is the powerful system software suitable for ADS1000CAL series products. This software can be compatible RS-232 and USB Device to realize communication between the computer and the oscilloscope, then realizes long-distance control. Simultaneously this software can automatic real-time refresh waveform data , provide waveforms, measure data, sampling data, screen images read, storage and printing functions. In addition EasyScope3.0 also has setups upload and download function. Most quickly basing on millisecond level interactive between PC and ADS1000CAL series make users to be easier to analyze, research waveforms and data.
