SPECIFICATION
- Admission: I2S
- Output: RCA
- Sampling rates supported: 16 / 24bit 192 khz
- Connection livery
- Remote connections: 29cm
- RCA distance: 20mm
- Spacing 40 x 32mm
- PCB dimensions: 50 x 42mm

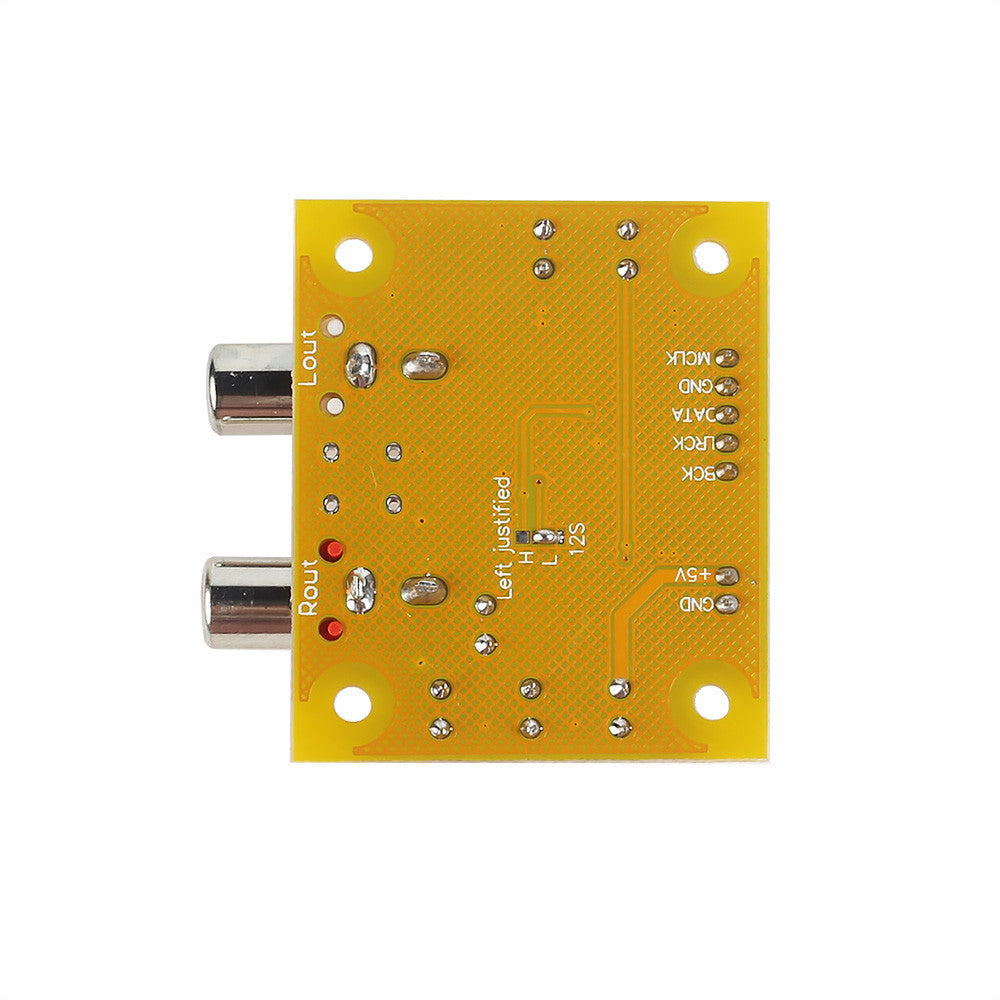

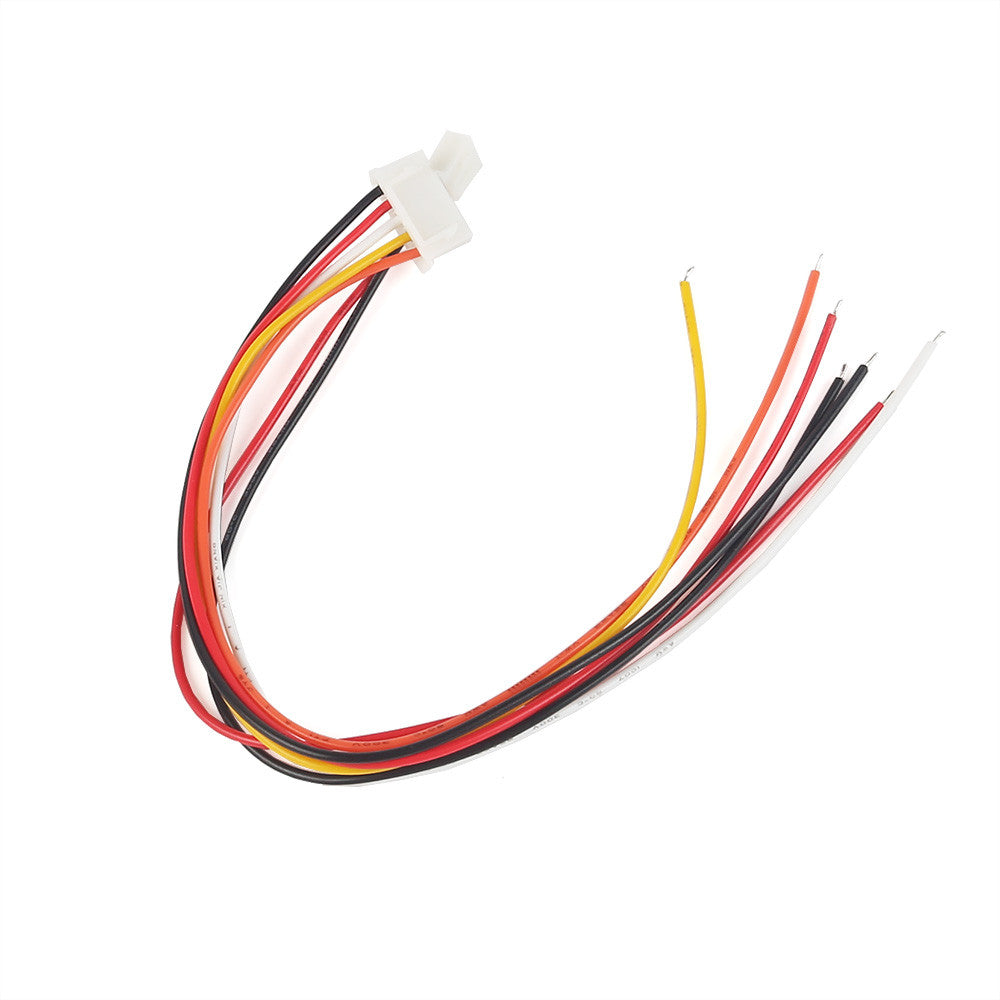

I2S input:
- Orange: MCLK
- Yellow: GND
- White: DATA
- Red LRCK
- Black: BCK
Connection:
- Black: GND
- Red: + 5V
