[Open Box] UNI-T UTP3315TFL-II DC Power Supply

brand: SainSmart 1 review SKU: UNT-PS-3315A-Sec Variants ID: 32468817838159

*Final Sale, no exchange or return. 6-Month Warranty. Ship to USA address only.

Power Adjustable

The UTP3315TFL-II DC Power Supply has an adjustable output voltage of 0-30V and outputs current of 0-5A. With a pure and reliable outputs, this DC power supply is perfect for DIY electronics hobbyists and electronic testing.

4 Digital Voltage & Current LED Display

Equipped with 4 digital dual LED display allows you to see the voltage and current in an easy-to-read interface. This simple LED display can also help you adjust the voltage and current more accurately in increments as precise as 0.01V and 0.001A.

Safety Protection

Featuring systems for short-circuit protection, overload protection, and reverse polarity protection, the UTP3315TFL-II is a highly reliable power supply. It is an ideal tool for institutions of higher education, enterprise production lines, household appliance repair companies, and many other applications.

Compact Design

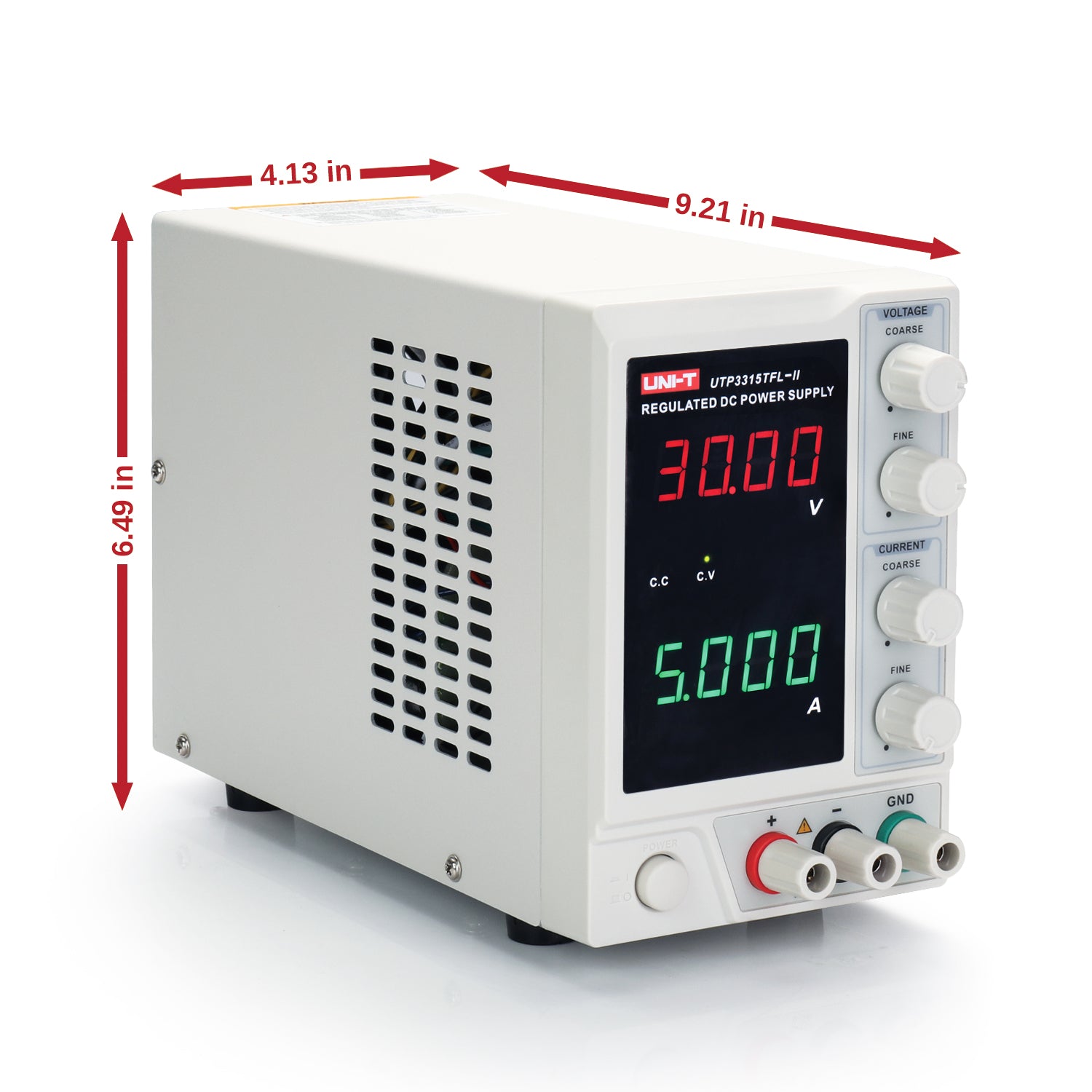

A small footprint of 4.1 x 6.5 x 9.8inches makes this power supply easy to carry. It is convenient for the electronics hobbyists to carry around when not testing at home.

One-Year Warranty

SainSmart provides a one-year warranty on the UTP3315TFL-II DC Power Supply. Buy with confidence.

$52.99 $89.99 Save $37.00 FREE SHIPPING
Oops, 0 In Stock
Specification
  • Model: UTP3315TFL-II
  • Output voltage: 0~30V
  • Output current: 0~5A
  • Output power: 50W
  • Load regulation: CV≤0.01%+5mV, CC≤0.1%+10mA
  • Accuracy (25℃±5℃) Voltage: <0.5%+20mV
  • Accuracy (25℃±5℃) Current: <0.5%+10mA
  • Ripple and noise: ≤2mVrms
  • Output regulation resolution: CV: 10mV (typical), CC: 1mA (typical)
  • Reliability: MTBF(e): ≥2000hrs
  • Display mode: LED voltage and current dual display
  • Feature: Auto conversion of constant voltage and current with current limit protection
  • Power: Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz
  • Product color: White and grey
  • Product net weight: 4kg
  • Product size: 105mm x 165mm x 249mm (4.1 x 6.5 x 9.8 inch)
  • Standard accessories: Power cord, output cables

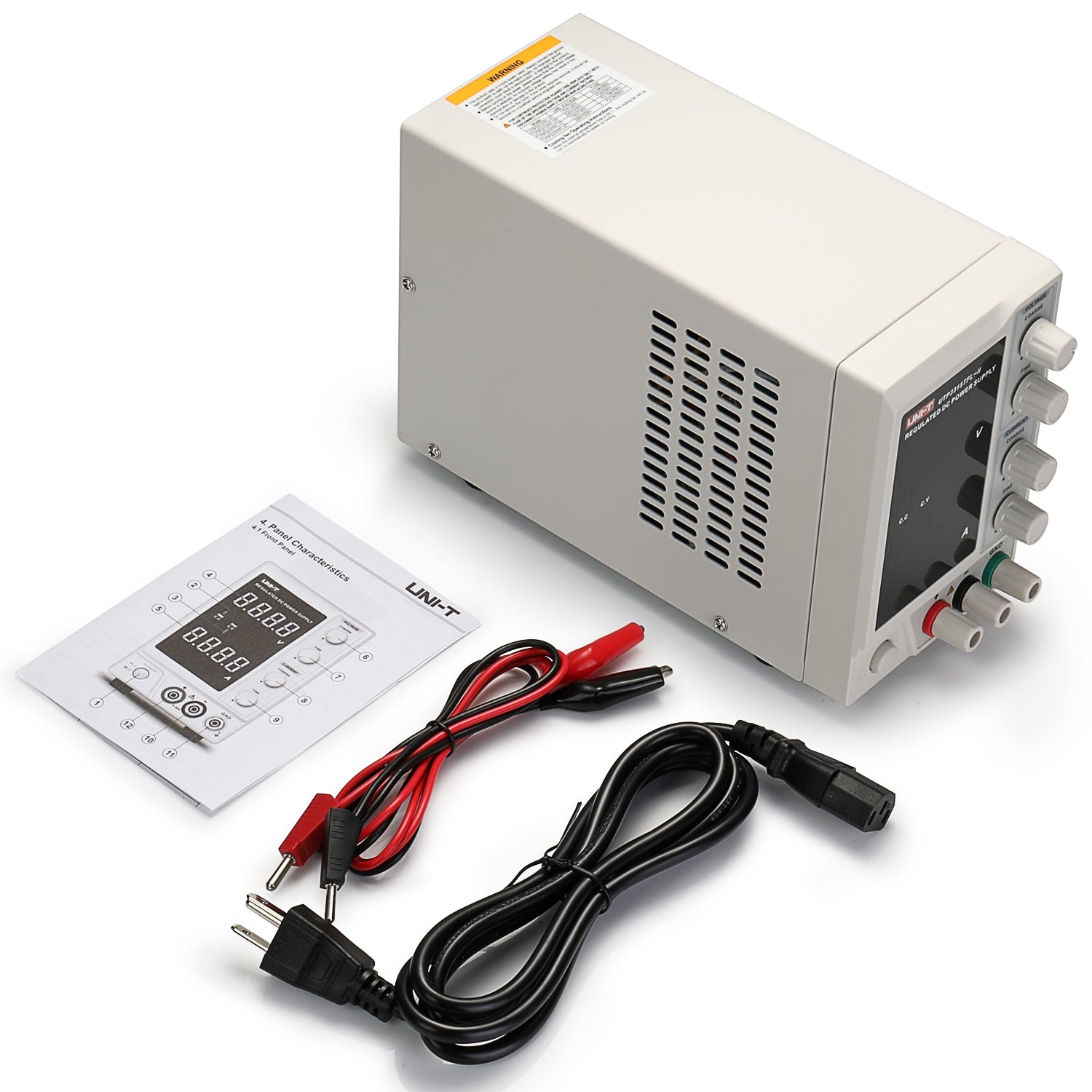

Package List

1 x UNI-T UTP3315TFL-II DC Power Supply
