High Temp Printing For More Possibilities

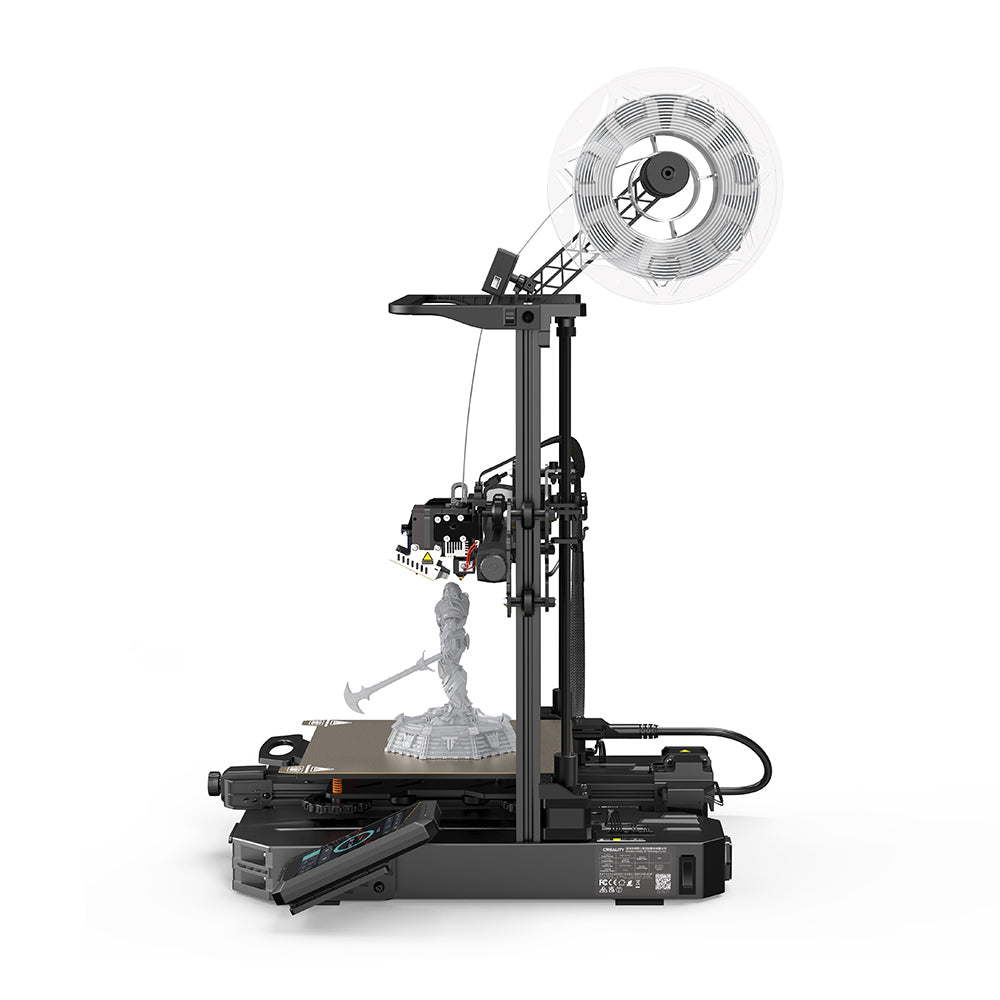

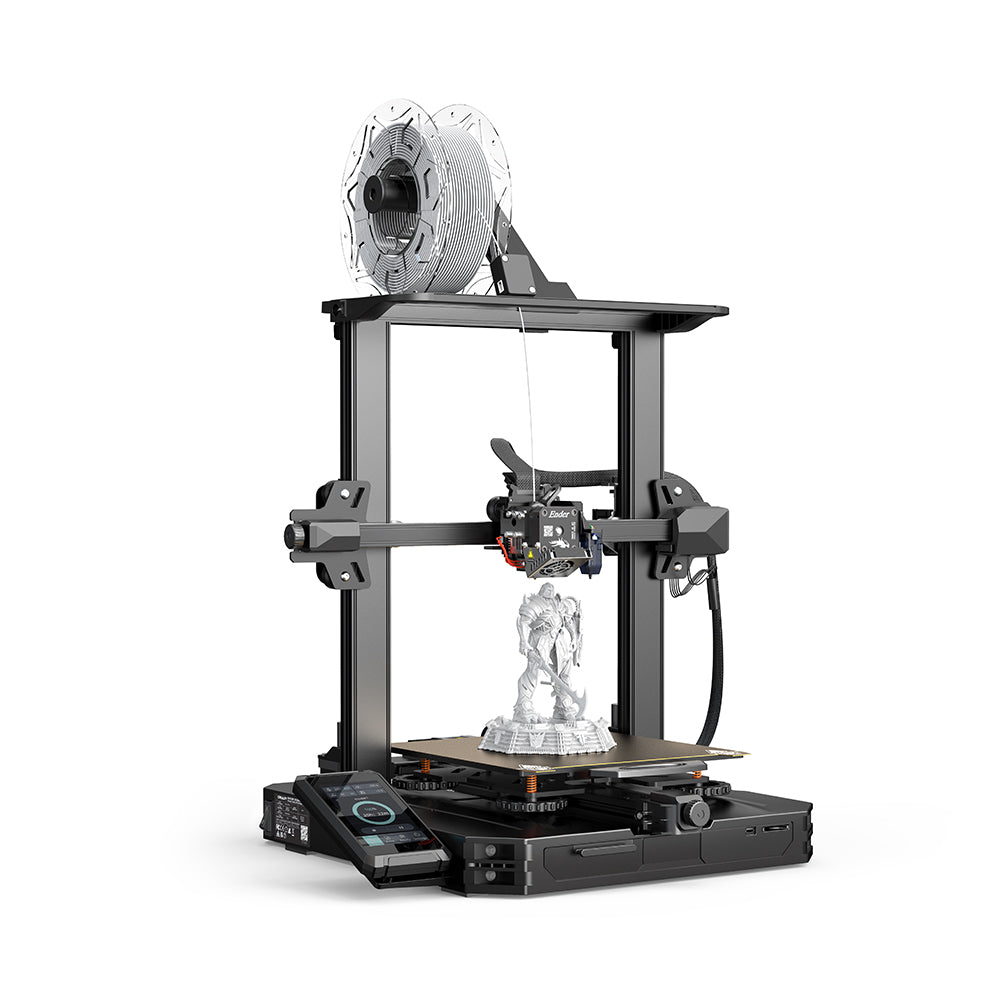

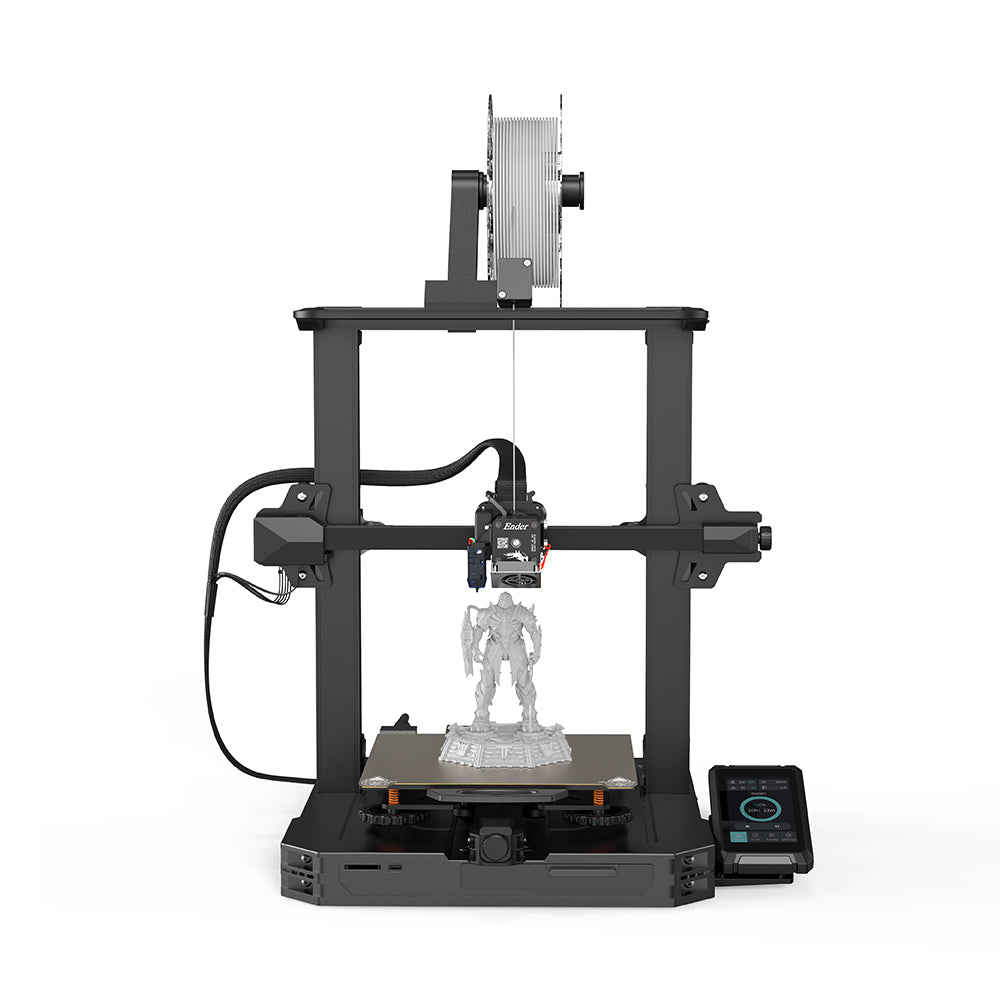

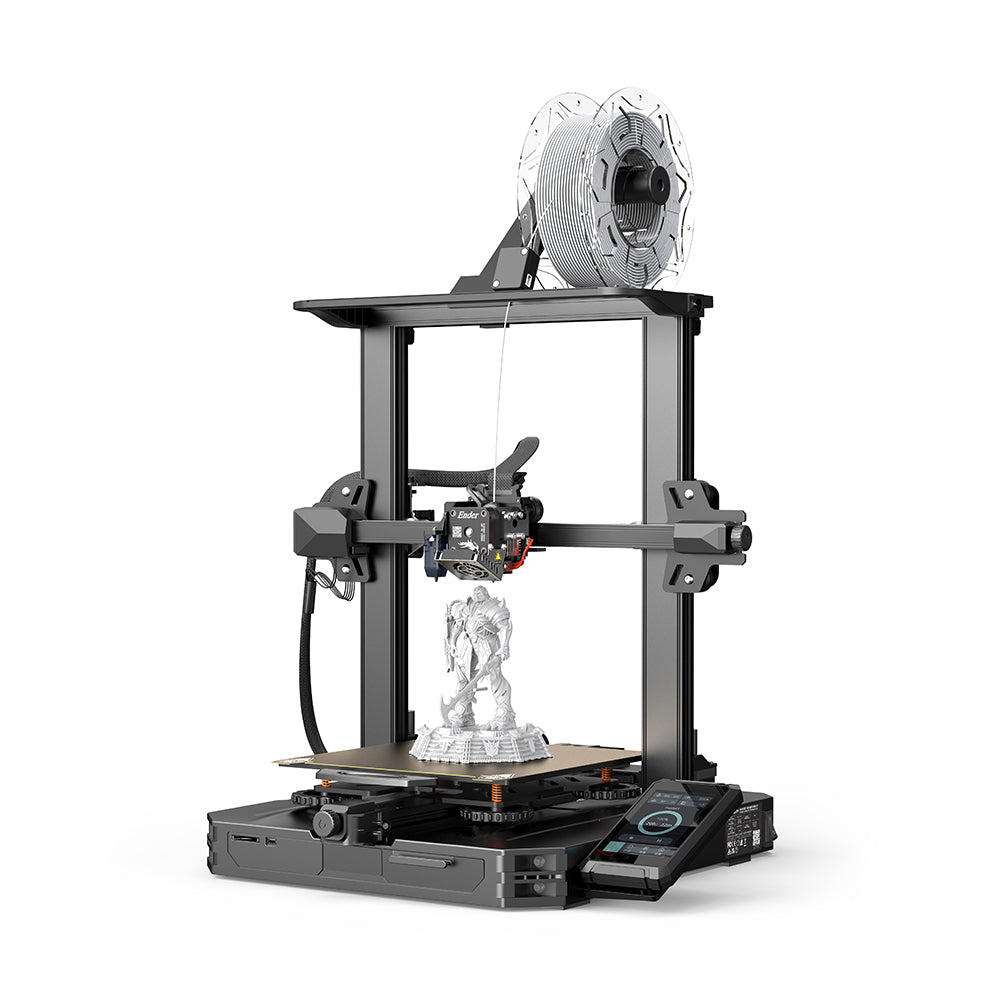

The Ender 3 S1 Pro is a new and improved version of the very successful Ender 3. Equipped with a newly
developed direct dual-gear extruder, automatic bed leveling, 32-bit silent mainboard, among other
things, the S1-Pro is a very affordable printer with everything you could wish for at this price point.
"Sprite" full-metal dual-gear direct extruder
The "Sprite" full-metal dual-gear direct extruder with an
extrusion force of 80N ensures smooth feeding when printing with different filaments, especially the
flexible
TPU
334g only
Up to 80N extrusion force
Full-metal and durable
Unmatched accuracy and precision
300℃ High-temp Printing Lighting up Passion for Creation
The brand new nozzle made of brass can stand up to 300℃ printing temperature, and it is compatible with
multiple fialments, such as PLA, ABS, PVA, Wood, TPU, PETG, and PA, provideing more possibilities for
creation.
Human-centered Design
Intergrated structure euipped with a handle for facile platform pulling out under the high-temp
condition.
4.3-inch Touch Screen, Click to Control
The 4.3-inch touch screen, supporting 9 languages, offers efficient UI interaction and is easy to use.
It will dim out automatically for energy-saving if there is no action for 3 minutes.
LED Light for Clear Observation
The equipped LED light enables comprehensive light fill, with which users can observe the printing
details even in a dark environment.
CR Touch Auto Leveling, Enabling Perfect Printing
Equipped with CR Touch, the 16-point auto leveling can complete quickly with compensation for points'
printing height on the heat bed. Good efficiency saves much time.
Spring Steel PEI Magnetic Build Plate
Ender-3 S1 Pro has used the spring steel PEI magnetic build plate, which has good adhesion to the
printed model and enables fast heating up of the heat bed.The build plate is not only durable but also
flexible. Once the printing completes, users can remove the printed model effortlessly with just a
slight bend.
Secure Adhesion
Effortless Printed Model Removal
Quick Assembly, Easy to Handle
96% of the printer is preinstalled, enabling the 6-step assembly. More aesthetic with a streamlined
design.
32-bit
Silent Motherboard
Filament
Sensor
Resume
Printing
Laser Module
Compatible
Liquid Cooling
Headsink
Quality
Assurance
Specifications
| Model | Ender-3 S1 Pro |
|---|---|
| Molding Technolog | FDM |
| Nozzle Temp | Up to 300℃ |
| Heat Bed Temp | Up to 110℃ |
| Build Volume | 220 x 220 x 270 mm |
| Machine Dimension | 490 x 455 x 625 mm |
| Package Dimension | 510 x 510 x 305 mm |
| Gross Weight | 10.7kg |
| Display | 4.3-inch color touch screen |
| Motherboard | 32-bit silent motherboard |
| Printing Speed | Max 150 mm/s |
| Printing Precision | ±0.1 mm |
| Layer Height | 0.05-0.4 mm |
| Filament Diameter | 1.75 mm |
| Nozzle Quantity | 1 |
| Nozzle Diameter | 0.4 mm |
| Resune Printing | Yes |
| Filament Sensor | Yes |
| Data Transmission Method | Type-C USB; SD card |
| 3D File Format | .stl / .obj / .gcode(after slicing) |
| Extruder | "Sprite" full-metal dual-gear direct extruder with 1:3:5 gearing |
| Slicing Software | Creality Slicer / Cura / Reapetier-Host / Simplify3D |
| Build Surface | Soring steel PEI magnetic build plate |
| Supported Filament | PLA, ABS, WOOD, TPU, PETG, PA |
| Model | Ender-3 S1
|
Ender-3 S1 Pro
|
|---|---|---|
| Build volume | 220x220x270mm | 220x220x270mm |
| Printer size | 487x453x622mm | 490x455x625mm |
| Extruder | Sprite Direct Drive Dual Gear | Sprite Direct Drive Dual Gear |
| Max. nozzle temp | 260ºC | 300ºC |
| Max. heatbed temp | 100ºC | 110ºC |
| Screen | 4.3-inch screen with button | 4.3-inch touch screen |
| Weight | 9.1kg | 8.6kg |
| Dual Z-axis | Yes | Yes |
| Automatic levelling | Yes | Yes |
| UI language | Chinese, English | Chinese, English, German, Spanish, French, Italian, Portuguese, Russian, Turkish |
