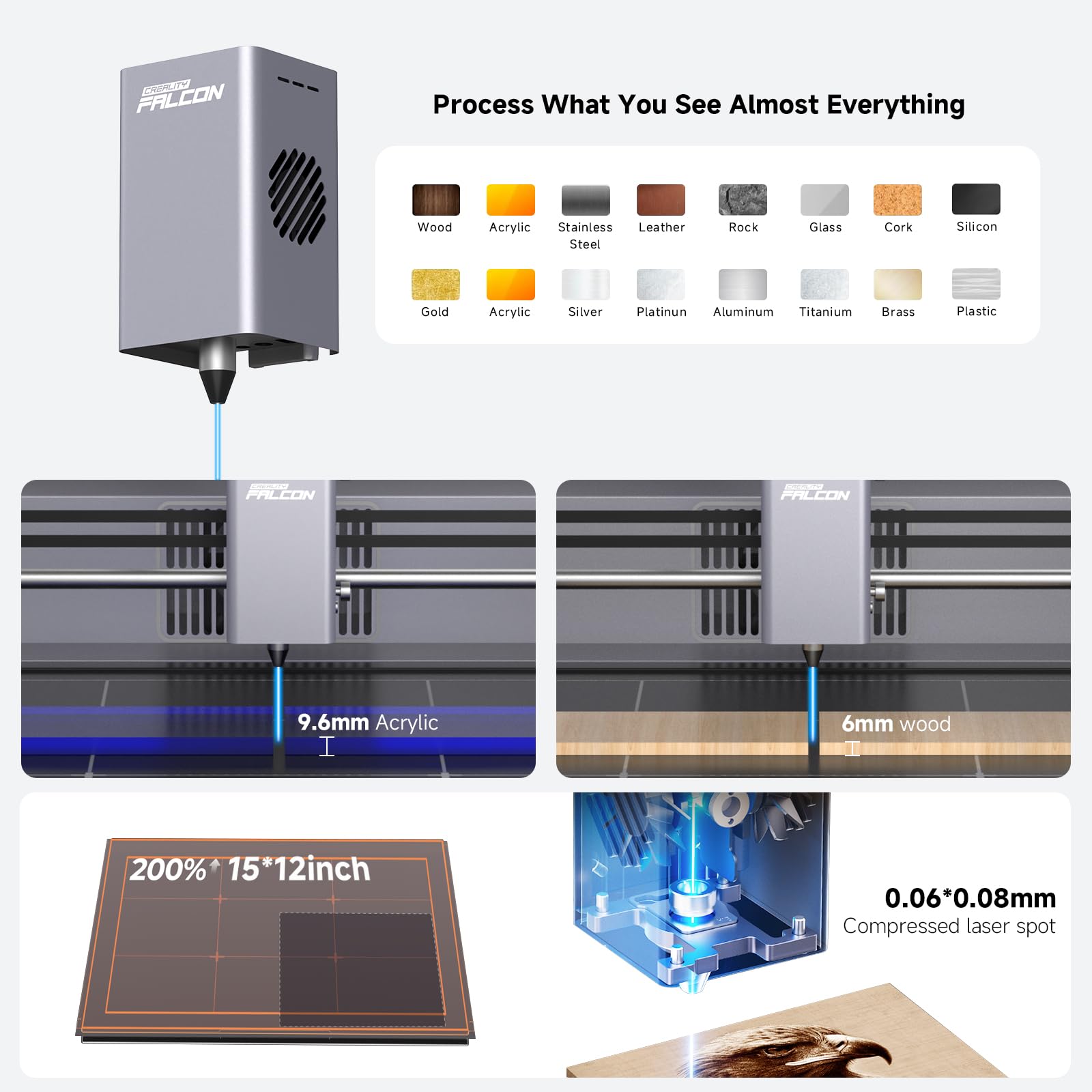

Precision Engraving Techniques
This A1 10W (10000mW) laser engravers with an ultra-fine 0.06 x 0.08 mm spot, delivers precise 1:1 photo-realistic engravings. It can cut 6mm wood board or 10mm acrylic board at one time.It can also be used in conjunction with a roller to finish work on curved surfaces.


Easier Use Than Ever
Ready to use right out of the box. Creality Falcon Design Space design software provides easy-to-use platform where you can design random patterns and anyone can easily start creating. We’ve pre-tested over materials with optimal parameter settings; just preview, click, and engrave.Mainstream software such as LightBurn and LaserGRBL are also compatible and can be used with confidence.

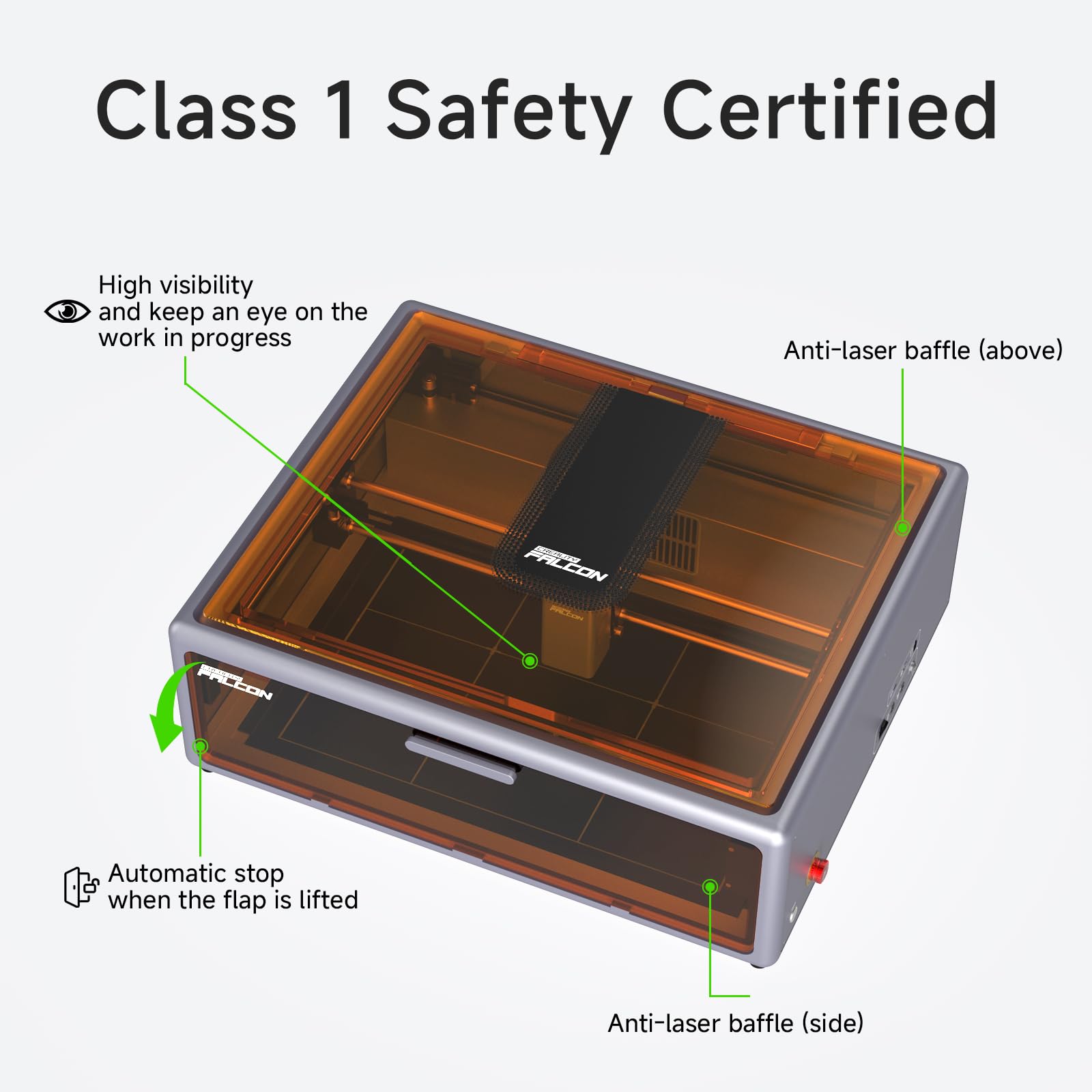

Class 1 Safety Certification

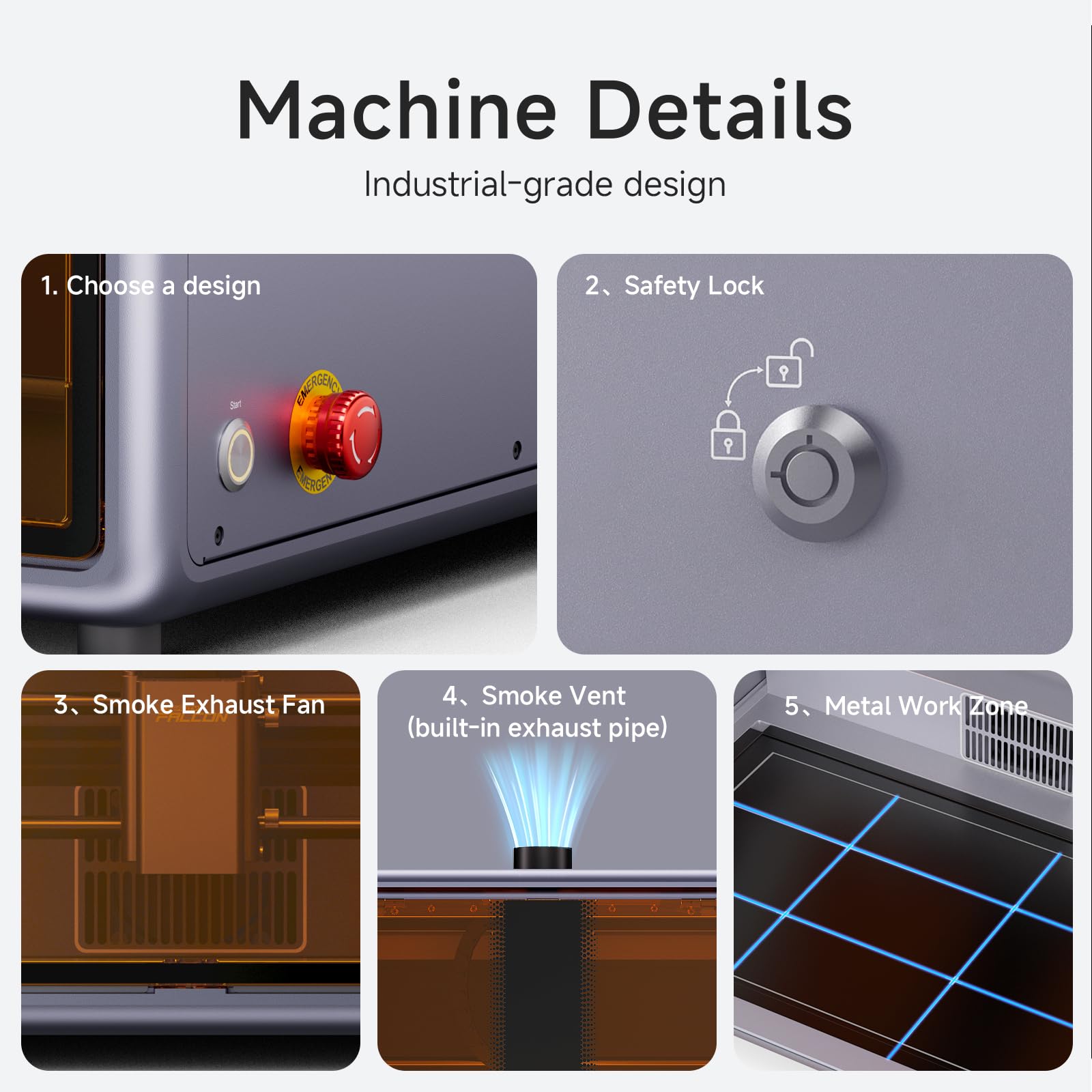

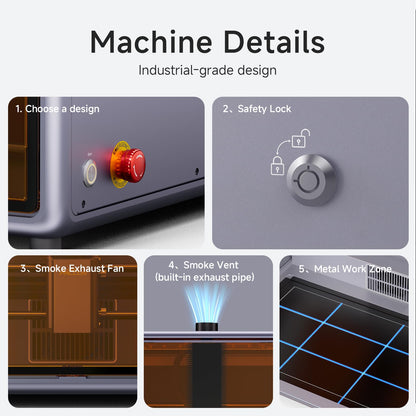

The two protective covers filters 99% of laser light, safeguarding your eyes without the need for goggles. The enclosed design blocks smoke and noise, ensuring a comfortable and secure workspace. Smoke is removed faster by an internal fan, which requires the exhaust to be connected to the outdoors, or the exhaust to be connected to an air purifier for use.With an emergency stop button and a lid-open stop feature, you'll feel a hundred times more secure when you use it.

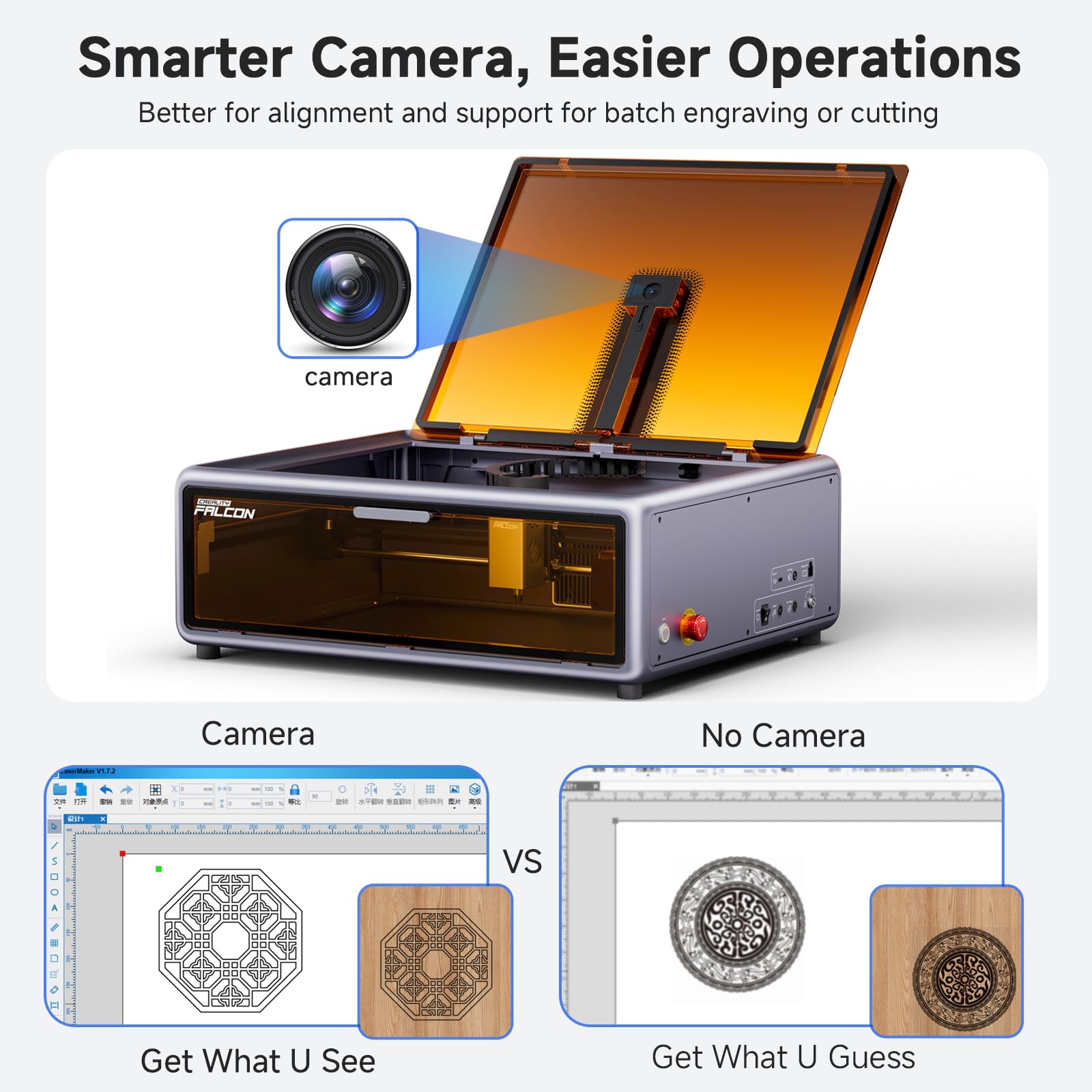

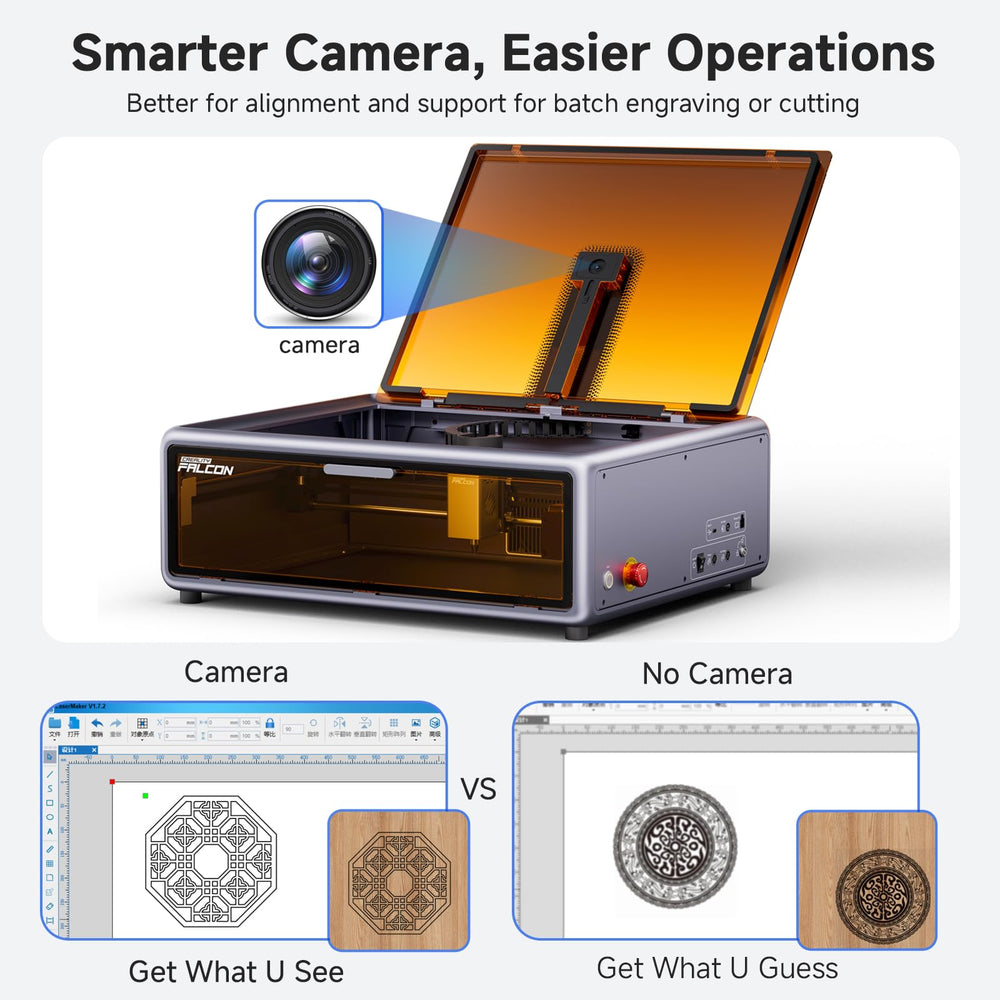

HD Camera for Precise Positioning
A computer connection is required to use the camera. The high-definition panoramic camera can help you engrave the pattern on the material accurately, avoiding the situation of wasting consumables with wrong positioning, and also greatly improve the work efficiency.

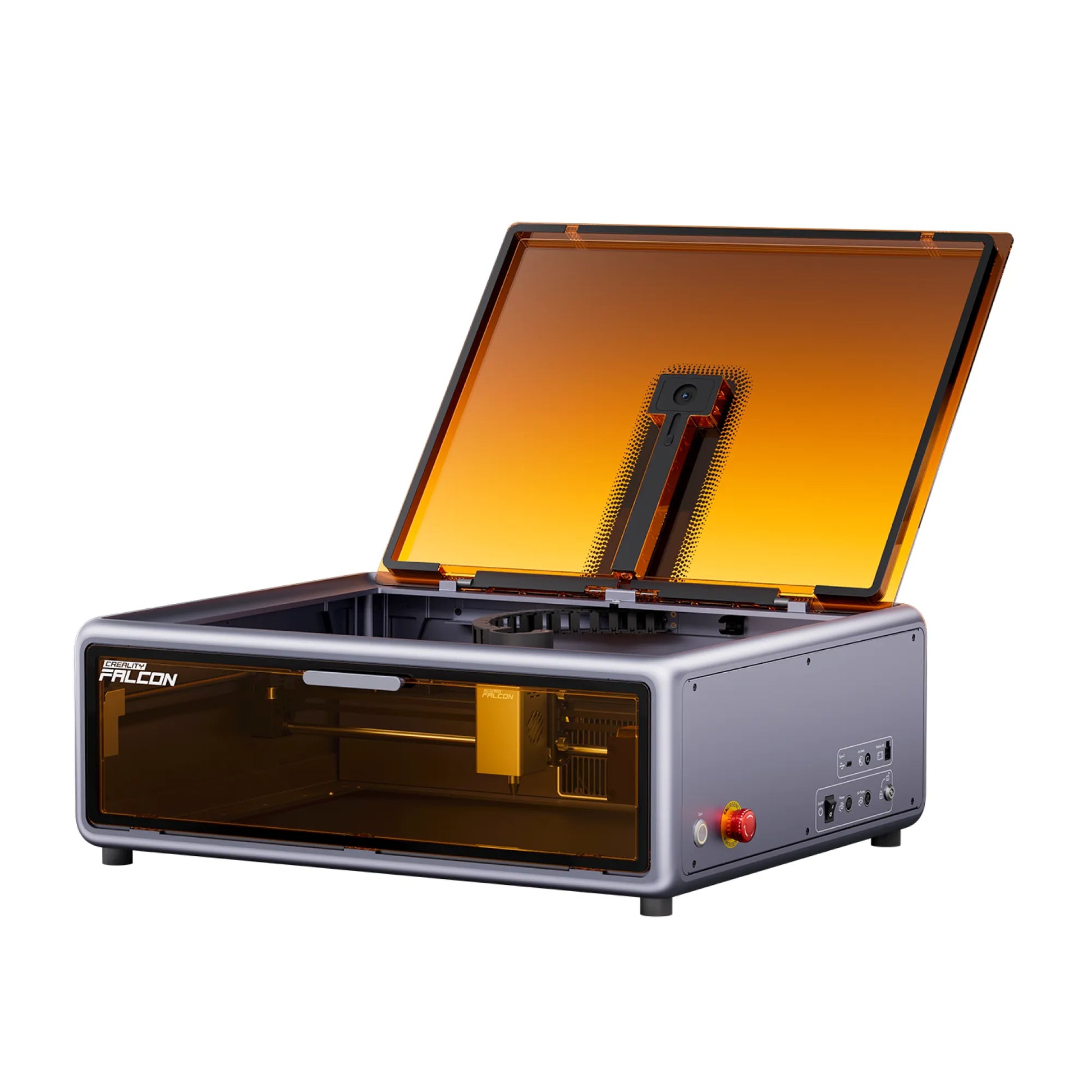

Innovative Double Door Design
Both the upper baffle and the side baffle can be opened easily, opening the side baffle is convenient for placing and taking out the consumables, opening the upper baffle can adjust the engraving position in time, both baffles are transparent design, which is more conducive to all-around observation of the engraving task.

Specifications
Feature | Details |
Product Name | Creality Falcon A1 |
Maximum Machine Power | 120W |
Optical Power | 10W |
Product Size | 567 × 468 × 196 mm |
Equipment Weight | 15.55 kg |
Input Voltage | 100 - 240V~ 50 - 60Hz |
Output Voltage | DC 24.0V 5.0A |
Operating Temperature | 5°C - 35°C |
Engraving Area | 305 mm × 381 mm |
Laser Source | Diode Laser |
Laser Spot | 0.06 × 0.08 mm |
Laser Wavelength | 455±15 nm |
Laser Class | Class 1 (FDA) |
Laser Engraving Software | LightBurn, LaserGRBL, Falcon Design Space |
Operating System | Windows/MacOS |
Supported File Formats | Jpeg, jpg, png, bmp, svg, dxf, etc. |
Supported Materials | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc. |
Certifications | EC60825, FDA, CE, ROHS, FCC, UL Report, PSE, SAA, RCM |
Gross Weight | 25.74 kg |
Package Size | 770 × 645 × 285 mm |
What's in the box
- Laser Engraver
- Exhaust Pipe
- Hose Clamp
- Air Assist Equipment
- Silicone Tube
- Power Supply
- Basswood (300*300*3mm)
- Test Calibration Card
- Rotary Kit Connection Cable
- Multi-level Fixed Focus Block
- Type A to Type C Cable
- Anti-static Brush
- Allen Wrench
FAQs
This laser machine is versatile, supporting engraving and cutting on a variety of materials:
- Wood: Works well with 5mm and 3mm basswood and solid wood for precise engraving and efficient cutting.
- Leather: Allows for high-contrast engraving, showcasing detailed textures.
- Stainless Steel: Capable of engraving after the surface is painted black.
- Slate Coaster: Delivers high-quality engraving results.
- Acrylic: Supports engraving and cutting but requires a kraft paper film on the transparent surface for protection.
- Kraft Paper: Easily handles both engraving and cutting tasks.
