DC 5V/12V Soil Humidity Sensor Controller Relay Automatic Watering Module for Arduino

brand: SainSmart SKU: 101-30-308
$7.99

This is a Soil Humidity Sensor, through regulation it can be applied to Garden automatic watering, soil humidity control system.

  • Potentiometer regulation
  • With high power following electric, can control big current device
  • Delay function, solved no delay of humidity critical state following electric kept of flashing of problem. Simple and practical.
Oops, 0 In Stock
DESCRIPTION


Through potentiometer regulation soil humidity control valve value, can automatically on Garden, Garden automatically watering, family put soil humidity of control, various electronic competition, with high power following electric, can control big current device, is less than set humidity automatically started following electric sucking-in, is greater than set humidity automatically disconnect, and has delay function, solve no delay of humidity critical state following electric kept of flashing of problem, is a simple practical of soil humidity control system.



SPECIFICATION
  • Supply voltage: 12VDC input current: more than 100mA

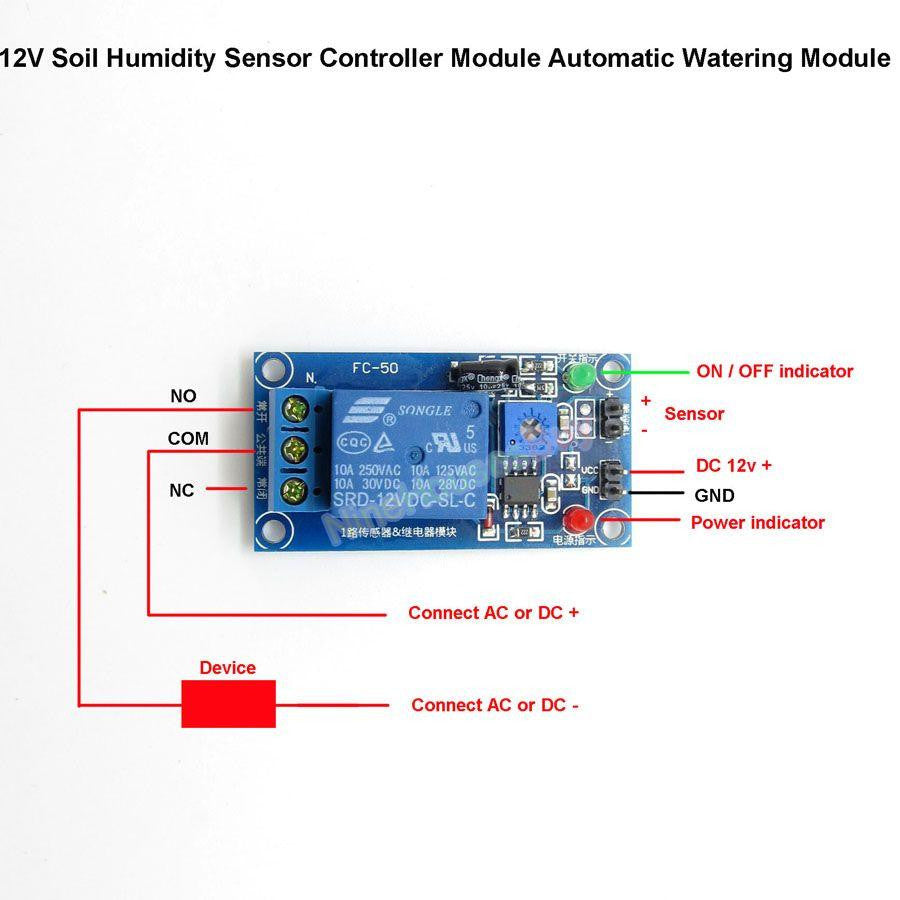

  • Load 250V AC or DC 30V 10A (current below this range can be used)


Application:

  • Humidity detection sensor applied to soil;
  • The blue potentiometer modules are for soil moisture threshold adjustment, adjust clockwise, humidity will be under the control of the greater and turning it counterclockwise smaller;
  • Because of this module with the time delay function, adjust the humidity value, about every mobility need to wait 5-8 seconds, relay changes in corresponding changes in the Green LED lights, until transferred to meet the requirements.


Note: when the sensor was triggered, the device will work.



WHAT'S IN THE PACKAGE
  • 1 x Soil humidity sensor
  • 1 x Relay Control Module
  • 1x Dupont 2P Line
