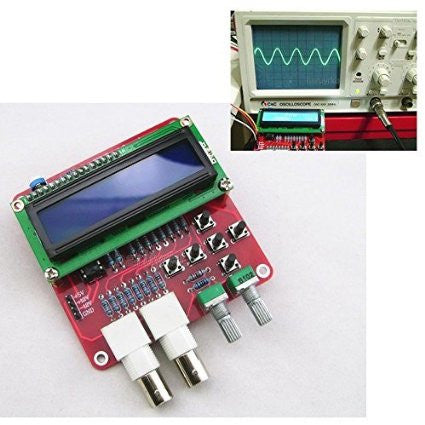

SainSmart DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave Kit

brand: SainSmart SKU: 101-30-253
$15.99
  • Simple circuit with easily accessible and cheap components.
  • Delicated high speed (HS) signal output up to 8MHz.
  • DDS signal with variable amplitude and offset.
  • DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise.
  • Restoring last configuration after power up.
Oops, 0 In Stock
SPECIFICATION
  • Material: PCB + Electronic Components
  • Power Supply: +5V / +12V / -12V
  • Menu Displey: 2 * 16 LCD
  • HS Signal Frequency: 1, 2, 4, 8MHz
  • Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W)
  • Red Board Weight: 20g / 0.7oz
  • Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W)
  • Screen Board Weight: 29g / 1.04oz
  • Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H)
  • Package Weight: 101g / 3.58oz



WHAT'S IN THE PACKAGE

1 x DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave DIY KIT
