Brand: SainSmart

[Discontinued] Digital LED IC Tester IC Detector Meter for Maintenance MOS PNP NPN [US ONLY]

[Discontinued] Digital LED IC Tester IC Detector Meter for Maintenance MOS PNP NPN [US ONLY]

SKU:  101-92-130
$22.99
-39% $37.99 $22.99
Save $15.00
Shipping calculated at checkout.
  • 101-92-130
View full details
SPECIFICATION

Catalogue

Function

Search

Auto mode

Device search , the unknown model chip inserted in ic seat can automatically identify the part number
( Automatic identification without input) ( other directories are auto- mode )

5.0v mode

3.3v mode

74HC

74HC series of logic device test (of the same, and 74LS series base drive level (different) need to manually enter the model)

74LS

74LS series of logic device test (of the same, and 74HC series base drive level (different) need to manually enter the model)

CD40

CD4000 series of logic device test (different, and HEF40 series base drive level (the same) need to manually enter the model)

HEF40

HEF4000 series of logic device test (different, and CD40 series base drive level (the same) need to manually enter the model)

45/145

45 series 145 series logic device test (the need to manually enter the model)

OTHER

Interface drive device testing, such as: MAX232, MAX485, 75175, 75176, 75c11.. (the need to manually select the model)

AMP

Operational amplifier, comparator class testing, such as: LM324, LM358, LM339, LM393, LM2902...(the need to manually enter the model).

    TR

Transistor identification , and automatically determine the transistor
types and pin order . Identifiable NPN , PNP, transistors , N- MOS , P -MOS way thyristor , triac , common anode common cathode rectifier
 automatic identification without input )

ZD

Zener regulator value test , test regulator regulator 0v-50v range accuracy 0.01v automatic identification without the need to enter

LIGHT

Optocoupler secondary the saturation voltage test , can test the the ordinary 4 feet optocoupler secondary
saturation voltage automatic identification without input )

OFF

Shutdown



The panel has 5 buttons are on the left, right, bottom, and Enter keys.
The next key is used to adjust the directory and change the model number, the or so key to move around the cursor options to change.The Enter key for the switch machine and execute the test command.Gently open the battery cover, add a 2X1.5V laminated battery, and then close the battery cover.Press Enter for more than 2 seconds can boot, boot automatically display the current battery voltage, when the voltage is lower than 2.5V, please replace the battery, the low voltage will affect the reliability of the test result and protection automatic shutdown.
Boot: Enter key press 2 seconds then boot.
Shutdown: 1 in the OFF directory, press Enter button to immediately shutdown.
2 in any directory, press Enter button for more than 10 seconds then off.
3 in no operation after 60 seconds, automatic shutdown

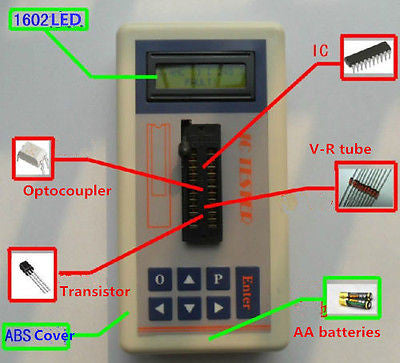

ethods of devices placed:
1, the top of the chip alignment
2, put the most left transistor three slot
3, a 13 foot alignment IC Optocoupler
4, voltage regulator tubes placed IC block 13 and 14 feet.

Note: the transistor display pin order from left to right and the corresponding IC block, 10 feet, 11 feet, 12 feet

rompt

explanation

OK

Tests are normal

Batter

Battery voltage

Not found

Can’t find

Fault

The chip damaged or type mismatch

Open

Open circuit

Not supported

non-support

NPN

Triode

 PNP

Triode

  N-MOS

FET

P-MOS

FET

1-SCR

Way SCR

2-SCR

Triac

2D

Common cathode and common anode rectifier

A?k?b?c?e?g

Specific pin

Out of range

Zener voltage beyond the scope

ERR1?2

Self-test failure



WHAT'S IN THE PACKAGE
  • 1 x Digital lcd Transistor Tester (not include battery)
Documents:
