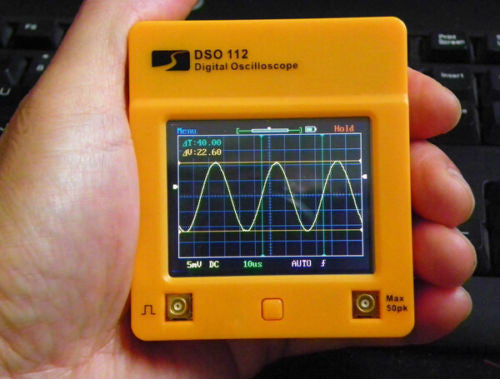

[Discontinued] DSO112 Mini Digital Touch Screen Handheld Pocket Digital Oscilloscope + Probe
Brand: SainSmart SKU: 20-010-212

[Discontinued] DSO112 Mini Digital Touch Screen Handheld Pocket Digital Oscilloscope + Probe

SKU: 20-010-212 Variants ID: 45101843092
$49.00




Specifications:

  • Analog frequency bandwidth: 0-2MHz
  • Max.realtime sampling ratio: 2.5Msps
  • Vertical sensitivity: 10us/Div-50us/Div total 21 grades
  • Max.input voltage: 100Vpk
  • Max.record length: 512/1024 Optional
  • Input resistance: 1mohm
  • ADC precision: 8bit
  • Coupling method: DC/AC
  • Trigger type: Auto, Nromal, Single
  • Trigger side: Up/Down
  • With HOLD function
  • Roll type slow signal display, could continuous display signals
  • With time vernier
  • With voltage vernier
  • Could save/call out sampling wave
  • Battery/USB power supply
  • Built-in smart charger
  • Dimension: 70*80*18mm
  • Weight: 85g


Package list:

  • 1x DSO 112 Digital Oscilloscope (Lipo battery is NOT included)
  • 2x Simple probe
  • 1x USB cable
  • 1x User Manual
