SainSmart DSO138 2.4" TFT Digital Oscilloscope Kit DIY parts ( 1Msps ) with probe + Acrylic DIY Case

SKU: 101-10-C04 2 reviews Variants ID: 45102210004
$29.99

NOTE: ONLY ship to US shipping address

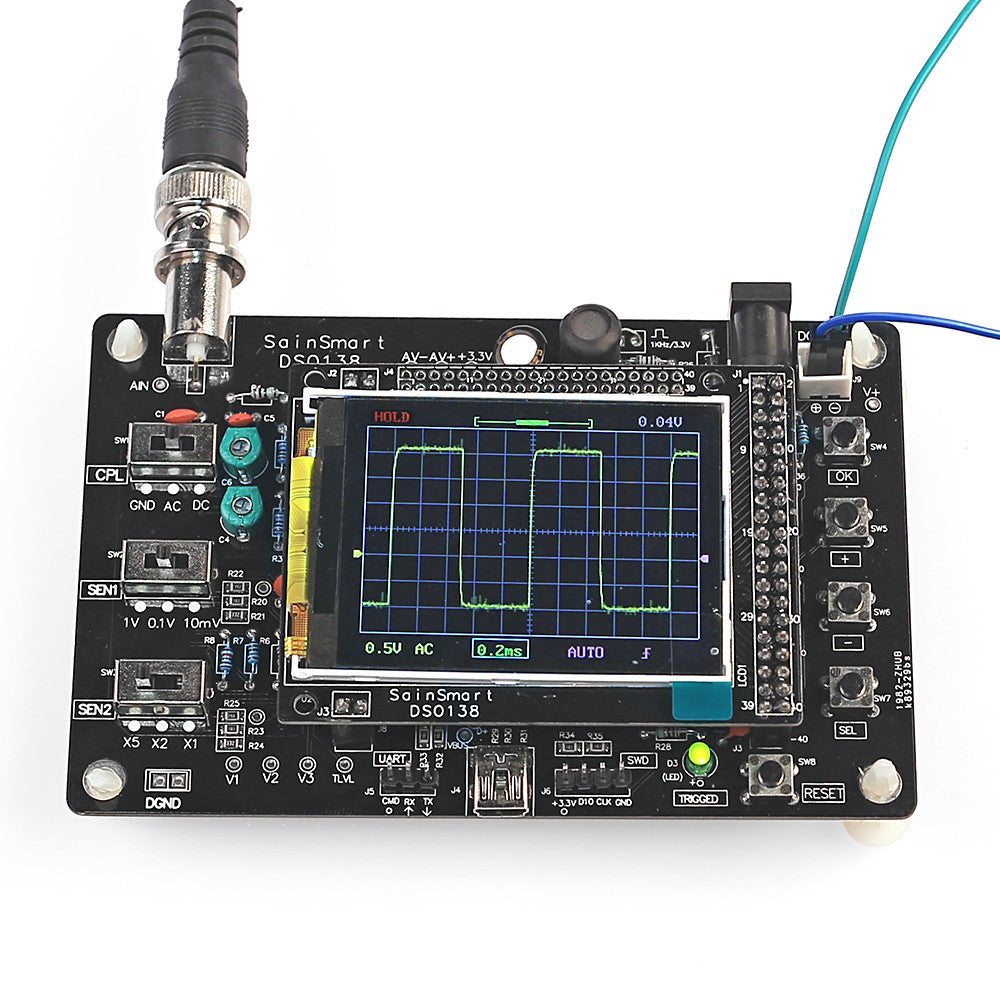

This is SainSmart DSO138 2.4" TFT 1Msps Digital oscilloscope kit for DIY. It's easy to solder. Perfect for students to identify elements, inline elements welding, soldering SMD components training. And you could also easily develop a secondary development kit based on SainSmart DSO138. For example, it can be changed to voltmeter, data loggers, and so on.

Oops, 0 In Stock
SPECIFICATION
  • highest real-time sampling rate : 1Msps
  • Accuracy : 12Bit
  • Sampling buffer depth : 1024 bytes
  • Analog bandwidth : 0 - 200KHz
  • Vertical sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
  • Adjustable vertical displacement , and with instructions
  • Input impedance : 1MΩ
  • Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
  • Coupling modes include DC / AC / GND
  • Horizontal time base range : 10μs / Div - 50s / Div ( 1-2-5 progressive manner )
  • With automatic , conventional and single -shot mode , easy waveform capture the moment
  • Available rising or falling edge trigger
  • Adjustable trigger level position , and with instructions
  • Observable trigger waveform before ( negative delay )
  • Can always freeze the waveform display (HOLD function )
  • Comes 1Hz /3.3V square wave test signal source
WHAT'S IN THE PACKAGE

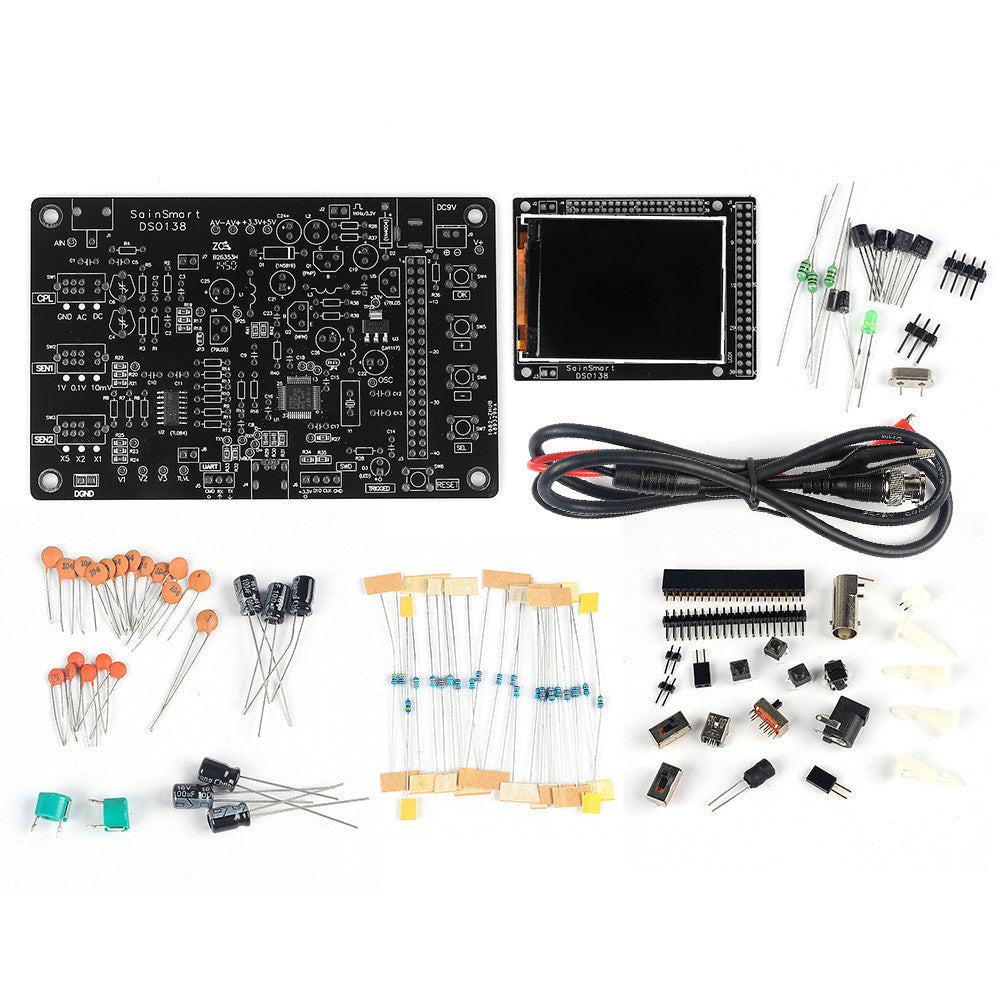

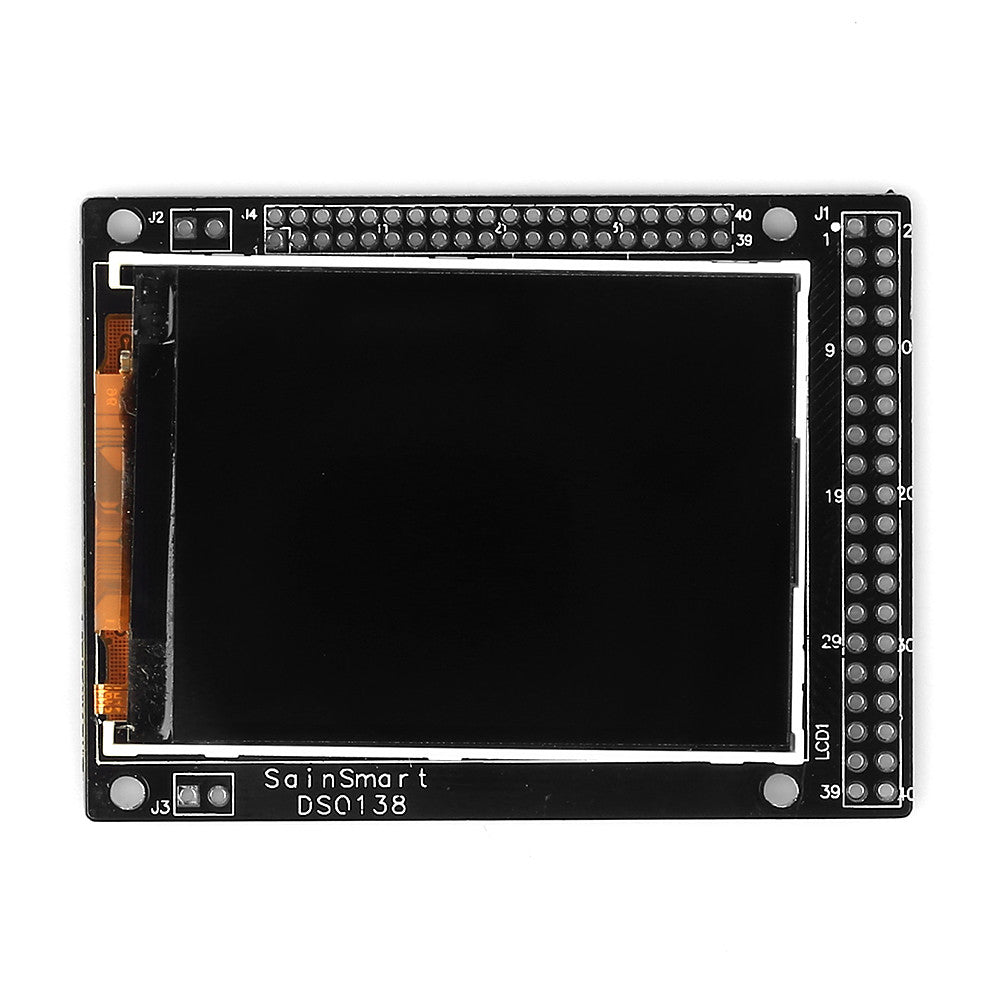

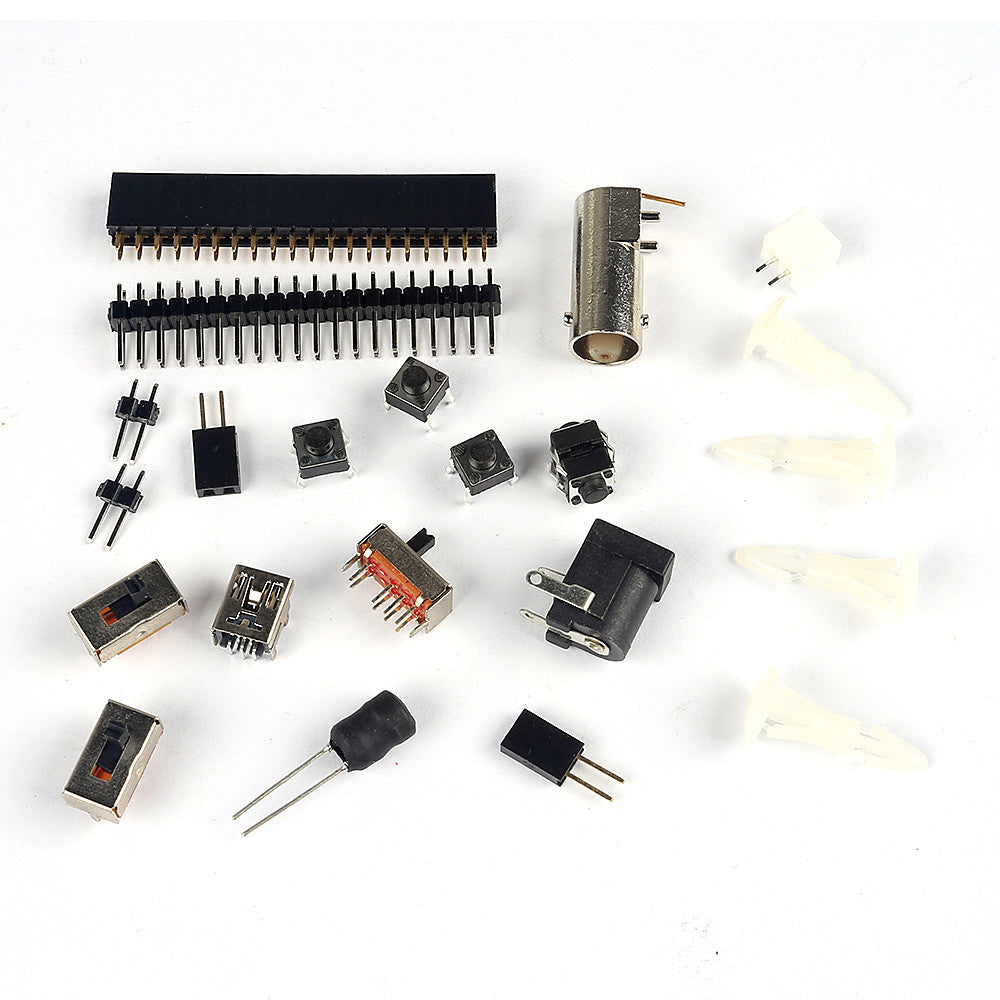

  • 1 x DSO138 2.4" TFT Digital Oscilloscope Kit DIY parts 1Msps

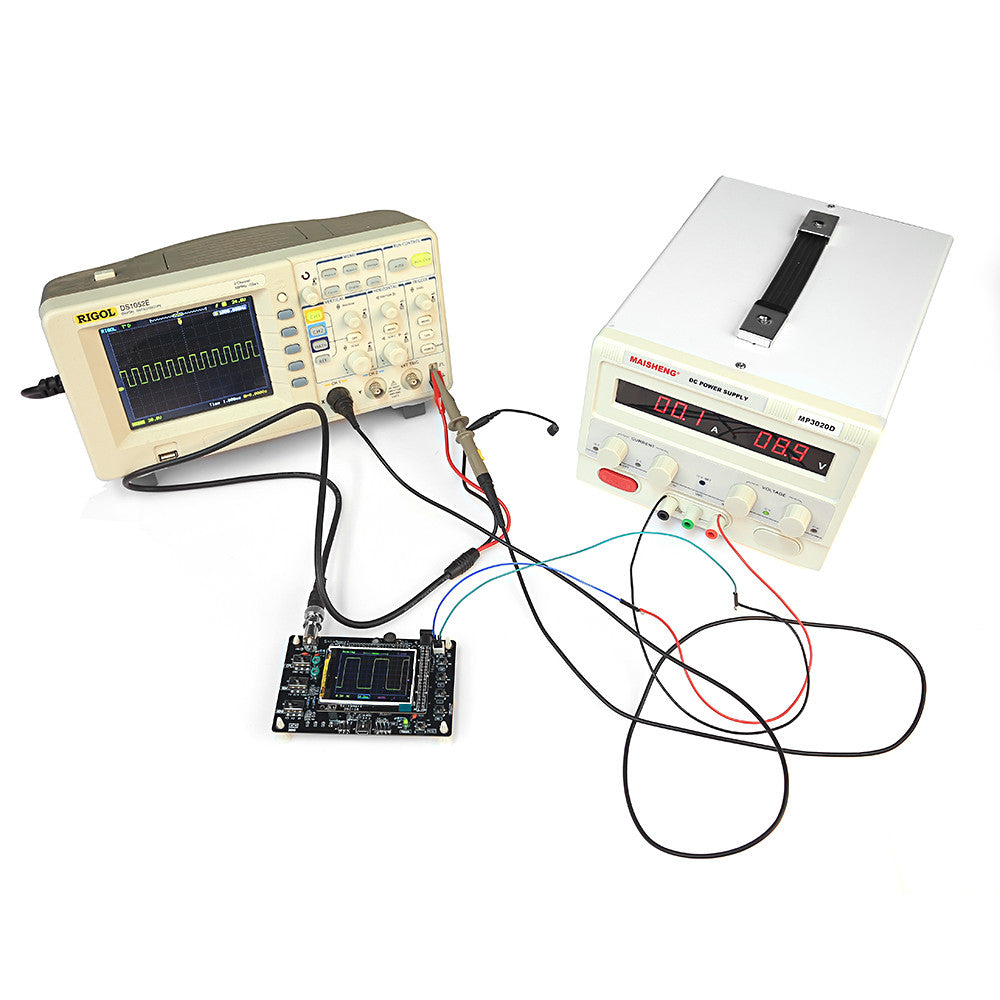

  • 1 x Probe

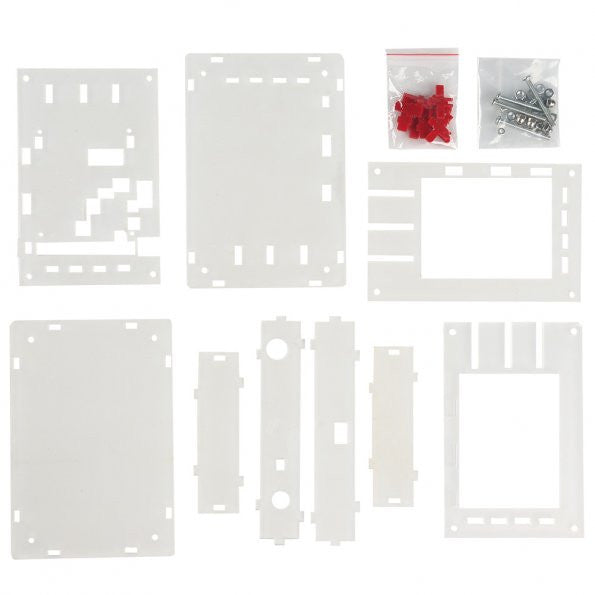

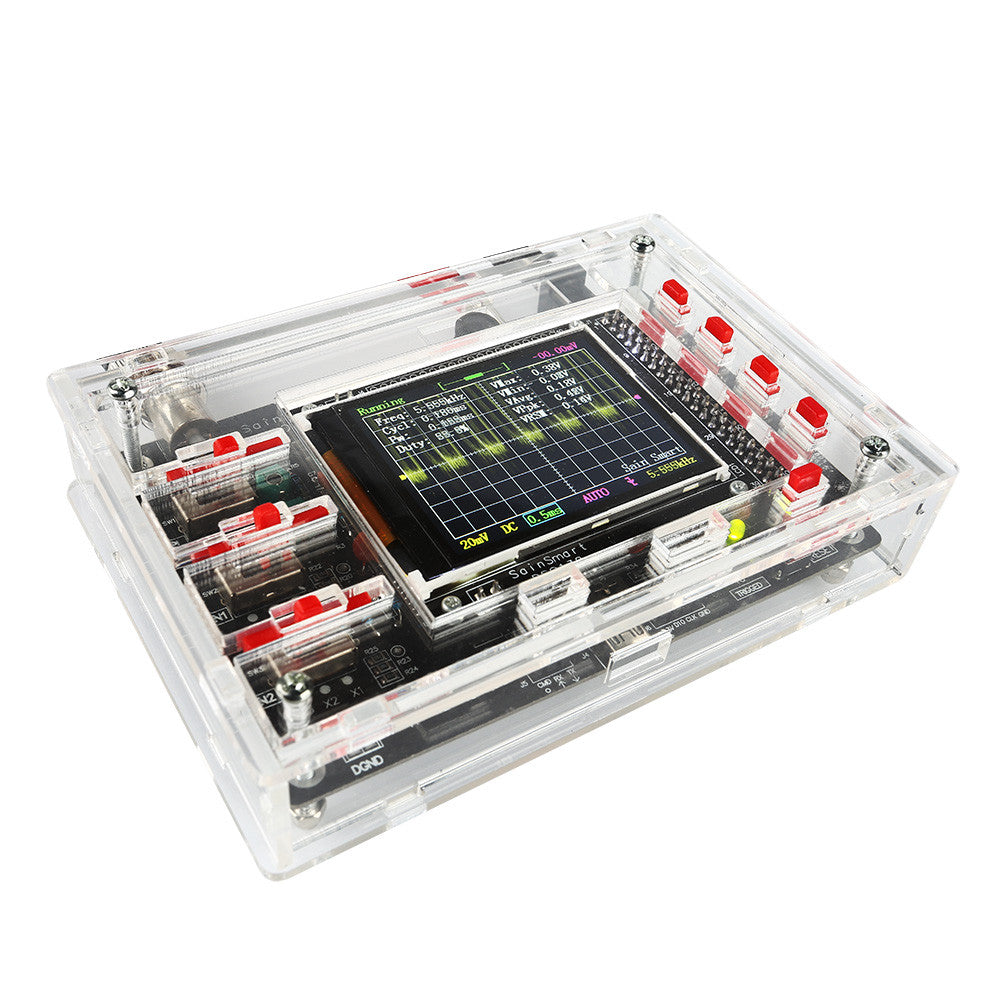

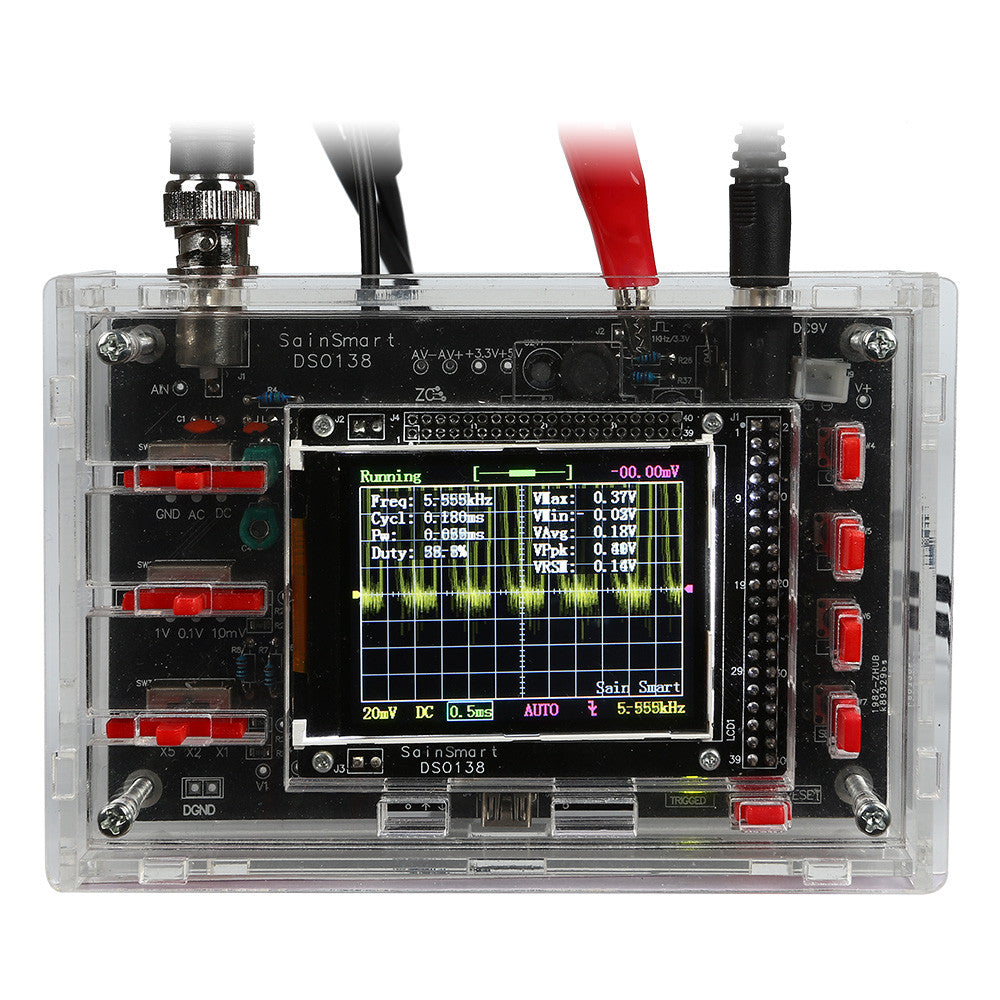

  • 1 x Acrylic DIY Case

Note: 9V DC power supply required. Not included.
