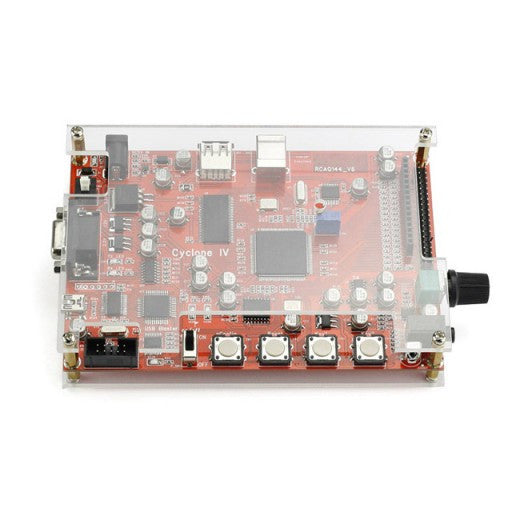

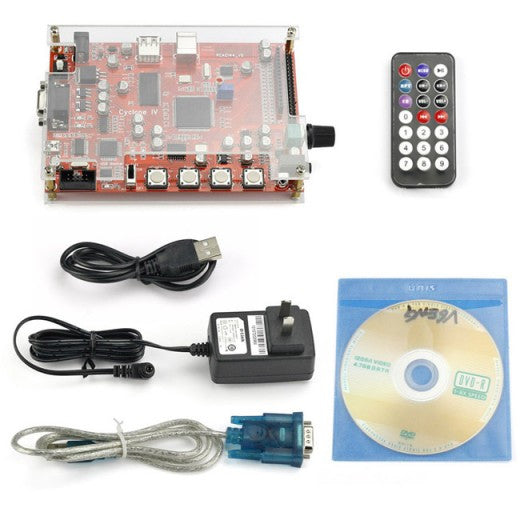

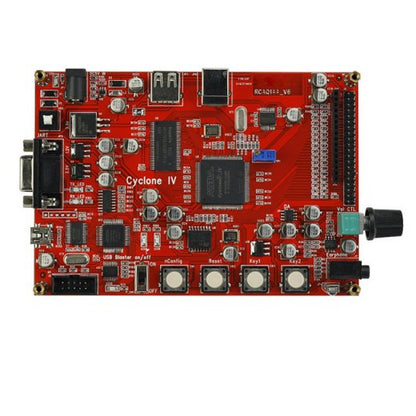

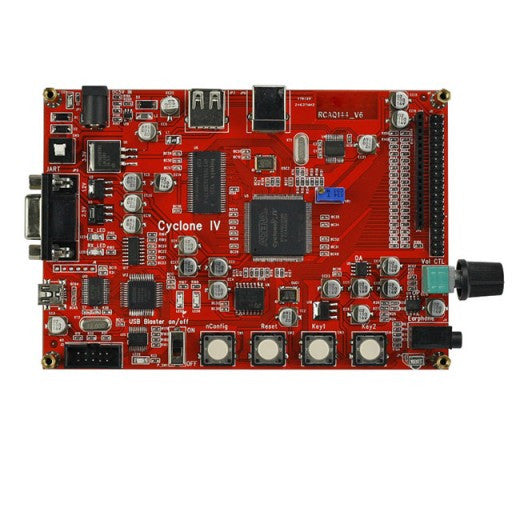

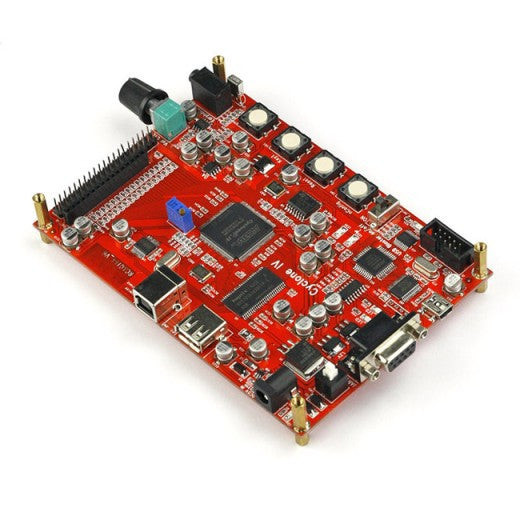

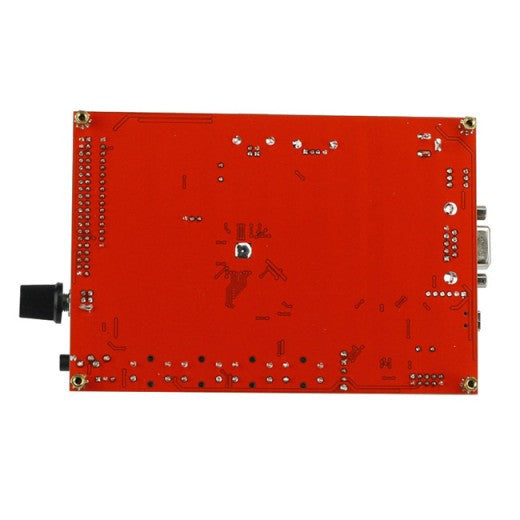

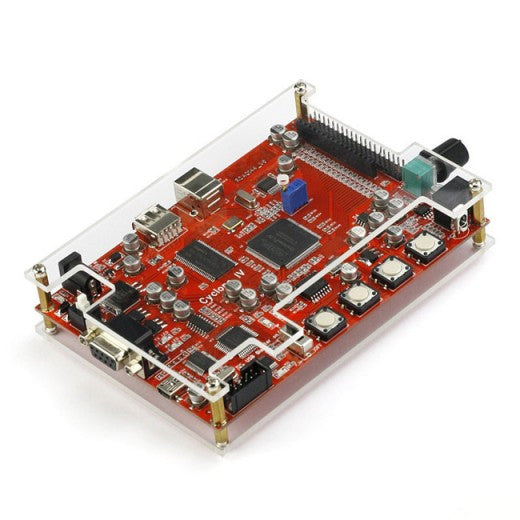

[Discontinued] EP4CE6 EP4CE6E22C8N ALTERA Cyclone IV FPGA Development Board 6K 144EQFP
Brand: SainSmart SKU: 20-016-109

[Discontinued] EP4CE6 EP4CE6E22C8N ALTERA Cyclone IV FPGA Development Board 6K 144EQFP

SKU: 20-016-109 Variants ID: 45100311956
$120.87


OverView:

Altera’s new Cyclone® IV FPGA device family extends the Cyclone FPGA series leadership in providing the market’s lowest-

cost, lowest-power FPGAs, now with a transceiver variant. Cyclone IV devices are targeted to high-volume, cost-sensitive

applications, enabling system designers to meet increasing bandwidth requirements while lowering costs. Built on an

optimized low-power process, the Cyclone IV device family offers the following two variants:

¦ Cyclone IV E—lowest power, high functionality with the lowest cost

¦ Cyclone IV GX—lowest power and lowest cost FPGAs with 3.125 Gbps

transceivers

Providing power and cost savings without sacrificing performance, along with a low-cost integrated transceiver option,

Cyclone IV devices are ideal for low-cost, small-form-factor applications in the wireless, wireline, broadcast, industrial,

consumer, and communications industries.





Description:



EU RoHS

Compliant

China RoHS

Compliant

Family Name

Cyclone IV

Number of Logic Blocks/Elements

6272

# I/Os (Max)

91

Operating Supply Voltage (Typ)

1.2V

Logic Cells

6272

RAM Bits

276480

Operating Supply Voltage (Min)

1.16V

Operating Supply Voltage (Max)

1.24V

Operating Temp Range

0C to 85C

Operating Temperature Classification

Commercial

Mounting

Surface Mount

Pin Count

144

Package Type

EQFP
