[Discontinued] EPSOLAR Viewstar VS3024BN PWM Solar Charge Controller 30A 12/24V With LCD Display for Solar Battery Charging
Brand: SainSmart SKU: 101-97-131

[Discontinued] EPSOLAR Viewstar VS3024BN PWM Solar Charge Controller 30A 12/24V With LCD Display for Solar Battery Charging

SKU: 101-97-131 Variants ID: 45102807252
$99.99

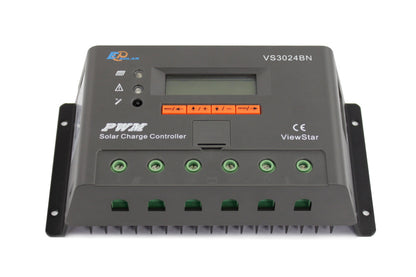

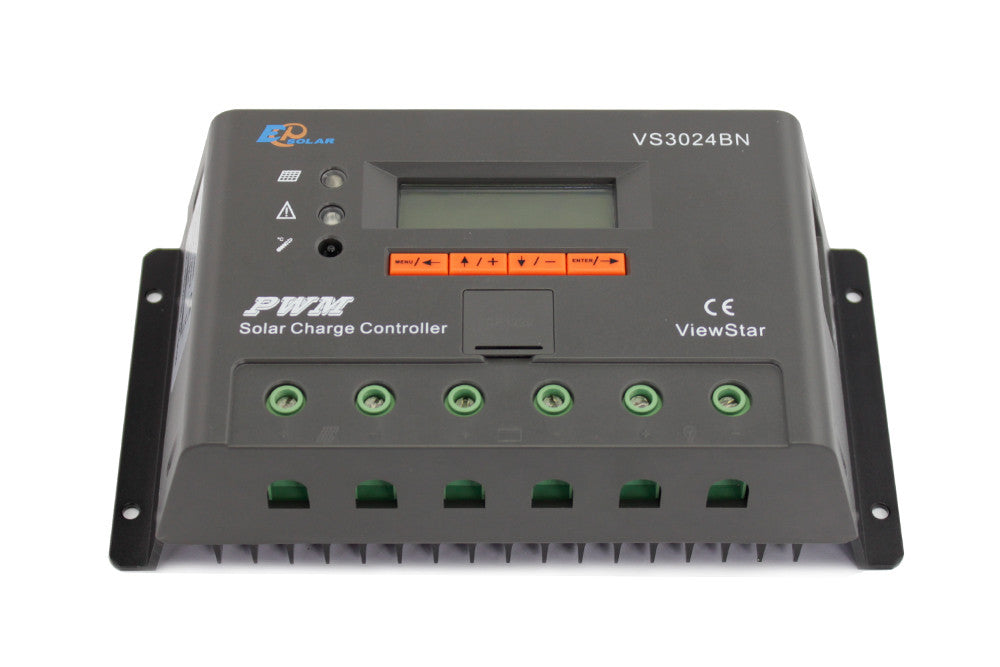

This is EPSOLAR Viewstar VS3024BN PWM Solar Charge Controller 30A 12/24V With LCD Display for Solar Battery Charging

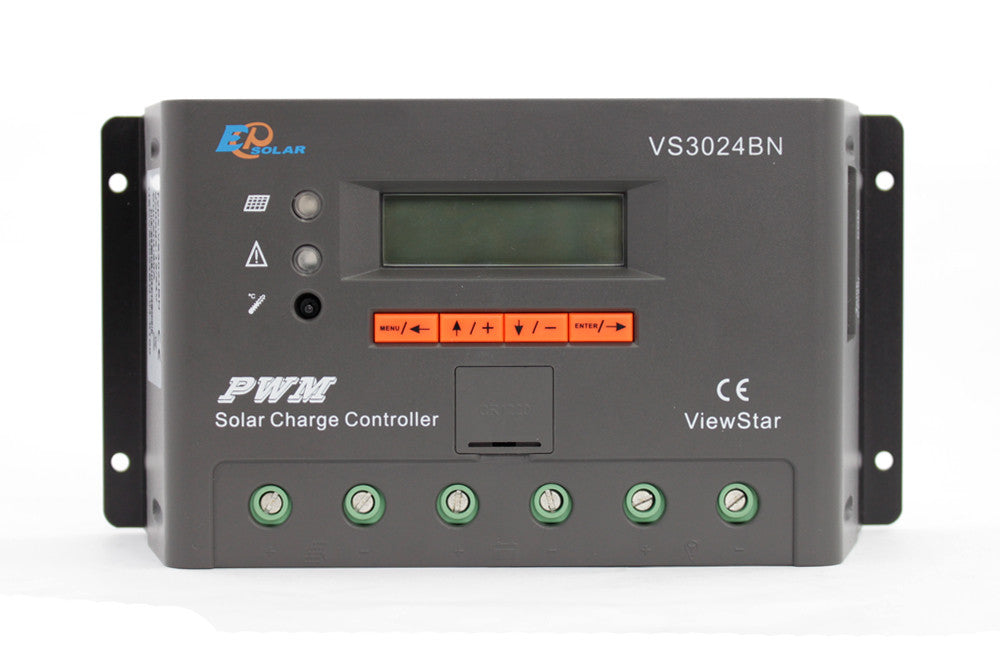

  • Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
  • 32 bit MCU with high speed
  • 12 bit A/D high-precision sampling to ensure accuracy
  • Excellent EMC design
  • High efficient Series PWM charging
  • Use MOSFET as electronic switch
  • Widely used, automatically recognize day/night
  • Humanized design of browser interface, undertake every operating conveniently
  • Full control parameters setting and modification, diversified load control mode
  • Gel, Sealed and Flooded battery type option
  • Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically

This is EPSOLAR Viewstar VS3024BN PWM Solar Charge Controller 30A 12/24V With LCD Display for Solar Battery Charging

  • Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
  • 32 bit MCU with high speed
  • 12 bit A/D high-precision sampling to ensure accuracy
  • Excellent EMC design
  • High efficient Series PWM charging
  • Use MOSFET as electronic switch
  • Widely used, automatically recognize day/night
  • Humanized design of browser interface, undertake every operating conveniently
  • Full control parameters setting and modification, diversified load control mode
  • Gel, Sealed and Flooded battery type option
  • Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically





Electronic Protection
  • Overheating
  • Over discharging
  • Over charging
  • Load overload
  • Load short circuit
  • PV reverse polarity
  • Battery reverse polarity
SPECIFICATION
  • Electrical parameters:VS3024BN
  • Normal system voltage:12V/24V auto work
  • Rated battery current:30A
  • Max. battery voltage:32V
  • Self-consumption: 8mA

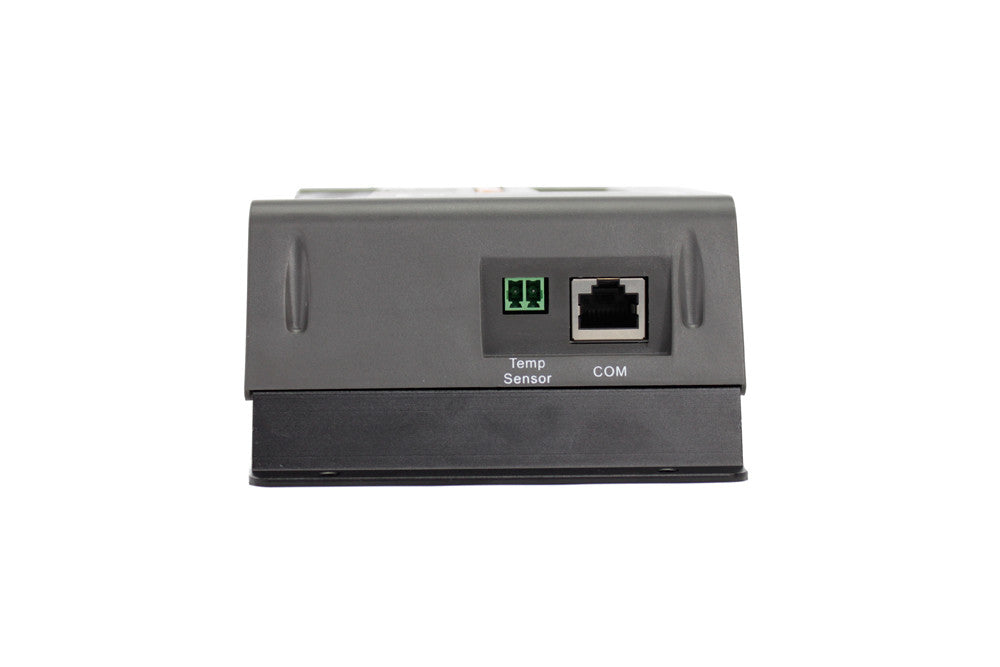

  • Communication:TTL232 / 8pin RJ45
  • Equalize Charging Voltage:Sealed: 14.6V; x2/24V Flooded: 14.8V; x2/24V
  • Boost Charging Voltage:Gel: 14.2V; x2/24V Sealed: 14.4V; x2/24V
  • Flooded: 14.6V; x2/24V
  • Float Charging Voltage:13.8V;x2/24V
  • Low Voltage Reconnect Voltage:12.6V;x2/24V
  • Low Voltage Disconnect Voltage:11.1V;x2/24V
  • Temp. compensation: -30mV/12V
  • Relative humidity:10%~90% Non-condensation
  • Working temperature:-35℃~+80℃
  • Enclosure: IP20

WHAT'S IN THE PACKAGE
  • 1 x VS3024BN Solar Charging Controller
  • 1 x User Manual
