Brand: SainSmart SKU: 101-97-133

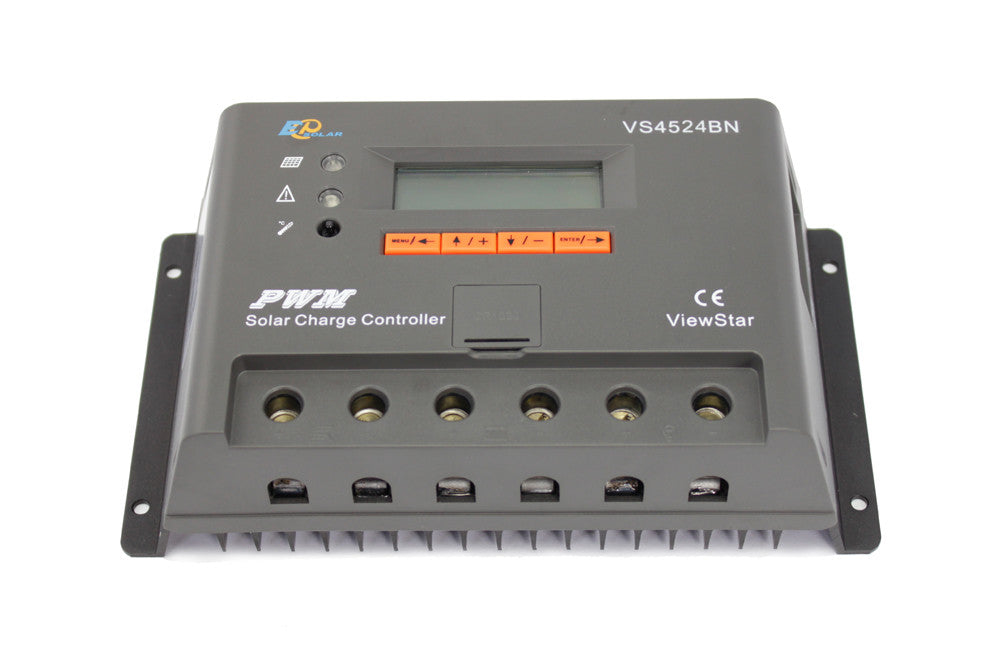

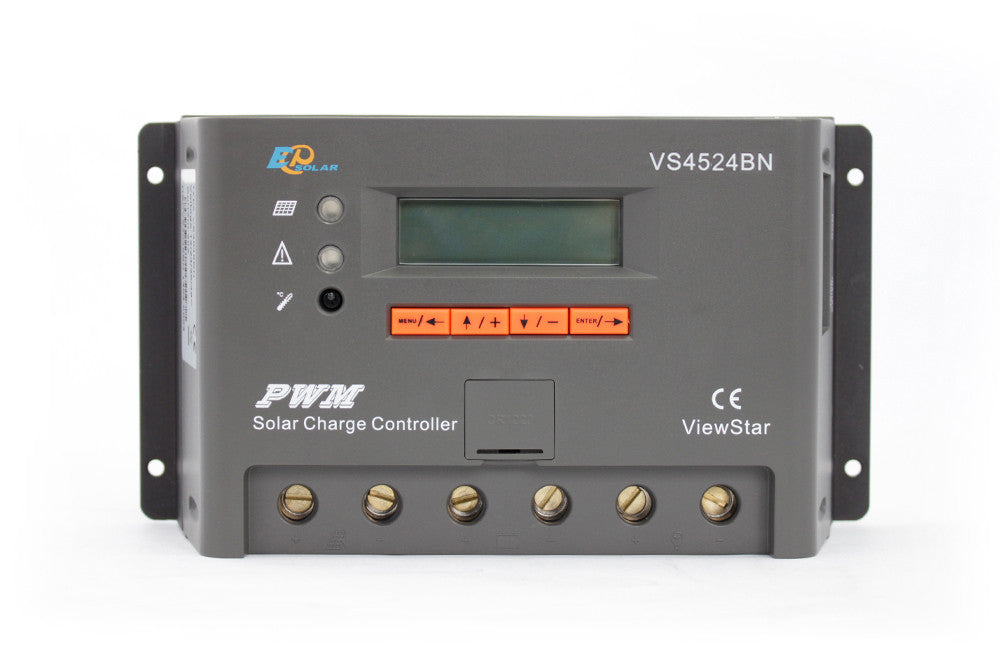

[Discontinued] EPSolar Viewstar VS4524BN PWM Solar Battery Charge Controller 45A 12/24V With LCD Display for Solar Battery Charging

SKU: 101-97-133 Variants ID: 45102810260
$129.99

This is EPSolar Viewstar VS4524BN PWM Solar Battery Charge Controller 45A 12/24V With LCD Display for Solar Battery Charging

  •     Excellent EMC design
  •     32 bit MCU with high speed
  •     High efficient Series PWM charging
  •     Four battery type options: Sealed, Gel, Flooded, and USER
  •     Intelligent lighting and timer control for solar lighting system
  •     12 bit A/D high-precision sampling to ensure accuracy
  •     Use MOSFET as electronic switch
  •     Full control parameters setting and modification, diversified load control mode
  •     Humanized design of browser interface, undertake every operating conveniently
  •     Temperature compensation
  •     Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation
  •     Energy statistics function
  •     RS485 ports with MODBUS communication protocol
  •     Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  •     Field upgradable firmware

This is EPSolar Viewstar VS4524BN PWM Solar Battery Charge Controller 45A 12/24V With LCD Display for Solar Battery Charging

  •     Excellent EMC design
  •     32 bit MCU with high speed
  •     High efficient Series PWM charging
  •     Four battery type options: Sealed, Gel, Flooded, and USER
  •     Intelligent lighting and timer control for solar lighting system
  •     12 bit A/D high-precision sampling to ensure accuracy
  •     Use MOSFET as electronic switch
  •     Full control parameters setting and modification, diversified load control mode
  •     Humanized design of browser interface, undertake every operating conveniently
  •     Temperature compensation
  •     Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation
  •     Energy statistics function
  •     RS485 ports with MODBUS communication protocol
  •     Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  •     Field upgradable firmware




    Electronic Protections

    1.     PV short circuit  protection
    2.     PV reverse polarity protection
    3.     Battery overcharge protection
    4.     Battery over discharge protection
    5.     Battery reverse polarity protection
    6.     Load overload protection
    7.     Load short circuit protection
    8.     Overheating protection


    SPECIFICATION

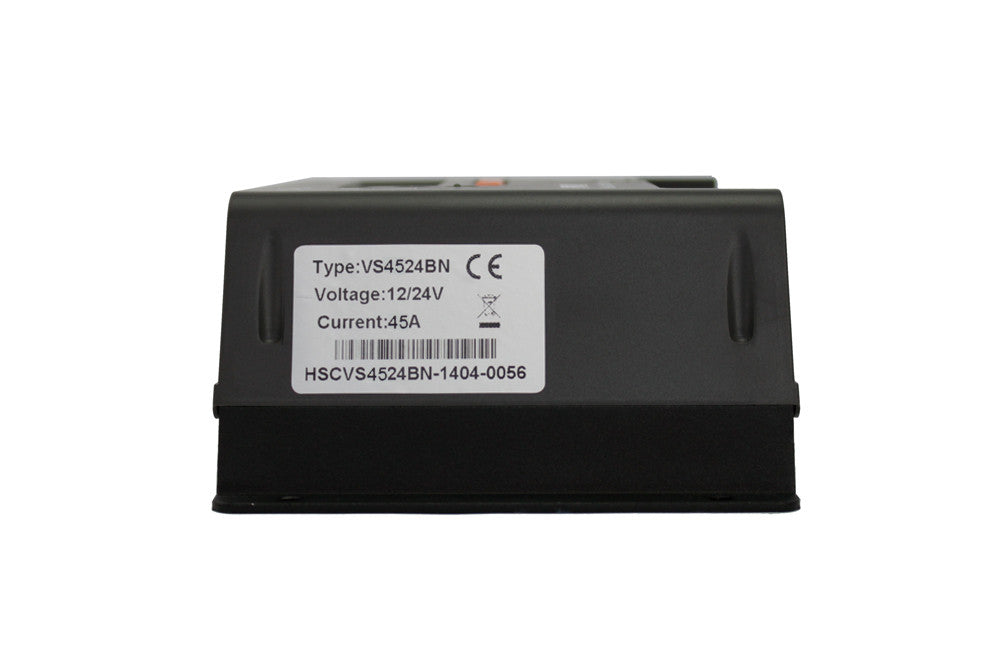

    • Electrical parameters:VS4524BN
    • Normal system voltage:12V/24V auto work
    • Rated battery current:45A
    • Max. battery voltage:32V
    • Self-consumption: â‰?8mA

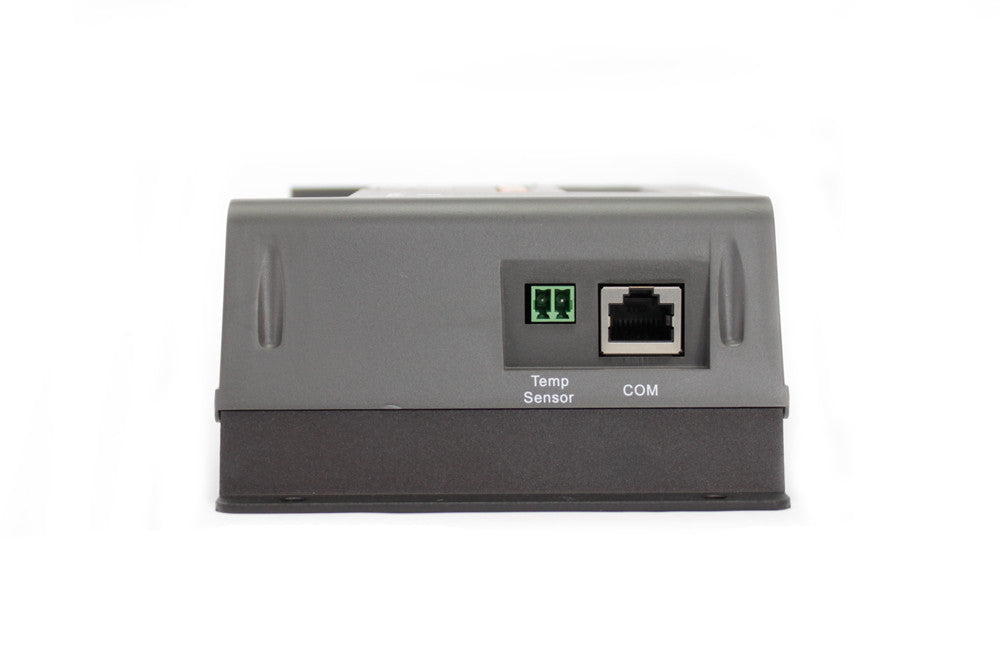

    • Communication:TTL232 / 8pin RJ45
    • Equalize Charging Voltage:Sealed:14.6V;x2/24V Flooded:14.8V;x2/24V
    • Boost Charging Voltage:Gel:14.2V;x2/24V Sealed:14.4V;x2/24V Flooded:14.6V;x2/24V
    • Float Charging Voltage:13.8V;x2/24V
    • Low Voltage Reconnect Voltage:12.6V;x2/24V
    • Low Voltage Disconnect Voltage:11.1V;x2/24V
    • Temp. compensation:-30mV/?/12V(25?)
    • Relative humidity:10%~90% Non-condensation
    • Working temperature:-35?~+80?
    • Enclosure:IP20


    WHAT'S IN THE PACKAGE

    • 1 x VS4524BN Solar Charging Controller
    • 1 x User Manual
